Hyper-Cube High-Dimensional Hypervisor Fuzzing Sergej Schumilo, Cornelius Aschermann, Ali Abbasi, Simon Wrner and Thorsten Holz Chair for Systems Security Ruhr-Universitt Bochum Motivation Hypervisor Motivation Hypervisor VM 1 VM 2

slide-1
SLIDE 1

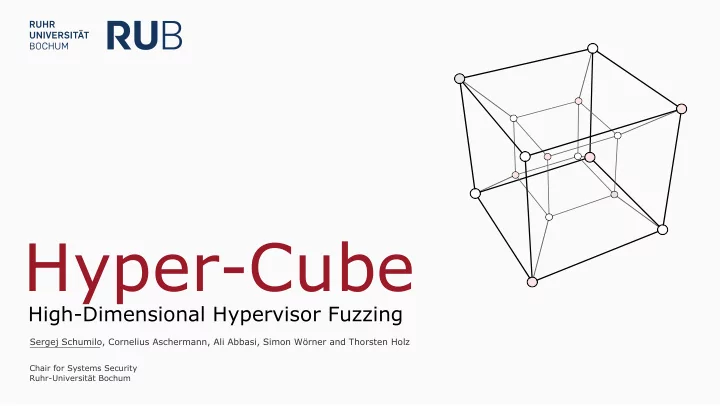

Hyper-Cube

High-Dimensional Hypervisor Fuzzing

Sergej Schumilo, Cornelius Aschermann, Ali Abbasi, Simon Wörner and Thorsten Holz

Chair for Systems Security Ruhr-Universität Bochum

slide-2
SLIDE 2

Hypervisor

Motivation

slide-3
SLIDE 3

VM 1 VM 2 Hypervisor

Motivation

slide-4
SLIDE 4

VM 1 VM 2 Hypervisor

Motivation

Malicious Guest

(Privileged; Running in Ring-0)

slide-5
SLIDE 5

VM 1 VM 2 Hypervisor

Motivation

Local VM DoS

(Crash or Deadlock)

slide-6
SLIDE 6

VM 1 VM 2 Hypervisor

Motivation

slide-7
SLIDE 7

VM 1 VM 2 Hypervisor

Motivation

Virtual Machine DoS

(Crash or Deadlock)

slide-8
SLIDE 8

VM 1 VM 2 Hypervisor

Motivation

Virtual Machine Escape

(Other Guest)

slide-9
SLIDE 9

VM 1 VM 2 Hypervisor

Motivation

slide-10
SLIDE 10

VM 1 VM 2 Hypervisor

Motivation

Host DoS

(Kernel Panic or Deadlock)

slide-11
SLIDE 11

VM 1 VM 2 Hypervisor

Motivation

Virtual Machine Escape

(Host)

slide-12
SLIDE 12

VM 1 VM 2 Hypervisor

Motivation

slide-13
SLIDE 13

Challenge

slide-14
SLIDE 14

Challenge

Fuzzer of your Choice

slide-15
SLIDE 15

Challenge

Fuzzer of your Choice Target Software

slide-16
SLIDE 16

Challenge

Fuzzer of your Choice Target Software

slide-17
SLIDE 17

Challenge

User Space Fuzzing

slide-18
SLIDE 18

Challenge

Hypervisor Fuzzing

slide-19
SLIDE 19

Attack Surface

slide-20
SLIDE 20

Hypervisor Attack Surface

Guest Hypervisor

① ②
slide-21
SLIDE 21

Hypervisor Attack Surface

Guest Hypervisor

① ②
slide-22
SLIDE 22

Hypervisor Attack Surface

Guest Hypervisor Code

... mov cr4, 0xAF ...

Hypervisor Core

Privileged Instructions

① Emulation Request ② Return to Guest
slide-23
SLIDE 23

Hypervisor Attack Surface

① ②
slide-24
SLIDE 24

Implementation

slide-25
SLIDE 25

Design Goals

  • Blackbox Fuzzing with High Througput
  • High-Dimensional in Terms of

➤ Interfaces ➤ Operations

  • x86 Hypervisor Agnostic
slide-26
SLIDE 26

➤ ➤

Our Approach

Hypervisor

slide-27
SLIDE 27

➤ ➤

Our Approach

Hypervisor VM

slide-28
SLIDE 28

➤ ➤

Our Approach

Hypervisor VM

Hyper-Cube OS

slide-29
SLIDE 29

➤ ➤

Our Approach

Hypervisor VM

Hyper-Cube OS

Interface

Enumeration

slide-30
SLIDE 30

➤ ➤

Our Approach

Hypervisor VM

Hyper-Cube OS

Interface

Enumeration

PCI Devices ISA Devices HPET PIC APIC Chipset MSR Hypercalls

slide-31
SLIDE 31

➤ ➤

Our Approach

Hypervisor VM

Hyper-Cube OS PCI Devices ISA Devices HPET PIC APIC Chipset MSR Hypercalls

Tesseract

Interpreter

slide-32
SLIDE 32

Tesseract Handlers

write_mmio read_mmio vmport xor_mmio bruteforce_mmio memset_mmio writes_mmio reads_mmio mmio_write_scratch_ptr write_io read_io xor_io bruteforce_io memset_io writes_io reads_io io_write_scratch_ptr write_msr kvm_hypercall

slide-33
SLIDE 33

Tesseract Interpreter

2fff 1c27 ab47 5700 adf2 3d60 092f 5488 ec2d 9d1a 029d 56fd e0d1 a275 1f56 1d28 ea78 a2fa db07 d60d 1288 3a5a 91f9 1756 1cae 31ad 9b9c 938e 2a33 f597 6615 e267 0117 1f16 b440 8a86 9154 5b55 e4ca 9e3d 9d19 ae79 efac e500 8cdf 8c00 9a83 df76 91fe d779 026c 2e2b 9137 1ef8 eea3 d29c 1789 5938 a36f 718a 81e4 678c 20f5 fa0b 774d 07f1 cee3 62bc d845 bc86 7631 6eac 0120: 0128: 0130: 0138: 0140: 0148: 0150: 0158: 0160: 0168: 0170: 0178: 0180: 0188: 0190: 0198: 01a0: 01a8:

... ...

PRNG Stream

slide-34
SLIDE 34

Tesseract Interpreter

2fff 1c27 ab47 5700 adf2 3d60 092f 5488 ec2d 9d1a 029d 56fd e0d1 a275 1f56 1d28 ea78 a2fa db07 d60d 1288 3a5a 91f9 1756 1cae 31ad 9b9c 938e 2a33 f597 6615 e267 0117 1f16 b440 8a86 9154 5b55 e4ca 9e3d 9d19 ae79 efac e500 8cdf 8c00 9a83 df76 91fe d779 026c 2e2b 9137 1ef8 eea3 d29c 1789 5938 a36f 718a 81e4 678c 20f5 fa0b 774d 07f1 cee3 62bc d845 bc86 7631 6eac 0120: 0128: 0130: 0138: 0140: 0148: 0150: 0158: 0160: 0168: 0170: 0178: 0180: 0188: 0190: 0198: 01a0: 01a8:

... ...

PRNG Stream

Robust Interpretation

vmport(0xbd4,0x10ea) memset_io(0x426,0xce0,0x9dc,0xca8) writes_mmio(0xec8,0xad,0x10ac,0x7e9) bruteforce_mmio(0xce4,0xdfa,0xe31,0x322) writes_io(0x4bb,0xb8,0xeb1,0x401) memset_mmio(0x128,0xa73,0x2b3,0xa84) read_mmio(0xbf3,0x907) bruteforce_io(0x5c4,0x49a,0x94f,0xb1c) xor_mmio(0x54b,0xa00,0xb51)

Opcode Handler

slide-35
SLIDE 35

Evaluation

≈
slide-36
SLIDE 36

Tested Hypervisors

KVM/QEMU Intel ACRN VMware Fusion Parallels Desktop (14.1.3) FreeBSD bhyve VirtualBox

(12.0-RELEASE) (5.1.37_Ubuntu r122592) (4.0.1-rc4) (29360 Build) (11.0.3)

≈
slide-37
SLIDE 37

Results

Assert Failures 25 Null-Pointer Dereferences 13 Memory-Corruptions 8 Div-By-Zero (FP Exceptions) 5 Deadlocks 4

55

Bugs

≈
slide-38
SLIDE 38

Case Study: bhyve CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

≈
slide-39
SLIDE 39

Case Study: bhyve CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

≈
slide-40
SLIDE 40

Case Study: bhyve CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

Translates to

≈
slide-41
SLIDE 41

Case Study: bhyve CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

≈
slide-42
SLIDE 42

Case Study: bhyve CVE-2019-12071

FreeBSD Kernel Denial of Service via Privileged Guest

≈
slide-43
SLIDE 43 ≈
slide-44
SLIDE 44 ≈
slide-45
SLIDE 45 ≈
slide-46
SLIDE 46 ≈
slide-47
SLIDE 47 ≈
slide-48
SLIDE 48 ≈
slide-49
SLIDE 49 ≈
slide-50
SLIDE 50 ≈
slide-51
SLIDE 51

Conclusion

slide-52
SLIDE 52

Conclusion

  • Outperforms Coverage-Guided Fuzzers
  • Full-System Fuzzing
  • Novel Technique to Fuzz Hypervisors
slide-53
SLIDE 53

Thank You!

Q & A
