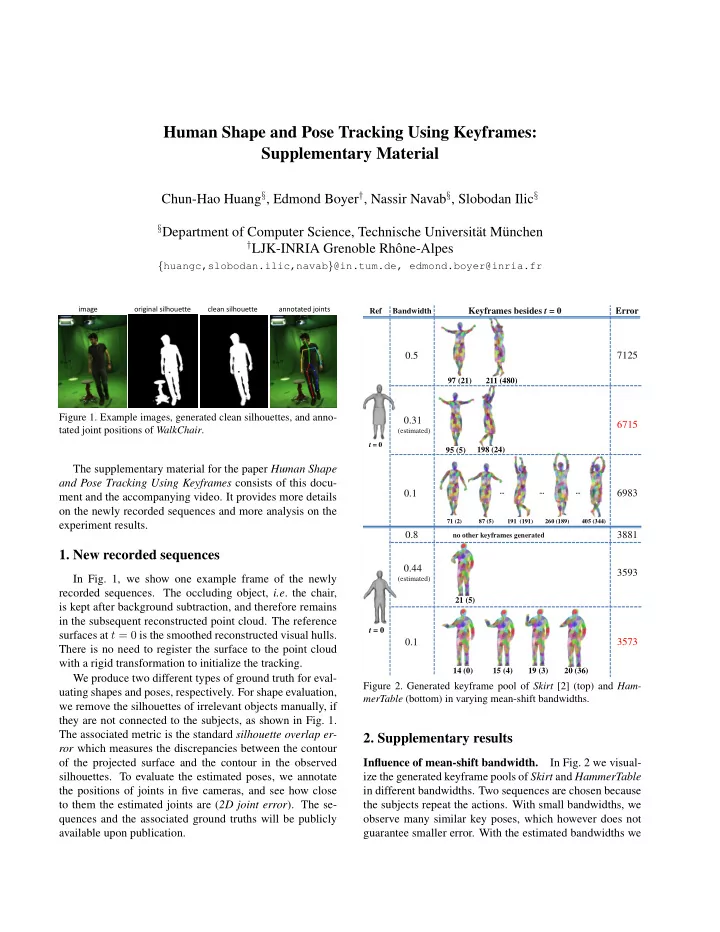

Human Shape and Pose Tracking Using Keyframes: Supplementary Material

Chun-Hao Huang§, Edmond Boyer†, Nassir Navab§, Slobodan Ilic§

§Department of Computer Science, Technische Universit¨

at M¨ unchen

†LJK-INRIA Grenoble Rhˆ

• ne-Alpes

{huangc,slobodan.ilic,navab}@in.tum.de, edmond.boyer@inria.fr

image clean silhouette annotated joints

• riginal silhouette

Figure 1. Example images, generated clean silhouettes, and anno- tated joint positions of WalkChair.

The supplementary material for the paper Human Shape and Pose Tracking Using Keyframes consists of this docu- ment and the accompanying video. It provides more details

• n the newly recorded sequences and more analysis on the

experiment results.

• 1. New recorded sequences

In Fig. 1, we show one example frame of the newly recorded sequences. The occluding object, i.e. the chair, is kept after background subtraction, and therefore remains in the subsequent reconstructed point cloud. The reference surfaces at t = 0 is the smoothed reconstructed visual hulls. There is no need to register the surface to the point cloud with a rigid transformation to initialize the tracking. We produce two different types of ground truth for eval- uating shapes and poses, respectively. For shape evaluation, we remove the silhouettes of irrelevant objects manually, if they are not connected to the subjects, as shown in Fig. 1. The associated metric is the standard silhouette overlap er- ror which measures the discrepancies between the contour

• f the projected surface and the contour in the observed
• silhouettes. To evaluate the estimated poses, we annotate

the positions of joints in five cameras, and see how close to them the estimated joints are (2D joint error). The se- quences and the associated ground truths will be publicly available upon publication.

t = 0

95 (5) 198 (24)

6715

97 (21) 211 (480)

7125

71 (2) 87 (5)

…

191 (191)

…

260 (189)

…

405 (344)

0.1 6983 0.31

(estimated)

0.5

t = 0

0.8 0.1

no other keyframes generated

3881

21 (5) 14 (0) 15 (4)

3593

19 (3) 20 (36)

3573

Bandwidth

0.44

(estimated)

Keyframes besides t = 0 Error

Ref

Figure 2. Generated keyframe pool of Skirt [2] (top) and Ham- merTable (bottom) in varying mean-shift bandwidths.

• 2. Supplementary results

Influence of mean-shift bandwidth. In Fig. 2 we visual- ize the generated keyframe pools of Skirt and HammerTable in different bandwidths. Two sequences are chosen because the subjects repeat the actions. With small bandwidths, we

• bserve many similar key poses, which however does not

guarantee smaller error. With the estimated bandwidths we

4000 5000 6000 7000 8000 9000 10000 11000 12000 1 51 101 151 201 251 301 351 401 451 501 551 601 651 701

pixel overlap error frame index

• urs

Huang et al. [3DV`13] Cagniart et al. [ECCV`10] previous frame as ref (a) Skirt

5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 1 51 101 151 201 251 301 351 401 451 501 551

pixel overlap error frame index

• urs

Huang et al. [3DV`13] Cagniart et al. [ECCV`10] previous frame as ref

(b) Dance

Figure 3. Pixel overlap error of Dance and Skirt [2] in each frame, averaged over 8 cameras. Image resolution: 1004 × 1004. Blue: ours. Green: Cagniart et al. [1]. Red: Huang et al. [3]. Orange: using the previous frame as the reference model.

50 100 150 200 250

1 21 41 61 81 101 121 141

average joint error

frame index

WalkChair

50 100 150 200 250

1 11 21 31 41 51 61 71 81 91

average joint error

frame index

HammerTable

50 100 150 200

1 11 21 31 41 51 61 71 81 91 average joint error frame index

SideSit

Figure 4. The curves of 2D joint error of three newly recorded sequences. Image resolution: 1000 × 1000. Blue: ours. Green: Straka et

• al. [4] + [5]. Red: Huang et al. [3].

not only obtain distinctive key poses but also provide com- parable performance. Further quantitative analysis. Table 2 in the main pa- per shows the overall average pixel overlap error of Dance and Skirt. In Fig. 3, we report the error in each frame. Broadly speaking, our approach attains smaller error over the whole sequences, compared with Cagniart et al. [1] and Huang et al. [3]. In Fig. 4, we further report the 2D joint error of WalkChair, HammerTable, and SideSit. We see that while [3] fails to track at a certain point, and Straka et al. [4] + [5] produces sporadic high errors, our approach obtains consistent low error over sequences. To further justify the advantage of our keyframe-based framework, we make a comparison with following two strategies:

• 1. Adhering to t = 0 as the reference model.
• 2. Adhering to previous frame as the reference model.

The benefit of our approach over the first strategy (i.e. ref: t = 0) is already presented in Fig. 3, Fig. 6, and the cor- responding text in the main paper. Here we concentrate

• n comparing with the 2nd strategy, which always uses the

tracked result of previous frame as the reference model for the current frame. In Fig. 5(a-c), we overlay the correspond- ing results of t = 102 in Skirt sequence. For this frame

• nly, using the previous frame result as reference actually

(a) ref: t = 0 (b) ref: prev. (t = 101) (c) ours (ref: t = 95) (d) prev. t = 31 (e) t = 256 (f) t = 462

Figure 5. Comparison of three different strategies (a-c), and the disadvantages of using always the previous frame result as the reference model (d-f). Better to be viewed in the pdf file.

yields smallest error. We demonstrate in Fig. 5(d-f) the po- tential drawback of this strategy: drifting. We see that the blue patch is supposed to be at the back side of the subject (t = 31), but it moves along the surface embedding during tracking, and ends up at the front side of the body (t = 462). In the very beginning of the tracking, drifting is difficult to be observed via overlap error because the silhouette does not differ too much (orange curves in Fig. 3). However, as the errors accumulates, drifting gradually deteriorate the re- sults, and eventually leads to noticeably large errors (Skirt),

• r even a tracking failure (Dance).

Generated keyframe pool. We show the identified keyframes of all testing sequences and the associated esti- mated bandwidth (BW) in Fig. 6. Thanks to the way we cre- ate virtual samples, we do not observe duplicate keyframes in the same sequences, and the delay time are all within ac- ceptable range. Further qualitative results. In Fig. 7, we further demon- strate the effectiveness of our approach on taking care of

• utliers and missing data.

In Fig. 7(b), we observe that the hand of the subject is connected to the table in both the silhouette and the point cloud. Such observations con- fuse methods like [4] which results in the high peak error in Fig. 4, whereas our method still estimates the pose and the shape successfully. In Fig. 7(c), despite that the ball ob- servations have close interaction with the subject, we still

• btain correct shape around the right leg. In Fig. 7(d), we

see that our method properly handles merging body parts (the right hand), and excludes outliers, while [1] does not manage to do so.

References

[1] C. Cagniart, E. Boyer, and S. Ilic. Probabilistic deformable surface tracking from multiple videos. In ECCV, 2010. [2] J. Gall, C. Stoll, E. De Aguiar, C. Theobalt, B. Rosenhahn, and H.-P. Seidel. Motion capture using joint skeleton tracking and surface estimation. In CVPR, 2009. [3] C.-H. Huang, E. Boyer, and S. Ilic. Robust human body shape and pose tracking. In 3DV, 2013. [4] M. Straka, S. Hauswiesner, M. Ruether, and H. Bischof. Skeletal graph based human pose estimation in real-time. In BMVC, 2011. [5] M. Straka, S. Hauswiesner, M. R¨ uther, and H. Bischof. Simul- taneous shape and pose adaption of articulated models using linear optimization. In ECCV, 2012.

frame 0

HammerTable

frame 201 (13) frame 0 frame 20 (6) frame 59 (18) frame 74 (22)

Fighting Dance

frame 0 frame 21 (5) frame 21 (5) frame 0

SideSit

frame 0 frame 95 (5) frame 198 (24)

Skirt

frame 29 (25) frame 0

Basketball

BW: 0.41 BW: 330.25 BW: 0.31 BW: 0.44 BW: 0.50 BW: 0.41 frame 0

WalkChair

frame 32(0) BW: 0.50

Figure 6. Generated keyframe pool of all testing sequences. Numbers in the parenthesis are the delay time. (a) (b) (d)

Cagniart et al. ECCV`10 [5] (no skeleton)

(c) Figure 7. Results of (a) Dance, (b) HammerTable, (c) Basketball, and (d) WalkChair. Black dots are the point clouds.
