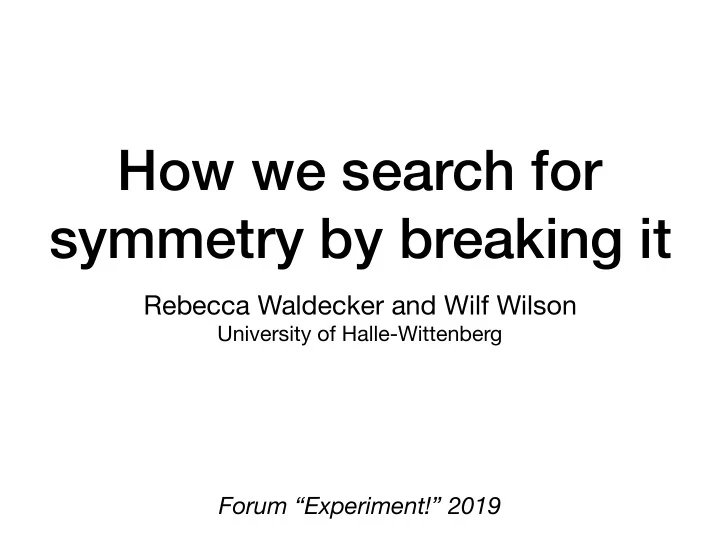

How we search for symmetry by breaking it
Rebecca Waldecker and Wilf Wilson
University of Halle-Wittenberg
Forum “Experiment!” 2019
Image credit: pixabay.com
How we search for symmetry by breaking it Rebecca Waldecker and Wilf - - PowerPoint PPT Presentation
How we search for symmetry by breaking it Rebecca Waldecker and Wilf - - PowerPoint PPT Presentation
How we search for symmetry by breaking it Rebecca Waldecker and Wilf Wilson University of Halle-Wittenberg Forum Experiment! 2019 Image credit: pixabay.com Image credit: pixabay.com Image credit: pixabay.com Image credit: pixabay.com
SLIDE 2
SLIDE 3
Image credit: pixabay.com
Image credit: pixabay.com
SLIDE 4
Image credit: pixabay.com Image credit: pixabay.com
SLIDE 5
Three-Dimensional Structure of the Human Herpesvirus 8 Capsid (Journal of Virology 2000)
by Lijun Wu, Pierrette Lo, Xuekui Yu, James K. Stoops, B. Forghani, and Z. Hong Zhou.
SLIDE 6
How many circles?
SLIDE 7
Symmetry with permutations
The symmetries of a square
SLIDE 8
Symmetry with permutations
1 2 4 3
The symmetries of a square
SLIDE 9
Symmetry with permutations
1 2 4 3
The symmetries of a square
90º rotation
1 2 2 3 3 4 4 1
SLIDE 10
Symmetry with permutations
1 2 4 3
The symmetries of a square
90º rotation
1 2 2 3 3 4 4 1
Which permutations of 1, 2, 3, 4 give symmetries?
SLIDE 11
n! = n · (n - 1) · (n - 2) · ⋯ · 2 · 1
There are… …permutations of n numbers
SLIDE 12
n! = n · (n - 1) · (n - 2) · ⋯ · 2 · 1
There are… …permutations of n numbers
5! = 120
SLIDE 13
n! = n · (n - 1) · (n - 2) · ⋯ · 2 · 1
There are… …permutations of n numbers
5! = 120 15! = 1307674368000
SLIDE 14
n! = n · (n - 1) · (n - 2) · ⋯ · 2 · 1
There are… …permutations of n numbers
5! = 120 30! = 265252859812191058636308480000… 000 15! = 1307674368000
SLIDE 15
Graphs
1 2 3 4 5 6
Vertices (nodes) Arcs (lines) Can show relationships
SLIDE 16
Searching with graphs
1 2 3 4 5 6
SLIDE 17
Searching with graphs
1 2 3 4 5 6
SLIDE 18
Searching with graphs
1 2 3 4 5 6
SLIDE 19
Searching with graphs
1 2 3 4 5 6
SLIDE 20
Searching with graphs
1 2 3 4 5 6
SLIDE 21
Is this Crazy?!
SLIDE 22
The Team
Rebecca Waldecker Wilf Wilson
University of Halle-Wittenberg
Chris Jefferson Markus Pfeiffer
University of St Andrews (Scotland)
SLIDE 23
Paper: “Permutation group algorithms based on directed graphs”
https://arxiv.org/abs/1911.04783
Software: “GraphBacktracking” package for GAP
https://github.com/peal/GraphBacktracking
Publications
SLIDE 24
Experiments 1
Old New
Difficulty of problems
Amount of searching needed (more is worse)
SLIDE 25
Experiments 2
Old New
Amount of searching needed (more is worse)
Problem instance, sorted by difficulty
SLIDE 26
What we learned Our biggest challenges What’s next?
SLIDE 27
What we learned Our biggest challenges What’s next?
SLIDE 28
What we learned Our biggest challenges What’s next?
SLIDE 29
What we learned Our biggest challenges What’s next?
