How does the network facilitate market trade? Rudi Hakvoort - PowerPoint PPT Presentation

Apr 24, 2023 •124 likes •212 views

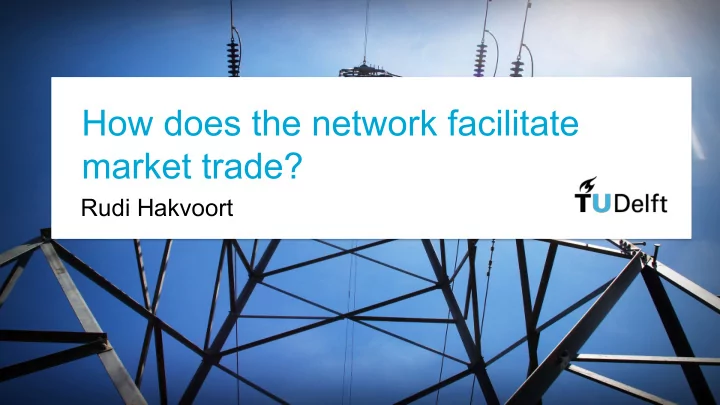

How does the network facilitate market trade? Rudi Hakvoort Learning objectives To understand the role of the electricity network To introduce the different voltage levels To explain the distribution grid and transmission grid

How does the network facilitate market trade? Rudi Hakvoort
Learning objectives • To understand the role of the electricity network • To introduce the different voltage levels • To explain the distribution grid and transmission grid
Electricity network Secondary 10 kV Step-up Transformer Step-down Transmission Transformer (above 100 kV) Businesses and households (240 V and 380 V)
Operators The transmission operator for the transport of electricity The system operator manages system and frequency stability The market operator is responsible for matching supply and demand
Transmission network Transmission Distribution Consumer Generation • High voltages, between 220kV and 1000kV • Alternating current (overhead) or high-voltage direct current (cables) • Run by transmission system operator (TSO) • ENTSO-E sets market rules for operating the network
Transmission Networks Synchronous zones in Europe https://commons.wikimedia.org/wiki/File:ElectricityUCTE.svg
International Network
Distribution Networks Distribution Transmission Consumer Consumer Generation • Voltage 50kV or lower • Distribute electricity to consumers • Managed by the distribution system operator (DSO)
