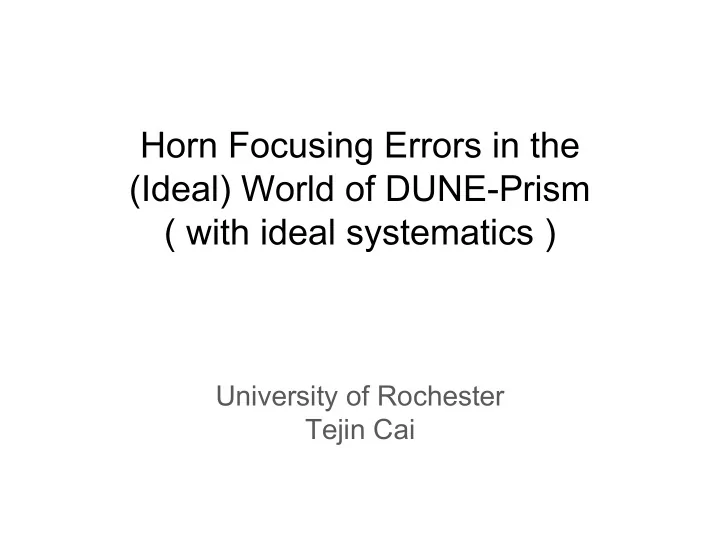

Horn Focusing Errors in the (Ideal) World of DUNE-Prism ( with ideal systematics ) University of Rochester Tejin Cai Introduction The aim of this study is to constrain beam focusing systematics due to mis-modelling by measuring flux from
Introduction
- The aim of this study is to constrain beam focusing systematics due to
mis-modelling by measuring flux from different angles
- The horns could be mis-modelled, i.e. shifts in horn positions, shifts in horn
current
- The DUNE PRISM design allows ND to move off-axis by 50 mrad
- Measuring the relative difference in flux between “real” setup and ideal setup
would allow us to constrain the modelling errors and make better flux prediction
- This talk uses νμ flux, in real world νe might be a better candidate
- Most of the talk consists of flipping books
2
Shifts in Horn Position
We expect a shift in horn position will also shift the beam to the same direction, while also creating an asymmetric conical cross section. An increase in horn current will focus π of higher energy and vice versa.
π+ of E ν flux
3
Horn offset, flux tilt
Horns
We expect a shift in horn position will also shift the beam to the same direction, while also creating an asymmetric conical cross section. An increase in horn current will focus π of higher energy and vice versa.
π+ of E ν flux
4
Ideal horn
Changes in Horn Position
We expect a shift in horn position will also shift the beam to the same direction, while also creating an asymmetric conical cross section. An increase in horn current will focus π of higher energy and vice versa.
π+ of E ν flux Higher horn current
5
Higher horn current, flux peaks at higher energy
Beam Setups
- We generated flux using the near detector task force macro
○ 3 Horns at 547 m ○ 1.2 MW beam ○ Horn current 296.2 kA
- Modelling errors covered in this talk
○ Changes in horn positions ○ Shifts: entire horn moves in particular direction ○ Tilt: the ends of the horn moves in opposite direction ○ Changes in horn current
- Changes in horn positions:
- Each horn is shifted or tilted in X, Y or Z axis by 3 mm
- The horn current varies between -5 kA to 5 kA
- 2.5E8 POT was produced for each configuration
6
Flux Reweighting
The off axis angles are obtained through reweighting
- We assume a 2x2 m surface area for the detector
- The detector is 574 m from source and
- The detector could move laterally for ~ 30 m ~ 50 mrad
- The flux will strike the detector area at random, therefore causing fluxes at left
and right angles to be asymmetric
7
Ideal Flux - 1D Plots
As we increases off axis angle, the flux becomes narrower and peaks at lower energy as expected
8
In the rest of the talk, each energy bin is .5 GeV and
Ideal flux -2D
9
Asymmetry Due to Reweighting, Ideal flux
The flux to the left and right from the same beam file is not symmetric due to the
- reweighting. The plot shows relative difference between flux at θ and -θ
10
Statistical uncertainties on asymmetry plot
The sizes of the statistical uncertainties on par with the asymmetries. The asymmetry is probably statistical.
11
Asymmetry: SNR
The sizes of the statistical uncertainties on par with the asymmetries. The asymmetry is probably statistical.
12
Asymmetry Signal to Noise Ratio
Horn Uncertainties Plots Overviews
13
Horn1 Shifts 3.0mm, relative to ideal, color in [-1,1]
angle 50
- 50
14
Region with high SNR Large asymmetric shifts in the X axis Symmetric shift in Y, almost no shift in Z
Horn1 Shifts 3.0mm, relative to ideal, stats error
angle 50
- 50
15
Large asymmetric shifts in the X axis Symmetric shift in Y, almost no shift in Z
Horn1 Shifts 3.0mm, relative to ideal, SNR
angle 50
- 50
16
Very small SNR in Z
Horn2 Shifts 3.0mm, relative to ideal, color in [-1,1]
angle 50
- 50
17
More “washed” than Horn 1 across board, X is more symmetric than in Horn 1, because horn 1 and horn 3 will correct the beam?
Horn2 Shifts 3.0mm, relative to ideal
angle 50
- 50
18
Horn2 Shifts 3.0mm, relative to ideal, SNR
angle 50
- 50
19
Similar story
Horn3 Shifts 3.0mm, relative to ideal, color in [-1,1]
angle 50
- 50
20
Horn3XTilt is almost gone.. The focused beam will pass from center in a tilt and experience little B-field
Horn3 Shifts 3.0mm, relative to ideal
angle 50
- 50
21
Horn3 Shifts 3.0mm, relative to ideal, SNR
angle 50
- 50
22
Horn Current
angle 50
- 50
23
Horn Current - uncertainties
angle 50
- 50
24
Horn Currents - SNR
angle 50
- 50
25
Flux Uncertainties Plots Scanning angles in Horn 1 Shifts
26
Plotting fractional change in flux at fixed energy
Energy Bin (2.5, 3.0) GeV
27
We could fit the angles, -5 to 5 mrad seems sufficient
Plotting fractional change in flux at fixed energy
Energy Bin (3.0, 3.5) GeV
28
We could fit the angles, -5 to 5 mrad seems sufficient
Plotting fractional change in flux at fixed energy
Energy Bin (3.5,4.0) GeV
29
We could fit the angles, -5 to 5 mrad seems sufficient
Plotting fractional change in flux at fixed energy
Energy Bin (4.0,4.5) GeV
30
We could fit the angles, -5 to 5 mrad seems sufficient
Flux Uncertainties Plots Scanning angles in Horn 2 Shifts
31
Plotting fractional change in flux at fixed energy
Energy Bin (2.5, 3.0) GeV
32
We could fit the angles, -20 to 20 mrad might be needed
Plotting fractional change in flux at fixed energy
Energy Bin (3.0, 3.5) GeV
33
Horn 1 We could fit the angles, -20 to 20 mrad might be needed
Plotting fractional change in flux at fixed energy
Energy Bin (3.5,4.0) GeV
34
Horn 1 We could fit the angles, -20 to 20 mrad might be needed
Plotting fractional change in flux at fixed energy
Energy Bin (4.0,4.5) GeV
35
We could fit the angles, -20 to 20 mrad might be needed
Flux Uncertainties Plots Scanning angles in Horn 3 Shifts
36
Plotting fractional change in flux at fixed energy
Energy Bin (1.0, 1.5) GeV
37
Large separation at high angles and lower energy
Plotting fractional change in flux at fixed energy
Energy Bin (1.5, 2.0) GeV
38
Going once
Plotting fractional change in flux at fixed energy
Energy Bin (2.0, 2.5) GeV
39
Going twice
Plotting fractional change in flux at fixed energy
Energy Bin (2.5, 3.0) GeV
40
Going trice…. Now gone
Flux Uncertainties Plots Scanning angles in Horn Current
41
Plotting fractional change in flux at fixed energy
Energy Bin (2.5, 3.0) GeV
42
Plotting fractional change in flux at fixed energy
Energy Bin (3.0, 3.5) GeV +5 kA
- 5 kA
43
Plotting fractional change in flux at fixed energy
Energy Bin (3.5,4.0) GeV +5 kA
- 5 kA
44
Plotting fractional change in flux at fixed energy
Energy Bin (4.0,4.5) GeV +5 kA
- 5 kA
45
Plotting fractional change in flux at fixed energy
Energy Bin (4.5, 5.0) GeV +5 kA
- 5 kA
46
Summaries Horn shift uncertainties
By far Horn 1 presents the largest shifts, with succeeding horns increasingly statistics dominated It could be that the beam in later horns are already better focused and small shifts in horn positions don’t affect the beam as much Each horn offsets in X have different pattern of high SNRs. It could provides a fit to the horn errors Shifts in Y and Z axis are not so apparent, the fractional changes are dominated by statistical fluctuations
Horn current uncertainties
Horn current changes relative flux similar to horns shifting in Y direction, making it harder to discern the effect. We could, however, adjust horn current and constrain the effect independently
47
Conclusion
At a shifting of 3.0 mm, a DUNE PRISM setup will be sensitive to shifts in Horn 1 in X and Y, but not Z. There is almost ~8% shifts in Horn1XOffset3.0mm There is little sensitivity to Horn 2 and Horn 3 shifts in Y and Z. Horn current effects could be ~5% at ΔA = 5 kA. Shifts in horn current could mask movement of horns in Y axis. We could to some extent constrain the systematics at 0.0 mrad. But going off axis would allow for linearly independent combinations that solve and further constrain the systematics especially in Horn 1. A movement between -5 to 5 mrad is sufficient for Horn 1, Horn 2 and 3 requires going to larger angles.
48
Future studies
Get covariance matrix for additional systematics
- Water layer was determined to be a significant source of systematics
- Target positions, beam sigma can also be tuned
To study the methods of constraining systematics
- Fitting the angles could work
- Needs to assess how independent are the systematics
○ Will need to generate flux with 2 or more known systematics and solve for coefficients ○ I.e for shifting matrix S1, S2, S(1+2) = aT1 S1 + b T2 S2, and hopefully T1=T2=I
- Needs to get the rate of change of shifts as well.
