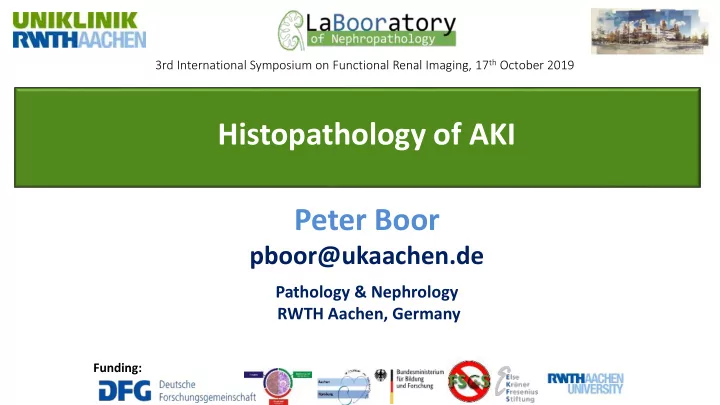

3rd International Symposium on Functional Renal Imaging, 17 th October 2019 Histopathology of AKI Peter Boor pboor@ukaachen.de Pathology & Nephrology RWTH Aachen, Germany Funding: Classification of acute kidney injury (AKI)

slide-1
SLIDE 1

Peter Boor

pboor@ukaachen.de

Pathology & Nephrology RWTH Aachen, Germany

Histopathology of AKI

Funding: 3rd International Symposium on Functional Renal Imaging, 17th October 2019

slide-2
SLIDE 2

Risk Injury Failure Loss ESRD

1,5-2 x

  • r

≥0,3 mg/dl End Stage Renal Disease

Serum-Creatinin Urin output

< 0,3ml/kg/h

  • ver 24 h or

Anuria over 12 h < 0,5ml/kg/h over 6 h >3 x

  • r 4mg/dl

(acute increase 0.5 mg/dl)

High sensitivity High specificity

Persistent Renal Failure > 4 Weeks

Bellomo et al, Crit Care 2004

< 0,5ml/kg/h over12 h 2-3 x

Stage 1 2 3

Classification of acute kidney injury (AKI)

slide-3
SLIDE 3

Hoste et al, Crit Care 2006

AKI is common particularly on intensive wards

retrospective analyses (USA, 7 intensive wards, n=5.383)

No AKI (33%) Stage I (12%) Stage II (27%) Stage III (28%)

maximal reached RIFLE-stage

Cumulative survival

Days in hospital after AKI

slide-4
SLIDE 4

Causes of acute kidney injury (AKI)

Modified from Floege/Feehally, Comprehensive clinical nephrology

45%

slide-5
SLIDE 5

AKI in renal biopsies

Modified from Floege/Feehally, Comprehensive clinical nephrology

45%

Biopsied Biopsied Biopsied Not-biopsied Not-biopsied Biopsied

slide-6
SLIDE 6

Case 1: Clinical presentation: unclear AKI, Voltaren medication (NSAID), contact with murine feces

slide-7
SLIDE 7
slide-8
SLIDE 8

Case 2: Living donor transplant 1 week ago. Crea increase from 2,1 to 3 in 2 days. Rejection?

slide-9
SLIDE 9
slide-10
SLIDE 10

Acute tubular injury & necrosis

slide-11
SLIDE 11

Case 3: Time 0 biopsy, deceased donor

slide-12
SLIDE 12
slide-13
SLIDE 13

Acute tubular injury Very little chronic injury, no other pathology

slide-14
SLIDE 14

Case 4: Transplant biopsy after reperfusion (no other data provided)

slide-15
SLIDE 15
slide-16
SLIDE 16

Acute tubular injury Very little chronic injury, no other pathology

slide-17
SLIDE 17

Case 5: Unclear renal insufficiency No medication

slide-18
SLIDE 18
slide-19
SLIDE 19

Acute interstitial nephritis With mainly acute tubular injury

slide-20
SLIDE 20

Case 6: Unclear renal insuficiency Crea 5,9mg/dl, GFR ca. 10.

slide-21
SLIDE 21
slide-22
SLIDE 22

Lymphocytic interstitial Nephritis With acute tubular injury

slide-23
SLIDE 23

Ischemia-reperfusion injury in mice (warm, 35 min, females, time-point 6 hrs)

slide-24
SLIDE 24

Ischemia-reperfusion injury in mice (warm, 35 min, females, time-point 24 hrs)

slide-25
SLIDE 25

Nephrotoxins:

a) exogenous:

  • iodinated contrast
  • aminoglycosides
  • cisplatin

b) endogenous

  • hemolysis
  • rhabdomyolysis
  • myeloma
  • intratubular crystals

Etiology of acute kidney injury (AKI)

Acute kidney injury

prerenal intrinsic postrenal

  • Hypovolemia
  • Decreased cardiac
  • utput/Congestive

heart failure

  • Reduced effective

blood volume, liver cirrhosis

  • Impaired renal

autoregulation

  • NSAID, ACE-Inhib.
  • Cyclosporine
  • Bladder outlet
  • bstruction
  • Bilateral pelvouretheral
  • bstruction
  • Unilateral obstruction
  • f a solitary

functioning kidney glomerular

  • Acute GN

tubular vascular

  • Vasculitis
  • HUS/TTP

Ischemia Sepsis/Infection

Modified from Harrison‘s Principles

  • f internal medecine, 20th edition
slide-26
SLIDE 26

Conventional animal models for AKI

Acute kidney injury

Prerenal intrinsic postrenal Ischemia/Reperfusion Unilateral Ureter

  • bstruction ( UUO)

Tubular- Endogenous toxins: a) Pigmentnephropathy

  • Glycerol model (rhabdomylosis)
  • Infusion of myoglobin

b) Warfarin-nephropathy c) Sepsis induced AKI ( also prerenal)

  • LPS Modell
  • Cecal ligation and punction ( CLP-

model) Tubular-Exogenous toxins: a) Cisplatin induced AKI b) Folic acid induced AKI c) Aristolochic acid induced AKI d) Adriamycin induced AKI e) Contrast induced AKI f) Organic mercury induced AKI Glomerular: a)Puromycin aminoglycoside (PAN) model b) Adriamycin induced AKI ( FSGS) c) Nephrotoxic nephritis (NTN) Vascular: a) STX2 Model b) Anti-GBM Model

most commonly used

slide-27
SLIDE 27

Clinical phases of AKI

Rosner & Okusa CJASN 2006; Sutton & Fisher & Molitoris KI 2002

slide-28
SLIDE 28

Clinical phases of AKI

Prerenal phase Initiation Extension Maintainance Repair

Loss of polarity, loss of brush border Necrosis and apoptosis Luminal obstruction with scattered cells Cell Surviving Migration and dedifferentiation of viable cells Repolarisation, differentiation

Reconstitution

Healthy tubular cells

modified from Bonventre et al JCI 2011

slide-29
SLIDE 29

Common problems of models for AKI humans

rodents

comorbidities mechanical ventilation cardio- pulmonar- arrest no tissue available medications different biology same diet same environment

  • ther

comorbidities than humans young age, responsive vasculature

  • lder age,

senescent epithelial cells

slide-30
SLIDE 30

Challenges and solutions in translation

McCafferty et al 2014

slide-31
SLIDE 31

Combine clinical & preclinical research - Role of MIF in AKI

Stoppe…Boor, Sci Transl Med 2018

Cohort studies in patients after cardiac surgery

slide-32
SLIDE 32

Combine approaches - role of MIF in AKI & tubular injury

Stoppe…Boor, Sci Transl Med 2018

Clinical studies

patients after cardiac surgery

Preclinical studies

Different animal AKI models & interventions & in vitro mechanistic studies

slide-33
SLIDE 33

Combine approaches - role of MIF in AKI & tubular injury

Stoppe…Boor, Sci Transl Med 2018

slide-34
SLIDE 34

Kidney autofluorescence (tubular cells) Peritubular capillaries (2000 kDa dextrane-FITC, 50 µl of 5mg/ml) ) Evans blue (1µl/g BW of 1mg/ml)

sham Postrenal AKI (UUO d5) Other processes in AKI – microvascular dysfunction (in vivo imaging)

Babickova…Boor, Kidney Int 2017

slide-35
SLIDE 35

Pathological process-specific kidney imaging

slide-36
SLIDE 36

Approach to molecular imaging in kidneys (renal fibrosis)

Target validation Specificity Applicability

Sun…Boor, Sci Transl Med 2019

slide-37
SLIDE 37

Elastin is up-regulated in models of renal fibrosis (target validation)

Adenine nephropathy Fibrotic Healthy

P e riv a s c u la r a re a E la stin area (% )

H e a lth y U U O

0 .0 0 .2 0 .4 0 .6 0 .8

 

C o rte x E la s tin a re a (% )

H e a l t h y U U O

0 .0 0 0 .0 5 0 .1 0 0 .1 5 0 .2 0

M e d u lla E la s tin a re a (% )

H e a l t h y U U O

0 .0 0 .2 0 .4 0 .6 0 .8 1 .0

  

Sun…Boor, Sci Transl Med 2019

slide-38
SLIDE 38

Confirmation in other animal models

Rat: UUO, 5/6 Nx, chronic anti-Thy1.1 Nephritis, adenine nephropathy Mouse: UUO, I/R injury, NTN, Alport mice (Col4a3-/-), 5/6 Nx, Folic acid nephropathy Methods: IHC, IF, WB, qRT-PCR, electron microscopy Sun…Boor, Sci Transl Med 2019

slide-39
SLIDE 39

Elastin is up-regulated in patients with renal fibrosis

slide-40
SLIDE 40

Elastin expression in human kidneys

Sun…Boor, Sci Transl Med 2019

slide-41
SLIDE 41

Elastin-specific magnetic resonance contrast agent (ESMA)

Makowski et al. Nat Med 2011

153Gd-DTPA linked to D-amino acid D-phenylalanine

slide-42
SLIDE 42

ESMA MRI in adenine nephropathy

slide-43
SLIDE 43

ESMA MRI in adenine nephropathy

Sun…Boor, Sci Transl Med 2019

slide-44
SLIDE 44

Specificity

Elastin expression Renal Gd-content ex vivo competition in vivo competition

(laser ablation) inductively coupled plasma mass spectrometry – LA-ICP-MS Sun…Boor, Sci Transl Med 2019

slide-45
SLIDE 45

ESMA binds to human kidney ex vivo

Fibrosis Healthy Fibrosis Healthy

slide-46
SLIDE 46

Renal Fibrosis

Baues…Boor et al., Adv Drug Deliv Res 2018

slide-47
SLIDE 47

ESMA pharmacokinetics & longitudinal measures

slide-48
SLIDE 48

ESMA imaging monitors anti-fibrotic therapy efficacy

Vehicle CRID3

Control (H2O) Imatinib

CRID3 in Adenine nephropathy Imatinib in I/R

slide-49
SLIDE 49

ESMA imaging - just another surrogate for GFR?

Serum creatinine Serum urea

slide-50
SLIDE 50

Serum creatinine Serum urea Elastin IF Elastin WB Collagen 3

ESMA imaging in reversible adenine nephropathy

slide-51
SLIDE 51

Elastin imaging identifies residual renal fibrosis not detectable using routine kidney function measurement

slide-52
SLIDE 52

Collagen imaging in renal fibrosis

Baues…Boor, Kidney Int 2019

fibrotic healthy

slide-53
SLIDE 53

Collagen imaging in renal fibrosis

Baues…Boor, Kidney Int 2019

slide-54
SLIDE 54

Will pathology be needed with all the non-invasive diagnostic??

slide-55
SLIDE 55

Yes – perhaps more than ever… Digital & Computational Pathology

slide-56
SLIDE 56

Digital Pathology – augmented by deep learning

Boor Nat Rev Nephrol 2019

slide-57
SLIDE 57

Digital Pathology – augmented by deep learning

Kather…Boor et al., Nat Med 2019

slide-58
SLIDE 58

Acute Kidney Injury

  • common & relevant disease
  • pathophysiology mainly from animal models (relevance?)
  • limited data from human kidney tissue
  • hallmark - tubular injury (variable degree)
  • various other processes involved (microvascular dysfunction…)
  • non-invasive & disease process-specific biomarkers needed

pboor@ukaachen.de Conclusions
