HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

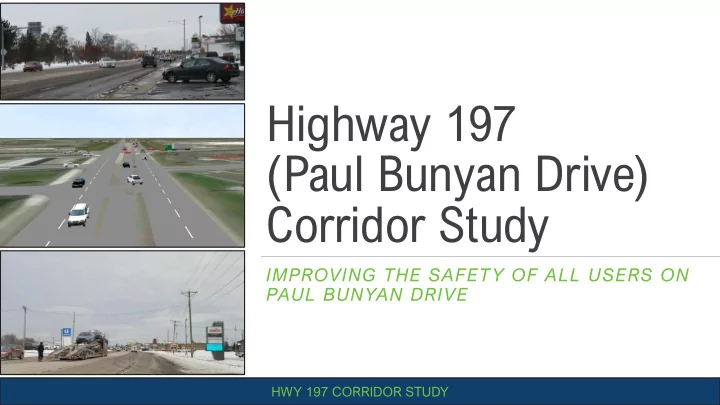

Highway 197 (Paul Bunyan Drive) Corridor Study

IMPROVING THE SAFETY OF ALL USERS ON PAUL BUNYAN DRIVE

slide-2
SLIDE 2

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Public Input Existing Issues Public Validation Alternative Analysis Public Feedback Final Recommendation June-July 2019 April –May 2019 February- March 2019 January 2019 December 2018 November 2018

Study Process

slide-3
SLIDE 3

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Paul Bunyan Drive Project Overview

  • 45 crashes costing our

community $1.6M per year

  • 40-70 seconds of peak hour

delay at unsignalized locations with modest growth projections

  • 65% more crashes are expected

with only 25% traffic growth

  • 35% more residents would walk

and bike this corridor if the facilities were improved

  • Over 100 businesses are served

by this corridor, generating 70,000 trips each day

3

slide-4
SLIDE 4

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

CRP #1 Summary

slide-5
SLIDE 5

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Safety

  • Critical corridor

segments

  • Bemidji Avenue to Park

Avenue (62 crashes)

  • Hannah Avenue to

Gillett Drive (115 crashes)

  • US 71

(32 crashes)

  • 42% crossing
  • 35% rear end

Injury crash in 2017 east of Ridgeway Avenue.

(Bemidji Pioneer Photo/Jordan Shearer)

slide-6
SLIDE 6

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Existing Conflict Analysis – Hannah Ave

  • SBL vs NBT – 20 conflicts
  • NBL vs SBT – 9 conflicts
slide-7
SLIDE 7

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

2040 No Build Traffic Operations

  • Hwy 197 signalized intersections
  • Irvine and Hannah approach capacity in

2040 recreation peak

  • Sidestreet stop control

intersections

  • Limited gaps in 2040 at Park, Delton, and

Partnership intersections

slide-8
SLIDE 8

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

SSAM Conflict Analysis

Scenario Conflict Type Crossing Rear End Lane Change Total

Existing Conditions

  • 2040 No Build

+56% +79% +50% +65%

2040 Summer Rec

+120% +144% +97% +125%

  • Crossing conflicts (26%)
  • Permissive movements during peaks
  • Rear end conflicts (46%)
  • Signalized intersections
  • Lane change conflicts (28%)
  • 5-Lane sections
  • Before/After signals

Hwy 197 and Park Avenue and 5-Lane Section Hwy 197 and Irvine Avenue Hwy 197 and US 71

slide-9
SLIDE 9

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

CRP #1 Feedback

slide-10
SLIDE 10

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

What improvements do you value?

slide-11
SLIDE 11

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Value Results

slide-12
SLIDE 12

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Improvement Results

slide-13
SLIDE 13

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Study Goal - Active Living on Hwy 197

  • Hwy 197 health priorities
  • Increase physical activity
  • Improve traffic safety
  • Better air quality
  • Promote safe crossings
  • 35%-45% of people will walk
  • r bike < 1 mile to work or

school

  • Implement Complete

Streets

Source: MN-197 Northern Corridor Health Impact Assessment 2016
slide-14
SLIDE 14

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Instant Feedback

  • Visit www.responseware.com
  • Enter Session Name: TH197
  • Enter as much information as

you’d like

  • Select Join
slide-15
SLIDE 15

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

CRP #2 Feedback Instructions

  • 1 = Don’t build this. This is not for the Hwy 197 corridor.
  • 2 = I don’t think this would improve the Hwy 197 corridor.
  • 3 = I need more evidence to decide.
  • 4 = I think this would improve the Hwy 197 corridor.
  • 5 = This is a needed future improvement for the Hwy 197 corridor.
slide-16
SLIDE 16

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Red Orange Yellow Green Blue Purple Pink 14% 14% 14% 14% 14% 14% 14%

Tech Check: What’s your favorite color?

1. Red 2. Orange 3. Yellow 4. Green 5. Blue 6. Purple 7. Pink

slide-17
SLIDE 17

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

How We’ll Use Your Feedback

  • Use the feedback on

concepts to develop alternatives

  • Weight the technical

analysis results with the value scoring from CRP #1

  • Result is technically

prioritized list of alternatives that reflect state values

slide-18
SLIDE 18

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Possible Intersection Improvements

slide-19
SLIDE 19

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

slide-20
SLIDE 20

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Signal Terminology

  • 1. Coordination (Green

Wave)

  • 2. Protected/Permissive

/Flashing Yellow

  • 3. Ped Intervals
  • 4. Safety
slide-21
SLIDE 21

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#1: Full Access Unsignalized

Advantages

  • Keeps access on

Hwy 197

  • Low cost

Disadvantages

  • High right-angle conflicts
  • Historical and future safety concerns
  • No protected pedestrian crossings
slide-22
SLIDE 22

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about full access unsignalized intersections?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-23
SLIDE 23

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#2: Reduced Access ¾ Intersections

Advantages

  • Keeps limited access on

Hwy 197

  • Improves right-angle safety
  • Decreases vehicle crossing

conflicts

Disadvantages

  • Need backage/frontage

connections to signals

  • Need a median divider
  • No protected pedestrian

crossings

Signal

slide-24
SLIDE 24

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about ¾ access intersections?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-25
SLIDE 25

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#3: Traffic Signals

Advantages

  • Coordination
  • Decrease pedestrian crossing conflicts

Disadvantages

  • Increased delay on Hwy 197
  • Increased maintenance
  • Increased pedestrian crossing distance
  • Increased rear end conflicts

Signal

slide-26
SLIDE 26

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about traffic signals?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-27
SLIDE 27

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#4: Flashing Yellow Arrow

Advantages

  • Allows phasing flexibility
  • Safer than green ball
  • Less delay than protected

Disadvantages

  • Less safe than protected arrow

Signal

Minor Only Minor Only Needs Analysis Both Both Both

slide-28
SLIDE 28

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about flashing yellow arrow?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-29
SLIDE 29

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#5: Leading Pedestrian Intervals

Advantages

  • Increase crossing safety
  • Allows pedestrian to make “first”

move

Disadvantages

  • Increases vehicular delays

Signal

slide-30
SLIDE 30

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about leading pedestrian intervals?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-31
SLIDE 31

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#6: Roundabouts

Advantages

  • Decrease severe crashes and conflict points
  • Decrease pedestrian crossing conflicts
  • U-turns are easy
  • Less overall minor delay

Disadvantages

  • Increased right-of-way
  • Higher cost
  • Not advised with coordinated signals
  • Not coordinated

Signal Roundabout

slide-32
SLIDE 32

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about roundabouts?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-33
SLIDE 33

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#7: Right + U-turn Intersections

Advantages

  • Decrease most crashes and conflict

points

  • Mainline has very little delay
  • Work in coordinated systems
  • Flashing Yellow Arrow ability

Disadvantages

  • Wider median required
  • Pedestrian crossing challenges
  • Potential driver confusion
  • Restrictions to access necessary

Source: FHWA

Signal RCI

slide-34
SLIDE 34

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about right + U-turn intersections?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-35
SLIDE 35

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

#8: Enhanced Pedestrian Crossings

Advantages

  • Decrease most crashes and conflict points
  • Mainline has very little delay
  • Need spacing from existing signals

Disadvantages

  • Wider median required
  • Pedestrian crossing challenges
  • Restrictions to access necessary

Source: FDOT

Signal

slide-36
SLIDE 36

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about enhanced pedestrian crossings?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-37
SLIDE 37

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Possible Access Management

slide-38
SLIDE 38

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Existing Access

64 Accesses in 1.33 Miles

slide-39
SLIDE 39

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

How We Implement Access Management

  • Consolidate access
  • Provide alternative

access

  • Side street access
  • Frontage/backage road
  • RIRO with U-turn locations
  • Coordination with

deliveries

  • Only appropriate with

safety and operations improvements

X X

Robert Street – S St Paul

slide-40
SLIDE 40

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Legend

Full Access ¾ Access Right In/Out X Access Closure Consolidation

slide-41
SLIDE 41

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Possible Cross Sections

US 2 to Hannah Ave

slide-42
SLIDE 42

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

250’ ROW – US 2 to Hannah Ave

#1: Existing Divided Section

slide-43
SLIDE 43

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about the existing divided section?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-44
SLIDE 44

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

250’ ROW – US 2 to Hannah Ave

#2: Adding 2 Multi-Use Trails

slide-45
SLIDE 45

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding 2 multi-use trails?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-46
SLIDE 46

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

250’ ROW – US 2 to Hannah Ave

#3: Urbanized Section

slide-47
SLIDE 47

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about urbanizing Hwy 197?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-48
SLIDE 48

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Possible Cross Sections

Hannah Ave to Delton Ave

slide-49
SLIDE 49

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#4: Existing 5-Lane Section

slide-50
SLIDE 50

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about the existing 5-lane section?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-51
SLIDE 51

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#5: Upgrade Lighting and ADA

slide-52
SLIDE 52

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about upgraded lighting and ADA improvements?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-53
SLIDE 53

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#6: Add Full Median and Sidewalk Buffer

slide-54
SLIDE 54

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding a full median and sidewalk buffer?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-55
SLIDE 55

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#7: Add Narrow Medians and Sidewalk Buffer

slide-56
SLIDE 56

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding narrow medians and a sidewalk buffer?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-57
SLIDE 57

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#8: Add Multi-Use Paths and Sidewalk Buffer

slide-58
SLIDE 58

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding a multi-use path and sidewalk buffer?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-59
SLIDE 59

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#9: 4-Lane Divided Section with Turn Lanes

slide-60
SLIDE 60

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about a 4-lane median divided section with turn lanes?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-61
SLIDE 61

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

100’-120’ ROW – Hannah Ave to Delton Ave

#10: Add Right-Turn Lanes

slide-62
SLIDE 62

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding right-turn lanes?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-63
SLIDE 63

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Possible Cross Sections

Delton Ave to Bemidji Ave

slide-64
SLIDE 64

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave

#11: Existing 5-Lane Section

slide-65
SLIDE 65

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about the existing 5-lane section?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-66
SLIDE 66

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave

#12: Upgrade Lighting and ADA

slide-67
SLIDE 67

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about upgrading lighting and ADA improvements?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-68
SLIDE 68

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave

#13: Add Narrow Medians

slide-69
SLIDE 69

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about adding narrow medians?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-70
SLIDE 70

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave

#14: Add Shared Bike Lanes

slide-71
SLIDE 71

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about shared bike lanes?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-72
SLIDE 72

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave

#15: 4-Lane Section with Multi-Use Path

slide-73
SLIDE 73

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about a 4-lane section and multi-use path?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-74
SLIDE 74

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

80’ ROW – Delton Ave to Bemidji Ave #16: 3-Lane Buffered Bike Lanes with Right-Turns

slide-75
SLIDE 75

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY Don’t build this. I don’t think this would work. I need more evidence to decide. This might work. Build this. 0% 0% 0% 0% 0%

What do you think about a 3-lane section with buffered bike lanes and right-turn lanes?

1. Don’t build this. 2. I don’t think this would work. 3. I need more evidence to decide. 4. This might work. 5. Build this.

slide-76
SLIDE 76

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Other Improvements We Should Consider?

slide-77
SLIDE 77

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

Next Steps

slide-78
SLIDE 78

HWY 197 CORRIDOR STUDY HWY 197 CORRIDOR STUDY

What’s next for us?

  • Alternatives Analysis
  • Technical Rankings
  • Implementation Plan
  • Final Recommendation
