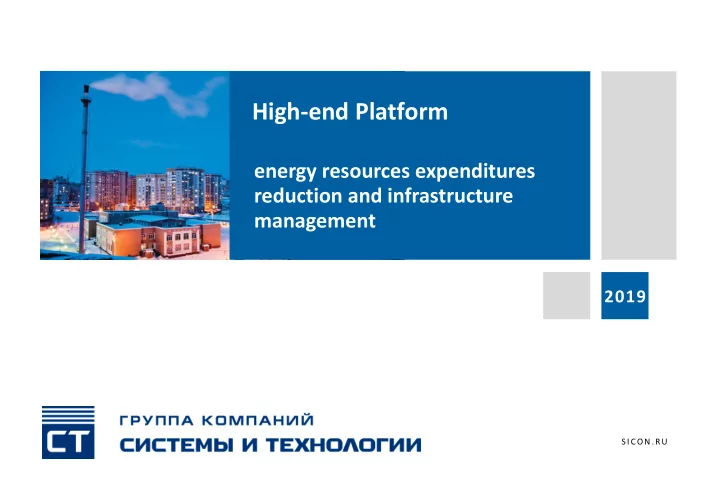

High-end Platform

energy resources expenditures reduction and infrastructure management

2019

S I C O N . R U

Which tasks does the system solve?

Increase of the energy efficiency within Holding

Localization of the losses of energy resources (ER) Control over the efficiency of the ER usage and power-saving events Control over the energy balance within Holding

Management of the engineering infrastructure

Automation of the control over the

• utdoor illumination of the objects

Active removal (control over the removal) of accidents on the basis of real time signals Informational cooperation with the subjects concerned (МЧС, GIS, power supply companies and etc.)

S I C O N . R U

 Possibility of the switch to an optimal tariff for payments for energy resources  Control over the actual consumption of energy resources for each object  Control and optimization of energy consumption in single infrastructural sections and consequently reduction of losses and thefts of electric energy  Calculation of the part of energy expenditures in the production cost price – power intensity of goods and services  Actual statistics and analysis of the authentic information about power consumption in an electronic form, maintenance of databases and archives for reporting periods. Elaboration of the power balance for a Holding and single objects.

What does the system provides?

S I C O N . R U

“Smart City” layout

S I C O N . R U

The energy resources metering system basing on the Software “Pyramida”

Key advantages

Scale

Large number of meters – more than 1 000 000 Large number of users – more than 100 000

Technologies

Microsoft SQL and Oracle in the Standard Edition versions Open Web-services Web-interface of all categories of users HTML5 only Native clients for iOS and Android

Usability

Automation of functions Group operations as an ideology Automatic update via the Internet

Integrated functions “service desk”, online technical support

S I C O N . R U

The energy resources metering system basing on the Software “Pyramida”

User-friendly interface

S I C O N . R U

7

The energy resources metering system basing on the Software “Pyramida”

Flexible RRI model

S I C O N . R U

The energy resources metering system basing on the Software “Pyramida”

Customization basing on the demands of the Customer

S I C O N . R U

The energy resources metering system basing on the Software “Pyramida”

Architecture of the solution

S I C O N . R U

Intended for metering and accounting the active and reactive electric power in single-phase two-wire networks of the alternating current of the industrial frequency in the multi-tariff

• regime. The meters are used in the structure of automated accounting and control systems.

Interfaces of data transmission: RS-485, RF, Zigbee, PLC. Functional features:  Insensitivity to the magnetic field influence;  Sensor of the magnetic field with the recording in the event-log and possibility of the user disconnection;  Tariffs supported by the meter — 4 (48 zones of the daily tariffing schedule for each type

• f day for 12; up to 45 special days);

 Shunt as a sensor of current;  Distant load control;  Function of the power limitation;  Optical port for local setting and checking of the meter.

Single-phase electricity meters ST1000-7

Solution based on the “Pyramida” Platform

S I C O N . R U

Intended for metering and accounting the active and reactive electric power in three-phase four-wire networks of the alternating current of the industrial frequency in forward and reverse directions in the multi-tariff regime. The meters are used in the structure of automated accounting and control systems. Interfaces of data transmission: RS-485, RF, Zigbee, PLC Functional features:  Insensitivity to the magnetic field influence;  Sensor of the magnetic field with the recording in the event-log and possibility of the user disconnection;  Tariffs supported by the meter — 4 (48 zones of the daily tariffing schedule for each type

• f day for 12; up to 45 special days);

 Shunt as a sensor of current for the meters of the direct insertion;  Distant load control;  Function of the power limitation;  Optical port for local setting and checking of the meter.

Solution based on the “Pyramida” Platform

Three-phase electricity meters ST2000-9

S I C O N . R U

Intended for collecting information from electricity meters, data collecting and transmitting devices (RTU) or other means of measurement via the PLC/communication radio channel. Functional features:  Transmitting requests via the PLC/communication radio channel;  Providing the possibility of local data collection using a notebook (for the modems powered via USB) directly on the automation object;  Conduction of retransmission of requests and data via the PLC/communication radio channel (for the “retransmitter” regime).

Solution based on the “Pyramida” Platform

PLC/Radio modems Link ST230

S I C O N . R U

Intended for automation of power resources metering and dispatching control

• f energy, industry and housing objects.

Functional features:  Data collection from the devices of energy resources accounting: indications and values profiles for tariffs, events etc.;  Integrated GSM/GPRS module, 2 SIM-cards (primary and reserve ones);  Exterior interfaces:1 × LAN Ethernet 100Base-T, TCP/IP;

• 1 × USB;
• 4 × RS-485;
• 6 remote signalizing channels (dry contact).

 Control over the working regimes of electric installations including the registration of emergency and ineffective regimes.

Solution based on the “Pyramida” Platform

Smart controllers SM160-02

S I C O N . R U

GPRS-modem Link ST100 is used as a data receiving and transmitting device in the structure of separated automated electric energy control and metering systems and

• ther automated systems of collecting data from distant objects.

Functional features:  Distant data collection from calculators, correctors, flowmeters, counters;  Data transmission via the radio-telephone communication of the GSM-standard in the packet data transmission regime (GPRS) or in the channel data transmission regime (CSD – modem connection).  Interfaces of the sequential binding:

• RS-485;
• Ethernet 10/100.

 Antenna: remote;  Voltage: 10–30 V;  Power consumption: not more than 10 V·А;  Temperature range: from -40°C to +60°С;  Body: plastic, dimension: 87х23х95 mm, IP30 - AUSS 14254-96;  Electromagnetic compatibility: AUSS Р 51317.6.5-2006, test hardness degree: ???.  Software- and hardware-based protective timer;  Protection from the unsanctioned access;  Power outputs – up to 4 meters of ±7..9V voltage and 120 mА current.

Solution based on the “Pyramida” Platform

GSM modem LINK ST100

S I C O N . R U

Automated system of pump stations management

Customization basing on the demands of the Customer

S I C O N . R U

Automated system of boiler houses and heat supply station management

Customization basing on the demands of the Customer

S I C O N . R U

Automated outdoor lightning control system - AOLCS

Architecture of the solution

S I C O N . R U

Elaboration of soft- and hardware, designing documents, concepts, development programs. Elaboration of energy passports on the demands of the RF Ministry of Energy. Serial production (including the contract

• ne) of soft- and hardware: controllers,

means of communication, information and calculation complexes, automation cabinets (panels). Packaging and delivery for projects. Building and mounting works, commissioning, passing the regulation procedures of agreement in the managing

• rgans. Handing over to the Requester

(factorial, autonomous, complex,… tests, trial operation). Guarantee accompaniment, technical and after-sale service of systems in the adjusted regimes on the adjusted criteria

• f the service level.

«Systems and Technologies» Group

The complete cycle of project realization

S I C O N . R U

«Systems and Technologies» Group

Own production range

S I C O N . R U

«Systems and Technologies» Group

Introduction experience

The RF Ministry of Defense

Technical specialists of the «Systems and Technologies» Group have conducted design and exploratory work in the course of which the album of project solutions for production and introduction of measurement complexes of electric power metering has been prepared. In the result the metering system of the base level has been realized on the basis of this project solution in all military units of the RF Ministry of Defense (more than 100 000 metering units).

S I C O N . R U

Technical solutions of the «Systems and Technologies» Group are widely known in JSC «Rosseti» where the information and measuring system «Pyramida» is effectively used in 55% of the electric networks complex.

«MOESK» «Lenenergo» «MRSK of the Center»

• Bryanskenergo;
• Smolenskenergo;
• Tambovenergo;
• Tverenergo.

«MRSK of the Center and Privolzhe»

• Vladimirenergo;
• Ivanenergo;
• Kalugaenergo;
• Nizhnovenergo;
• Tulenergo;
• Udmurtenergo;
• Ryazanenergo;
• Marienergo.

«MRSK of the North-West»

• Pskovenergo;
• Novgorodenergo.

«MRSK of Volga»

• Chuvashenergo;
• DEN of Saratov.

«MRSK of Ural»

• Chelyabenergo;
• Permenergo;
• EnergoKurgan.

«MRSK of Syberia»

• Altaienergo;
• Krasnoyarskenergo;
• Omskenergo;
• Tomsk separating company.
• Gorno-Altaisk EN.

«MRSK of the South»

• Astrakhanenergo;
• Volgogradenergo;
• Kubanenergo.

«MRSK of North Caucasus»

• Dagenergo;
• Stavropolenergo;
• Karachay-Cherkessia branch;
• North Ossetia branch;
• Kabardino-Balkaria brach;
• Ingushenergo.

Technical solutions of the «Systems and Technologies» Group

• n the objects of JSC «Rosseti»:

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

• Turnkey creation of automated electric

power and voltage control and accounting systems on more than 400 energy objects

• f SC «Transneft».
• Provision of soft- and hardware produced

by the «Systems and Technologies» Group, conduction of project and exploratory, building and mounting work and commissioning.

• State expertise of objects and introduction

to the industrial exploitation have been conducted.

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

• AMR of SOC «Bashneft» has been constructed
• n the basis of the information and measuring

system (IMS) «Pyramida».

• Structure: the software complex «Pyramida

2000», industrial controllers (DCTD) SICON С70, С50, time synchronization devices USV-2.

• AMR covers more than 3000 energy objects,

5426 metering points 1000 of which belong to the wholesale electric power market, more than 23 000 telemechanics signals…

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

In 2005 – 2006 on the conditions of a subcontract (the prime contractor - «Optima» group, Moscow) «Systems and Technologies» Group participated in the construction of AMR CEA «Zhigulevskaya HPS», «Saratovskaya HPS», «Votkinskaya HPS», «Volzhskaya HPS». In the frameworks of the contract №2008K/107 from August, 22, 2008 provision of the software

• f the AMR servers was conducted in

accordance with the new regulations of JSC «ATS» for the branch of JSC «RusHydro» «Zhigulevskaya HPS». In the frameworks of the contract №2010Z/184 from July, 13, 2010 the elaboration of the project ASTEM

• f

the branch

• f

PJSC «RusHydro» «Zhigulevskaya HPS»

• n

53 metering points was conducted. In the frameworks of the contract № СР-О-202- 2011 from June, 17, 2011 a complex of work for the modernization of AMR/ASTEM of the branch

• f JSC «RusHydro» «Saratovskaya HPS» in the

sphere of electric power metering for productive and own needs on 75 metering points was conducted.

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

In the frameworks of the investment project «The introduction of the resource-saving technologies on the railway transport» for the needs of JSC «RZD» from December 2011 to June 2012 «Systems and Technologies» Group together with «Stroy- Continent» Ltd conducted the introduction of the Automated outdoor lightning control system at the railway stations Mariinsk and Bugach (Krasnoyarsk Region) on the basis of AOLCS «Pyramida».

In the course if the realization of the project the following kinds

• f work were conducted:
• Provision of the equipment (lightning control cabinets) and

AOLCS «Pyramida» software;

• Mounting work and commissioning at the level of the object

(at the TS);

• Commissioning at the level of the dispatching center;
• Conduction of the full-scale test of the AOLCS with

participation of the representatives of the Customer and the following formation of the full-scale tests document;

• Teaching of the Requester’s staff of working with the

System;

• Trial operation of the AOLCS (adjustment of the work

regimes, forming of the control data for the object of the system installation about the consumption considering the automated control).

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

In 2008 the project of the creation of the automated information and measuring system of the commercial and technical metering was realized at the property complex of the buildings of the RF Government.

Among the suggestions the independent experts chose our solution on the basis of the SICON controllers as well as the time synchronization devices USV which, for that moment, were the only certified correct time sources supporting all kinds of synchronization based on GSM. USV conducts measuring (forming, counting) of the current time and date values with the navigation systems signals correction. On that object the introduction of the current solution allowed to optimize the process of the synchronization of the time of the rules of procedure and voting conduction of the RF Government.

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

• Conduction of the whole complex of
• work. Creation of the automated

information and measuring system of the commercial metering, regulating and dispatching at more than 2000 shops of the Customer.

• Creation of the united Center of

collecting, holding and analyzing the data about the energy resources metering in the shops of the Customer.

• Conduction of the whole complex of works.
• Creation of the automated information and

measuring system of the commercial metering, regulating and dispatching in the hypermarkets of the Customer.

• Creation of the united Center of collecting,

holding and analyzing the data about the energy resources metering in the hypermarkets of the Customer.

• 14 shops on the territory of RF. Works on

the design of the AMR system and dispatching has been conducted.

• In present the introduction with the

following combining of data into the united collecting centers is being conducted.

«Systems and Technologies» Group

Introduction experience

S I C O N . R U

ICC software has to ensure the following demand: The support of work with the most widespread types of metering units of the following producers of the equipment:

• JSC «Radio and Microelectronics»;
• JSC «Electro technical plants «Energomera»;
• JSC «NRPA named after M. V. Frunze»;
• «Incotex» Ltd;
• «Matritca» Ltd.

The support of work with the most widespread types of smart controllers of the following producers of the equipment:

• JSC «Systems and Technologies» Group;
• JSC «Electro technical plants «Energomera»;
• JSC «NRPA named after M. V. Frunze»;
• «Incotex» Ltd;
• «Matritca» Ltd;
• «Elster Metronica» Ltd.

JSC «Rosseti»

Intellectual controller SM160 is in the list of the supported equipment

S I C O N . R U

Smart controller SM160:

• Satisfies the requirements of JSC «Rosseti» for

smart controllers (RTU)

• f

automated information and measuring systems of electric power metering for the wholesale and retail electric power markets;

• Application on the objects of the retail market
• f JSC «Rosseti» is recommended.

JSC «Rosseti»

Certification of the smart controller SM 160 for the application in AMR systems

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

JSC «Oboronenergosbyt» As the main instrument during the arrangement of energy supply of military units and other

• rganizations dependent on the RF Ministry of

defense, state and other requesters, JSC «Oboronenergosbyt» uses the Automated Information and Measuring System of Power resources metering (AMR) constructed on the basis

• f the “Pyramida” software.

That software has allowed to create the united metering system functioning in more than 30 offices

• f JSC «Oboronenergosbyt» located in all constituent

entities of the Russian Federation. The «Pyramida» software has been installed both in the head Data collecting and processing center (DCPC) and in regional DCPCs.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«MRSK of the Center and Privolzhe» From January to May, 2015, JSC «Systems and Technologies» Group conducted the work on modernization of the upper level of accounting systems with the creation of the united ICCs of AMR of the branches of «MRSK of the Center and Privolzhe» «Ryazanenergo», «Kalugaenergo», «Udmurtenergo», «Marienergo» in accordance with the Arrangement concept of the electric power commercial metering in JSC «Rosseti». Creation of the united ICC was conducted to widen its functional, optimize the expenditures for the accounting systems use, regulate the scheme of licensing and updating of the applied software of AMR WEPM and REPM.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«MRSK of the Center and Privolzhe», the «Tulenergo» branch The informational system of REPM created on the

• bjects of the Efremovskie electric networks is

realized on the basis of the specialized equipment for metering of accounting, energy resources selling and managing and works on the basis of the controllers under the «SICON» trade mark (intellectual controllers SM-160), smart meters of KVANT (ST1000 and ST2000) and the «Pyramida» software produced by JSC «Systems and Technologies» Group. The system is characterized by the high reliability level and functionality.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Lenenergo» We express our sincere gratitude to the team of JSC «Systems and Technologies» Group for the professional approach in the creation of AMR «Lenenergo» in accordance with the requirements

• f the wholesale electric energy and power market

(WEPM) during the whole period of the cooperation of our companies from 2007 to the present moment. Reliability, the quality of execution, good diagnosability of the equipment, functional fullness

• f the software contribute to the perfomance of

the tasks set before AMR of «Lenenergo».

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Setevaya companiya», Tatarstan In 2010 between the Privolzhe electric networks (a branch of «Setevaya companiya») and «ASTEK» Ltd a contract implying the realization of the united platform of the metering automation on the basis

• f the «Pyramida» software was concluded. The

works included the adjustment of standard approaches and methods of the work implementation for the further replication of the solution in other branches and the administration

• f the company.

The adopted and effectively introduced part of the united corporate metering system on the basis of the «Pyramida» software is to be installed in all branches of «Setevaya companiya».

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Vladimirskiye communalniye sistemy” The construction of AMR system of the «Vladimirskiye communalniye sistemy» was conducted on the basis

• f the smart controllers SICON C70, smart link SICON

TC65, as well as the «Pyramida» software produced by JSC «Systems and Technologies» Group. The realization of the project and provision of the equipment were conducted during a short period of time according to the schedule, mounting work and commissioning were qualitatively completed to schedule and sometimes ahead of the schedule notwithstanding the dispersed geography of the

• bjects of introduction.

Mounting and setting-up works are estimated as «Perfect».

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

“Center of energy effectiveness Inter-RAO EES» We express our gratitude to the authority and team

• f «Systems and Technologies» Group for the

qualitative completion of the full complex of work

• n the modernization of AMR of the

«Cherepetskaya SDES named after D. G. Zhimerin» which is the branch of «Inter RAO – power generation». The works have been completed at the high professional level in accordance with all the regulations, norms and rules. The peculiarities of the current AMR system, necessity of the conduction of works in the conditions of the functioning enterprise as well as efficient implementation of the Сustomer’s directives were taken into consideration at all stages of work.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Mosenergosbyt» The intellectual controllers SM160, SICON TC65, SICON C70, SDM TC65 used for the work in the structure of automated information and measuring systems of commercial electric energy and power accounting and automated technological process control systems on the objects are full-scale controllers. Informational systems of REPM for the consumption accounting, power resources selling and managing created on the basis of the mentioned specialized equipment and «Pyramida» software are characterized by the high level of reliability and functionality and perform the functions which are necessary in AMR REPM.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Tambov energosbyt company» The created automated system is the main demonstrational element of the Center of energy saving of Tambov region. It allows to compare the power consumption of the modern energy effective household appliances and lightning sources with their traditional analogs in a convenient graphic form and estimate the economic effect of the introduction. Technical solutions of «Systems and Technologies» Group are reliable and function correctly, the works have been completed at the high technical level.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«RGMEC» Specialists of «Systems and Technologies» Group have completed the contract works with the appropriate quality in accordance with all the demands of the standards of the branch and other regulations of RF. The timely and complete implementation of the full complex of work and sticking to the schedule by «Systems and Technologies» Group have allowed «RGMEC» to modernize AMR system and provided the receipt of the tariff and balance solution in regard to the consumers who are lead out to WEPM by «RGMEC».

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«Sitronics Bashkortostan» AMR of «Bashneft» is created on the basis of the information and measuring system (IMS) «Pyramida» produced by «Systems and Technologies» Group and includes the «Pyramid» software complex, smart controllers (RTU) SICON C70, C50, time synchronization devices USV-2. The work on adopting IMS «Pyramida» in accordance with the requirements of «Bashneft» have been completed qualitatively and to the schedule.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«NPP Ozna-Engineering» The obligations of «Systems and Technologies» Group

• n the contract №332/13 from October, 3, 2013

concluded with «NPP Ozna-Engineering» have been successfully implemented. The contract implies the supply of the equipment of AMR for AK «Transneft». Work of the specialists of «Systems and Technologies» Group who have demonstrated the high level of professionalism, efficiency and responsibility in solution of the tasks, deserves the individual appreciation.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«DVEUK» «Systems and Technologies» Group as the prime contractor has completed its obligations on the creation of the object «Automated system of energy resources commercial metering of the energy system

• f Russky island of the Primorsky Kray» on the

contract № 2012В/603 from November, 21, 2012 bona fide. The works were completed with the high quality of the mounting work and corresponded to the requirements of the Building regulations and the regulations of «DVEUK». «Systems and Technologies» Group possesses the modern industrial basis, necessary number of the professional staff for the implementation of mounting work, commissioning and special kinds of work.

S I C O N . R U

«Systems and Technologies» Group

Feedbacks

«AREK», the republic of Kazakhstan High qualification of the professionals of «Systems and Technologies» Group is marked at all stages of work including the stages of the guarantee and post- guarantee technical service which is conducted by the group of technical support of «Systems and Technologies» Group. During our partnership all the necessary technical consultations as well as useful seminars where the

• perating engineers enrich their knowledge and

improve skills of work with the equipment of «Systems and Technologies» Group.

S I C O N . R U

«Systems and Technologies» Group

Key Customers

Head office: 600026, Vladimir City, Lakina str.-8 Tel: (4922) 33-67-66, 33-79-60, 33-93-68 Fax: (4922) 42-45-02 E-mail: st@sicon.ru Moscow office: 123610, Moscow, Krasnopresnenskaya av. 12, office 920 E-mail: dvm@sicon.ru www.sicon.ru
