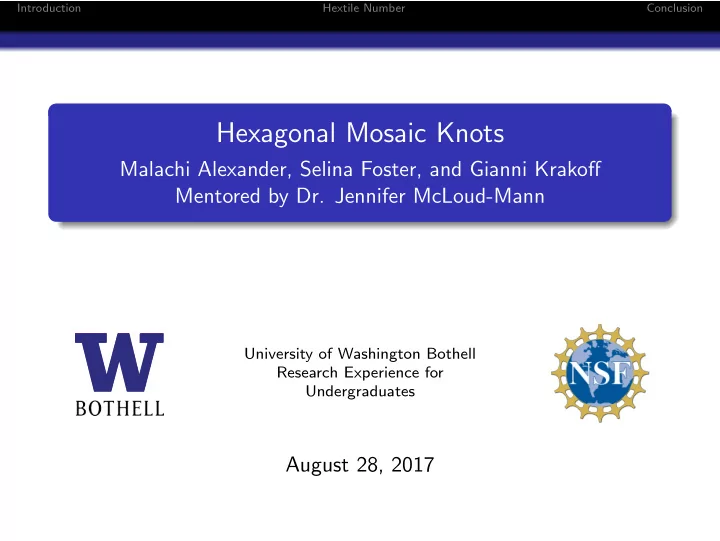

Introduction Hextile Number Conclusion Hexagonal Mosaic Knots Malachi Alexander, Selina Foster, and Gianni Krakoff Mentored by Dr. Jennifer McLoud-Mann University of Washington Bothell Research Experience for Undergraduates August 28, 2017
SLIDE 2
SLIDE 3
Introduction Hextile Number Conclusion
Definition of a Knot
Definition A knot is an embedding of a circle in three-dimensional space.
SLIDE 4
Introduction Hextile Number Conclusion
Definition of a Knot
Definition A knot is an embedding of a circle in three-dimensional space.
SLIDE 5
Introduction Hextile Number Conclusion
Definition of a Knot
Definition A knot is an embedding of a circle in three-dimensional space.
SLIDE 6
Introduction Hextile Number Conclusion
Common Terminology
Knot Crossing Unknot Undercrossing Link Overcrossing
SLIDE 7
Introduction Hextile Number Conclusion
Equivalence of Knots
SLIDE 8
Introduction Hextile Number Conclusion
Equivalence of Knots
SLIDE 9
Introduction Hextile Number Conclusion
What is a Mosaic Knot?
SLIDE 10
Introduction Hextile Number Conclusion
What is a Mosaic Knot?
SLIDE 11
Introduction Hextile Number Conclusion
Defining the Hextile
A hextile must obey the following axioms: A curve must terminate at the midpoint of an edge and a curve cannot cross itself. Two curves cannot cross more than once and cannot share an edge. Examples of Violations
SLIDE 12
Introduction Hextile Number Conclusion
Types of Hextiles
Type 0 Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7 Type 8 Type 9 Type 10 Type 11 Type 12 Type 13 Type 14 Type 15 Type 16 Type 17 Type 18 Type 19 Type 21 Type 22 Type 23 Type 20
SLIDE 13
Introduction Hextile Number Conclusion
Arrangements and Diagrams
Arrangement of ten hextiles. Arrangement of ten hextiles.
SLIDE 14
Introduction Hextile Number Conclusion
Arrangements and Diagrams
Not suitably connected. Arrangement of ten hextiles.
SLIDE 15
Introduction Hextile Number Conclusion
Arrangements and Diagrams
Not suitably connected. Suitably connected.
SLIDE 16
Introduction Hextile Number Conclusion
Reidemeister Moves & Planar Isotopy
Reidemeister Move I Reidemeister Move II Reidemeister Move III Planar Isotopy
SLIDE 17
Introduction Hextile Number Conclusion
The Hextile Number
Definition The hextile number of a link L is the least number of hextiles needed to represent L, denoted h(L).
More crossings per tile does not imply hextile number.
SLIDE 18
Introduction Hextile Number Conclusion
Hextile Number as a Knot Invariant
Definition The hextile number of a link L is the least number of hextiles needed to represent L, denoted h(L). Theorem The hextile number is knot invariant. Proof. Similar to the crossing number, given two knots if the hextile numbers are different then the knots must be different, and if the hextile numbers are the same then we can’t conclude the knots are different.
SLIDE 19
Introduction Hextile Number Conclusion
Theorems About Hextile Number
Theorem For a non-trivial link L, h(L) 6.
h(22
1) = 6 and h(31) = 6.
SLIDE 20
Introduction Hextile Number Conclusion
Proof Concept: Pincer Movement
Construction To show that we actually have in our hands the hextile number for some knot, our main technique has been squeezing the upper and lower bounds. We want to show that h(31) = 6; it is sufficient to show that h(31) > 5, and that 7 > h(31). We already have it on 6. Computations become exponentially harder as the number of hextiles increases.
SLIDE 21
Introduction Hextile Number Conclusion
Theorems About Hextile Number and Crossing Number
Theorem For a link L, if c(L) 4, then h(L) 8. Theorem For a knot K, if c(K) 5, then h(K) 9.
SLIDE 22
Introduction Hextile Number Conclusion
Known and Unknown Hextile Numbers
L h(L) 01 3 02
1
5 22
1
6 31 6 41 8 42
1
8 52
1
8 51 9 52 9 31#31 9
Is this D(73) reducible?
L h(L) 61 9 62 9 63 9 71 12? 72 13? 73 14? 74 11? 75 11? 76 10? 77 9
SLIDE 23
Introduction Hextile Number Conclusion
Thank You!
I would like to thank: My research mentor, Dr. Jennifer McLoud-Mann My faculty mentor, Dr. Alison Lynch The National Science Foundation Grant DMS1460699 Undergraduate Research Opportunities Center
