Medical WG Technology session APAN 32 nd meeting at New Delhi HD- -SCR and Tele SCR and Tele- -Pointer Pointer HD Chairpersons: Ti-Chaung Chiang, National Taiwan University Torata N and Cao Duc Minh, Kyushu University Hospital. 1 HD-SCR:

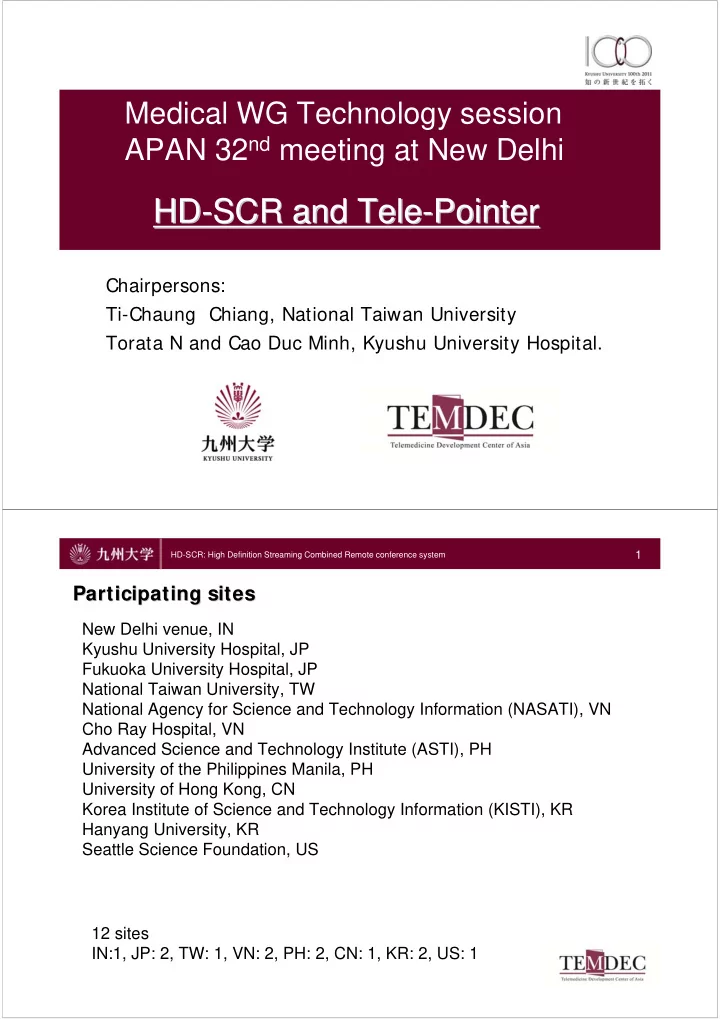

SLIDE 1

Medical WG Technology session APAN 32nd meeting at New Delhi

Chairpersons: Ti-Chaung Chiang, National Taiwan University Torata N and Cao Duc Minh, Kyushu University Hospital.

HD HD-

SCR and Tele

SCR and Tele-

Pointer

Pointer

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Participating sites Participating sites

New Delhi venue, IN Kyushu University Hospital, JP Fukuoka University Hospital, JP National Taiwan University, TW National Agency for Science and Technology Information (NASATI), VN Cho Ray Hospital, VN Advanced Science and Technology Institute (ASTI), PH University of the Philippines Manila, PH University of Hong Kong, CN Korea Institute of Science and Technology Information (KISTI), KR Hanyang University, KR Seattle Science Foundation, US 12 sites IN:1, JP: 2, TW: 1, VN: 2, PH: 2, CN: 1, KR: 2, US: 1

SLIDE 2

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Introduction

DVTS plays central part in our telemedicine activity. Advantage: High frame rate, DV quality image. Disadvantage: High bandwidth, NTSC dedicated. Next generation conference system is desired. Hi quality HD image support (Low compression, High frame rate), NTSC/PAL compatibility, Multipoint connection (over 10), Easy preparation, Easy sound handling, Tele-Pointer: Visual collaborative pointing interface for teleconference

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HiDVTS: Impossible to connect multipoint. H.323 compatibles: There is an advantage of easy handling but they support hi-compressed image only. Streaming system: There are advantages of image quality, easy handling and preparation but it does not support remote conversation. Tele-Pointer : Good solution does not exist currently. Combine few systems to meet our requirements.

SLIDE 3

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

presentation providing site

HD streaming image

(HiDVTS, H.323) (HiDVTS, H.323)

TEMDEC

Academic NW

TV conference system HD streaming Server Tele-Pointer Server

(Vidyo, H.323) (Vidyo, H.323) (HD stream receiving PC)

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Render remote site cursors Transmitting image (HD stream or DVTS) Combined image (Tele-Pointer ＋ HD streaming/DVTS)

Tele-Pointer overview

Over Layer

SLIDE 4

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Tele-Pointer specifications Server-Client type commercial software. Operates with Windows PC. Accepts five cursors rendering at once. Accepts twenty clients connections. All clients can get cursor control authority. The client software can be distributed.

Tele-Pointer is developed for our purpose by INTEC Inc, Japan. This solution expects to use with other image transmitting solutions, like streaming system or DVTS.

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HD-streaming server (MEDIAEDGE Server) Tele-Pointer Server VPN Router

(L2TP/IPsec gateway)

HD streaming and Tele-Pointer data go through L2TP/IPsec Link

PC for HD stream receiving and Tele-Pointer

HD streaming system overview HD streaming system overview

11Mbps/each H.264 Hardware Encoder (MEDIAEDGE-LEB4)

H.264 compressed 1280* 720 60p (8M) with Forward Error Correction data (1.6M)

Digital Multi Switcher (IDK MSD-4403 ) Selected HD source

HiDVTS client H.323 client Local Medial image

SLIDE 5

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Vidyo Portal @TEMDEC Vidyo desktop client H.323 compatible Conference systems

TV conference system TV conference system Overview Overview

Codian MCU 4210@ Kyushu Univ. C.C. Vidyo Gateway @TEMDEC H.323 compatible Software

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HD stream receiving PC Vidyo, Mirial Audio visual devices Display devices H.323 Compatible system PC

＋

SLIDE 6

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Hi quality HD image :1280720 60p H.264 8Mbps NTSC/PAL compatibility: accepts both signal Multipoint connection: up to 20 sites ?

(One HD streaming server supports 200M streams in total.)

Easy preparation: one conference device and one PC Easy sound handling: undertook by TV conference system *Tele-Pointer: realized by new software

Achievements of HD-SCR

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Challenges facing HD-SCR Reduce time delay of HD stream: 2-4sec. Investigate better way to transmit HD quality image from presentation providing site to TEMDEC.

HiDVTS: more sensitive to packet lost than DVTS.
H.323: quality depends on a terminal specification.
VLC media player: Long time delay

*Gain experience of HD-SCR through this telemedicine activities.

SLIDE 7

Demonstration HD-SCR

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HD-streaming server (MEDIAEDGE Server) Tele-Pointer Server VPN Router

(L2TP/IPsec gateway)

HD streaming and Tele-Pointer data go through L2TP/IPsec Link

PC for HD stream receiving and Tele-Pointer

HD streaming system overview HD streaming system overview

11Mbps/each H.264 Hardware Encoder (MEDIAEDGE-LEB4)

1280* 720 60p H.264 encoded IP signal (8M) with Forward Error Correction data (1.6M)

Digital Multi Switcher (IDK MSD-4403 ) Selected HD source

HiDVTS client H.323 client Local Medial image

SLIDE 8

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HD contents from 3 sites HD contents from 3 sites

Digital Multi Switcher HiDVTS (720p) from Fukuoka Univ. Hosp. (Okumura sensei)

Presentation PC 20Mbps

HDMI IEEE1394

HDMI to HDV convertor ADVC-HD50

H.323 compatible terminal (720p) from Seattle Science Foundation (Ken san)

HiDVTS Send HiDVTS Receive

HDMI DVI

6Mbps

LifeSize HDMI RGB

HD streaming system Direct input (Temdec)

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Start Goal

SLIDE 9

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Start Goal

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Start Goal

SLIDE 10

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

Where san is?

HD-SCR: High Definition Streaming Combined Remote conference system

九州大学UIプロジェクト Kyudai Taro,2007

HD-streaming server (MEDIAEDGE Server) Tele-Pointer Server VPN Router

(L2TP/IPsec gateway)

Cost of HD Cost of HD-

SCR and Tele

SCR and Tele-

Pointer

Pointer

H.264 Hardware Encoder (MEDIAEDGE-LEB4) Digital Multi Switcher (IDK MSD-4403 )

Medical WG Technology session APAN 32nd meeting at New Delhi

HD HD-

SCR and Tele-

Pointer

Participating sites Participating sites

Introduction

Academic NW

Tele-Pointer overview

Tele-Pointer specifications *Server-Client type commercial software. *Operates with Windows PC. *Accepts five cursors rendering at once. *Accepts twenty clients connections. *All clients can get cursor control authority. *The client software can be distributed.

Tele-Pointer is developed for our purpose by INTEC Inc, Japan. This solution expects to use with other image transmitting solutions, like streaming system or DVTS.

＋

*Hi quality HD image :1280*720 60p H.264 8Mbps *NTSC/PAL compatibility: accepts both signal *Multipoint connection: up to 20 sites ?

*Easy preparation: one conference device and one PC *Easy sound handling: undertook by TV conference system *Tele-Pointer: realized by new software

Achievements of HD-SCR

Challenges facing HD-SCR *Reduce time delay of HD stream: 2-4sec. *Investigate better way to transmit HD quality image from presentation providing site to TEMDEC.

*Gain experience of HD-SCR through this telemedicine activities.

Demonstration HD-SCR

Start Goal

Start Goal

Start Goal

Where san is?

$14,000 $8,900 $32,000 Client software $6600/ 20 clients $2,844 $13,000 $77,300
