Hard, anti-wear and (or) low friction coatings Dr Tomasz Suszko - - PowerPoint PPT Presentation

▶
hard anti wear and or low friction coatings
SMART_READER_LITE
LIVE PREVIEW

Hard, anti-wear and (or) low friction coatings Dr Tomasz Suszko - - PowerPoint PPT Presentation

Aug 21, 2023 128 likes •725 views

Hard, anti-wear and (or) low friction coatings Dr Tomasz Suszko What is the object of our studies? Coatings having : thickness >50nm and <100m ceramic or metallic (not polimeric-like, liquid crystals etc.) obtained

slide-1
SLIDE 1

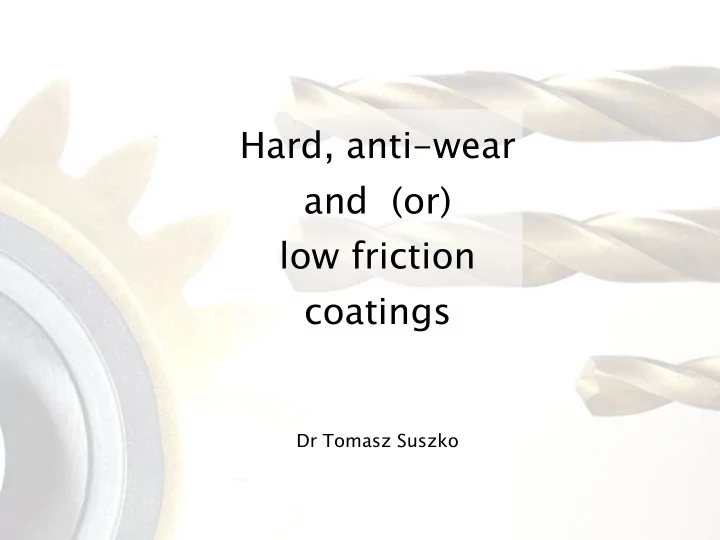

Hard, anti-wear and (or) low friction coatings

Dr Tomasz Suszko

slide-2
SLIDE 2

2

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

HARD

  • what is hardness?
  • what compounds can be hard?

ANTI-WEAR

  • what is wear?

LOW FRICTION - where friction come from? COATINGS

  • how do properties of a coating differ from

bulk material

What is the object of our studies?

Coatings having :

  • thickness >50nm and <100µm
  • ceramic or metallic (not polimeric-like, liquid crystals etc.)
  • obtained mainly with PVD methods
slide-3
SLIDE 3

3

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

What is hardness, actually? Is it a physical quantity?

On the Mohs scale (1812) a pencil lead has a hardness of 1 a fingernail has hardness 2.5 a copper penny, about 3.5 a knife blade, 5.5 window glass, 5.5

No, it isn't in any way

  • comparative, highly nonlinear

Digression: Extended Mohs scale has additional 5 stages for hardest materials 10 - fused zirconia ZrO2 11 - fused alumina Al2O3 12 - silicon carbide SiC 13 - boron carbide B4C 14 - boron nitride BN 15 - diamond

slide-4
SLIDE 4

4

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

HR = E - e

Rockwell's hardness It also isn't any physical quantity

„Resistance of materials to plastic deformation, usually by indentation”

What is hardness, actually?

slide-5
SLIDE 5

5

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Stress vs strain depndence

F F ultimate strength yield strength tensile strength strain hardening necking Stress Strain steel aluminium ceramics not always sharply defined F F very low ductility!

slide-6
SLIDE 6

6

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Vicker's hardness It looks like a physical quantity

slide-7
SLIDE 7

7

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Brinell's hardness It looks like a physical quantity too

slide-8
SLIDE 8

8

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Different indentation geometries

Vickers (load - newtons) Brinell (load - kilonewtons) Knoop (load - decimals

  • f newtons)

Berkovich (load - mili and micronewtons) shape of the plastically deformed zone plastically deformed elastically deformed (no real border) undisturbed

What is hardness, actually?

slide-9
SLIDE 9

9

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

What is hardness, actually?

  • It seems like a method for obtaining

compression strength

  • In fact the material is compressed,

stretched, shared, fractured

  • Hardness is not precisely defined

superposition of given material's elasticity, strength (against compression, tension, sharing and fracture)

  • Hardness is mainly expressed in

units of stress (GPa, kG/mm2)

slide-10
SLIDE 10

10

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Indentation hardness is not a single fundamental property but a combination of properties, and varies with the type of test. The modulus of elasticity and the depth of indentation influence

  • conversions. Therefore separate conversion tables are

necessary for different materials.

Hardness conversion

slide-11
SLIDE 11

11

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Depth-sensing (Oliver-Pharr) method

  • f hardness measurements
slide-12
SLIDE 12

12

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

slide-13
SLIDE 13

13

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Where can we look for hard compounds?

  • Diamond, HV 8000-10000
  • Cubic boron nitride HV 5000
  • Boron carbide HV 4000
  • Silicon carbide HV 2600
  • Silicon nitride HV 1700
  • Titanium diboride HV 3000
  • Titanium carbide HV 2800
  • Titanium nitride HV 2300
  • Tungsten carbide HV 2300
  • Aluminum oxide HV 2100
  • Molibdenum nitride HV 2000
  • Chromium nitride HV 1800
  • Iron tricarbide HV 1300
  • Chromium carbide HV1300
slide-14
SLIDE 14

14

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

What have we

  • btained?

A monocristal :-) ? Is the structure important?

Lets cover a tool with TiN

slide-15
SLIDE 15

15

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

As an example - very common material

  • copper
slide-16
SLIDE 16

16

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Metals can be made into nanocrystalline materials that perform better than regular metals. How to do it? Roll copper at the temperature of liquid nitrogen. Then, heat to around 450K Result: – Structure with micrometer sized grains and nanocrystalline grains – Increased strength and hardness of metal because of the nanocrystalline grains – High ductility

As an example - very common material

  • copper

Source: J. Schiotz et al., Nature, 391 (1998) 561

slide-17
SLIDE 17

17

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Increasing Copper Strength

  • Plastic deformation of copper introduces work-hardening

(copper gets stronger) and reduces the grain size

  • Hall-Petch relation predicts materials get stronger as grain size

decreases: σy = σ0 + KHPd-1/2 900 MPa 100 nm Nanograin Copper 2.9 GPa 10 nm Nanograin Copper 443 MPa 400 nm Copper Cold Worked Copper Material 393 MPa Yield Strength

Can we do in endlessly? It's a pity - no.

slide-18
SLIDE 18

18

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

TiN 2600 HV50 (26 GPa) TiN/TiAlN 4800 HV50 (48GPa) TiAlN (not presented) 3000 HV30 (30GPa)

slide-19
SLIDE 19

19

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

source: http://www.pvd-coatings.co.uk/

Digression - balI cratering

slide-20
SLIDE 20

20

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Digression - balI cratering

slide-21
SLIDE 21

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Digression - arc deposition

slide-22
SLIDE 22

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Digression - arc deposition arc magnetron

slide-23
SLIDE 23

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Another example CrN/CrCN film

slide-24
SLIDE 24

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Hardness depends not only on elemental or phase composition but also on structure. So, we came to nanocomposities Is it something new? Damascenian steel - do you know it?

When we google „nanocomposite”...

slide-25
SLIDE 25

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Binary multilayer CrN/TiAlN

hindered crack propagation

Superhard materials

Binary nc-TiN/a-Si3N4

TiN grains a-Si3N4 "films" ≈ 10 nm 1 ML hindered crack propagation 5 nm

source: Euroschool 2008, Ljubljana; EPF, Lausanne

slide-26
SLIDE 26

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

  • n-MeN/a-nitride (nMeN/a-Si3N4, where: Me=Ti, W, V)
  • n-MeN/n-nitride; for example: n-TiN/n-BN
  • n-MeC/a-C or a-C:H; for example: TiC/DLC; TiC/a-C:H,

Mo2C/a-C:H

  • n-MeN/metal, for example: ZrN/Cu, CrN/Cu, Mo2N/Cu,

Mo2N/Ag

  • n-WC + n-WS2/DLC
  • n-MeC/a-SiC, for example: TiC/a-SiC/a-C:H

Examples of nanocomposite coatings for tribological aplications

How can we obtain such composite coatings?

slide-27
SLIDE 27

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

The carbon-hydrogen system

Hybridizations of carbon

sp3: four identical σ-bonds, single bonds in hydrocarbons (e.g. ethane), elemental as diamond sp: two identical σ-bonds, two extra electrons (π-bonds), triple bonds in hydrocarbons (e.g. acethylene), elemental does not exist

H3C–CH3 H2C=CH2 HC≡CH

sp2: three identical σ-bonds, one extra electron (π-bonds), double bonds in hydrocarbons (e.g. ethylene), elemental as graphite

slide-28
SLIDE 28

28

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

DLC - diamond like carbon

slide-29
SLIDE 29

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Source: J. Patscheider, Surf. Coat. Technol. 146-147 (2001) 201

Composition-structure dependence in TiN/SiN nanocomposite

slide-30
SLIDE 30

30

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Lets come back to the hardness measurements

  • how to measure hardness of a coating?

substrate deformed zone film Thin film / large load Thick film / small load film substrate deformed zone

There is no general formula!

Hcomposite = f (L, Hfilm, Hsubstrate, tfilm) low L, high tfilm ⇒ Hcomposite = Hfilm high L, low tfilm ⇒ Hcomposite = Hsubstrate

slide-31
SLIDE 31

31

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

How to measure hardness of a coating?

slide-32
SLIDE 32

32

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

TiC/a-C:H nanocomposite thin films from our lab

slide-33
SLIDE 33

33

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

X-Ray Diffraction (XRD) Sources of line broadening: Instrumental broadening

  • non ideal optics
  • wavelength dispersion
  • axial divergence od the X-ray

beam Detector resolution Finite crystallite size Extended defects

  • stacking faults

Lattice strain

Digression - calculation of crystallite size Must do we have a kind of TEM?

http://www.bmsc.washington.edu/people/merritt/bc530/bragg/

slide-34
SLIDE 34

34

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Digression - calculation of crystallite size Must do we have a kind of TEM?

Scherrer (1918) first observed that small crystallite size could give rise to line broadening. He derived a well known equation for relating the crystallite size to the broadening, which is called the Scherrer Formula. d = K λ / (β cos θ) d = crystallite size K = Scherrer somewhat arbitrary value that falls in the range 0.87-1.0 λ = the wavelength of the radiation β half width at half maximum of a reflection (in radians) located at 2θ. Now we are able to measure crystallite size without having TEM! Though there are some limits :-(

slide-35
SLIDE 35

35

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Crystallite size measurement accuracy

Conventional diffractometer (FWHM ~ 0.10° at 20° 2θ) Accurate Size Range < 45 nm Rough Upper Limit = 90 nm Monochromatic Lab X-ray (Cu Kα FWHM ~ 0.05° at 20° 2θ) Accurate Size Range < 90nm Rough Upper Limit < 180 nm Synchrotron (λ = 0.8 A, FWHM ~ 0.01° at 20° 2θ) Accurate Size Range < 233 nm Rough Upper Limit = 470 nm

slide-36
SLIDE 36

36

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

TiC/a-C:H nanocomposite thin films

Gulbinski, W. et al.., Applied Surface Science 239 (2005) 302

slide-37
SLIDE 37

37

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Mo2N/Ag nanocomposite thin films

Gulbinski, W. et al.., Surf. Coat. Technol. (2006) in press

slide-38
SLIDE 38

38

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

And now lets switch to friction Where does that phenomena come from?

  • the most popular is Coulomb's model
  • the most adequate is Bowden & Tabor's concept
slide-39
SLIDE 39

39

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

L A L F

σ µ = =

 Shear strength and hardness depend on each other thus friction coefficients are comparable for various izotropic materials. Hardness is not all - there is friction also!

Shear strength Hardness = = =

H AH A

σ σ

F L

A

σ σ

A A

≈

large small small large

Soft materials

F L

Hard materials

A

slide-40
SLIDE 40

40

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

F L

Self-lubricating materials

  • As a result of rubbing, a thin low-shear-
  • strengh layer should appear
  • The material should be hard (what ensures small

contact area) Composite materials: guaiac wood PTFE impregnated bronzes bearing metals with graphite or MoS2 inclusions ceramic/carbon fiber composites Izotropic(?) material: diamond

slide-41
SLIDE 41

41

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

RTDinfo - Mag. Europ. Res., 39, 2003

Self-lubricating FILMS

Hard coating

Enviromental gas Lubricating film

slide-42
SLIDE 42

42

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

How do we measure friction

somewhat disgusting...

slide-43
SLIDE 43

43

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

How do we measure friction

slide-44
SLIDE 44

44

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Friction and wear

 Abrasive wear  Adhesive wear

 Fretting

 Fatigue  Corrosion

 Creep  Fracture  Thermal shocks

slide-45
SLIDE 45

45

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Friction - flash temperature

slide-46
SLIDE 46

46

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Friction - an example

  • f temperature dependence
slide-47
SLIDE 47

47

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

      = = = =

∑ ∑ ∑ ∫

= = =

J m 2 2 2 ) (

3 1 1 1 n i i n i i i n i i i s F

n L A n L r rA s F rA ds s F V k

π π π

Wear rate coefficient - a definition

Worn volume of the sample per work unit done against friction force

  • 1.5
  • 1
  • 0.5

0.5 b) 100°C 100 200 300 400 500 600 700 μm μm 1000 2000 3000 4000 5000 0.2 0.4 0.6 0.8 1 Revolution number Friction coefficient

slide-48
SLIDE 48

48

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Mo2N as a hard coating MoO3 as a solid lubricant Cu additive as a mean for hardness enhancement

An attempt - Mo2N/Cu coatings

slide-49
SLIDE 49

49

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Mo2N/Cu nanocrystalline films – structure, mechanic

ical and trib ibolo logical l propertie ies

Suszko et al., Surf. Coat. Tech., 200, 2006, pp. 6288-6292 Suszko et al., Surf. Coat. Tech., 194, 2005, pp. 319-324 Outline

2.

Deposition method

3.

Some remarks on the structure

4.

Hardness of the films

5.

Friction & wear in temperature range RT-400°C

6.

Conclusions

slide-50
SLIDE 50

50

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Deposition method: unbalanced magnetron sputtering

pulsed power supply pulsed power supply sample external coils pumps Ar, N2 Mo Cu

  • ptical signal

30 cm Temperature: 200 °C Bias: -30 V

slide-51
SLIDE 51

51

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Structure – XRD spectra

2 4 6 8 10 12 14 16 18 Intensity [a.u.]

Fe (substrate)

0% at. Cu 1% at. Cu 6% at. Cu 9% at. Cu 21% at. Cu 40 45 50 55 60 65

Diffraction angle 2ϑ [°]

← γ-Mo2N (111)

γ-Mo2N (200)→

← Cu (111) Cu (200)→

Co Kα radiation

slide-52
SLIDE 52

52

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Cu content (at. %)

5 10 15 20 25 5 6 7 8 9 10 11 12 13

Crystallite size [nm]

Mo2N (200)

Crystallite size obtained from Scherrer’s formula AFM image of the pure γ–Mo2N nitride

The influence of copper content on crystalite size

ϑ β λ

cos K t =

slide-53
SLIDE 53

53

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Structure

Crystallite size and film hardness

Cu content (% at.)

5 10 15 20 25 5 6 7 8 9 10 11 12 13

Crystallite size (nm)

Mo2N (111) Mo2N (200)

5 10 15 20 25 10 15 20 25 30 35 40

Cu content (% at.) H (GPa) Load-depth sensitive method DUH 202 (FN 20 mN) Load-depth sensitive method Hysitron (FN 2mN) Traditional method (FN 100—1000 mN)

slide-54
SLIDE 54

54

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

100 200 300 400 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Temperature [°C] Friction coefficient

0 % at. Cu 3 % at. Cu 7 % at. Cu 22 % at. Cu

  • Fixed and

scanned temperature

TiN

Friction coefficient

  • Ball on disc

configuration

  • Counterpart:

alumina ball

  • Speed: 5 cm/s
  • Normal force:

1 N

slide-55
SLIDE 55

55

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Wear behavior: 20-400°C

5 10 15 20 25

10 -15 10 -14 10 -13 10 -12

Copper content (at. %)

Wear rate ( m3/J )

10 -16

400°C 300°C RT, 200°C 100°C

Wear rate for TiN RT – 0.8·10-14 200°C – 1.5·10-14 400°C – 3·10-15

slide-56
SLIDE 56

56

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Wear behavior – "100°C effect"

RT: kF ~10-16 m3/

100°C: kF ~2·10-14 m3/J !

200°C: kF ~10-16 m3/J

200 400 600 800 1000 0.5 1 Raman shift [cm-1]

Out In

200 400 600 800 1000 0.5 1 Raman shift [cm-1]

Out In

200 400 600 800 1000 0.5 1 Raman shift [cm-1]

Out In

Mo2N 0% Cu

slide-57
SLIDE 57

57

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

6 at. % Cu

50 µm

9 at. % Cu

50 µm 50 µm

22 at. % Cu 0 at. % Cu

50 µm

1 at. % Cu

50 µm 50 µm

2.5 at. % Cu

Wear behavior – the influence

  • f Cu addtion (100°C friction test)

kF ~10-16 m3/J kF ~2·10-14 m3/J

slide-58
SLIDE 58

58

European Summer School PPST Koszalin August 2008

Tomasz Suszko tomasz.suszko@tu.koszalin.pl

Conclusions

 Relatively low friction coefficient against

alumina is observed in room temperature.

 1-3 at. % of Cu additive increases hardness

  • f Mo2N coatings.

 Low wear rate is registered in temperatures

bellow 250°C.

 "The 100°C effect" is observed for samples

with low content of copper. This effect is eliminated when films contain >6 at. % Cu .

 Coatings gradually oxidize in temperature

  • ver 300°C.
