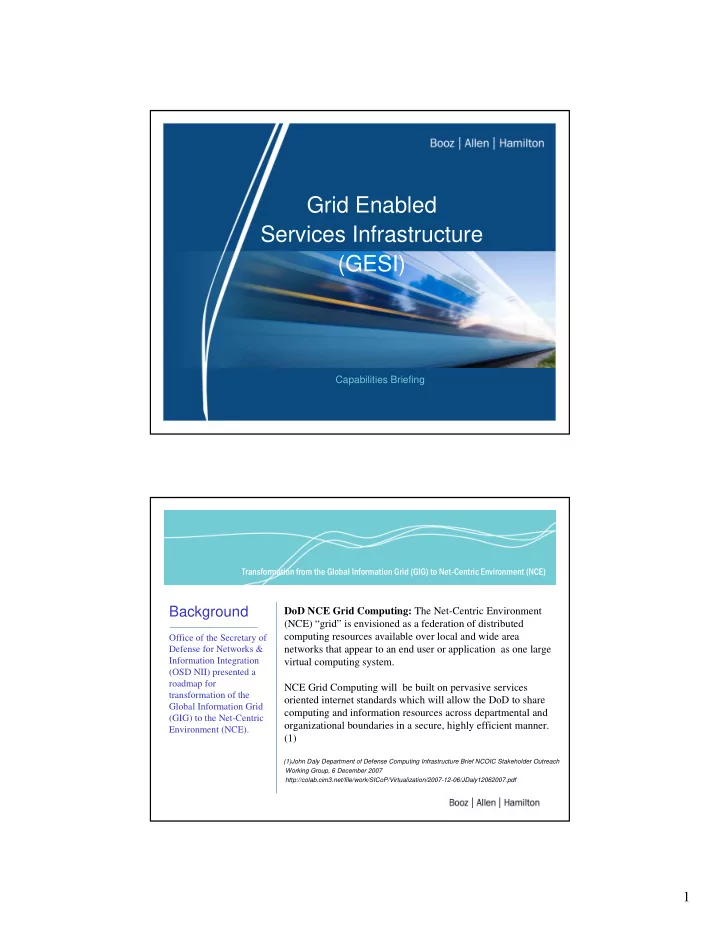

Grid Enabled Services Infrastructure (GESI)

Capabilities Briefing Transformation from the Global Information Grid (GIG) to Net-Centric Environment (NCE)

Background

Office of the Secretary of Defense for Networks & Information Integration (OSD NII) presented a roadmap for transformation of the Global Information Grid (GIG) to the Net-Centric Environment (NCE).

DoD NCE Grid Computing: The Net-Centric Environment (NCE) “grid” is envisioned as a federation of distributed computing resources available over local and wide area networks that appear to an end user or application as one large virtual computing system. NCE Grid Computing will be built on pervasive services

• riented internet standards which will allow the DoD to share

computing and information resources across departmental and

• rganizational boundaries in a secure, highly efficient manner.

(1)

(1)John Daly Department of Defense Computing Infrastructure Brief NCOIC Stakeholder Outreach Working Group, 6 December 2007 http://colab.cim3.net/file/work/SICoP/Virtualization/2007-12-06/JDaly12062007.pdf

2

Technology Enablers of the NCE

• Clustering: Collections of computers in a fixed configuration

designed to be operated and managed as a unified, high- performance machine.

• Server Virtualization: Provides the ability to deploy a

discrete number of “virtual machines” on a single hardware platform.

• Network Virtualization: Allows for the establishment of

Virtual LANs (VLANs) between Virtual Machines.

• Storage Virtualization: Pooling of physical storage from

multiple network storage devices into what appears to be a single storage device that is managed from a central console.

• Agile Infrastructure Framework: Providing a very agile

grid framework upon which to build a Service Oriented Architecture (SOA)

Technology

NCE will be based on business approaches and technology solutions.

GESI Infrastructure GESI is customizable to users’ initial requirements and scalable to users’ future requirements

An Integrated Architecture Solution

SOA Open Source Open Standards Interoperability Business Agility Virtualization – Maximizing Resource Use More SW across Less Hardware High Availability Extensible Load Balancing Ability to Host Multiple Databases and Legacy Databases Remote Mgmt. Capability Online Growth Store File as a Globally Unique Identifier (Store

• nce and
• nly
• nce)

Database Storage Services Integration Architecture to Host: Business Processes, Tools, Data Workflow UI Components Web Mash-Up (Ability to access multiple systems through single UI) Multi-Tenants Legacy Capabilities Legacy Databases “By 2010, Enterprise Web Mash-Ups will be dominant (80%) for composite enterprise applications”

• Gartner Symposium,

Orlando, October 2007

3

An enterprise system: 7-node Oracle Real Application Clusters (RAC) 70TB total storage available, 30TB used for database and content storage High-Availability Clustered Application Recognized for its success and quality: Recognized for Technical Achievement, noting superior

• perational support

OCIO confirmed SOA implementation compliance, supporting scalable, cost-effective architecture goals Deployed Architecture continues to successfully demonstrate: Scalability – Increased workload from 18k documents per day in 3/06 to over 100k in 3/07. User Buy-In - A 600% increase in unique users since going

• perational

Technology enhancement Booz Allen Hamilton Has Proven Expertise in Document Management within Federal Government spaces

Background

In April 2004, our Document Management pilot capability became an accredited and

• perational capability

GESI Layered Architecture

Layered Architecture GESI provides a flexible layered architecture

First and foremost, a loosely coupled architecture allows you to replace components,

• r change components,

without having to make reflective changes to other components in the architecture/systems.

• David Linthicum, SOA

Magazine, October 2007

“ ”

4

GESI Physical Layer

Commodity hardware approach

• Low Start-Up and Maintenance Costs
• Lower Technology Refresh Expenses
• Reuse of current hardware

Encourages standardization across hardware components Reclaim previously wasted resources

GESI Physical Layer

GESI Foundation Layer

• Red Hat Release 5.1
• Red Hat Satellite Server
• Red Hat Cluster Management
• Xen Virtualization
• Global File System (GFS)

GESI Foundation Layer

5

GESI Virtualization Layer

• Multiple Layers of Clustering
• Server level clustering
• Virtual Machine clustering
• Application level clustering
• The clustering provides
• Fail-over
• Load-balancing
• Distributed deployment

GESI Virtualization Layer

GESI Application Layer

Service Oriented Architecture Enterprise Service Bus High availability Open source Open Standards = Business Process Agility Reuse of software components Encourages standardization

GESI Application Layer

6

Service Grid Architecture RHEL 5

• Xen (Virtualization)
• Global File System

(GFS)

• Grid Management

(Conga)

• Red Hat Cluster

Services

JBoss Application Server

• Service Oriented

Architecture (SOA)

• Enterprise Service

Bus (ESB)

• High Availability

Messaging

• MetaMatrix

GESI Service Grid

Data User

• D. R.

Database Grid Architecture

GESI Database Grid

Oracle 10G RAC (High Availability)/Dynamic Provisioning DataGuard supports DR Integration Grid Control Balancing/Availability (TAF/FAN) Automatic Storage Management (ASM) Remote monitoring Data Protection RMAN Backup/recovery Database Duplication Flash Recovery DataGuard (Disaster Recovery) Text – Index Multi-language Content Search Unicode Stored within Database Content

Oracle 10G

7

GESI as a Service Oriented Infrastructure

GESI SOI

SOA Alliance’s components of a Service Oriented Infrastructure

[2] The Open Group, Service Oriented Infrastructure: Charter, 31 July, 2007 , http://www.opengroup.org/projects/soa-soi/uploads/40/14171/OG-SOI-Charter-v1-1.pdf

GESI is part of a Service Oriented Architecture Foundation

Infrastructure Architecture is part of the SOA Alliance's SOA Foundation

As the Open Group Architecture Framework (TOGAF) states, good enterprise architecture brings important business benefits: A more efficient IT operation: – Lower software development, support, and maintenance costs – Increased portability of applications – Improved interoperability and easier system and network management – Improved ability to address critical enterprise-wide issues like security – Easier upgrade and exchange of system components Better return on existing investment, reduced risk for future investment: – Reduced complexity in IT infrastructure – Maximum return on investment in existing IT infrastructure – The flexibility to make, buy, or out-source IT solutions – Reduced risk overall in new investment, and the costs of IT ownership Faster, simpler, and cheaper procurement: – Buying decisions are simpler, because the information governing procurement is readily available in a coherent plan. – The procurement process is faster - maximizing procurement speed and flexibility without sacrificing architectural coherence.

8

GESI provides the essential elements

• f a Service Oriented Infrastructure

SOI delivers bottom-line benefits to the enterprise. It provides the basis for greater IT automation which results in higher IT productivity and lower operational costs. SOA Practitioner's Guide, part 2

“ ”

Service Oriented Infrastructure

Moving from a dedicated infrastructure to a dynamic infrastructure

Addresses all the aspects of the infrastructure – Networks, servers, data centers, and firewalls – Application infrastructure, security, monitoring, middleware, etc. Key elements – Life cycle support to manage the deployment of SOI components – Virtualization of infrastructure resources to SOI users – Service management to assure the SOI solution provides the required service characteristics Combines architecture building blocks and role-based portals – High reuse of common services – Reuse of infrastructure and foundational components – Reduction in time needed to deliver capabilities

Capacity Planning and GESI Architecture

Modular Architecture

GESI allows servers and storage to be more efficiently utilized, reducing use of power and cooling resources

9

Current Data Center Capacity Planning

GESI Data Center

Current Data Center development paradigms lead to large amounts of under-utilized siloed resources

5% Utilization

Dedicated Servers Dedicated Storage

System A

Pre-Apportioned Storage

Operating Sys Application 1 Application 2 7% Utilization

Dedicated Servers Dedicated Storage

System B

BIOS

Pre-Apportioned Storage

Application 3

Systems Hosted in Typical Data Center

Operating Sys Application 1 Application 2 BIOS

GESI Planning Methodology

10

Benefits of the GESI Solution

Improve performance, availability, and cost-effectiveness of compute- and data-intensive applications Run growing volume of complex, resource-intensive, high- performance computing jobs within existing distributed infrastructure Provision additional capacity dynamically as it becomes available, and failover gracefully around unavailable capacity, without interrupting jobs in progress Reduces total cost of ownership of ongoing information technology (IT) operations by making more efficient use of available computing , storage, and network capacity Postpone the need for deployment of additional capacity to support growing transaction loads Provision, scale, and reconfigure virtualized computing resources within a service-oriented environment

What are the benefits of a GESI solution?

“Grids enable more flexible, dynamic resource sharing among diverse physical

• r logical computing environments.”
• Burton Group Grid Services: Pooling Distributed Resources

for Virtual Supercomputing
