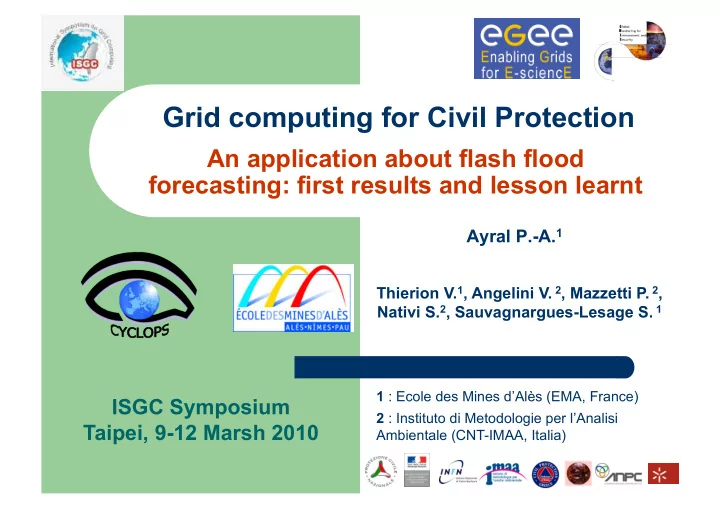

Grid computing for Civil Protection An application about flash flood forecasting: first results and lesson learnt Ayral P.-A. 1 Thierion V. 1 , Angelini V. 2 , Mazzetti P. 2 , Nativi S. 2 , Sauvagnargues-Lesage S. 1 1 : Ecole des Mines dAls

slide-1
SLIDE 1

Grid computing for Civil Protection

Ayral P.-A.1

An application about flash flood forecasting: first results and lesson learnt

ISGC Symposium Taipei, 9-12 Marsh 2010

Thierion V.1, Angelini V. 2, Mazzetti P. 2, Nativi S.2, Sauvagnargues-Lesage S. 1

1 : Ecole des Mines d’Alès (EMA, France) 2 : Instituto di Metodologie per l’Analisi Ambientale (CNT-IMAA, Italia)

slide-2
SLIDE 2

bigagli@imaa.cnr.it

Outlines

How Grid Technology enhance Civil Protection functioning such as Flash Flood crisis management ? 1- Grid computing for Civil Protection (CYCLOPS) 2- Flash flood crisis management context 3- G-AHTAÏR 4- Lesson learnt 5- Conclusion

  • Outlines
