Gravitational Waves their discovery and significance Lecture to WEA Sydney 21 August 2016 Ian Bryce BSc(physics) BE(Hons) ianrbryce@gmail.com Contents 1. What are waves? 2. Theories of gravitation 3. Sources of Gravitational Waves 4.

slide-1
SLIDE 1

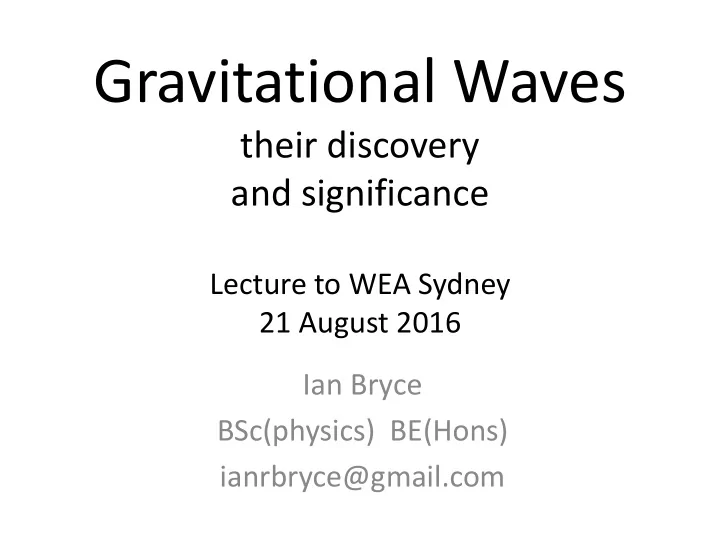

Gravitational Waves

their discovery and significance

Lecture to WEA Sydney 21 August 2016 Ian Bryce BSc(physics) BE(Hons) ianrbryce@gmail.com

slide-2
SLIDE 2

Contents

  • 1. What are waves?
  • 2. Theories of gravitation
  • 3. Sources of Gravitational Waves
  • 4. Finding GW – detectors
  • 5. What it means for science
slide-3
SLIDE 3
  • 1. What are waves?
slide-4
SLIDE 4

Waves in air - compression

slide-5
SLIDE 5

Krakatoa explosion 1883. Was clearly heard 3,000 miles away.

slide-6
SLIDE 6

Waves in water

Diffraction – physics experiments

slide-7
SLIDE 7

Can pass through each other - choppy

slide-8
SLIDE 8

Can travel from Fiji to Bondi

Cyclone Winston February 2016

slide-9
SLIDE 9

Through the ground

slide-10
SLIDE 10

Waves in a slinky toy Demonstration

slide-11
SLIDE 11

Light waves

slide-12
SLIDE 12

Radio waves

slide-13
SLIDE 13

We have seen some waves… what are some common features?

slide-14
SLIDE 14

We have seen some waves… what are the common features?

  • 1. A travelling disturbance
  • 2. Not involve the transport of matter
  • 3. Sometimes in a medium (air, water, earth)
  • 4. Sometimes not – in a vacuum
  • 5. Inverse square law
slide-15
SLIDE 15

Pulse Has a duration Sine wave Has a wavelength A wave can be any shape, eg a single pulse… or a periodic sine wave

slide-16
SLIDE 16

Students learn to apply Newton’s Laws for waves in a rope (or slinky) Curvature leads to acceleration Wave Velocity from force of tension, and density

slide-17
SLIDE 17

…Wave Velocity from force of tension, and density For a guitar string… What determines the pitch (frequency)? Tension and density! Q: Why are some guitar strings wound?

slide-18
SLIDE 18

Waves are now used for exercise

slide-19
SLIDE 19

Non-waves

There are other forces-at-a distance in physics

  • Electrostatic attraction
  • Magnets
  • wind

These weaken rapidly with distance – 1/r3, 1/r4

slide-20
SLIDE 20

But waves are special

Two parameters which regenerate each

  • ther:
  • Sound: pressure and velocity
  • Ground vibrations (earthquakes):

shear stress and strain

  • Water waves: height and velocity
  • Light: Electric field and Magnetic

field

slide-21
SLIDE 21

This makes waves special When spreading out from a point source: The disturbance weakens with distance only as 1/r The energy carried is 1/r2

slide-22
SLIDE 22

So waves are special

  • Once launched, a wave can

travel independently of its source

  • Carrying energy
  • In a particular direction.
slide-23
SLIDE 23
  • 2. Theories of

gravitation

slide-24
SLIDE 24
  • 2. Advances in gravitation
  • Newton – gravity, motion
  • Lorentz etc – special relativity
  • Einstein – general relativity
  • Gravitational waves
slide-25
SLIDE 25
  • 1. Isaac Newton ~1687

Calculus - relation between position, speed and acceleration Law of motion - F = m a Local gravity - falling apple Celestial gravity - the orbiting moon, inverse square law

slide-26
SLIDE 26

“Local gravity” experiments - Newton’s country house with apple tree

slide-27
SLIDE 27

Local experiments - Uniform Gravity

Observe falling objects, measure position, apply calculus to find acceleration Conclude: Objects accelerate downwards, g = 9.8 m/s2 Hold an object - can feel the “force” Sit an object on a weighing device - can measure the “force” Horizontal force-motion experiments Relate force and acceleration F = ma

slide-28
SLIDE 28

Newton stitched together…

slide-29
SLIDE 29

Given the observed motions and distances of moons and planets, The law of motion now enabled Newton to estimate the forces acting on them. Combining data from apples, moons and planets eventually led him to: Newton continued Law of Universal Gravitation

2

r m M G Fg 

Where G = universal constant M = mass of attracting body m = mass of satellite r = distance

slide-30
SLIDE 30

Today we describe this as Sources, fields, and forces

  • 1. Newtonian gravity

SOURCE Eg mass density

FIELD Eg gravity

FORCE Causes satellite

  • rbit
slide-31
SLIDE 31

Measuring Gravity Directly

slide-32
SLIDE 32

Modern apparatus A modern apparatus is shown here. Despite this, G is the least accurately known physical constant, to

  • nly 4 significant digits

(0.01%) 1970: G = 6.68 x 10-11 2010: G = 6.72 x 10-11 As accuracy improved.

slide-33
SLIDE 33

Groundwork for Relativity

  • Bernhard Riemann, German

1850

  • Edwin Christoffel, German,

1869

  • Hendrik Lorentz, Dutch,

1899

  • Hermann Minkowski, Polish,

1900

  • Albert Einstein, German,

1905

  • Q: Why is Albert’s bike

leaning? Newton would know!

slide-34
SLIDE 34

What are the limitations of Newton?

  • A. Static or slow-moving bodies.
  • B. Only weak gravity.
slide-35
SLIDE 35
  • If one body moves away…?
slide-36
SLIDE 36

Cartesian co-ordinates X, Y, Z Add Time

Four-vector Opens the way to relativity Three-vector

slide-37
SLIDE 37

Momentum (3-vector) con be combined with energy, to make a 4-vector. 4-vectors need to be manipulated with tensors,

slide-38
SLIDE 38

The maths - Manifolds

Space-time deformed by matter

slide-39
SLIDE 39

Sources, fields, and forces

In Relativity become: SOURCE Eg mass, energy, momentum EINSTEIN CURVATURE Distortion of space-time “FORCE” Path is a geodesic - appears curved

slide-40
SLIDE 40

Sources, fields, and forces

  • 2. General Relativity

Curvature tensor 4 x 4 Source tensor 4 x 4

slide-41
SLIDE 41

Source term: Stress-energy tensor 16 elements

We will tease this

  • ut

shortly… But first the big picture

slide-42
SLIDE 42

Curvature term: Stress-energy tensor 16 elements

slide-43
SLIDE 43

Matter causes the space-time around it to curve; the curvature of space-time determines how

  • bjects move…

…insofar as freely falling objects follow geodesics (paths which are locally straight) …If there are non-gravitational forces, eg electromagnetic (materials) then they will still accelerate.

slide-44
SLIDE 44
slide-45
SLIDE 45

Source term in detail: Stress-energy tensor 16 elements

Newton’s gravity needs

  • nly the first

element

slide-46
SLIDE 46

Complete source term. What are the other elements?

slide-47
SLIDE 47

Sponge demonstration - The Source term

slide-48
SLIDE 48

A Mechanical Engineer would recognise the 3 x 3 block – stresses in an element of material

slide-49
SLIDE 49

The stress engineer’s job is to ensure the stresses in flight are less than the strength of the material For each and every part of the airplane

< wing bending in flight Tensile testing of a specimen

slide-50
SLIDE 50

Show bracket

slide-51
SLIDE 51

Sources, fields, and forces

  • 3. Gravitational waves

SOURCES Mass flows, acceleration WAVES IN THE METRIC Propagating distortion APPARENT ACCELERATIONS Mirrors move

slide-52
SLIDE 52

Gravitational Waves

  • We have seen what properties of matter

distort the fabric of space-time - massive

  • bjects.
  • For GW – need movement of masses –

apple demonstration.

  • Need to increase the effect
slide-53
SLIDE 53
  • 3. Sources of

Gravitational Waves

slide-54
SLIDE 54

Sources of Gravitational Waves

The experimenters need to know what to look for. The theoreticians have suggested several candidates.

slide-55
SLIDE 55
  • 1. Stochastic: Big Bang… or rather

the inflation period We might hope for some kind of map

This is the cosmic microwave background

slide-56
SLIDE 56

Next candidates - dense and compact bodies

slide-57
SLIDE 57
  • 2. Orbiting bodies – eg neutron stars

Expect constant frequency

slide-58
SLIDE 58
  • 3. Colliding compact bodies – sudden

impact followed by brief ringing

slide-59
SLIDE 59
  • 4. Inspiralling and coalescing black holes

Should increase frequency – a chirp! Recognisable signature – makes detection easier. This is what they found on 14 September 2015. And a second similar event on 26 Dec 2015

slide-60
SLIDE 60
  • 4. Finding GW

– the detectors

slide-61
SLIDE 61
  • 4. Finding GW – detectors
  • 1. Principle
  • 2. WA
  • 3. LIGO
  • 4. LISA
slide-62
SLIDE 62

The Principle: Two-arm interferometer

Switch back and forth between these two slides

slide-63
SLIDE 63

The Principle: Two-arm interferometer

slide-64
SLIDE 64

Demonstration Mirrors and elastic spacetime OK so spacetime expand and contracts in a gravitational wave… But so does any ruler. And even the wavelength of light! So the change would not be measurable. Need two mirrors suspended free from the earth… They appear to wobble!

slide-65
SLIDE 65

AIGO - David Blair’s detector in WA

slide-66
SLIDE 66

LIGO – two detectors in USA

Laser Interferometer Gravitational-wave Observatory

slide-67
SLIDE 67

LIGO – two detectors in USA

slide-68
SLIDE 68
slide-69
SLIDE 69

Inside… with air let in of course!

slide-70
SLIDE 70

One of the mirrors and its suspension system

slide-71
SLIDE 71

And this is what they found! Play video

  • Two black holes – 30 solar masses each
  • Each 90 km diameter (event horizon)
  • 350 km apart and inspiralling
  • 0.3 speed of light
  • At centre of chirp – 0.5 seconds…
  • Radiated 3 solar masses of energy in GW
  • Cyclic, 15 hertz
  • Movement of the mirrors = 0.02 penta metre
  • Similar signal both detectors
  • 7 ms time difference (10 ms max)
slide-72
SLIDE 72
slide-73
SLIDE 73

Next generation - LISA – planned Laser Interferometer Space Antenna

slide-74
SLIDE 74

The two sites detected similar waveforms. There was a 7 millisecond delay. This enablesd an estimate of the direction of arrival… To a cone. A third LIGO will allow location in the sky! Approved for India. Can then correlate with

  • ther observations eg light,

radio, particles.

slide-75
SLIDE 75
slide-76
SLIDE 76
slide-77
SLIDE 77

LISA – planned next generation Laser Interferometer Space Antenna Not funded yet A set of 3 satellites orbiting the sun 5 million km apart Sensitive to length changes of less than a proton diameter! Will look for GW at lower frequencies 0.01 Hz

slide-78
SLIDE 78
  • 5. What it means

for science

slide-79
SLIDE 79

What it means for science

A new window on the universe, after: 1. Material eg meteorites 2. Optical 3. Radio 4. Gamma rays etc 5. Particles eg protons 6. Gravitational waves!

slide-80
SLIDE 80

What can GW potentially do for science? A means of:

  • Testing hypotheses and theories of the

Big Bang and Inflation period

  • Testing General Relativity
  • Observing Black holes, Wormholes
  • Illuminating dark matter
  • Explaining Dark energy

WATCH THIS SPACE!

slide-81
SLIDE 81

End

PS: You asked for a joke…

slide-82
SLIDE 82

A group of physicists were driving across the USA. A cop pulls them over, and asks Heisenberg "Do you know how fast you were going?" Heisenberg replies, "No, but we know exactly where we are!" The officer looks at him confused and says "you were going 108 miles per hour!" Heisenberg throws his arms up and cries, "Great! Now we're lost!" The cop adds “You know you went through a red light back there”. Doppler explains “At high speed, the Doppler Shift turns red into green”. The cop is triumphant “Then I’ll book you for speeding.” The officer looks over the car and asks if the men have anything in the trunk. "A cat," Schrödinger replies. The cop opens the trunk and yells "Hey! This cat is dead." Schrödinger angrily replies, "Well he is now, damn you."
