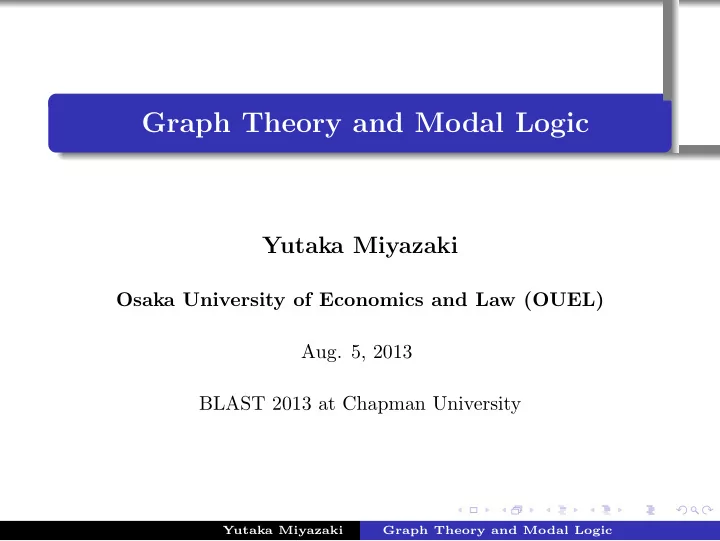

Graph Theory and Modal Logic

Yutaka Miyazaki

Osaka University of Economics and Law (OUEL)

  • Aug. 5, 2013

BLAST 2013 at Chapman University

Yutaka Miyazaki Graph Theory and Modal Logic

slide-2
SLIDE 2

Contents of this Talk

Yutaka Miyazaki Graph Theory and Modal Logic

slide-3
SLIDE 3

Contents of this Talk

1. Graphs = Kripke frames.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-4
SLIDE 4

Contents of this Talk

1. Graphs = Kripke frames. 2. Completeness for the basic hybrid logic H.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-5
SLIDE 5

Contents of this Talk

1. Graphs = Kripke frames. 2. Completeness for the basic hybrid logic H. 3. The hybrid logic G for all graphs.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-6
SLIDE 6

Contents of this Talk

1. Graphs = Kripke frames. 2. Completeness for the basic hybrid logic H. 3. The hybrid logic G for all graphs. 4. Hybrid formulas characterizing some properties of graphs .

Yutaka Miyazaki Graph Theory and Modal Logic

slide-7
SLIDE 7

Why symmetric frames?

= My research history =

Yutaka Miyazaki Graph Theory and Modal Logic

slide-8
SLIDE 8

Why symmetric frames?

= My research history = Quantum Logic = a logic of quantum mechanics

Yutaka Miyazaki Graph Theory and Modal Logic

slide-9
SLIDE 9

Why symmetric frames?

= My research history = Quantum Logic = a logic of quantum mechanics ⇓ Orthologic /orthomodular logic

Yutaka Miyazaki Graph Theory and Modal Logic

slide-10
SLIDE 10

Why symmetric frames?

= My research history = Quantum Logic = a logic of quantum mechanics ⇓ Orthologic /orthomodular logic ⇓ Modal logic KTB and its extension · · · complete for reflexive and symmetric frames.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-11
SLIDE 11

Kripke frames and graphs

Undirected Graphs = Symmetric Kripke frames

Yutaka Miyazaki Graph Theory and Modal Logic

slide-12
SLIDE 12

Kripke frames and graphs

Undirected Graphs = Symmetric Kripke frames Every point (node) in an undirected graph must be treated as an irreflexive point!

Yutaka Miyazaki Graph Theory and Modal Logic

slide-13
SLIDE 13

To characterize irreflexivity

Yutaka Miyazaki Graph Theory and Modal Logic

slide-14
SLIDE 14

To characterize irreflexivity

Proposition There is NO formula in propositional modal logic that characterizes the class of irreflexive frames.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-15
SLIDE 15

To characterize irreflexivity

Proposition There is NO formula in propositional modal logic that characterizes the class of irreflexive frames. = ⇒ We have to enrich our language.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-16
SLIDE 16

To characterize irreflexivity

Proposition There is NO formula in propositional modal logic that characterizes the class of irreflexive frames. = ⇒ We have to enrich our language. Employ a kind of hybrid language (nominals)

Yutaka Miyazaki Graph Theory and Modal Logic

slide-17
SLIDE 17

A Hybrid Language

✄ 2 sorts of variables:

  • Φ := {p, q, r, . . .} · · · the set of prop. variables
  • Ω := {i, j, k, . . .} · · · the set of nominals

where Φ ∩ Ω = ∅. Nominals are used to distinguish points (states) in a frame from one another. ✄ Our language L (the set of formulas) consists of A ::= p | i | ⊥ | ¬A | A ∧ B | ✷A · · · No satisfaction operator (@i)

Yutaka Miyazaki Graph Theory and Modal Logic

slide-18
SLIDE 18

Normal hybrid logic(1)

A normal hybrid logic L over L is a set of formulas in L that contains: (1) All classical tautologies (2) ✷(p → q) → (✷p → ✷q) (3) (i ∧ p) → ✷n(i → p) for all n ∈ ω: (nominality axiom) and closed under the following rules: (4) Modus Ponens

A, A → B B

(5) Necessitation

A ✷A

Yutaka Miyazaki Graph Theory and Modal Logic

slide-19
SLIDE 19

Normal hybrid logic(2)

(6) Sorted substitution

A A[B/p] , A A[j/i]

p : prop. variable, i, j: nominals (7) Naming

i → A A

i: not occurring in A (8) Pasting

(i ∧ ✸(j ∧ A)) → B (i ∧ ✸A) → B

j ≡ i, j:not occurring in A or B.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-20
SLIDE 20

Normal hybrid logic(3)

H: the smallest normal hybrid logic over L For Γ ⊆ L, H ⊕ Γ: the smallest normal hybrid extension containing Γ

Yutaka Miyazaki Graph Theory and Modal Logic

slide-21
SLIDE 21

Semantics

F := W, R: a (Kripke) frame M := F, V : a model, where, V : Φ ∪ Ω → 2W such that: For p ∈ Φ, V (p): a subset of W, for i ∈ Ω, V (i): a singleton of W. Interpretation of a nominal: (M, a) | = i if and only if V (i) = {a} In this sense, i is a name for the point a in this model M!

Yutaka Miyazaki Graph Theory and Modal Logic

slide-22
SLIDE 22

Soundness for H

For a frame F, F | = A ⇐ def ⇒ ∀V on F, ∀a ∈ W, ( (F, V , a) | = A )

Yutaka Miyazaki Graph Theory and Modal Logic

slide-23
SLIDE 23

Soundness for H

For a frame F, F | = A ⇐ def ⇒ ∀V on F, ∀a ∈ W, ( (F, V , a) | = A ) Theorem (Soundness for the logic H) For A ∈ L, A ∈ H implies F | = A for any frame F.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-24
SLIDE 24

Completeness for H

For Γ ⊆ L, A ∈ L, H : Γ ⊢ A ⇐ def ⇒ ∃B1, B2, . . . , Bn ∈ Γ ( H ⊢ (B1∧B2∧· · ·∧Bn) → A )

Yutaka Miyazaki Graph Theory and Modal Logic

slide-25
SLIDE 25

Completeness for H

For Γ ⊆ L, A ∈ L, H : Γ ⊢ A ⇐ def ⇒ ∃B1, B2, . . . , Bn ∈ Γ ( H ⊢ (B1∧B2∧· · ·∧Bn) → A ) Theorem (Strong completeness for the logic H) For Γ ⊆ L, A ∈ L, suppose that H : Γ ⊢ A. Then there exists a model M and a point a such that: (1) (M, a) | = B for all B ∈ Γ, (2) (M, a) | = A

Yutaka Miyazaki Graph Theory and Modal Logic

slide-26
SLIDE 26

FMP and Decidability for H

Theorem (1) H admits filtration, and so, it has the finite model property. (2) H is decidable.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-27
SLIDE 27

Axiom for Irreflexivity

Proposition For any frame F = W, R, F | = i → ✷¬i if and only if F | ≡ ∀x ∈ W ( Not(xRx) ) .

Yutaka Miyazaki Graph Theory and Modal Logic

slide-28
SLIDE 28

Axiom for Irreflexivity

Proposition For any frame F = W, R, F | = i → ✷¬i if and only if F | ≡ ∀x ∈ W ( Not(xRx) ) . Proof. (⇒:) Suppose that there is a point a ∈ W s.t. aRa. Define a valuation V as: V (i) := {a}. Then a | = i → ✷¬i (⇐:) Suppose F | = i → ✷¬i. Then, ther exists a ∈ W, s.t. a | = i, but a | = ✷¬i, which is equivalent to a | = ✸i. The latter means that there is b ∈ W s.t. aRb and b | = i. Then, V (i) = {a} = {b}. Thus a = b and that aRa

Yutaka Miyazaki Graph Theory and Modal Logic

slide-29
SLIDE 29

The logic G for undirected graphs

G := H ⊕ (p → ✷✸p) ⊕ (i → ✷¬i)

Yutaka Miyazaki Graph Theory and Modal Logic

slide-30
SLIDE 30

The logic G for undirected graphs

G := H ⊕ (p → ✷✸p) ⊕ (i → ✷¬i) Lemma (1) For any frame F, F | = (p → ✷✸p) ∧ (i → ✷¬i) if and

  • nly if F is an undirected graph.

(2) The canonical frame for G is also irreflexive and symmetric.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-31
SLIDE 31

The logic G for undirected graphs

G := H ⊕ (p → ✷✸p) ⊕ (i → ✷¬i) Lemma (1) For any frame F, F | = (p → ✷✸p) ∧ (i → ✷¬i) if and

  • nly if F is an undirected graph.

(2) The canonical frame for G is also irreflexive and symmetric. Theorem The logic G is strong complete for the class of all undirected graphs.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-32
SLIDE 32

The logic G for undirected graphs

G := H ⊕ (p → ✷✸p) ⊕ (i → ✷¬i) Lemma (1) For any frame F, F | = (p → ✷✸p) ∧ (i → ✷¬i) if and

  • nly if F is an undirected graph.

(2) The canonical frame for G is also irreflexive and symmetric. Theorem The logic G is strong complete for the class of all undirected graphs. Question: Does G admit filtration?

Yutaka Miyazaki Graph Theory and Modal Logic

slide-33
SLIDE 33

Formulas charactering some graph properties

F: a graph (irreflexive and symmetric frame)

Yutaka Miyazaki Graph Theory and Modal Logic

slide-34
SLIDE 34

Formulas charactering some graph properties

F: a graph (irreflexive and symmetric frame) (1) Degree of a graph Every point in F has at most n points that connects to it iff F | = Altn Altn := ✷p1 ∨✷(p1 → p2)∨· · ·∨✷(p1 ∧· · ·∧pn → pn+1)

Yutaka Miyazaki Graph Theory and Modal Logic

slide-35
SLIDE 35

Formulas charactering some graph properties

F: a graph (irreflexive and symmetric frame) (1) Degree of a graph Every point in F has at most n points that connects to it iff F | = Altn Altn := ✷p1 ∨✷(p1 → p2)∨· · ·∨✷(p1 ∧· · ·∧pn → pn+1) (2) Diameter of a graph The diameter of F is less than n iff F | = ¬ϕn. { ϕ1 := p1. ϕn+1 := pn+1 ∧ ¬pn ∧ · · · ∧ ¬p1 ∧ ✸¬ϕn.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-36
SLIDE 36

Formulas charactering some graph properties

(3) Hamilton cycles F: a graph that has n points. F has a Hamilton cycle iff F sat ψn, so F does NOT have a Hamilton cycle iff F | = ¬ψn. ψn := σ1 ∧ ✸(σ2 ∧ ✸(· · · ✸(σn ∧ ✸σ1) · · · )), where σk := ¬i1 ∧ ¬i2 ∧ · · · ∧ ik ∧ · · · ∧ ¬in

Yutaka Miyazaki Graph Theory and Modal Logic

slide-37
SLIDE 37

Formulas charactering some graph properties

(3) Hamilton cycles F: a graph that has n points. F has a Hamilton cycle iff F sat ψn, so F does NOT have a Hamilton cycle iff F | = ¬ψn. ψn := σ1 ∧ ✸(σ2 ∧ ✸(· · · ✸(σn ∧ ✸σ1) · · · )), where σk := ¬i1 ∧ ¬i2 ∧ · · · ∧ ik ∧ · · · ∧ ¬in (Q:) How to characterize having Euler cycles?

Yutaka Miyazaki Graph Theory and Modal Logic

slide-38
SLIDE 38

Formulas charactering some graph properties

(4) Coloring F: a graph whose diameter is at most n. F is k-colorable iff F sat color(k), so F is NOT k-colorable iff F | = ¬color(k) color(k) := ✷(n)(

k

ℓ=1

cℓ ∧

k

ℓ=1

(cℓ → ✷¬cℓ) ) , each cℓ is a prop. variable representing a color.

Yutaka Miyazaki Graph Theory and Modal Logic

slide-39
SLIDE 39

Formulas charactering some graph properties

(4) Coloring F: a graph whose diameter is at most n. F is k-colorable iff F sat color(k), so F is NOT k-colorable iff F | = ¬color(k) color(k) := ✷(n)(

k

ℓ=1

cℓ ∧

k

ℓ=1

(cℓ → ✷¬cℓ) ) , each cℓ is a prop. variable representing a color. (Q:) How to characterize being planar?

Yutaka Miyazaki Graph Theory and Modal Logic

slide-40
SLIDE 40

Future Study

(1) What kind of graph properies are definable over the logic G?

Yutaka Miyazaki Graph Theory and Modal Logic

slide-41
SLIDE 41

Future Study

(1) What kind of graph properies are definable over the logic G? (2) Can we prove theorems from graph theory by constructing a fromal proof?
