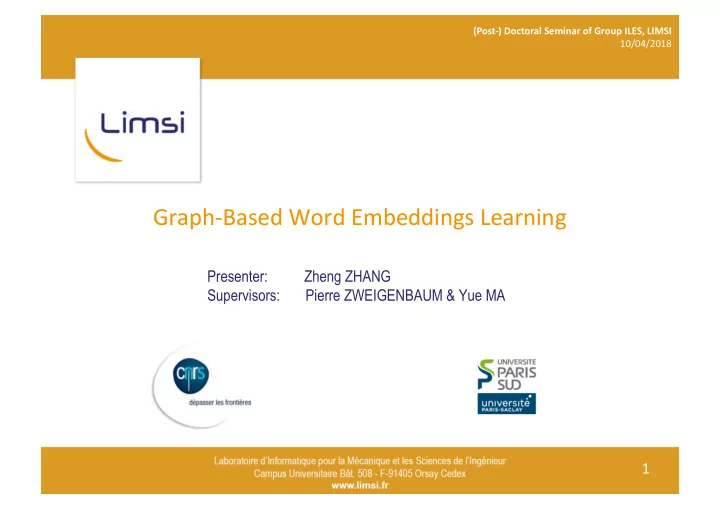

Graph-Based Word Embeddings Learning Presenter: Zheng ZHANG - - PowerPoint PPT Presentation

Date

Presenter: Zheng ZHANG Supervisors: Pierre ZWEIGENBAUM & Yue MA

Graph-Based Word Embeddings Learning

(Post-) Doctoral Seminar of Group ILES, LIMSI 10/04/2018

1

One year ago…

• Our plan: Using graph-of-words for word2vec training
• Difficulty: Optimization for big data

2

28/03/2017

Graph-based word2vec training

• graph-of-words → word co-occurrences networks (matrices)
• Definition: A graph whose vertices represent unique

terms of the document and whose edges represent co-

• ccurrences between the terms within a fixed-size

sliding window.

• Networks and matrices are interchangeable.
• A new context

→ negative examples

• word2vec already implicitly uses the statistics of word

co-occurrences for the context word selection, but not for the negative examples selection. 3

• Ref. Rousseau F., Vazirgiannis M. (2015) Main Core Retention on Graph-of-Words for Single-Document Keyword Extraction.

https://safetyapp.shinyapps.io/GoWvis/

Skip-gram negative sampling

• Why?
• Softmax calculation is too expensive → Replace every

!"# $(&'|&)) term in the Skip-gram objective.

• What?
• Distinguish the target word from draws from the noise

distribution using logistic regression, where there are k negative examples for each data sample.

• How?
• Advantages:
• Cheap to calculate.
• All valid words could be selected as negative examples.
• Drawbacks:
• Not targeted for training words.

4

Drawbacks of skip-gram negative sampling

• Negative sampling is not targeted for training words. It is
• nly based on the word count.

word_id word_count

5

word_id word_id lg($

%(&))

word count ((&) Heat map of the negative examples distribution $

%(&)

Same !

word_id word_id lg($%&' (% − %((*&&+,(+)

Graph-based negative sampling

• Based on the word co-occurrence network (matrix)
• Three methods to generate noise distribution
• Training-word context distribution
• Difference between the unigram distribution and the

training words contexts distribution

• Random walks on the word co-occurrence network

6 Heat map of the word co-occurrence distribution

Graph-based negative sampling

• Evaluation results
• Total time
• Entire English Wikipedia corpus (~2.19 &'((')* tokens)

trained on the server prevert (50 threads used):

2.5h + 8h

Word co-occurrence network (matrix) generation word2vec training 7

How to generate a large word co-

• ccurrence network within 3 hours ?
• Difficulties:
• Large corpus
• NLP applications oriented (tokenizer, word

preprocessing, POS-tagging, weighted word co-

• ccurrences…)
• Grid search of the window size
• We (joint work with Ruiqing YIN in group TLP) developed a

tool for that !

• Multiprocessing
• Built-in methods to preprocess words, analyze

sentences, extract word pairs and define edges weights.

• User-customized functions supported.
• Works with other graph libraries (igraph, NetworkX and

graph-tool) as a front end providing data to boost network generation speed. 8

One year ago…

• Our plan: Using graph-of-words for word2vec training
• Difficulty: Optimization for big data

9

28/03/2017

Progress and Future work

• Our plan: Using graph-of-words for word2vec training
• GNEG: Graph-Based Negative Sampling for word2vec (Submitted as

a short paper to ACL 2018)

• Future work:
• Graph-based context selection
• Re-assign the training order
• Adapt for multi-lingual word embeddings training
• Difficulty: Optimization for big data
• Efficient Generation and Processing of Word Co-occurrence

Networks Using corpus2graph (to appear in TextGraphs 2018)

• An open-source NLP-application-oriented tool: public version will

be available in GitHub (https://github.com/zzcoolj/corpus2graph) by the end of this week.

• Future work:
• More built-in methods
• Efficient graph processing

10

Merci
