slide-1
SLIDE 1

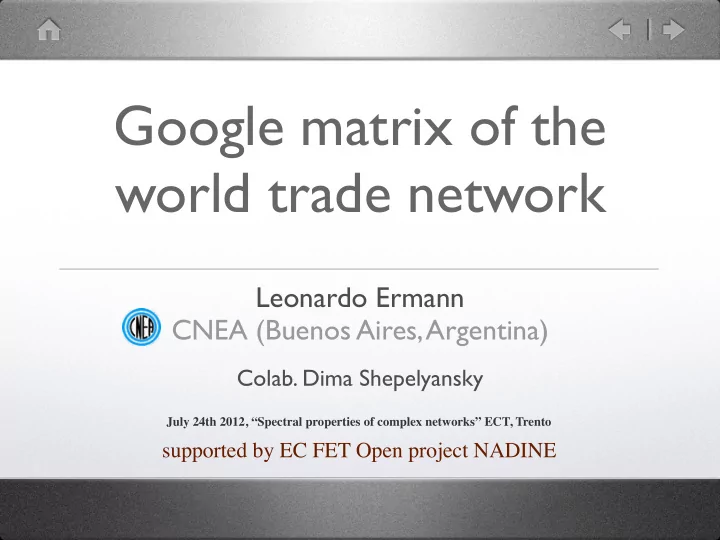

Google matrix of the world trade network

Leonardo Ermann CNEA (Buenos Aires, Argentina)

July 24th 2012, “Spectral properties of complex networks” ECT, Trento

supported by EC FET Open project NADINE

  • Colab. Dima Shepelyansky
slide-2
SLIDE 2

Outline

“Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • Google Matrix of WTN
  • 2D-rank of WTN
  • WTN models

2

  • Multi-Product Network
  • Crisis model
  • Ecological Ranking

(nestedness) I II III

slide-3
SLIDE 3

I Google Matrix of the WTN

3 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-4
SLIDE 4

Google Matrix of the WTN

United Nation Commodities Trade Network

all countries of UN, from 1962 to 2011, all commodities or some specific products

Money Matrix

Mi,j = U$S(j → i)

4 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • L. Ermann and D.L. Shepelyansky, APPA,
  • Vol. 120, A-158 (2011), arXiv:1103.5027, http://www.quantware.ups-tlse.fr/QWLIB/tradecheirank
slide-5
SLIDE 5

Google Matrix of the WTN

United Nation Commodities Trade Network

all countries of UN, from 1962 to 2011, all commodities or some specific products

Money Matrix

Mi,j = U$S(j → i)

G G

ExportRank ImportRank CheiRank PageRank *

M PageRank, CheiRank ImportRank, ExportRank

( ˜ K, ˜ K∗) (K, K∗)

GP = P G∗P ∗ = P ∗

4 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • L. Ermann and D.L. Shepelyansky, APPA,
  • Vol. 120, A-158 (2011), arXiv:1103.5027, http://www.quantware.ups-tlse.fr/QWLIB/tradecheirank
slide-6
SLIDE 6

G and G* matrices of the WTN (2008)

M G G*

a l l c

  • m

m

  • d

i t i e s

5 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-7
SLIDE 7

G and G* matrices of the WTN (2008)

M G G*

a l l c

  • m

m

  • d

i t i e s c r u d e p e t r

  • l

e u m

5 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-8
SLIDE 8

PageRank, CheiRank and Spectrum

PageRank, CheiRank, ImportRank, ExportRank

α = 0.85 α = 0.5

Zipf law P~1/K

all commodities crude petroleum

6 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-9
SLIDE 9

PageRank, CheiRank and Spectrum

PageRank, CheiRank, ImportRank, ExportRank

Spectra α = 1

α = 0.85 α = 0.5

Zipf law P~1/K

all commodities crude petroleum

6 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-10
SLIDE 10

2d ranking “all commodities”

7 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-11
SLIDE 11

PageRank, CheiRank vs. ImportRank, ExportRank

8 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-12
SLIDE 12

PageRank, CheiRank vs. ImportRank, ExportRank

countries are treated on equal democratic ground G-20 ~ 74%

˜ K∗ = 11 − → K∗ = 16 ˜ K∗ = 13 − → K∗ > 20 ˜ K∗ = 15 − → K∗ = 11 ˜ K∗ = 19 − → K∗ = 12

8 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-13
SLIDE 13

2d ranking: crude petroleum

its trade network in this product is better and broader than the one of Saudi Arabia (1st)

Russia ˜ K∗ = 2 → K∗ = 1 Iran ˜ K∗ = 5 → K∗ = 14 Kazakhstan ˜ K∗ = 12 → K∗ = 2

its trade network is restricted to a small number of nearby countries. is practically the only country which sells crude petroleum to the CheiRank leader in this product Russia.

9 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-14
SLIDE 14

2d ranking: barley and cars

Ukraine (K* 1st to 6th) USA (K* 8th to 3rd) France (K* 7th to 3rd) Thailand (K* 19th to 10th) 10 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-15
SLIDE 15

WTN model

  • Gravity model of trade:

(symmetric)

  • Random model

(preserves Zipf law)

Mi,j = gmimj/Di,j Mi,j = ✏i✏j/ij ✏i,j ∈ [0, 1)

t:: all commodities (1962, 2008); b: crude petroleum (2008), random model

11 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-16
SLIDE 16

2d ranking evolution

12 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-17
SLIDE 17

Model statistics

13 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-18
SLIDE 18

Model statistics

13 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-19
SLIDE 19

Time evolution and velocity K and K* from1962 to 2009

∆v2 = [K(t) − K(t − 1)]2 + [K∗(t) − K∗(t − 1)]2

average per K + K∗

average in [K + K∗ − 10, K + K∗ + 10]

Velocity square vs. K+K*

14 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-20
SLIDE 20

Velocity evolution

K + K∗ ∈ [1, 40] K + K∗ ∈ [41, 80] K + K∗ ∈ [81, 120] K + K∗ ∈ [1, 20] K + K∗ ∈ [21, 40] K + K∗ ∈ [41, 60]

200 400 600 1960 1970 1980 1990 2000 201

years

0.1 1 10 100

v

2

15 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-21
SLIDE 21

K and K* ranking evolution (some examples)

Japan France

  • Fed. Rep. of Germany and Germany

Great Britain (sublimation?) USA Argentina India China (deposition) USSR and Russian Fed.

16 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-22
SLIDE 22

II Ecological Ranking (nestedness)

17 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-23
SLIDE 23

Nestedness

18 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento 1937 Hulten 1957 Darlington 1975 Daubenmire

biogeography

bipartite networks: species - sites (islands, plants, etc) Causes: rates of extinction and colonialization (ay least 7 mechanisms)

slide-24
SLIDE 24

Nestedness

18 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento 1937 Hulten 1957 Darlington 1975 Daubenmire

biogeography

bipartite networks: species - sites (islands, plants, etc) Causes: rates of extinction and colonialization (ay least 7 mechanisms)

quantifying nestedness

BINMATNEST

M.A. Rodriguez-Girones and L. Santamaria, Journal of Biogeography 33, 924 (2006)

isocline

slide-25
SLIDE 25

Mutualistic Networks (countries-products)

M (i)

p,c = Nc

X

c0=1

M p

c,c0

M (e)

p,c = Nc

X

c0=1

M p

c0,c

m(i,e) = M (i,e)/Mmax

1968 2008

19 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • L. Ermann and D.L. Shepelyansky, arXiv:1201.3584
slide-26
SLIDE 26

Binary mutualistic Networks

Q(i,e)

c,p

= ( 1 if m(i,e)

c,p

≥ µ if m(i,e)

c,p

< µ

20 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-27
SLIDE 27

Binary mutualistic Networks

Q(i,e)

c,p

= ( 1 if m(i,e)

c,p

≥ µ if m(i,e)

c,p

< µ

fraction of 1s imports exports

20 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-28
SLIDE 28

EcoloRank Countries

Exports Imports money ranking

21 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-29
SLIDE 29

EoloRank products

imports exports

22 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-30
SLIDE 30

EoloRank products

imports exports money rank

22 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-31
SLIDE 31

III Multi-products and Crisis

(work in progress)

23 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-32
SLIDE 32

Multi-product WTN

(multiplexity in networks) NC=227 (2008)

(SITC1 Rev.)

Np=10 (1d) Np=61 (2d) Np=182 (3d)

S C

24 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-33
SLIDE 33

Multi-product WTN

(multiplexity in networks) NC=227 (2008)

(SITC1 Rev.)

Np=10 (1d) Np=61 (2d) Np=182 (3d)

S C

24 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-34
SLIDE 34

Multi-product WTN

K-K*

(tracing out products)

1d 2d 3d

25 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-35
SLIDE 35

Multi-product WTN

K-K*

(tracing out products)

1d 2d 3d 1d 2d 2-dimensional PageRank

25 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-36
SLIDE 36

Crisis

weight balance

2008; w>0.05 (~20%) w>0.035 26 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-37
SLIDE 37

Crisis

weight balance

2008; w>0.05 (~20%) w>0.035 26 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-38
SLIDE 38

Crisis model

toy model:

(1) if bi ≥휅 ⇒ imports of i are closed (2) compute G,G* ⇒ bi ⇒(1) Cc (local) Nc (global) t 훕 휅 fp

27 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-39
SLIDE 39

Crisis model

toy model:

(1) if bi ≥휅 ⇒ imports of i are closed (2) compute G,G* ⇒ bi ⇒(1) Cc (local) Nc (global) t 훕 휅 fp

27 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-40
SLIDE 40

Crisis model

toy model:

(1) if bi ≥휅 ⇒ imports of i are closed (2) compute G,G* ⇒ bi ⇒(1) Cc (local) Nc (global) t 훕 휅 fp

27 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-41
SLIDE 41

Crisis model

toy model:

(1) if bi ≥휅 ⇒ imports of i are closed (2) compute G,G* ⇒ bi ⇒(1) Cc (local) Nc (global) t 훕 휅 fp

27 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

slide-42
SLIDE 42

Conclusions

28 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • PageRank-CheiRank of WTN

(network properties, democratic, i-e symmetry)

  • Comparison with Import-Export
  • Model of M (directed by randomness, preserves Zipf law)

I

slide-43
SLIDE 43

Conclusions

28 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • PageRank-CheiRank of WTN

(network properties, democratic, i-e symmetry)

  • Comparison with Import-Export
  • Model of M (directed by randomness, preserves Zipf law)

I

  • Analogy with ecology (nestedness) for EcoloRank

(countries and products, topology of bipartite binary network) II

slide-44
SLIDE 44

Conclusions

28 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • PageRank-CheiRank of WTN

(network properties, democratic, i-e symmetry)

  • Comparison with Import-Export
  • Model of M (directed by randomness, preserves Zipf law)

I

  • Analogy with ecology (nestedness) for EcoloRank

(countries and products, topology of bipartite binary network) II

  • Multi-Product Network (general approach)

(2-dimensional PageRank, β parameter controls internal market)

  • Crisis(analyze b and b(t+1)-b(t), toy model to study global crisis)

III

slide-45
SLIDE 45

Conclusions

28 “Google matrix of the WTN”, L. Ermann July 24th 2012, ECT Trento

  • PageRank-CheiRank of WTN

(network properties, democratic, i-e symmetry)

  • Comparison with Import-Export
  • Model of M (directed by randomness, preserves Zipf law)

I

  • Analogy with ecology (nestedness) for EcoloRank

(countries and products, topology of bipartite binary network) II

  • Multi-Product Network (general approach)

(2-dimensional PageRank, β parameter controls internal market)

  • Crisis(analyze b and b(t+1)-b(t), toy model to study global crisis)

III Thank You
