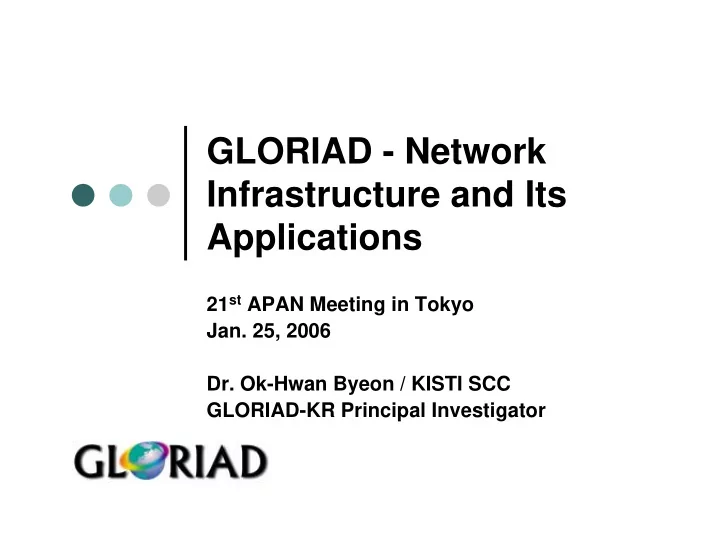

GLORIAD - Network Infrastructure and Its Applications

21st APAN Meeting in Tokyo

• Jan. 25, 2006
• Dr. Ok-Hwan Byeon / KISTI SCC

GLORIAD-KR Principal Investigator

SLIDE 2

Supercomputing Center

2

Contents

GLORIAD Infrastructure Overview GLORIAD-KR and KREONET GLIF/GOLE with GLORIAD/KRLight GLORIAD Applications and its Activities GLORIAD Organization Summary

SLIDE 3

Supercomputing Center

3

GLORIAD (GLObal RIng Network for Advanced Applications Development) : the first round-the- world high-performance networks jointly established with optical networking tools that improve networked collaboration with e- Science and Grid applications Seattle (USA) – Calgary, Toronto (Canada) –Chicago, NYC(USA) - Amsterdam (the Netherlands) - Moscow, Novosibirsk, Khavarovsk (Russia) – Beijing, Hong Kong (China) –Daejeon (Korea)-Seattle The NaukaNet - little GLORIAD - Big GLORIAD

GLORIAD brief History

SLIDE 4

Supercomputing Center

4

Big GLORIAD Grand Opening

As of Aug. 1, 2005 GLORIAD Trans-pacific 10G link is operational Grand Opening Ceremony for big GLORIAD on Sept. 5, 2005 with Korea, China, Russia, US, Canada and the Netherlands 6 country agreement was settled in Seoul

SLIDE 5

Supercomputing Center

5

Visualization courtesy: Greg Cole

SLIDE 6

Supercomputing Center

6

GLORIAD Architecture

CN KR US CA RU NL

10G (LP) 10G (LP) 155M

• >

2.5Gbps (LP) (2006.02) ~10G (LP) (2006.03) ~10G (LP) (2006.03) 622M -> ~2.5Gbps (LP) (2006.03) 10G(2007.03) 622M 10G(2007.03)

US

~10G (LP) (2006.03)

• Lambda integrated

facility for entire nodes

• Multiple 10Gs (or 40Gs)
• Hybrid optical & packet

switched path

• Separate single routed path
• Permanent multiple

lightpaths

SLIDE 7

Supercomputing Center

7

GLORIAD-KR

• Leading edge for BIG GLORIAD
• Funded by MOST, Korea
• Two 10Gs : KR to US (Trans-Pacific), KR to CN(HK)
• Since Aug. 1st, 2005.. , 1st Inter-Asia 10G link
• Multiple 10Gs or 40Gs in near future
• Hybrid optical and packet switching facility
• SONET/SDH transmission single/multiple Ges

and single 10GE

• Native IPv4, IPv6 and lightpath provisioning
• Routed path and lightpath over a single link

SLIDE 8

Supercomputing Center

8

GLORIAD-KR 10G Networks (HK-DJ-SE)

KISTI, Korea KISTI, Korea (Daejeon) (Daejeon) CNIC, China Hong Kong

China (Beijing)

Russia (Novosibirsk) Amsterdam Moscow

US

Seattle

CANARIE, Canada

Chicago

EU

NYC

10G (KR-US) 10G (KR-HK)

Calgary Toronto * TGN (Tyco Global Network ) : Korea to US * FNAL (FLAG North Asia Loop) : Korea to HK 2.5G 10G HKLight CSTNET Korea OC192 OC192 OC192 KR GLIF Exchange Point KRLight Hong Kong, CN 2*10GE KREONET Seattle, US GLIF node (CANARIE, PW) KR/ CANARIE nodes (L1, L2) PacificWave OC192 10GE OC192 Korea StarLight

SLIDE 9

Supercomputing Center

9

GLORIAD-KR 10G Networks II

KISTI, KOREA KISTI, KOREA (Daejeon) (Daejeon) CNIC, CN

China (Beijing)

Russia (Novosibirsk) Amsterdam Moscow

US

Seattle

CANARIE, CA

Chicago

EU

NYC

KR-US (10G) KR-HK (10G)

Calgary Toronto

10GE WAN OC192 KR 10GE LAN 8*1GE OC192 HK OC192 US

KREONET

10G POS 10GE LAN GLIF node (OC192) 10GE LAN PacWave 8*1GE StarLight N*OC192 N*OC48 N*1GE

SLIDE 10

Supercomputing Center

10

Cisco ONS15454 Westin Building, Seattle, US Force10 E600 Cisco OSR7606

GLORIAD-KR 10G Networks III

SLIDE 11

Supercomputing Center

11

SLIDE 12

Supercomputing Center

12

10G GL ORIAD- KR L ink

• Part of Big GLORIAD with 10G links
• China - Korea - US(CA)
• Hybrid networking architecture (KR-US)

1 x OC192 / 8 x STS24c Lightpath provisioning (Layer 1) Ethernet channel bonding/ link aggregation control (Layer 2) IP production networking with BGP (Layer 3)

• Performance is quite good(6.3G TCP/ 7.2G UDP)
• UCLP Deployment on GLORIAD-KR: On-Demand Provisioning

Light Path

• UCLP demo@APAN in Taipei (Aug. 2005)
• UCLP demo@iGRID2005 in San Diego (Sep. 2005)
• Packet-switched + Circuit-switched networking
• GLORIAD with Lambda Integrated Facilities

SLIDE 13

Supercomputing Center

13

Korea’s national science & research network

• Funded by MOST since 1988

5-20Gbps backbone, 1-10Gbps access networks About 200 connected organizations/ 100,000 users GLORIAD for international connections

• Two 10Gs : KR to US (Transpacific), KR to CN (HK)

KREONet2

• Hybrid optical and packet switching facility
• Native IPv4, IPv6 and lightpath provisioning

Routed path and lightpath over a single link Mbone IPv6 Gigabit Network

KREONET

SLIDE 14

Supercomputing Center

14

KREONet2 Overview

E uro pe Kwang j u Busan

Suwo n Cho na n Je o nju Cha ng - wo n Po hang

K R E O N E T K R E O N E T

Se o ul

KRE ONe t2

Hig h- Pe r forma nc e S&T F a c ilitie s (Hig h-Pe rforma nc e Cluste r/ Supe rc ompute rs, Stora g e , E xpe rime nta l F a c ilitie s, Visua liza tion, Ac c e ss Grid, DB Se rve rs, e tc .)

e - Sc ie nc e base d KRE ONE T / KRE ONe t2/ Supe rSIRe N

→ joining g loba l Cybe r Infra struc ture

GEANT

Da e g u

China / CST NE T

I nc he o n

Ja pa n/ SI NE T APII TEIN

Daejeon

Supe rSIRe N

SLIDE 15

Supercomputing Center

15

Hybrid Backbone Networks

10Gbps

Kwangju Changwon Busan Pohang Daegu Cheonan Suwon Incheon

Daejeon

Jeonju

5 - 10 Gbps SuperSIReN

Seoul

Packet Switched Networks Optical Circuit Switched Networks

20Gbps

WDM 120G WDM 120G

Incheon

Seoul

Suwon Cheonan

Daejeon

Pohang Daegu Busan Changwon Kwangju Jeonju Jeju Ochang Ochang Jeju

SLIDE 16

Supercomputing Center

16

GL ORIAD & GL IF Pa rtic ipa tion

GLORIAD-KREONet2/10Gb

Visualization courtesy : Bob Patterson

SLIDE 17

Supercomputing Center

17

GL IF 2004- 2005: L a mbda Grid for e - Sc ie nc e

SLIDE 18

Supercomputing Center

18

GOLE

• GOLE is
• GLIF Open Lightpath Exchange dealing with international

lightpath provisioning

• One (or several) Gateway(s) in each country to GLIF, the world
• f lightpaths
• Demanding very close relationship with other GOLEs
• Known GOLEs
• NetherLight, CANARIE, PNWG (PW), StarLight, MAN LAN,

KRLight, T-LEX, HKLight, etc.

• GOLE Tele-conference
• Once a month with all GOLE engineers on the phone
• Four meetings held in 2005 and 2006.
• Discussions about from little things to essential ones
• Port/circuit assignment, equipment info., lightpath exchange for

events (e.g. SC05), control plane deployment, some jokes ☺

• Good place to start talking about building a global lightpath

SLIDE 19

Supercomputing Center

19

GOLE

GLIF Playground = GOLEs + Lambdas GOLEs & GLORIAD Lightpath Exchange

SLIDE 20

Supercomputing Center

20 8*1GE OC192 OC192 (Transpacific) OC192 10GE N*OC192 N*OC48 N*1GE OC192

C i s c

• O

N S 1 5 6 F

• r

c e 1 E 6

1GE 1GE

KRLight As a GOLE (Current)

• 2006. 1

C i s c

• O

N S 1 5 4 5 4 ( C A N A R I E )

8*1GE OC192

F

• r

c e 1 E 6

8*1GE 10GE

C i s c

• O

S R 7 6 6

~10GE OC192

H K L i g h t ( C h i n a ) Supe rSIRe N

N*1GE

10GE

G O L E ( S e a t t l e )

~10GE ~10GE

CA*net4, Abilene 6TAP, MREN CERN, ESnet CA*net4, Abilene TWAREN, PNWGP, UltraLight

SLIDE 21

Supercomputing Center

21

KRLight on the horizon

CANARIE- Pacific Wave GLIF node Seattle

KRLigh t Daejeon KRLight Seattle

KREONET HKLight Hong Kong StarLight Chicago

KRLight Seoul

Super SIReN KOREN T-LEX Tokyo

Pacific Wave Seattle

N*10GE N*OC192

SLIDE 22

Supercomputing Center

22

Applications with Big GLORIAD

KISTI, KAIST, GIST CNIC, CERNET RRC KI ANL, NCITEC, NCSA Networking Pusan Univ., KRIBB IHB, CIB RIMB, RRC KI, ILIT RAS DOE, NIH, NCRR, SDSC, Cal-Tech Bioengineering/ Medical Science Kyungpook Univ. IHEP ITEP, RRC KI, SINP MSU, BINP SB RAS Fermi Lab, SLAC, BNL High energy Physics KISTI, KAIST CNIC JINR ANL, SDSC, NCSA, Cal-Tech, NASA Grid/ Computing KIGAM, KAO CGC, CSO INASAN, IMVP CERI, NASA, NRAO Geo-science KBSI SINR, IHEP NFI, Moscow State Univ. DOE, ANL, LLNL, NIST Fusion Energy (ITER) KARI, KAIST Chinese Aerospace Corp. TsAGI, Glavkosmos NASA Aerospace Science KMA, Yonsei Univ SCEII CGDS, IEGC, SCERT NASA, Yale Univ. Climate/ Earth Science KAO NAOC, SHAO INASAN, IKIRAS NOAO, STSI, Cal-Tech Astronomy Korea China Russia US Institutions Applications

SLIDE 23

Supercomputing Center

23

Big Applications with Challenge!

International Thermonuclear Experimental Reactor(ITER):

• To enable all international parties to participate as

“ Virtual ITER ” sites

• Korea, US, China, Russia, Canada, EU and Japan

OptIPuter

• A persistent, global test-bed for joint R&D in

collaborative visualization streaming ultra high definition graphics and video

• UCSD,UIC(US), SARA (Amsterdam), SFU (Canada),
• Univ. of Alberta (Canada), KISTI (Korea)

SLIDE 24

Supercomputing Center

24

Big Applications with Challenge!(cont’d)

THORPEX

• A Global Atmospheric Research Program for the 21st

century

• Australia, Canada, China, Norway, Korea, UK, Russia,

USA ...

Projects in Astronomy

• International Virtual Observatory Alliance (IVOA)
• Sloan Digital Sky Survey (SDSS)
• Very Large Base-Line Interferometer (VLBI)

⇒ Our GLORIAD Partners are actively participating these projects!!!

SLIDE 25

Supercomputing Center

25

iGrid2005

DataWave: Ultra-High-Performance File Transfer Enabled By Dynamic Lightpaths (US, CA, NL) Real-Time Multi-Scale Brain Data Acquisition, Assembly, and Analysis using an End-to-End OptIPuter (US, JA, KR, TW, NL) Transfer, Process and Distribution of Mass Cosmic Ray Data from Tibet (CH,IT) World’s First Demonstration of X GRID Application Switching using User Controlled LightPaths (CA,KR,SP,TW) Interactive 3D HD Video Transport and Collaborative Data Analysis for e-Science over UCLP ( KR,CA,SP,TW)

=> it was the first GLORIAD 10G link demo!

SLIDE 26

Supercomputing Center

26

iGrid2005(cont’d)

GLVF: Scalable Adaptive Graphics Environment (US,KR,NL) Dead Cat (NL) Global Lambdas for Physics (US,CE,BR,KR,UK) Global N-Way Interactive High-Definition Video Conferencing over Long-Pathway, High- Bandwidth Networks (US,AU, JA, NL,KR) Virtual Unism (US,RU,SW) Great Wall Cultural heritage (CH,US)

SLIDE 27

Supercomputing Center

27

GLORIAD Partner’s in iGrid2005

SLIDE 28

Supercomputing Center

28

Kore a ’s Pa rtic ipa tions a t iGrid2005

• From Federal Express to

Lambdas: Transporting SDSS Data Using UDT(US, Korea, Japan)

• Show how optical paths

and new transport protocols are enabling these data sets to be transported using networks

• ver long distances
• Disk-Disk UDT transport

from San Diego to KISTI : 1206Mbp/s

SLIDE 29

Supercomputing Center

29

SC|05

Bandwidth Challenge

• High performance mining of streaming data (US,

NL, JA, KR)

• Distributed Terabyte particle Physics Data

Sample Analysis (US, BR, KR, JA)

Booth

• KISTI (KR), McGill Univ.(CA), SARA(NL)
• Each booth has demonstrated high performance

e-Science/Grid applications

SLIDE 30

Supercomputing Center

30

GLORIAD Partner’s in SC|05

SLIDE 31

Supercomputing Center

31

Main Activities/Events

Year 2005

• 1st China-Korea Joint workshop (June 30, Beijing)
• GLORIAD Trans-Pacific link open (Aug. 1, Daejeon)
• Big GLORIAD opening ceremony (Sept. 5-6, Seoul)-

6 Country’s Agreement

• iGrid2005/GLIF (Sept. 24-29, San Diego)
• HKLight IOEP (Oct. 30, Hong Kong)
• SC|05 (Oct. 14-18, Seattle)
• GLORIAD-KR Workshop and Advisory Board

Meeting (Dec. 8, Seoul)

SLIDE 32

Supercomputing Center

32

Year 2006

• GLORIAD NOC meeting (GLIF NOC, Feb. 22-

24,US)

• GLORIAD workshop/Demos (APEC-TEL, Apr. 23-

28, Calgary/Canada): Mini-iGrid?

• GLORIAD annual meeting (June, Russia) ?
• 1st Anniversary of Big GLORIAD Opening

Symposium and Application Meeting (Aug., Korea)

• GLIF/GLORIAD NOC meeting (Sep., Japan)
• SC|06(Nov.,US)

Main Activities/Events

SLIDE 33

Supercomputing Center

33

GLORIAD Organization

GLORIAD Board (6 members:

USA, Russia, China, Korea, Canada,

Netherlands)

Working Groups

• NOC (Canada, Netherlands)
• Security (US, Russia)
• Applications (Korea, China)
• .....

Secretariats (Central/USA,...)

SLIDE 34

Supercomputing Center

34

P C I

• X

( 1 3 3 H z ) 4 C P U

Hig h Pe rfo rmanc e Applic a tio n re quire d

“Ne tworke d Applic a tion T e st Proxy Ce nte r”

• G
• a

l

: t

• s

u p p

• r

t h i g h p e r f

• r

ma n c e a p p l i c a t i

• n

s s y s t e ma t i c a l l y

• P

l a n s f

• r

2 6

: A n a l y z i n g r e q u i r e me n t s

• f

v a r i

• u

s s c i e n t i f i c a p p l i c a t i

• n

s r e q u i r i n g h i g h p e r f

• r

ma n c e n e t w

• r

k b a n d w i d t h : C

• n

s t r u c t i n g H i g h P e r f

• r

ma n c e A p p l i c a t i

• n

r e q u i r e d N e t w

• r

k e d A p p l i c a t i

• n

T e s t P r

• x

y C e n t e r : S u p p

• r

t i n g v a r i

• u

s s c i e n t i f i c a p p l i c a t i

• n

s a s w e l l a s H E P , S D S S , O p t i p u t e r

Application Test Proxy Center: High Performance Testbed

S A T A 2 D i s k C

• n

t r

• l

l e r 1 G N I C ( X f r a m e )

SLIDE 35

Supercomputing Center

35

GLI F 2005

글로리아드협의회발족

SLIDE 36

Supercomputing Center

36

Visit www.gloriad.org & www.gloriad-kr.org !!!

SLIDE 37

Supercomputing Center

37

SLIDE 38

Supercomputing Center

38

SLIDE 39

Supercomputing Center

39

SLIDE 40

Supercomputing Center

40

SLIDE 41

Supercomputing Center

41

SLIDE 42

Supercomputing Center

42

SLIDE 43

Supercomputing Center

43

SLIDE 44

Supercomputing Center

44

SLIDE 45

Supercomputing Center

45

SLIDE 46

Supercomputing Center

46

SLIDE 47

Supercomputing Center

47

SLIDE 48

Supercomputing Center

48

SLIDE 49

Supercomputing Center

49

SLIDE 50

Supercomputing Center

50

SLIDE 51

Supercomputing Center

51

SLIDE 52

Supercomputing Center

52

Summary

GLORIAD is a driving force for advancing and

accelerating the global research networking developments

• 1st Global Ring Network with e-Science/Grid Appls

GLORIAD Architecture

• Network Facilities for Native IPv4 & IPv6
• 10G Hybrid Optical & Packet switching architecture

GLIF Open Lightpath Exchange (GOLE)

• GLORIAD is innovation engine for GOLE/GLIF
• KRLight/HKLight/NetherLight….. Act as a GOLE

SLIDE 53

Supercomputing Center

53

Summary(cont’d)

GLORIAD and GLIF

• Cooperative to Expand Global Lightpath Environment
• Leading to Joint Efforts for e-Science and LambdaGrid

Activation of GLORIAD WGs for Advanced

Network Engineering and Applications

• Lambda networking, IPv6, Multicast, QoS, Traffic Analysis, Security….
• HEP, ITER, Atmospheric Science, BioInformatics, Nano materials,

Telemedicine, EarthScience….

Currently GLORIAD-KR is focusing to enhance

KRLight and Application Proxy Center

• Regular Bandwidth Challenge Day! (Monthly)
• More collaborative with GLIF and GOLE partners

SLIDE 54

Supercomputing Center

54

T h a n k y

• u

!
