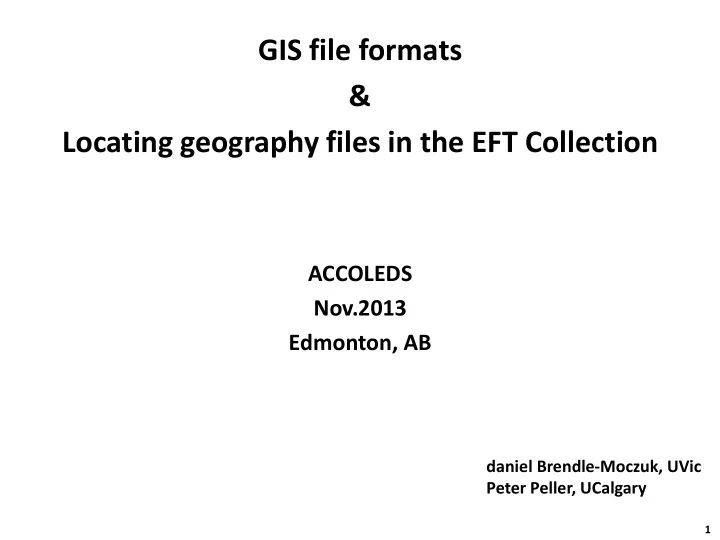

GIS file formats & Locating geography files in the EFT Collection

ACCOLEDS Nov.2013 Edmonton, AB

1

daniel Brendle-Moczuk, UVic Peter Peller, UCalgary

ftp software

2

ftp software

• Hostname: eftftp-ptftef.statcan.gc.ca
• Username: your e-mail address
• Password: one you created

3

navigate to (desired) DLI directory/folder

4

navigate to “geo” DLI directory/folder

5

“geo” directory/folder

6

“geo” directory/folder

7

“geo” directory/folder

Census Year 2011 2006 2001 1996 1991 1986 1981 1976 1971 Categories Concordance concordance-file (CT concordance) correspondence files (DA and DB files) correspondence concordance files concordance correspond interim Data products data products (contains GeoSuite & GAF*) data products (Contains GeoSuite & GAF*) geosuite Geosuite GAF* georef91 GAF* GAF* GAF* GAF* GAF* Reference (catalogs, guides, maps) ref_products preview ref_products maps documentation document refdata documentation reference_data document Spatial (geospatial layers) spatial info spatial info digbound digcart snfef snffrr ssnffsrr spatdata arcinfo-86 mapinfo-86 arcinfo mapinfo Other zip reader attribute_info Special Note Shapefiles available from this census

• forward. Prior to

2006 only ArcInfo E00 files available EA level boundary files for the 1st time. Self-extracting .exe files don’t work with Windows 7 but can be unzipped with 7-zip. CT level boundary files for the 1st time. Boundary files available for the 1st time.

8

Census Type Format Geographic Level Census Geography Projection 1981 ArcInfo Interchange (E00) MapInfo dbf National csd, cd, cma, cmaca, prov 1866 Clark Lambert Conformal Conic NAD27 1986 ArcInfo Interchange (E00) MapInfo dbf National ccs, cd, cmaca, csd, ct, fed, fsa, grlakes, prov, agri 1866 Clark Lambert Conformal Conic NAD27 CMA/CA ct 1866 Clark Lambert Conformal Conic NAD27 1991 ArcInfo Interchange (E00) MapInfo dbf dcf National ccs, cd, csd, ct, ea, fed, prv, ua, cmaca In dcf format there is no ct, ea, ua, and cmaca. 1866 Clark Lambert Conformal Conic NAD27 Provincial ccs, cd, csd, ea In dcf format there is no ccs, cd, and ea. 1866 Clark Lambert Conformal Conic Nad27 CMA/CA ct, snf, ssnf Geographic Coordinate System (GCS) NAD27 1996 ArcInfo Interchange (E00) MapInfo dbf dcf National ccs, cd, cma, csd, ct, dpl, ea, fed, pre, ua, snf, ssnf In dcf some additional files: water, glakes, greenland, st. lawrence, usa GCS NAD27 Provincial ccs, csd, ct, ea GCS NAD27 CMA csd, ct, ea GCS NAD27 2001 ArcInfo Interchange (E00) MapInfo cbf National car, rnf, srnf, ccs, cd, cmaca, csd, ct, da, dpl, dplcsd, er, fed, fed2003, pr, ua rnf, srnf, fsa GCS NAD83 Provincial cs, csd, ct, da, rnf, srnf GCS NAD83 CMA csd, ct, da GCS NAD83 National, provincial,CMA water, atlantic, arctic, pacific GCS NAD83 Extra atlantic, arctic, pacific, grlakes, greenland, USA GCS NAD83 dbf National/provincial block GCS NAD83 2006 ArcGIS shapefile MapInfo cbf, dbf National ccs, cd, cma, csd, ct, da, db, dpl, er, fed, fsa, pr, ua, water (only in cbf) GCS NAD83 Provincial da, db, water, rnf, rngaf GCS NAD83 2011 ArcGIS shapefile MapInfo cbf, dbf National ccs, cd, cma, csd, ct, da, db, dpl, ecu, er, fed, hydro (only with cbf), pc, pr, rnf GCS NAD83

“geo” directory/folder (2011)

• Concordance
• MS excel file
• spatial relationship between census tracts (CTs) for current census and

corresponding CTs for the previous census (2006)

• (documentation calls it “Census Tract Conversion File”)

10

“geo” directory/folder (2011)

• Correspondence
• unique identifiers for current census geographic area and the

corresponding unique identifier for previous census geographic area

• Dissemination Areas (DAs)
• Dissemination Areas and Land Area
• Dissemination Blocks
• relationship flag indicates the degree of correspondence between the

geographic areas, for comparison between census years

11

“geo” directory/folder (2011)

• data products
• GAF (precursor to GeoSuite & GeoRef)
• .txt and .xlsx files
• data on which other two are/were built
• GeoSuite

12

“geo” directory/folder (2011)

• Preview
• thoroughly describes all geography and products
• Boundary files
• Correspondence (conversion)
• GeoSuite (GAF)
• Road Network
• PCCF
• Reference maps

13

“geo” directory/folder (2011)

• Ref_products
• reference guides to products
• working papers
• figures (Maps) for CMAs
• Reference maps
• Thematic Maps
• Age & Sex
• Canada (wide)
• CMAs / CSDs
• CMAs / CTs
• Statistical Area Classification (SAC)
• CSDs influenced by CMAs / CAs

14

“geo” directory/folder (2011)

• Spatial information
• ArcInfo (ESRI ArcGIS)
• Cartographic Boundary files (cbf)
• Digital Boundary files (dbf)

15

• for geography DanielB reviewed earlier

“geo” directory/folder (2011)

• Spatial information (con’t)
• ArcInfo (ESRI ArcGIS)
• (cbf)
• (dbf)
• Road Network files
• GIS viewers
• FreeView
• Jump
• TatukGIS
• Guide (Boundary files reference guide)
• MapInfo (another GIS)
• ZipReader

16

some other “GIS / Geo-Spatial” file formats

• ESRI geodatabase
• open with ArcGIS; export as shapefiles
• shapefile(s)
• .shp — feature geometry itself
• .shx — positional index of the feature geometry to allow seeking

forwards and backwards

• .dbf — attribute format; column attributes in dBase (IV) format

also sometimes…

• .prj — coordinate and projection information
• (.sbn .sbx .shp.xml etc)
• e00 (older ESRI Arc Interchange format)
• ArcGIS can convert to shape
• KML/KMZ
• ArcGIS can convert to shape

17
