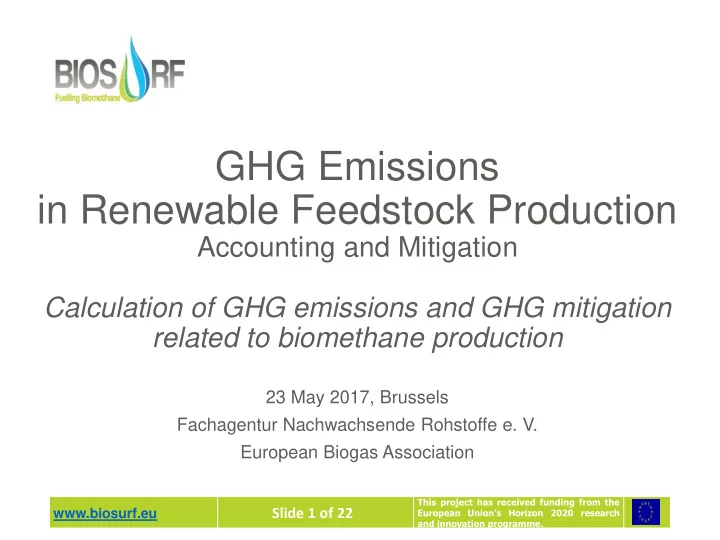

GHG Emissions in Renewable Feedstock Production

Accounting and Mitigation Calculation of GHG emissions and GHG mitigation related to biomethane production

23 May 2017, Brussels Fachagentur Nachwachsende Rohstoffe e. V. European Biogas Association

www.biosurf.eu

This project has received funding from the European Union’s Horizon 2020 research and innovation programme.

Slide 2 of 22

BIOSURF (BIOmethane as SUstainable and Renewable Fuel) aims to increase the production and use of biomethane (from animal waste, other waste materials and sustainable biomass), for grid injection and as transport fuel by removing non-technical barriers and by paving the way towards a European biomethane market. The project BIOUSRF (within WP5) aims to reduce the uncertainties related to the calculation of GHG emissions for biomethane value chains in order to provide assistance to economic operators in their day-to-day work.

www.biosurf.eu

This project has received funding from the European Union’s Horizon 2020 research and innovation programme.

Slide 3 of 22

source: BIOSURF D5.1
