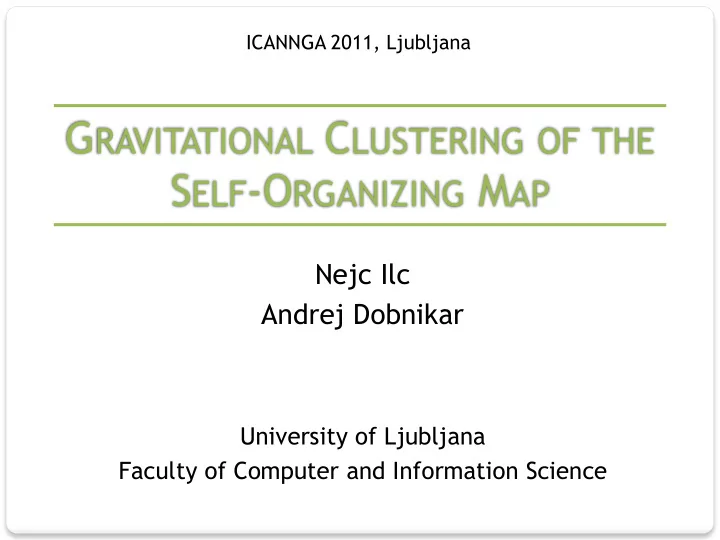

GRAVITATIONAL CLUSTERING OF THE SELF-ORGANIZING MAP

Nejc Ilc Andrej Dobnikar

University of Ljubljana Faculty of Computer and Information Science

ICANNGA 2011, Ljubljana

SLIDE 2

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

2 ICANNGA, April 2011

SLIDE 3

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

3 ICANNGA, April 2011

Visualization of the Internet

Credits: Opte Project

SLIDE 4

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

4 ICANNGA, April 2011

SLIDE 5

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

5 ICANNGA, April 2011

Connections between neurons in human brain

Credits: Van J. Wedeen, M.D., MGH/Harvard U.

SLIDE 6

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

6 ICANNGA, April 2011

SLIDE 7

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

7 ICANNGA, April 2011

Heat map of gene expression profile

Credits: Manfred Gessler

SLIDE 8

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

8 ICANNGA, April 2011

SLIDE 9

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

9 ICANNGA, April 2011

Image segmentation

Credits: T . Riklin-Raviv, N. Sochen and N. Kiryati

SLIDE 10

INTRODUCTION

Tools needed to deal with
data/web mining
huge (social) networks
gene expression data
image segmentation

10 ICANNGA, April 2011

SLIDE 11

CLUSTERING

unsupervised process of organizing data into

"natural" groups

approaches
information theory
graphs
fuzzy logic
…
artificial neural

networks

ICANNGA, April 2011 11

SLIDE 12

CLUSTERING WITH SOM

Self-Organizing Map [Kohonen, 1982]
Advantages
visualization of high-dimensional data
preserves topology and density of input data
Problem
SOM is not "true" clustering method
more neurons than expected number of clusters
How to group neurons into clusters?

12 ICANNGA, April 2011

SLIDE 13

CLUSTERING OF SOM

K-means, hierarchical

[Vesanto & Alhoniemi, 2000]

Emergence SOM

[Ultsch, 2007]

watershed algorithm
neurons > 1000
Surface flooding

[Brugger et al., 2008]

automatically finds

number of clusters

13 ICANNGA, April 2011

SLIDE 14

GSOM – THE IDEA

ICANNGA, April 2011 14

SLIDE 15

GSOM – LEVEL ONE

train SOM on input data
identify winning neurons
remove interpolating neurons

15 ICANNGA, April 2011

𝑛𝑗 = [𝑛𝑗1, 𝑛𝑗2, … , 𝑛𝑗𝐸]

SLIDE 16

GSOM – LEVEL TWO

Gravitational clustering

[Wright, 1977; Gomez et al., 2003]

BMU  mass point (m=1)
"Move & merge" steps

16 ICANNGA, April 2011

SLIDE 17

EXPERIMENT

GSOM compared to
EM GMM [Dempster et al., 1977]
CS

[Jenssen et al., 2003]

SOMkM [Vesanto & Alhoniemi, 2000]
datasets
6 artificial (2D with complex shapes)
3 real from UCI (Iris, Wine, LetterABC)
100 runs of algorithm, we measure:
Clustering Error (CE): minimal, average
elapsed time

17 ICANNGA, April 2011

SLIDE 18

RESULTS – GIANT

EM GMM CE = 0.0

18 ICANNGA, April 2011

GSOM CE = 0.0 SOMkM CE = 0.352 CS CE = 0.219

SLIDE 19

RESULTS – WAVE

EM GMM CE = 0.280

19 ICANNGA, April 2011

GSOM CE = 0.0 SOMkM CE = 0.126 CS CE = 0.130

SLIDE 20

RESULTS – RANKS

Mean Rank

minimal CE

20 ICANNGA, April 2011

average CE

SLIDE 21

RESULTS – ELAPSED TIME

Hepta

N=212

LettersABC

N=1719

21 ICANNGA, April 2011

SLIDE 22

RESULTS – NUMBER OF CLUSTERS

number of detected clusters

22 ICANNGA, April 2011

dataset true number GSOM Giant 2 2 Hepta 7 7 Ring 2 4 Wave 2 2 Moon 4 4 Flag 3 3 Iris 3 3 Wine 3 3 LettersABC 3 7

SLIDE 23

RESULTS – NUMBER OF CLUSTERS

number of detected clusters

23 ICANNGA, April 2011

dataset true number GSOM Giant 2 2 Hepta 7 7 Ring 2 4 Wave 2 2 Moon 4 4 Flag 3 3 Iris 3 3 Wine 3 3 LettersABC 3 7

SLIDE 24

RESULTS – NUMBER OF CLUSTERS

number of detected clusters

24 ICANNGA, April 2011

dataset true number GSOM Giant 2 2 Hepta 7 7 Ring 2 4 Wave 2 2 Moon 4 4 Flag 3 3 Iris 3 3 Wine 3 3 LettersABC 3 7

SLIDE 25

GSOM - SUMMARY

+ finds clusters of complex shapes, linearly non-separable + insensitive to unbalanced density of clusters + number of clusters automatically detected + usage of topology relations – neighbourhood + less computational intensive + intuitive

8 parameters to adjust
sometimes unstable behaviour

25 ICANNGA, April 2011

SLIDE 26

FUTURE WORK

implementing heuristics for setting parameters

automatically

study of clustering ensembles based on GSOM
could non-deterministic nature of GSOM be an

advantage?

application of GSOM on clustering of gene

expression data

ICANNGA, April 2011 26

SLIDE 27

DATASETS PROPERTIES

ICANNGA, April 2011 27

dataset number

f points

number of dimensions number of clusters Giant 862 2 2 Hepta 212 2 7 Ring 800 2 2 Wave 293 2 2 Moon 514 2 4 Flag 640 2 3 Iris 150 4 3 Wine 178 13 3 LettersABC 1719 16 3
