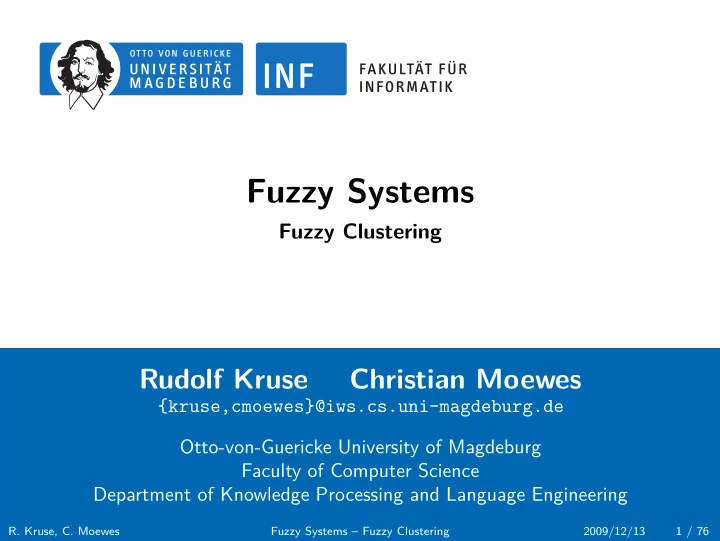

SLIDE 1

Fuzzy Systems

Fuzzy Clustering

Rudolf Kruse Christian Moewes

{kruse,cmoewes}@iws.cs.uni-magdeburg.de Otto-von-Guericke University of Magdeburg Faculty of Computer Science Department of Knowledge Processing and Language Engineering

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 1 / 76

SLIDE 2

Outline

1. Fuzzy Data Analysis

Representation of a Datum Data Analysis

2. Clustering
3. Basic Clustering Algorithms
4. Distance Function Variants
5. Objective Function Variants
6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 2 / 76

SLIDE 3

Fuzzy Data Analysis

datum:

something given
gets its sense in a certain context
describes the condition of a certain “thing”
carries only information if there are at least two different

possibilities of the condition

is seen as the realization of a certain variable of a universe
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 3 / 76

SLIDE 4

Representation of a Datum

characteristic yes/no: universe consists of two elements
characteristic gradiations: universe (finite), grade (figures)
observations/measurements: universe (Euclidean space)
continuous observations in space or time: universe (Hilbert

space), e.g., spectrogram

gray-shaded images: universe (depends), e.g., x-ray images
expert opinion: universe (logic), e.g., statements, facts, rules
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 4 / 76

SLIDE 5

Data Analysis

1st level

valuation and examination with regard to simple, essential

characteristics

analysis of frequency, reliability test, runaway, credibility

2nd level

pattern matching
grouping observations (according to background knowledge, . . . )
maybe transformation with the aim of finding structures withing

data explorative data analysis

examination of data without previously chosen mathematic model
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 5 / 76

SLIDE 6

Data Analysis

3rd level

analysis of data regarding one or more mathematical models
qualitative
formation relating to additional characteristics expressed by quality
e.g., introduction of the term of similarity for cluster analysis
quantitative
recognition of functional relations
e.g., approximation of regression analysis
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 6 / 76

SLIDE 7

Data Analysis

4th level

conclusion and evaluation of the conclusion
prediction of future or missing data (e.g., time line analysis)
data assign to standards (e.g., spectrogram analysis)
combination of data (e.g., data fusion)
valuation of conclusions
possibly learning from data, model revision

problem

what to do in case of vague, imprecise or inconsistent data

⇒ fuzzy data analysis

common data is analyzed with fuzzy methods
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 7 / 76

SLIDE 8

Outline

1. Fuzzy Data Analysis
2. Clustering
3. Basic Clustering Algorithms
4. Distance Function Variants
5. Objective Function Variants
6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 8 / 76

SLIDE 9

Clustering

clustering is an unsupervised learning task
goal: divide dataset s.t. both constraints hold
objects belonging to same cluster are as similar as possible
objects belonging to different clusters are as dissimilar as possible
similarity is usually measured in terms of distance function
the smaller the distance, the more similar two data tuples

Definition d : I Rp × I Rp → [0, ∞) is a distance function if ∀x, y, z ∈ I Rp : (i) d(x, y) = 0 ⇔ x = y (identity), (ii) d(x, y) = d(y, x) (symmetry), (iii) d(x, z) ≤ d(x, y) + d(y, z) (triangle inequality).

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 9 / 76

SLIDE 10

Distance Functions

Illustration of distance functions

Minkowski family

dk(x, y) =

p

d=1

(xd − yd)k

1

k

well-known special cases from this family are

k = 1 : Manhattan or city block distance, k = 2 : Euclidean distance, k → ∞ : maximum distance, i.e. d∞(x, y) = maxp

d=1 |xd − yd|

k = 1 k = 2 k → ∞

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 10 / 76

SLIDE 11

Partitioning Algorithms

here, we only focus on partitioning algorithms
i.e., given c ∈ I

N, find best partition of data into c groups

different from hierarchical techniques, i.e., organize data in nested

sequence of groups

usually number of (true) clusters is unknown
using partitioning methods, however, we must specify c
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 11 / 76

SLIDE 12

Prototype-based Clustering

we focus on prototype-based clustering algorithms
i.e., clusters are represented by cluster prototypes Ci, i = 1, . . . , c
prototypes capture structure (distribution) of data in each cluster
set of prototypes C = {C1, . . . , Cc}
prototype Ci is n-tuple which consists of
cluster center ci, and
some additional parameters about size and shape of cluster
prototypes are constructed by clustering algorithms
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 12 / 76

SLIDE 13

Outline

1. Fuzzy Data Analysis
2. Clustering
3. Basic Clustering Algorithms

Hard c-means Fuzzy c-means Possibilistic c-means Comparison of FCM and PCM

4. Distance Function Variants
5. Objective Function Variants
6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 13 / 76

SLIDE 14

Basic Clustering Algorithms

Center Vectors and Objective Functions

consider simplest cluster prototypes, i.e., center vectors Ci = (ci)
distance measure d based on inner product, e.g., Euclidean

distance

all algorithms are based on objective functions J
quantify goodness of cluster models
must be minimized to obtain optimal clusters
algorithms determine best decomposition by minimizing J
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 14 / 76

SLIDE 15

Hard c-means

each data point xj in dataset X = {x1, . . . , xn}, X ⊆ I

Rp is assigned to exactly one cluster ⇒ each cluster Γi ⊂ X

set of clusters Γ = {Γ1, . . . , Γc} must be exhaustive partition of X

into c non-empty and pairwise disjoint subsets Γi, 1 < c < n

data partition is optimal when sum of squared distances between

cluster centers and data points assigned to them is minimal

clusters should be as homogeneous as possible
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 15 / 76

SLIDE 16

Hard c-means

objective function of the hard c-means:

Jh(X, Uh, C) =

c

i=1

n

j=1

uijd2

ij

U = (uij ∈ {0, 1})c×n is called partition matrix with

uij =

1,

if xj ∈ Γi 0,

therwise
each data point is assigned exactly to one cluster

c

i=1

uij = 1, ∀j ∈ {1, . . . , n}

every cluster must contain at least one data point

n

j=1

uij > 0, ∀i ∈ {1, . . . , c}

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 16 / 76

SLIDE 17

Alternating Optimization Scheme

Jh depends on c and assignment U of data points to clusters
finding parameters that minimize Jh is NP-hard
hard c-means minimizes Jh by alternating optimization (AO)
1. parameters to optimize are split into two groups
2. one group is optimized holding the other group fixed (and vice

versa)

3. iterative update scheme is repeated until convergence
it cannot be guaranteed that global optimum will be reached
algorithm may get stuck in local minimum
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 17 / 76

SLIDE 18

AO Scheme for Hard c-means

1. chose initial ci, e.g., randomly picking c data points ∈ X
2. hold C fixed and determine U that minimize Jh
each data point is assigned to its closest cluster center

uij =

1,

if i = arg minc

k=1 dkj

0,

therwise
any other assignment would not minimize Jh for fixed clusters
3. hold U fixed, update ci as mean of all xj assigned to them
mean minimizes sum of square distances in Jh, formally

ci = n

j=1 uijxj

n

j=1 uij

4. both steps are repeated until no change in C or U can be observed
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 18 / 76

SLIDE 19

Example

symmetric dataset with two clusters
hard c-means assigns crisp label to data point in middle
is this very intuitive?
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 19 / 76

SLIDE 20

Discussion

hard c-means tends to get stuck in local minimum
it is necessary to conduct several runs with different

initializations [Duda and Hart, 1973]

sophisticated initialization methods can be used as well, e.g.,

Latin hypercube sampling [McKay et al., 1979]

best result of many clusterings can be chosen based on Jh
crisp memberships {0, 1} prohibit ambiguous assignments
when clusters are badly delineated or overlapping, relaxing

requirement uij ∈ {0, 1} needed

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 20 / 76

SLIDE 21

Fuzzy Clustering

allows gradual memberships of data points to clusters in [0, 1]
flexibility to express: data point can belong to more than 1 cluster
membership degrees
offer finer degree of detail of data model
express how ambiguously/definitely xj should belong to Γi
solution spaces in form of fuzzy partitions of X = {x1, . . . , xn}
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 21 / 76

SLIDE 22

Fuzzy Clustering

clusters Γi have been classical subsets so far
now, they are represented by fuzzy sets µΓi of X
cluster assignment uij is now membership degree of xj to Γi

s.t. uij = µΓi(xj) ∈ [0, 1]

fuzzy label vector u = (u1j, . . . , ucj)T is linked to each xj
U = (uij) = (u1, . . . , un) is then called fuzzy partition matrix
two types of fuzzy cluster partitions have evolved
i.e., probabilistic and possibilistic
differ in constraints they place on membership degrees
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 22 / 76

SLIDE 23

Probabilistic Cluster Partition

Definition Let X = {x1, . . . , xn} be the set of given examples and let c be the number of clusters (1 < c < n) represented by the fuzzy sets µΓi, (i = 1, . . . , c). Then we call Uf = (uij) = (µΓi(xj)) a probabilistic cluster partition of X if

n

j=1

uij > 0, ∀i ∈ {1, . . . , c}, and

n

i=1

uij = 1, ∀j ∈ {1, . . . , n}

hold. The uij ∈ [0, 1] are interpreted as the membership degree of

datum xj to cluster Γi relative to all other clusters.

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 23 / 76

SLIDE 24

Probabilistic Cluster Partition

first constraint guarantees that no cluster is empty
corresponds to requirement in classical cluster analysis

⇒ no cluster, represented as (classical) subset of X, is empty

2nd condition: sum of membership degrees must be 1 for each xj
each datum receives same weight in comparison to all other data

⇒ all data are (equally) included into cluster partition

related to classical clustering: partitions are exhaustive
consequence of both constraints:
no cluster can contain full membership of all data points
membership degrees for given datum resemble probabilities of

being member of corresponding cluster

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 24 / 76

SLIDE 25

Example

hard c-means fuzzy c-means

equidistant data point in middle of figure does not have arbitrary

assignment anymore

in fuzzy partition, it can be associated with membership vector

(0.5, 0.5)T to express ambiguity of assignment

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 25 / 76

SLIDE 26

Objective Function

minimize objective function

Jf (X, Uh, C) =

c

i=1

n

j=1

um

ij d2 ij

subject to

c

i=1

uij = 1, ∀j ∈ {1, . . . , n} and

n

j=1

uij > 0, ∀i ∈ {1, . . . , c}

parameter m ∈ I

R with m > 1 is called fuzzifier

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 26 / 76

SLIDE 27

Fuzzifier

actual value of m determines “fuzziness” of classification
for m = 1 (i.e., Jh = Jf ), assignments remain hard
fuzzifiers m > 1 lead to fuzzy memberships [Bezdek, 1973]
clusters become softer/harder with higher/lower m
usually m = 2
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 27 / 76

SLIDE 28

Reminder: Function Optimization

task: find x = (x1, . . . , xm) s.t. f (x) = (x1, . . . , xm) is optimal
often feasible approach:
necessary condition for (local) optimum (max./min.):

partial derivatives w.r.t. parameters vanish ⇒ (try to) solve equation system coming from setting all partial derivatives w.r.t. parameters equal to zero

example task: minimize f (x, y) = x2 + y 2 + xy − 4x − 5y
solution procedure:
1. take partial derivatives of objective function and set them to zero:

∂f ∂x = 2x + y − 4 = 0, ∂f ∂y = 2y + x − 5 = 0

2. solve resulting (here: linear) equation system:

x = 1, y = 2

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 28 / 76

SLIDE 29

Function Optimization with Constraints

often function must be optimized subject to certain constraints
here: restriction to k equality constraints Ci(x) = 0, i = 1, . . . , k
note: equality constraints describe subspace of domain of f
problem of optimization with constraints
gradient of f may vanish outside constrained subspace

⇒ unacceptable solution (violated constraints)

derivatives need not vanish at optimum in constrained subspace
one way to handle this problem are generalized coordinates:
exploit dependence of parameters specified by Ci to express some

parameters by others ⇒ reduce set x to set x′ of independent parameters (generalized coordinates)

problem: can be clumsy cumbersome (if possible at all) because

Ci’s may not allow this

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 29 / 76

SLIDE 30

Function Optimization with Constraints

much more elegant approach is based on following insights:
let x∗ be (local) optimum of f (x) in constrained subspace

⇒ gradient ∇

xf (x∗) must be perpendicular to constrained subspace

gradients ∇

x Cj(x∗), 1 ≤ j ≤ k, must all be perpendicular ⊥ to

constrained subspace (because they are constant, i.e., 0)

together they span subspace ⊥ to constrained subspace

⇒ it must be possible to find values λj, 1 ≤ j ≤ k s.t. ∇

xf (x∗) + s

j=1

λj∇

x Cj(x∗) = 0

if constraints are linearly independent, λj are uniquely determined
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 30 / 76

SLIDE 31

Function Optimization: Lagrange Theory

⇒ we obtain Method of Lagrange Multipliers:

given: f (x) to be optimized and k equality constraints

Cj(x) = 0, 1 ≤ j ≤ k

procedure:
1. construct so-called Lagrange function by incorporating

Ci, i = 1, . . . , k, with (unknown) Lagrange multipliers λi: L(x, λ1, . . . , λk) = f (x) +

k

i=1

λiCi(x)

2. set partial derivatives of Lagrange function equal to zero:

∂L ∂x1 = 0, . . . , ∂L ∂xm = 0, ∂L ∂λ1 = 0, . . . , ∂L ∂λk = 0

3. (try to) solve resulting equation system
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 31 / 76

SLIDE 32

Function Optimization: Lagrange Theory

Observations

due to representation of gradient of f (x) at local optimum x∗ in

constrained subspace, gradient of L w.r.t. x vanishes at x∗ ⇒ standard approach works again

if constraints are satisfied, then additional terms have no influence

⇒ original task is not modified (same objective function)

taking partial derivative w.r.t. Lagrange multiplier reproduces

corresponding equality constraint: ∀j; 1 ≤ j ≤ k : ∂ ∂λj L(x, λ1, . . . , λk) = Cj(x), ⇒ constraints enter equation system to solve in natural way

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 32 / 76

SLIDE 33

Lagrange Theory: Example 1

example task: minimize f (x, y) = x2 + y 2 subject to x + y = 1
solution procedure:
1. rewrite constraint s.t. one side gets zero x + y − 1 = 0
2. construct Lagrange function by incorporating constraint into f

with Lagrange multiplier λ: L(x, y, λ) = x 2 + y 2 + λ(x + y − 1)

3. take partial derivatives of Lagrange function and set them to zero

(necessary conditions for minimum): ∂L ∂x = 2x + λ = 0, ∂L ∂y = 2y + λ = 0, ∂L ∂λ = x + y − 1 = 0

4. solve resulting (here: linear) equation system:

λ = −1, x = y = 1

2.

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 33 / 76

SLIDE 34

Lagrange Theory: Example 2

example task: find side lengths x, y, z of box with maximum

volume for given area S of the surface

formally: max. f (x, y, z) = xyz s.t. 2xy + 2xz + 2yz = S
solution procedure:
1. constraint is C(x, y, z) = 2xy + 2xz + 2yz − S = 0
2. Lagrange function is

L(x, y, z, λ) = xyz + λ(2xy + 2xz + 2yz − S)

3. taking partial derivatives yields (in addition to constraint):

∂L ∂x = yz + 2λ(y + z) = 0, ∂L ∂y = xz + 2λ(x + z) = 0, ∂L ∂y = xy + 2λ(x + y) = 0

4. solution is: λ = − 1

4

S

6 ,

x = y = z =

S

6

(i.e., box is a cube)

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 34 / 76

SLIDE 35

Optimizing the Membership Degrees

Jf is alternately optimized, i.e.,
1. optimize U for fixed cluster parameters Uτ = jU(Cτ−1)
2. optimize C for fixed membership degrees Cτ = jC(Uτ)
update formulas: set derivative Jf w.r.t. parameters U, C to zero
resulting equations form the fuzzy c-means (FCM) algorithm
membership degrees are chosen according to [Bezdek, 1981]

uij = 1

c

k=1

d2

ij

d2

kj

1

m−1

= d

−

2 m−1

ij

c

k=1 d −

2 m−1

kj

independent of the chosen distance measure
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 35 / 76

SLIDE 36

First Step: Fix the cluster parameters

introduce Lagrange multipliers λj, 0 ≤ j ≤ n, to incorporate

constraints ∀j; 1 ≤ j ≤ n : c

i=1 uij = 1

this yields Lagrange function (to be minimized)

L(X, Uf , C, Λ) =

c

i=1

n

j=1

um

ij d2 ij

=J(X,Uf ,C)

+

n

j=1

λj

1 −

c

i=1

uij

necessary condition for minimum: partial derivatives of Lagrange

function w.r.t. membership degrees vanish, i.e., ∂ ∂ukl L(X, Uf , C, Λ) = mum−1

kl

d2

kl − λl !

= 0 which leads to ∀i; 1 ≤ i ≤ c : ∀j; 1 ≤ j ≤ n : uij =

λj

md2

ij

1

m−1

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 36 / 76

SLIDE 37

Optimizing the Membership Degrees

summing these equations over clusters (in order to be able to

exploit corresponding constraints on membership degrees), we get 1 =

c

i=1

uij =

c

i=1
λj

md2

ij

1

m−1

⇒ λj, 1 ≤ j ≤ n are λj =

c

i=1
md2

ij

1

1−m

inserting this into equation for membership degrees yields

∀i; 1 ≤ i ≤ c : ∀j; 1 ≤ j ≤ n : uij = d

2 1−m

ij

c

k=1 d

2 1−m

kj

update formula results regardless of distance measure
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 37 / 76

SLIDE 38

Optimizing the Cluster Prototypes

update formula jC depend on
cluster parameters (location, shape, size) and
chosen distance measure

⇒ general update formula cannot be given

for basic fuzzy c-means model
cluster centers serve as prototypes
distance measure: induced metric by inner product

⇒ second step: derivations of Jf w.r.t. centers yield [Bezdek, 1981] ci =

n

j=1 um ij xj

n

j=1 um ij

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 38 / 76

SLIDE 39

Discussion

FCM can be initialized with randomly places cluster centers
updating in the AO scheme can be stopped if
number of iterations τ exceeds some predefined τmax, or
changes in prototypes are smaller than some termination accuracy
fuzzy c-means algorithm is stable and robust
compared with hard c-means
it is quite insensitive to initialization and
it is not likely to get stuck in an undesired local minimum
FCM converges in saddle point or minimum (but not in

maximum) [Bezdek, 1981]

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 39 / 76

SLIDE 40

Problems with Probabilistic c-means

Γ2

b b b b b b b b b b

x1 Γ1

b b b b b b b b b b x2

x1 has same distance to Γ1 and Γ2 ⇒ µΓ1(x1) = µΓ2(x1) = 0.5
however, same degrees of membership are assigned to x2
problem is due to normalization
better reading of memberships “If xj must be assigned to a

cluster, then with probability uij to Γi”.

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 40 / 76

SLIDE 41

Problems with Probabilistic c-means

normalization of memberships: problem for noise and outliers
fixed data point weight ⇒ high membership of noisy data,

although large distance from the bulk of data ⇒ bad effect on clustering result

by dropping normalization constraint

c

i=1

uij = 1, ∀j ∈ {1, . . . , n} more intuitive membership assignments

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 41 / 76

SLIDE 42

Possibilistic Cluster Partition

Definition Let X = {x1, . . . , xn} be the set of given examples and let c be the number of clusters (1 < c < n) represented by the fuzzy sets µΓi, (i = 1, . . . , c). Then we call Up = (uij) = (µΓi(xj)) a possibilistic cluster partition of X if

n

j=1

uij > 0, ∀i ∈ {1, . . . , c}

holds. The uij ∈ [0, 1] are interpreted as degree of representativity or

typicality of the datum xj to cluster Γi.

now, uij for xj resemble possibility of being member of

corresponding cluster

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 42 / 76

SLIDE 43

Possibilistic Fuzzy Clustering

Jf would not be appropriate for possibilistic fuzzy clustering
dropping normalization constraint leads to minimum for all uij = 0
i.e., data points are not assigned to any Γi and all Γi are empty

⇒ penalty term is introduced which forces all uij away from zero

objective function Jf is modified to

Jp(X, Up, C) =

c

i=1

n

j=1

um

ij d2 ij + c

i=1

ηi

n

j=1

(1 − uij)m where ηi > 0(1 ≤ i ≤ c)

ηi balance contrary objectives expressed in the two terms of Jp
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 43 / 76

SLIDE 44

Optimizing the Membership Degrees

update formula for membership degrees

uij = 1 1 +

d2

ij

ηi

1

m−1

membership of xj to cluster i depends only on dij to this cluster
small distance corresponds to high degree of membership
larger distances result in low membership degrees

⇒ uij’s have typicality interpretation

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 44 / 76

SLIDE 45

Interpretation of ηi

update equation helps to explain parameters ηi
consider m = 2 and substitute ηi for d2

ij yields uij = 0.5

⇒ ηi determines distance to Γi at which uij should be 0.5

ηi can have different geometrical interpretation
hyperspherical clusters (e.g., PCM) ⇒ √ηi is mean diameter
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 45 / 76

SLIDE 46

Estimating ηi

if such properties are known, ηi can be set a priori
if all clusters have same properties, same value for all clusters
however, information on actual shape is often unknown a priori
parameters must be estimated, e.g., by FCM
use fuzzy intra-cluster distance i.e., for all Γi, 1 ≤ i ≤ n

ηi = n

j=1 um ij d2 ij

n

j=1 um ij

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 46 / 76

SLIDE 47

Optimizing the Cluster Centers

update equations jC are derived by setting derivative of Jp

w.r.t. prototype parameters to zero (holding Up fixed)

update equations for cluster prototypes are identical

⇒ cluster centers in PCM algorithm are re-estimated as ci =

n

j=1 uijxj

n

j=1 uij

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 47 / 76

SLIDE 48

Comparison of FCM and PCM

FCM (left) and PCM (right) of Iris dataset into 3 clusters
FCM divides space, PCM depends on typicality to closest clusters
FCM and PCM divide dataset into 3 and 2 clusters, resp.
behavior is specific to PCM
FCM drives centers apart due to normalization, PCM does not
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 48 / 76

SLIDE 49

Cluster Coincidence

characteristic FCM PCM data partition exhaustively forced to not forced to membership degr. distributed determined by data cluster interaction covers whole data non intra-cluster dist. high low cluster number c exhaustively used upper bound

clusters can coincide, clusters might not even cover data
PCM tends to interpret such data as outliers by low memberships
better coverage is obtained as follows
1. usually FCM is used to initialize PCM (i.e., prototypes, ηi, c)
2. after the first PCM run, re-estimat ηi again
3. improved estimates are used for second PCM run as final solution
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 49 / 76

SLIDE 50

Cluster Repulsion I

Jp is truly minimized only if all cluster centers are identical
other results are achieved when PCM gets stuck in local minimum
PCM can be improved by modifying Jp

Jrp(X, Up, C) =

c

i=1

n

j=1

um

ij d2 ij + c

i=1

ηi

n

j=1

(1 − uij)m +

c

i=1

γi

c

k=1,k=i

1 ηd(ci, ck)2

γi controls strength of cluster repulsion
η makes repulsion independent of normalization of data attributes
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 50 / 76

SLIDE 51

Cluster Repulsion II

minimization conditions lead to the update equation

ci =

n

j=1 um ij xj − γi

c

k=1,k=i 1 d(ci,ck)4 ck

n

j=1 um ij − γi

c

k=1,k=i 1 d(ci,ck)4

this equation shows effect of repulsion between clusters
cluster is attracted by data assigned to it
it is simultaneously repelled by other clusters
update equation of PCM for membership degrees is not modified
better detection of shape of very close or overlapping clusters
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 51 / 76

SLIDE 52

Recognition of Positions and Shapes

possibilistic models do not only carry problematic properties
cluster prototypes are more intuitive
memberships depend only on distance to one cluster
shape & size of clusters better fits data clouds than FCM
less sensitive to outliers and noise

⇒ attractive tool in image processing

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 52 / 76

SLIDE 53

Outline

1. Fuzzy Data Analysis
2. Clustering
3. Basic Clustering Algorithms
4. Distance Function Variants

Gustafson-Kessel Algorithm Fuzzy Shell Clustering Kernel-based Fuzzy Clustering

5. Objective Function Variants
6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 53 / 76

SLIDE 54

Distance Function Variants

so far, only Euclidean distance leading to standard FCM and PCM
Euclidean distance only allows spherical clusters
several variants have been proposed to relax this constraint
fuzzy Gustafson-Kessel algorithm
fuzzy shell clustering algorithms
kernel-based variants
they can be applied to both FCM and PCM
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 54 / 76

SLIDE 55

Gustafson-Kessel Algorithm

[Gustafson and Kessel, 1979] replaced Euclidean distance by

cluster-specific Mahalanobis distance

for cluster Γi, its associated Mahalanobis distance is defined as

d2(xj, Cj) = (xj − ci)T Σ−1

i

(xj − ci) where Σi is covariance matrix of cluster

Euclidean distance leads to ∀i : Σi = I, i.e., identity matrix
Gustafson-Kessel (GK) algorithm leads to prototypes Ci = (ci, Σi)
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 55 / 76

SLIDE 56

Gustafson-Kessel Algorithm

specific constraints can be taken into account, e.g.,
restricting to axis-parallel cluster shapes
by considering only diagonal matrices
usually preferred when clustering is applied for fuzzy rule generation
to be discussed later in the lecture
cluster sizes can be controlled by ̺i > 0 demanding det(Σi) = ̺i
usually clusters are equally sized by det(Σi) = 1
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 56 / 76

SLIDE 57

Objective Function

J, update equations for ci and U are identical to FCM and PCM,

resp.

update equations for covariance matrices are

Σi = Σ∗

i

p

det(Σ∗

i )

where Σ∗

i =

n

j=1 uij(xj − ci)(xj − ci)T

n

j=1 uij

they are defined as covariance of data assigned to cluster i
Σi are modified to incorporate fuzzy assignment
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 57 / 76

SLIDE 58

Summary

GK extracts more information than standard FCM and PCM
GK is more sensitive to initialization
initializing GK using few runs of FCM or PCM is recommended
compared to FCM or PCM, due to matrix inversions GK is
computationally costly
hard to apply to huge datasets
restriction to axis-parallel clusters reduces computational costs
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 58 / 76

SLIDE 59

Fuzzy Shell Clustering

up to now we searched for convex “cloud-like” clusters
corresponding algorithms are called solid clustering algorithms
specially useful in data analysis
for image recognition and analysis, variants of FCM and PCM

have been proposed to detect lines, circles or ellipses ⇒ shell clustering algorithms

replace Euclidean by other distances
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 59 / 76

SLIDE 60

Fuzzy c-varieties Algorithm

fuzzy c-varieties (FCV) algorithm

recognizes lines, planes, or hyperplanes

each cluster is affine subspace characterized

by point and set of orthogonal unit vectors, Ci = (ci, ei1, . . . , eiq) where q is dimension

f affine subspace
distance between data point xj and cluster i

d2(xj, ci) = xj − ci2 −

q

l=1

(xj − ci)T eil

also used for locally linear models of data

with underlying functional interrelations

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 60 / 76

SLIDE 61

Other Shell Clustering Algorithms

Name Prototypes adaptive fuzzy c-elliptotypes (AFCE) line segments fuzzy c-shells circles fuzzy c-ellipsoidal shells ellipses fuzzy c-quadric shells (FCQS) hyperbolas, parabolas fuzzy c-rectangular shells (FCRS) rectangles AFCE FCQS FCRS

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 61 / 76

SLIDE 62

Kernel-based Fuzzy Clustering

kernel variants modify distance function to handle non-vectorial

data, e.g., sequences, trees, graphs

kernel methods [Schölkopf and Smola, 2001] extend classic linear

algorithms to non-linear ones without changing algorithms

data points can be vectorial or not ⇒ xj instead of xj
kernel methods are based on mapping φ : X → H
input space X, feature space H (higher or infinite dimensions)
H must be Hilbert space, i.e., dot product is defined
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 62 / 76

SLIDE 63

Principle

data are not handled directly in H, only handled by dot products
kernel function

k : X × X → I R, ∀x, x′ ∈ X : φ(x), φ(x′) = k(x, x′) ⇒ no need to known φ explicitly

scalar products in H only depend on k and data ⇒ kernel trick
kernel methods are algorithms using scalar products between data
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 63 / 76

SLIDE 64

Kernel Fuzzy Clustering

kernel framework has been applied to fuzzy clustering
fuzzy shell clustering extracts prototypes, kernel methods are not
they compute similarity between x, x′ ∈ X
cluster representatives have no explicit representation
kernel variant of FCM [Wu et al., 2003] transposes Jf to H
centers cφ

i ∈ H are linear combinations of transformed data

cφ

i = n

r=1

airφ(xr)

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 64 / 76

SLIDE 65

Kernel Fuzzy Clustering

Euclidean distance between points and centers in H is

d2

φir =

φ(xr) − cφ

i

2 = krr − 2

n

s=1

aiskrs +

n

s,t=1

aisaitkst whereas krs ≡ k(xr, xs)

the objective function becomes

Jφ(X, Uφ, C) =

c

i=1

n

r=1

um

ir d2 φir

minimization leads to following update equations

uir = 1

c

l=1

d2

φir

d2

φlr

1

m−1

, air = um

ir

n

s=1 um is

, cφ

i =

n

r=1 um ir φ(xr)

n

s=1 um is

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 65 / 76

SLIDE 66

Kernel Fuzzy Clustering

Summary

update equations (and Jφ) are expressed solely by k
for Euclidean distance, membership degrees are identical to FCM
cluster centers: weighted mean of data (comparable to FCM)
disadvantage of kernel methods
choice of proper kernel and its parameters is needed
similar to feature selection and data representation
cluster centers belong to H (no explicit representation)
only weighting coefficients air are known
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 66 / 76

SLIDE 67

Outline

1. Fuzzy Data Analysis
2. Clustering
3. Basic Clustering Algorithms
4. Distance Function Variants
5. Objective Function Variants

Noise Clustering Fuzzifier Variants

6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 67 / 76

SLIDE 68

Objective Function Variants

so far, variants of FCM with different distance functions
now, other variants based on modifications of J
aim: improving clustering results, e.g., noisy data
there are lots of different variants, following categories
explicitly handling noisy data
modifying fuzzifier m in objective function
new terms in objective function (e.g., optimize cluster number)
improving PCM w.r.t. coinciding cluster problem
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 68 / 76

SLIDE 69

Noise Clustering

noise clustering (NC) adds to c clusters one noise cluster
shall group noisy data points or outliers
not explicitly associated to any prototype
directly associated to distance between implicit prototype and data
center of noise cluster has constant distance δ to all data points
1. all points have same “probability” of belonging to noise cluster
2. during optimization, “probability” is adapted
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 69 / 76

SLIDE 70

Noise Clustering

noise cluster is added to objective function as any other cluster

Jnc(X, U, C) =

c

i=1

n

j=1

um

ij d2 ij + n

k=1

δ2

1 −

c

i=1

uik

m

added term is similar to terms in the first sum
distance to cluster prototype is replaced by δ
outliers can have low membership degrees to standard clusters
Jnc requires setting of parameter δ, e.g.,

δ = λ 1 c · n

c

i=1

n

j=1

d2

ij

λ user-defined parameter: if low λ, then high number of outliers
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 70 / 76

SLIDE 71

Fuzzifier Variants

fuzzifier m introduces problem:

uij =

{0, 1}

if m = 1, ]0, 1[ if m > 1

disadvantage for noisy datasets (to be discussed in the exercise)
possible solution: convex combination of hard and fuzzy c-means

Jhf (X, U, C) =

c

i=1

n

j=1
αuij + (1 − α)u2

ij

d2

ij

where α ∈ [0, 1] is user-defined threshold

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 71 / 76

SLIDE 72

Outline

1. Fuzzy Data Analysis
2. Clustering
3. Basic Clustering Algorithms
4. Distance Function Variants
5. Objective Function Variants
6. Cluster Validity
R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 72 / 76

SLIDE 73

Cluster Validity

Judgment of Classification by Validity Measures

validity measures can be based on several criteria, e.g.,
membership degrees should be ≈ 0/1, e.g., partition coefficient

PC = 1 n

c

i=1

n

j=1

u2

ij

compactness of clusters, e.g., average partition density

APD = 1 c

c

i=1
j∈Yi uij
|Σi|

where Yi = {j ∈ I N, j ≤ n | (xj − µi)⊤Σ−1

i

(xj − µi) < 1}

especially for FCM: partition entropy

PE = −

c

i=1

n

j=1

uij log uij

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 73 / 76

SLIDE 74

Software and Literature

“Information Miner 2” and “Fuzzy Cluster Analysis”

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 74 / 76

SLIDE 75

References I

Bezdek, J. (1973). Fuzzy Mathematics in Pattern Classification. PhD thesis, Applied Math. Center, Ithaca, USA. Bezdek, J. (1981). Pattern Recognition With Fuzzy Objective Function Algorithms. Plenum Press, New York, NY, USA. Duda, R. and Hart, P. (1973). Pattern Classification and Scene Analysis. John Wiley & Sons, Inc., New York, NY, USA. Gustafson, E. E. and Kessel, W. C. (1979). Fuzzy clustering with a fuzzy covariance matrix. In Proceedings of the IEEE Conference on Decision and Control, pages 761–766, Piscataway, NJ, USA. IEEE Press. Höppner, F., Klawonn, F., Kruse, R., and Runkler, T. (1999). Fuzzy Cluster Analysis: Methods for Classification, Data Analysis and Image Recognition. John Wiley & Sons Ltd, New York, NY, USA.

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 75 / 76

SLIDE 76

References II

McKay, M. D., Beckman, R. J., and Conover, W. J. (1979). A comparison of three methods for selecting values of input variables in the analysis

f output from a computer code.

Technometrics, 21(2):239–245. Schölkopf, B. and Smola, A. J. (2001). Learning With Kernels: Support Vector Machines, Regularization, Optimization and Beyond. MIT Press, Cambridge, MA, USA. Wu, Z., Xie, W., and Yu, J. (2003). Fuzzy c-means clustering algorithm based on kernel method. In Proceedings of the Fifth International Conference on Computational Intelligence and Multimedia Applications (ICCIMA), pages 1–6.

R. Kruse, C. Moewes

Fuzzy Systems – Fuzzy Clustering 2009/12/13 76 / 76
