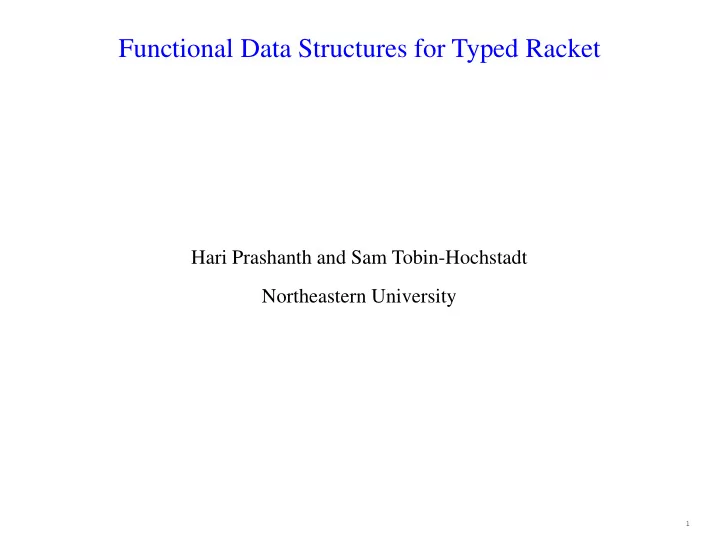

SLIDE 1
Functional Data Structures for Typed Racket
Hari Prashanth and Sam Tobin-Hochstadt Northeastern University
1
Motivation
Typed Racket has very few data structures
2
Functional Data Structures for Typed Racket Hari Prashanth and Sam - - PowerPoint PPT Presentation
Functional Data Structures for Typed Racket Hari Prashanth and Sam - - PowerPoint PPT Presentation
Functional Data Structures for Typed Racket Hari Prashanth and Sam Tobin-Hochstadt Northeastern University 1 Motivation Typed Racket has very few data structures 2 Motivation Typed Racket has very few data structures Lists 3 Motivation
SLIDE 2
SLIDE 3
Motivation
Typed Racket has very few data structures Lists
3
SLIDE 4
Motivation
Typed Racket has very few data structures Lists Vectors
4
SLIDE 5
Motivation
Typed Racket has very few data structures Lists Vectors Hash Tables
5
SLIDE 6
Motivation
Typed Racket has very few data structures Lists Vectors Hash Tables Practical use of Typed Racket
6
SLIDE 7
Outline
Motivation Typed Racket in a Nutshell Purely Functional Data Structures Benchmarks Typed Racket Evaluation Conclusion
7
SLIDE 8
Function definition in Racket
#lang racket ; Computes the length of a given list of elements ; length : list-of-elems -> natural (define (length list) (if (null? list) (add1 (length (cdr list)))))
8
SLIDE 9
Function definition in Typed Racket
#lang typed/racket ; Computes the length of a given list of integers (: length : (Listof Integer) -> Natural) (define (length list) (if (null? list) (add1 (length (cdr list)))))
9
SLIDE 10
Function definition in Typed Racket
#lang typed/racket ; Computes the length of a given list of elements (: length : (All (A) ((Listof A) -> Natural))) (define (length list) (if (null? list) (add1 (length (cdr list)))))
10
SLIDE 11
Data definition in Racket
#lang racket ; Data definition of tree of integers ; A Tree is one of ; - null ; - BTree (define-struct BTree (left elem right)) ; left and right are of type Tree ; elem is an Integer
11
SLIDE 12
Data definition in Typed Racket
#lang typed/racket ; Data definition of tree of integers (define-type Tree (U Null BTree)) (define-struct: BTree ([left : Tree] [elem : Integer] [right : Tree]))
12
SLIDE 13
Data definition in Typed Racket
#lang typed/racket ; Polymorphic definition of Tree (define-type (Tree A) (U Null (BTree A))) (define-struct: (A) BTree ([left : (Tree A)] [elem : A] [right : (Tree A)]))
13
SLIDE 14
Outline
Motivation Typed Racket in a Nutshell Purely Functional Data Structures Benchmarks Typed Racket Evaluation Conclusion
14
SLIDE 15
Destructive and Non-destructive update
e
15
SLIDE 16
Destructive and Non-destructive update
e
⇒
Destructive update
16
SLIDE 17
Destructive and Non-destructive update
e
⇒
Non-destructive update
17
SLIDE 18
Functional Queue
(define-struct: (A) Queue ([front : (Listof A)] [rear : (Listof A)]))
18
SLIDE 19
Functional Queue
(define-struct: (A) Queue ([front : (Listof A)] [rear : (Listof A)]))
19
SLIDE 20
Functional Queue
(: dequeue : (All (A) ((Queue A) -> (Queue A)))) (define (dequeue que) (let ([front (cdr (Queue-front que))] [rear (Queue-rear que)]) (if (null? front) (Queue (reverse rear) null) (Queue front rear))))
20
SLIDE 21
Functional Queue
Queue q (for ([id (in-range 100)]) (dequeue q))
21
SLIDE 22
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem
22
SLIDE 23
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem (: val : (Promise Exact-Rational)) (define val (delay (/ 5 0)))
23
SLIDE 24
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem Streams (define-type (Stream A) (Pair A (Promise (Stream A))))
24
SLIDE 25
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem (define-struct: (A) Queue ([front : (Stream A)] [lenf : Integer] [rear : (Stream A)] [lenr : Integer])) Invariant lenf >= lenr
25
SLIDE 26
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem
(: check : (All (A) (Stream A) Integer (Stream A) Integer -> (Queue A))) (define (check front lenf rear lenr) (if (>= lenf lenr) (make-Queue front lenf rear lenr) (make-Queue (stream-append front (stream-reverse rear)) (+ lenf lenr) null 0)))
26
SLIDE 27
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem
(make-Queue (stream-append front (stream-reverse rear)) (+ lenf lenr) null 0)
27
SLIDE 28
Banker’s Queue [Okasaki 1998]
Lazy evaluation solves this problem Amortized running time of O(1) for the operations enqueue, dequeue and head
28
SLIDE 29
Real-Time Queues [Hood & Melville 81]
29
SLIDE 30
Real-Time Queues [Hood & Melville 81]
Eliminating amortization by Scheduling
30
SLIDE 31
Real-Time Queues [Hood & Melville 81]
Eliminating amortization by Scheduling Banker’s Queue - reverse is a forced completely
31
SLIDE 32
Real-Time Queues [Hood & Melville 81]
Eliminating amortization by Scheduling
(: rotate : (All (A) ((Stream A) (Listof A) (Stream A) -> (Stream A)))) (define (rotate front rear accum) (if (empty-stream? front) (stream-cons (car rear) accum) (stream-cons (stream-car front) (rotate (stream-cdr front) (cdr rear) (stream-cons (car rear) accum)))))
Incremental reversing
32
SLIDE 33
Real-Time Queues [Hood & Melville 81]
Eliminating amortization by Scheduling Worst-case running time of O(1) for the operations enqueue, dequeue and head
33
SLIDE 34
Binary Random Access Lists [Okasaki 1998]
Nat is one of
- (add1 Nat)
List is one of
- null
- (cons elem List)
34
SLIDE 35
Binary Random Access Lists [Okasaki 1998]
Nat is one of
- (add1 Nat)
List is one of
- null
- (cons elem List)
cons corresponds to increment cdr corresponds to decrement append corresponds to addition
35
SLIDE 36
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
36
SLIDE 37
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A))) (define-type (Digit A) (U Zero (One A)))
37
SLIDE 38
Binary Random Access Lists [Okasaki 1998]
(define-struct: Zero ())
38
SLIDE 39
Binary Random Access Lists [Okasaki 1998]
(define-struct: Zero ()) (define-struct: (A) One ([fst : (Tree A)]))
39
SLIDE 40
Binary Random Access Lists [Okasaki 1998]
(define-type (Tree A) (U (Leaf A) (Node A)))
40
SLIDE 41
Binary Random Access Lists [Okasaki 1998]
(define-type (Tree A) (U (Leaf A) (Node A))) (define-struct: (A) Leaf ([fst : A]))
41
SLIDE 42
Binary Random Access Lists [Okasaki 1998]
(define-type (Tree A) (U (Leaf A) (Node A))) (define-struct: (A) Leaf ([fst : A])) (define-struct: (A) Node ([size : Integer] [left : (Tree A)] [right : (Tree A)]))
42
SLIDE 43
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
43
SLIDE 44
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
44
SLIDE 45
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
45
SLIDE 46
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
46
SLIDE 47
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
47
SLIDE 48
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
48
SLIDE 49
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A)))
49
SLIDE 50
Binary Random Access Lists [Okasaki 1998]
(define-type (RAList A) (Listof (Digit A))) Worst-case running time of O(log n) for the operations cons, car, cdr, lookup and update
50
SLIDE 51
VLists [Bagwell 2002]
(define-struct: (A) Base ([previous : (U Null (Base A))] [elems : (RAList A)])) (define-struct: (A) VList ([offset : Natural] [base : (Base A)] [size : Natural]))
51
SLIDE 52
VLists [Bagwell 2002]
List with one element - 6
52
SLIDE 53
VLists [Bagwell 2002]
cons 5 and 4 to the previous list
53
SLIDE 54
VLists [Bagwell 2002]
cons 3 and 2 to the previous list
54
SLIDE 55
VLists [Bagwell 2002]
cdr of the previous list
55
SLIDE 56
VLists [Bagwell 2002]
Random access takes O(1) average and O(log n) in worst-case.
56
SLIDE 57
Our library
Library has 30 data structures which include Variants of Queues Variants of Deques Variants of Heaps Variants of Lists Red-Black Trees Tries Sets Hash Lists
57
SLIDE 58
Our library
Library has 30 data structures
58
SLIDE 59
Our library
Library has 30 data structures Data structures have several utility functions
59
SLIDE 60
Our library
Library has 30 data structures Data structures have several utility functions Our implementations follows the original work
60
SLIDE 61
Outline
Motivation Typed Racket in a Nutshell Purely Functional Data Structures Benchmarks Typed Racket Evaluation Conclusion
61
SLIDE 62
Benchmarks
(foldl enqueue que list-of-100000-elems)
62
SLIDE 63
Benchmarks
63
SLIDE 64
Benchmarks
64
SLIDE 65
Benchmarks
65
SLIDE 66
Benchmarks
66
SLIDE 67
Outline
Motivation Typed Racket in a Nutshell Purely Functional Data Structures Benchmarks Typed Racket Evaluation Conclusion
67
SLIDE 68
ML to Typed Racket
ML idioms can be easily ported to Typed Racket
68
SLIDE 69
ML to Typed Racket
ML idioms can be easily ported to Typed Racket
type 'a Queue = int * 'a Stream * int * 'a Stream (define-struct: (A) Queue ([lenf : Integer] [front : (Stream A)] [lenr : Integer] [rear : (Stream A)]))
69
SLIDE 70
ML to Typed Racket
ML idioms can be easily ported to Typed Racket
type 'a Queue = 'a list * int * 'a list susp * int * 'a list (define-struct: (A) Queue ([pref : (Listof A)] [lenf : Integer] [front : (Promise (Listof A))] [lenr : Integer] [rear : (Listof A)]))
70
SLIDE 71
Optimizer in Typed Racket
Optimizer based on type information
71
SLIDE 72
Optimizer in Typed Racket
72
SLIDE 73
Polymorphic recursion
(define-type (Seq A) (Pair A (Seq (Pair A A)))) Non-uniform type
73
SLIDE 74
Polymorphic recursion
(define-type (EP A) (U A (Pair (EP A) (EP A)))) (define-type (Seq A) (Pair (EP A) (Seq A))) Uniform type
74
SLIDE 75
Conclusion
Typed Racket is useful for real-world software. Functional data structures in Typed Racket are useful and performant. A comprehensive library of data structures is now available.
75
SLIDE 76
Thank you...
Library is available for download from http://planet.racket-lang.org/
76
