ADHESION STRENGTH AND GLOSSINESS OF COATED SURFACES MADE OF ALDER WOOD AS FUNCTION OF THEIR SURFACE ROUGHNESS Emilia-Adela Salca, Tomasz Krystofiak, Barbara Lis HYGROTHERMAL PERFORMANCE OF BUILDINGS AND THEIR MATERIALS Joint Conference: COST

slide-1
SLIDE 1

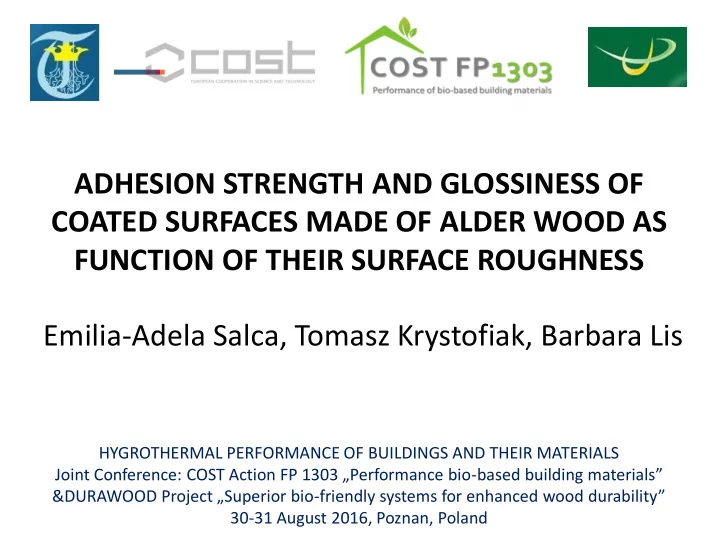

ADHESION STRENGTH AND GLOSSINESS OF COATED SURFACES MADE OF ALDER WOOD AS FUNCTION OF THEIR SURFACE ROUGHNESS Emilia-Adela Salca, Tomasz Krystofiak, Barbara Lis

HYGROTHERMAL PERFORMANCE OF BUILDINGS AND THEIR MATERIALS Joint Conference: COST Action FP 1303 „Performance bio-based building materials” &DURAWOOD Project „Superior bio-friendly systems for enhanced wood durability” 30-31 August 2016, Poznan, Poland

slide-2
SLIDE 2

Introduction

  • Most customers looking to

buy furniture products make their choice based on their visually evaluation at first glance.

  • Finishing is the most popular

method to protect any product surface that will improve its appearance and extent its service life.

2

Source: www.tracentrum.se

slide-3
SLIDE 3

Objective

  • The present study focuses on

some coating properties

  • f

wooden samples made of black alder wood (Alnus glutinosa

  • Gaertn. L.).
  • Adhesion strength and surface

glossiness

  • f

coated surfaces were evaluated as a function of two eco-varnish types (100%UV and water-borne varnish) correlated to the surface preparation by sanding.

3

slide-4
SLIDE 4

Our team at Remmers

4

slide-5
SLIDE 5

Material and method

  • Planed

samples were sanded parallel to the grain with two combinations of grit size sandpapers:

– 60, 150 – 60, 100, 150

  • A wide-belt sander machine

was used.

  • The surface roughness (Rk)

was measured with a MicroProf FRT profilometer.

5

MicroProf FRT profilometer Wide belt sander machine

slide-6
SLIDE 6

Material and method

  • Application by spraying
  • 100% UV varnish (A) and

water-borne (B) varnish

  • Two layers of coating with a

light sanding (220 grit size) between them

  • a UV curing unit (for A)
  • laboratory conditions (for B)

6

UV curing unit Application by spraying

slide-7
SLIDE 7

Pull-off test and gloss

  • The pull-off test was performed with a PosiTest-AT

type adhesion tester and for gloss measurements the PICO GLOSS 503 gloss meter was used.

PICO Gloss 503

7

PosiTest-AT

slide-8
SLIDE 8

Results

8

Variation of adhesion strength (a) and gloss (b) as a function of surface roughness and varnish type

1.10 1.15 1.20 1.25 1.30 1.35 1.40 1.45 p(60,150) p(60,100,150) p(60,150) p(60,100,150) Rk=19,3 Rk=17,8 Rk=19,3 Rk=17,8 A B Adhesion strength, MPa

b a

slide-9
SLIDE 9

Conclusive remarks

  • There is a balanced relationship

between the substrate preparation and coating material, which further influences the coating performance.

  • Results of this experimental work

could be used for the furniture manufacturing sector.

  • The finishing process may be

improved to achieve value-added products.

9

slide-10
SLIDE 10

Acknowledgements

The authors acknowledge the support received from Transilvania University of Brasov in Romania, the Division of Gluing and Finishing of Wood from the Faculty of Wood Technology in Poznan, and Remmers Company in Poland to perform this study.

10

slide-11
SLIDE 11

Acknowledgements

The authors are grateful to the Cost Action FP1303 for the invitation to attend the Joint Conference with DURAWOOD.

11

slide-12
SLIDE 12

Thank you for your attention!

12
