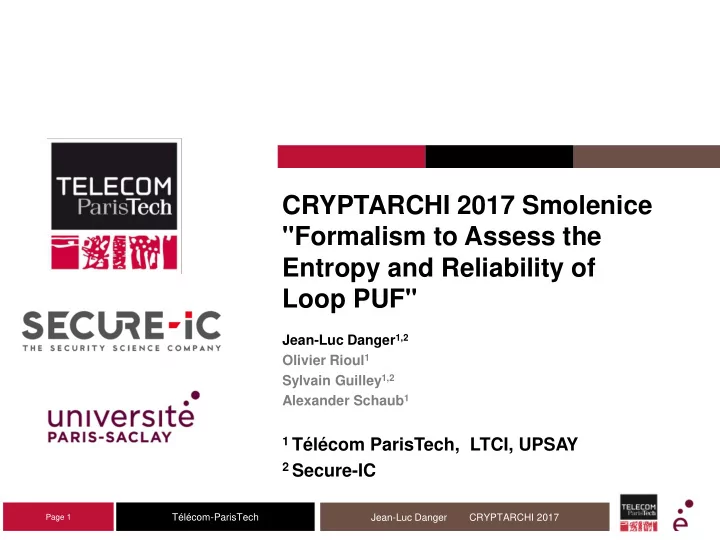

CRYPTARCHI 2017 Smolenice "Formalism to Assess the Entropy and Reliability of Loop PUF" Jean-Luc Danger 1,2 Olivier Rioul 1 Sylvain Guilley 1,2 Alexander Schaub 1 1 Tlcom ParisTech, LTCI, UPSAY 2 Secure-IC Page 1

  1. CRYPTARCHI 2017 Smolenice "Formalism to Assess the Entropy and Reliability of Loop PUF" Jean-Luc Danger 1,2 Olivier Rioul 1 Sylvain Guilley 1,2 Alexander Schaub 1 1 Télécom ParisTech, LTCI, UPSAY 2 Secure-IC Page 1 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  2. Outline  Loop PUF architecture  Entropy assessment  Reliability assessment  Results on real silicon  Conclusions * Depends on algorithm, not implementation Page 2 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  3. Loop PUF architecture Page 3 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  4. Operating Mode The information for each challenge is D Sign = identifier Module = reliability Page 4 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  5. Balance of Delay Elements in ASIC duplication Page 5 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  6. Balance of Delay Elements in FPGA Cluster 2 Cluster N Cluster 1 duplication N duplications Page 6 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  7. Delay measurement Page 7 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  8. Entropy  For a n-delay LPUF  If challenge = Hadamard codeword of n bits => Entropy = n * * Rioul, O., Solé, P ., Guilley, S., & Danger, J. L. (2016, July). On the Entropy of Physically Unclonable Functions. In Information Theory (ISIT), 2016 IEEE International Symposium on (pp. 2928-2932). IEEE. Page 8 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  9. Entropy with more than n challenges Page 9 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  10. LPUF reliability With Page 10 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  11. LPUF reliability The Reliability is not enough ~10 -3 even with high SNR => Needs of secure sketch : Error Correcting codes and Helper data Page 11 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  12. Reliability enhancement by delay knowledge Bit unreliable  |delay| < Th Th= W s The bits in the unreliable area "B" are discarded The helper data indicates the unreliable bits Page 12 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  13. New BER with filtered bits Page 13 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  14. Entropy after bit filtering Number of delay elements to reach n bits of entropy with Hadamard codes Page 14 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  15. Results on real silicon  n=54 cells, 65nm technology Page 15 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  16. i..i.d. check Correlation matrix on the 64 elements of the 49 PUFs No correlation between the 64 delay elements => entropy ~ 64 with Hadamard codes Page 16 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  17. Impact of the measurement window on the SNR SNR ~60 for log 2 L=14 Page 17 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  18. Entropy Page 18 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  19. Reliability: BER results Page 19 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  20. Conclusions  The Entropy of the Loop PUF can be formally obtained if Hadamard codes are used: N=Number of challenges  Entropy = number of delay elements n  The entropy increases non linearly if M > n  The reliability of the Loop PUF is low (BER ~10 -3 )  It can be easily improved by exploiting the delay knowledge  The unreliable bits are discarded  BER can go down 10 -9  But more bits are needed to reach the same entropy Page 20 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017

  21. THANK YOU FOR YOUR ATTENTION Page 21 Télécom-ParisTech Jean-Luc Danger CRYPTARCHI 2017
