Fluid Types Statically Verified Distributed Protocols with Refinements Fangyi Zhou Francisco Ferreira Rumyana Neykova Nobuko Yoshida Quick Primer on Session Types 2 Concurrency Shared Memory Message Passing 3 (1) ->

slide-1
SLIDE 1

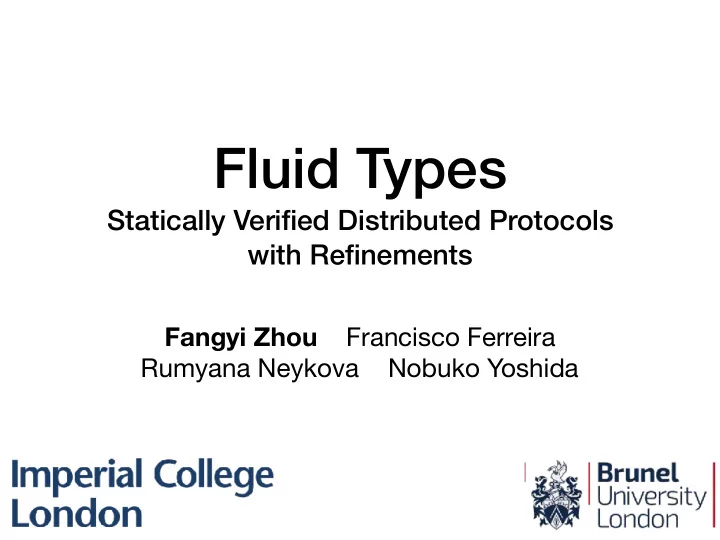

Fluid Types

Statically Verified Distributed Protocols with Refinements

Fangyi Zhou Francisco Ferreira Rumyana Neykova Nobuko Yoshida

slide-2
SLIDE 2

Quick Primer on Session Types

2

slide-3
SLIDE 3

Concurrency

3

Shared Memory Message Passing

slide-4
SLIDE 4

4

A B

(1) -> “Hello” (2) <- 42 Send string Receive int Done Receive string Send int Done Duality

slide-5
SLIDE 5

5

A B C

(1) A -> C “Hello” (2) C -> B 42 (3) A -> B “Hello” (4) B -> A 42 Send string Done Receive string Done Send int Done Receive int Done Receive string Send int Done Send string Receive int Done

slide-6
SLIDE 6

6

A B C

(1) A -> C “Hello” (2) C -> B 42 (3) A -> B “Hello” (4) B -> A 42 Receive A string Send B int Done Receive C string Receive B string Send B int Done Send C string Send B string Receive B int Done

slide-7
SLIDE 7

7

A B C

(1) A -> C “Hello” (2) C -> B 42 (3) A -> B “Hello” (4) B -> A 42

string from A to C; int from C to B; string from A to B; int from B to A;

Global Protocol

slide-8
SLIDE 8

Motivation

8

slide-9
SLIDE 9

Example: a simple protocol

  • Two kids are playing a game on the playground
  • A tells B a number
  • B tries to find a larger number

9

protocol Playground (role A, role B) { initialGuess (int) from A to B; finalGuess (int) from B to A; }

No guarantee whether this will be larger

slide-10
SLIDE 10

Example: a simple protocol

  • Two kids are playing a game on the playground
  • A tells B a number
  • B tries to find a larger number

10

protocol Playground (role A, role B) { initialGuess (x:int) from A to B @ x > 7; finalGuess (y:int) from B to A @ y > x; }

Named Parameters Assertions

slide-11
SLIDE 11

Previously…

  • Session Type Provider [Neykova et al. 2018]
  • Compile Time Type Generation in F#
  • Protocol validated during compilation
  • Refinements checked dynamically during execution

11

[Neykova et al. 2018]: Rumyana Neykova, Raymond Hu, Nobuko Yoshida, and Fahd Abdeljallal. 2018. A session type provider: compile-time API generation of distributed protocols with refinements in F#

slide-12
SLIDE 12

12

Protocol with Refinements Compile Time Type Generation Communication via Generated API

Workflow (Previously)

protocol Playground (role A, role B) { initialGuess (x:int) from A to B @ x > 7; finalGuess (y:int) from B to A @ y > x; } type Protocol = SessionTypeProvider <“Playground.scr”, “A”> let p =
 new Protocol().Init() in
 p.send(B, initialGuess, 42) .receive(B, finalGuess, y) .finish()

slide-13
SLIDE 13

13

Protocol with Refinements Compile Time Refined Type Generation Communication via Generated Refined API

Workflow (Now)

Refinement Type Check

slide-14
SLIDE 14

Overview

  • Add refinements to generated types
  • Check refinements with a type system extension
  • Extract F# code into a refinement calculus
  • Check satisfiability using external solver

14

slide-15
SLIDE 15

What are refinement types?

  • Build upon an existing type system
  • Allow base types to be refined via predicates
  • Specify data dependencies
  • Example: Liquid Haskell [Vazou et al. 2014]

15

[Vazou et al. 2014]: Niki Vazou, Eric L. Seidel, Ranjit Jhala, Dimitrios Vytiniotis, and Simon Peyton-Jones. 2014. Refinement types for Haskell.

slide-16
SLIDE 16

16

  • STLC with refinement types
  • Terms can be encoded in SMT-LIB terms
  • Establishes a subtyping relation via SMT solver

λH

Refinement Calculus:

slide-17
SLIDE 17

Types in

  • A base type
  • A function type (dependent function)

17

λH

integers, booleans, … c.f. Dependent Types Πx:τ1τ2(x)

{ν : b | M}

Base type , value refined by term

ν

M

b

(x : τ1) → τ2

Variable can occur in the type

x τ2

slide-18
SLIDE 18

Example

  • The integer literal 1
  • A possible type:
  • Another possible type:
  • Or more…
  • Solution: Bidirectional Typing

18

{ν : int | ν = 1} {ν : int | ν ≥ 1} {ν : int | true}

slide-19
SLIDE 19

Bidirectional Typing

  • Provides a more algorithmic approach
  • Mutually inductive judgments
  • Type Synthesis
  • Type Check

19

Γ; Δ ⊢ M ⇒ τ

Given Γ, Δ, M, find the type τ

Γ; Δ ⊢ M ⇐ τ

Given Γ, Δ, M, τ, determine if type is correct *Not all terms are synthesisable *

slide-20
SLIDE 20

“Change of Direction” Rule

20

Subtyping Judgment Well-formedness Judgment

slide-21
SLIDE 21

Subtyping with SMT

  • Encode refinements term into SMT-LIB
  • Use SMT solver to decide validity

21

slide-22
SLIDE 22

Encoding in SMT-LIB

22

x (A term Variable) x (An SMT Variable)

slide-23
SLIDE 23

Encoding in SMT-LIB

23

( + ) 1 2

(+ 1 2)

slide-24
SLIDE 24

Encoding in SMT-LIB

24

x : {ν : int | ν + 2 = 5}

x + 2 = 5

slide-25
SLIDE 25

Encoding in SMT-LIB

25

Valid([ [Γ] ] ∧ [ [Δ] ] ∧ [ [M1] ] ⟹ [ [M2] ]) Unsat([ [Γ] ] ∧ [ [Δ] ] ∧ [ [M1] ] ∧ ¬[ [M2] ])

slide-26
SLIDE 26

Subtyping with SMT

  • Consider integer literal 1
  • Synthesised type:
  • Check subtype:
  • Encode into logic:
  • Use SMT solver:

26

{ν : int | ν = 1}

{ν : int | ν = 1} <: {ν : int | ν ≥ 1}?

SAT((v = 1) ∧ ¬(v ≥ 1))?

UNSAT

slide-27
SLIDE 27

Subtyping with SMT

  • Consider term x + 1 with context
  • Synthesised type:
  • Check subtype:
  • Encode into logic:
  • Use SMT solver:

27

{ν : int | ν = x + 1}

{ν : int | ν = x + 1} <: {ν : int | ν ≥ 2}?

SAT((x ≥ 1) ∧ (v = x + 1) ∧ ¬(v ≥ 2))?

UNSAT

x : {ν : int | ν ≥ 1}

slide-28
SLIDE 28

Generating Types

  • Scribble validates protocol and generates CFSM
  • Type Provider converts CFSM into F# code
  • New: Adding refinements in types

28

slide-29
SLIDE 29

From Protocol to CFSM

(Scribble)

29

protocol Playground (role A, role B) { initialGuess (x:int) from A to B @ x > 7; finalGuess (y:int) from B to A @ y > x; }

Projection to role A

protocol Playground (role A, role B) { initialGuess (x:int) from A to B @ x > 7; finalGuess (y:int) from B to A @ y > x; }

slide-30
SLIDE 30

30

protocol Playground (role A, role B) { initialGuess (x:int) from A to B @ x > 7; finalGuess (y:int) from B to A @ y > x; }

Projection to role A

From Protocol to CFSM

(Scribble)

slide-31
SLIDE 31

From CFSM to

31

λH

Ø

x : {ν : int | ν > 7} x : {ν : int | ν > 7} y : {ν : int | ν > x}

type State0 = {} type State1 = { x: {v:int|v>7}; } type State2 = { x: {v:int|v>7}; y: {v:int|v>x}; }

(Type Provider)

slide-32
SLIDE 32

From CFSM to

32

λH

type State0 = {} type State1 = { x: {v:int|v>7}; } type State2 = { x: {v:int|v>7}; y: {v:int|v>x}; } initialGuess : (st: State0) -> (x: {v:int|v>7}) -> State1

(Type Provider)

slide-33
SLIDE 33

From CFSM to

33

λH

type State0 = {} type State1 = { x: {v:int|v>7}; } type State2 = { x: {v:int|v>7}; y: {v:int|v>x}; } finalGuess : (st: State1) -> (State2 * {v:int|v>st.x})

(Type Provider)

slide-34
SLIDE 34

From CFSM to

34

λH

type State0 = {} type State1 = { x: {v:int|v>7}; } type State2 = { x: {v:int|v>7}; y: {v:int|v>x}; } finalGuess : (st: State1) -> (State2 * {v:int|v>st.x}) initialGuess : (st: State0) -> (x: {v:int|v>7}) -> State1

(Type Provider)

slide-35
SLIDE 35

One Last Step…

  • Typecheck the program with refined types
  • Extract F# expressions to terms in
  • Use F# Compiler Services to obtain AST
  • Check whether API usage is correct w.r.t. refinements

35

λH

slide-36
SLIDE 36

Future Work

  • Support recursion in protocols
  • Complete meta-theory for refinements in MPST
  • End to end meta-theory
  • Support more features in refinement calculus

36

slide-37
SLIDE 37

Thank you!
