SLIDE 1

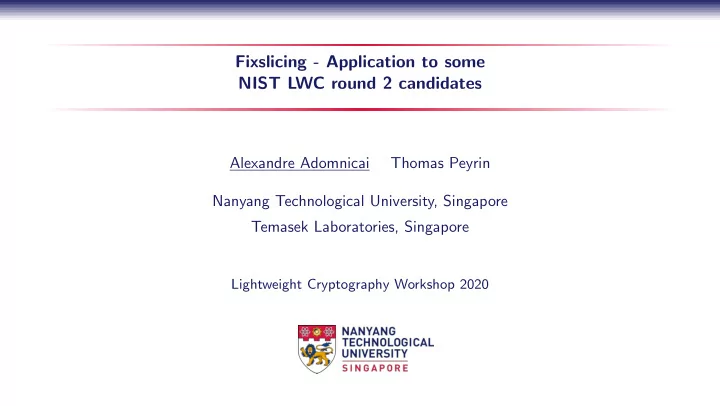

Fixslicing - Application to some NIST LWC round 2 candidates

Alexandre Adomnicai Thomas Peyrin Nanyang Technological University, Singapore Temasek Laboratories, Singapore

Lightweight Cryptography Workshop 2020

SLIDE 2

What this talk is about

B Constant-time software implementations on 32-bit platforms B Application of the fixslicing implementation strategy to some NIST LWC round 2 candidates built upon AES-128, GIFT-128 and Skinny-128 primitives B Benchmarking results on ARM Cortex-M3 for payloads up to 256 bytes

Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020 2 / 14

SLIDE 3

B Fixsliced GIFT-128 runs about 7x faster on ARM Cortex-M3 compared to a naive bitsliced implementation B Consists in fixing a slice to never move and adjusting the others for the S-box layer

The fixslicing implementation strategy

B Initially introduced as a new representation for the GIFT block ciphers [ANP20]

Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020 3 / 14

SLIDE 4

B Consists in fixing a slice to never move and adjusting the others for the S-box layer

The fixslicing implementation strategy

B Initially introduced as a new representation for the GIFT block ciphers [ANP20] B Fixsliced GIFT-128 runs about 7x faster on ARM Cortex-M3 compared to a naive bitsliced implementation

Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020 3 / 14

SLIDE 5

The fixslicing implementation strategy

B Initially introduced as a new representation for the GIFT block ciphers [ANP20] B Fixsliced GIFT-128 runs about 7x faster on ARM Cortex-M3 compared to a naive bitsliced implementation B Consists in fixing a slice to never move and adjusting the others for the S-box layer

Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020 3 / 14

SLIDE 6

Classical representation of GIFT-128

127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S ki ki+1 ki+2 ki+3 ki+4

SLIDE 7

Fixsliced representation of GIFT-128

127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S k′

i

k′

i+1

k′

i+2

k′

i+3

ki+4

SLIDE 8

NOPE! B Many ciphers spend cycles to move bits within the slices to achieve better diffusion ⇒ alternative representations might be valuable even for more complex linear layers

Genericity of the fixslicing technique

Figure: Extract from [ANP20] B So, only of interest for Substitution-bitPermutation Networks (SbPN)?

Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020 6 / 14

SLIDE 9

Genericity of the fixslicing technique

Figure: Extract from [ANP20] B So, only of interest for Substitution-bitPermutation Networks (SbPN)? NOPE! B Many ciphers spend cycles to move bits within the slices to achieve better diffusion ⇒ alternative representations might be valuable even for more complex linear layers

6 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 10

Application to AES-like ciphers

S SubBytes <<< 1 <<< 2 <<< 3 ShiftRows

×     2 3 1 1 1 2 3 1 1 1 2 3 3 1 1 2    

MixColumns AddRoundKey

Figure: AES round function

7 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 11

Application to AES-like ciphers

SC AC ART >>> 1 >>> 2 >>> 3 ShiftRows MixColumns

Figure: Skinny round function

7 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 12

Application to AES-like ciphers

SC AC ART >>> 1 >>> 2 >>> 3 ShiftRows MixColumns

Figure: Skinny round function B Performance improvements for AES and Skinny-128 on ARM Cortex-M and E31 RISC-V processors [AP20]

7 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 13

Implementation results on ARM Cortex-M3

AES-128 GIFTb-128 Skinny-128-384 Skinny-128-384+ 50 100 150 200 250 300 83 73 160 116 cycles per byte (cpb) 2 blocks

Performance for constant-time implementations on ARM Cortex-M3

8 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 14

Implementation results on ARM Cortex-M3

AES-128 GIFTb-128 Skinny-128-384 Skinny-128-384+ 50 100 150 200 250 300 167 73 264 191 83 73 160 116 cycles per byte (cpb) 1 block 2 blocks

Performance for constant-time implementations on ARM Cortex-M3

8 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 15

Bitslicing a single block for Skinny-128

b0 b1 b2 b3 b4 b5 b6 b7 b2 b3 b7 b4 b6 b1 b0 b5

9 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 16

Bitslicing a single block for Skinny-128

b0 b1 b2 b3 b4 b5 b6 b7 b2 b3 b7 b4 b6 b1 b0 b5 1st layer

b0 b1 b2 b3 b4 b5 b6 b7

2nd layer

b0 b1 b5 b6 b4 b2 b3 b7

3rd layer

b7 b4 b5 b6 b1 b2 b3 b0

4th layer

b7 b4 b2 b3 b1 b5 b6 b0

last permutation

b7 b4 b2 b3 b0 b5 b6 b1

utput

b2 b3 b7 b4 b6 b1 b0 b5

9 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 17

Speed optimized Skinny tweakey schedule

Extracted round tweakey PT LFSR LFSR

(a) Single round

10 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 18

Speed optimized Skinny tweakey schedule

Extracted round tweakey PT LFSR LFSR

(a) Single round

Extracted round tweakey LFSR LFSR LFSR LFSR Extracted round tweakey P 2

T

(b) Double round Figure: Skinny tweakey schedule round function

10 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 19

Speed optimized Skinny tweakey schedule

TK3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3

.... .... .... ....

LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 LFSR3 TK2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2

.... .... .... ....

LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 LFSR2 TK1

.... .... .... ....

RTK0 RTK1 P 2

T

RTK2 P 4

T

RTK3 RTK4

....

P 14

T

RTK13 RTK14 RTK15

11 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 20

Benchmark results on ARM Cortex-M3

32 64 96 128 160 192 224 256 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1e5 GIFT-COFB 32 64 96 128 160 192 224 256 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1e5 SAEAES-128-64-128 32 64 96 128 160 192 224 256 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1e5 Romulus-M 32 64 96 128 160 192 224 256 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1e5 Romulus-N 32 64 96 128 160 192 224 256 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1e5 Skinny-AEAD-M1+

12 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 21

What about other candidates?

B Fixslicing may be valuable for other candidates!

PHOTON-Beetle? (AES-like primitive)
Elephant? (Spongent is an SbPN)
...

13 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 22

What about other candidates?

B Fixslicing may be valuable for other candidates!

PHOTON-Beetle? (AES-like primitive)
Elephant? (Spongent is an SbPN)
...

B Some primitives are fixsliced by design (e.g. Ascon-p)

13 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 23

Thanks for your attention! Questions?

Feel free to contact us at firstname.lastname@ntu.edu.sg

14 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020

SLIDE 24

References

Alexandre Adomnicai, Zakaria Najm, and Thomas Peyrin, Fixslicing: A New GIFT Representation: Fast Constant-Time Implementations of GIFT and GIFT-COFB on ARM Cortex-M, IACR Transactions on Cryptographic Hardware and Embedded Systems 2020 (2020), no. 3, 402–427. Alexandre Adomnicai and Thomas Peyrin, Fixslicing AES-like Ciphers: New bitsliced AES speed records on ARM-Cortex M and RISC-V, Cryptology ePrint Archive, Report 2020/1123, 2020, https://eprint.iacr.org/2020/1123.

14 / 14 Fixslicing - Application to some NIST LWC round 2 candidates - LWC Workshop 2020
