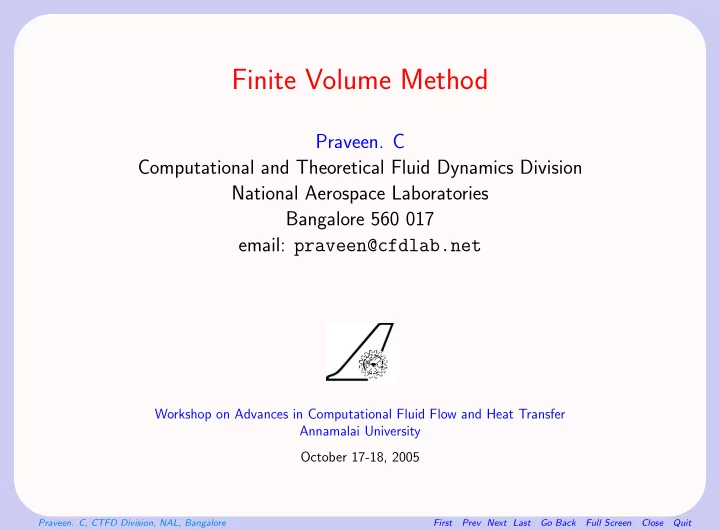

Finite Volume Method

Praveen. C

Computational and Theoretical Fluid Dynamics Division National Aerospace Laboratories Bangalore 560 017 email: praveen@cfdlab.net

Workshop on Advances in Computational Fluid Flow and Heat Transfer Annamalai University October 17-18, 2005

SLIDE 2

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Topics to be covered

1. Conservation Laws
2. Finite volume method
3. Types of finite volumes
4. Flux functions
5. Spatial discretization schemes
6. Higher order schemes
7. Boundary conditions
8. Accuracy and stability
9. Computational issues
10. References

Hyperbolic equations, Compressible flow, unstructured grid schemes

SLIDE 3

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Conservation Laws and FVM

Basic laws of physics are conservation laws - mass, momentum, energy
Differential form

∂U ∂t + ∂f ∂x + ∂g ∂y + ∂h ∂z = 0 U - conserved variables f, g, h - flux vector

Compressible flows - shocks and other discontinuities
Classical solution may not exist
Integral form (using divergence theorem)

∂ ∂t

Ω

Udxdydz +

∂Ω

(fnx + gny + hnz)dS = 0 Rate of change of U in Ω = - (Net flux across the boundary of Ω) ⇓ Starting point for finite volume method

SLIDE 4

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Discontinuities are a consequence of conservation laws
Rankine-Hugoniot jump conditions [9, 10]

(fnx + gny + hnz)R − (fnx + gny + hnz)L = s(UR − UL) n U U

L R

Shock

Solution satisfying integral form - weak solution
Definition (Weak solution)
1. Satisfies the differential form in smooth regions
2. Satisfies jump condition across discontinuities
Hyperbolic conservation laws - non-uniqueness
Limit of a dissipative model: Navier-Stokes → Euler

SLIDE 5

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Entropy condition - second law of thermodynamics
Entropy satisfying weak solution - unique (Kruzkov)
Conservative scheme (FVM) - correct shock location (Warnecke)
Useful for solving equations with discontinuous coefficients
FVM can be applied on arbitrary grids - structured and unstructured

SLIDE 6

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Entropy condition - second law of thermodynamics
Entropy satisfying weak solution - unique (Kruzkov)
Conservative scheme (FVM) - correct shock location (Warnecke)
Useful for solving equations with discontinuous coefficients
FVM can be applied on arbitrary grids - structured and unstructured

SLIDE 7

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Entropy condition - second law of thermodynamics
Entropy satisfying weak solution - unique (Kruzkov)
Conservative scheme (FVM) - correct shock location (Warnecke)
Useful for solving equations with discontinuous coefficients
FVM can be applied on arbitrary grids - structured and unstructured

SLIDE 8

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

FVM in 1-D

Divide computational domain [a, b] into N cells

a = x1/2 < x3/2 < . . . < xN+1/2 = b Ci = [xi−1/2, xi+1/2]

Ci h i−3/2 i−1/2 i+1/2 i+3/2 i

Conservation law for cell Ci

∂ ∂t xi+1/2

xi−1/2

Udx + f(xi+1/2, t) − f(xi−1/2, t) = 0

Cell average value

Ui(t) = 1 hi xi+1/2

xi−1/2

U(x, t)dx

SLIDE 9

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Conservation law for cell Ci

hi dUi dt + f(xi+1/2, t) − f(xi−1/2, t) = 0

U U i+1/2

i i+1

Riemann problem at each interface
Numerical flux function (Godunov approach)

Fi+1/2(t) = F(Ui(t), Ui+1(t))

Semi-discrete update equation (ODE system)

dUi dt = − 1 hi [Fi+1/2(t) − Fi−1/2(t)]

SLIDE 10

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Method of lines approach

– Discretize in space – Integrate the ODE system in time

Explicit Euler scheme [ U n

i ≈ U(xi, tn) ]

Ui(tn+1) − Ui(tn) ∆t = − 1 hi [Fi+1/2(tn) − Fi−1/2(tn)] ⇓ U n+1

i

= U n

i − ∆t

hi [F n

i+1/2 − F n i−1/2]

Conservation: Telescopic collapse of fluxes
i

hi dUi dt = −

i

[Fi+1/2(t) − Fi−1/2(t)] = −[f(b, t) − f(a, t)]

SLIDE 11

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Numerical Flux Function

Simple averaging

Fi+1/2 = f((Ui + Ui+1)/2)

r

Fi+1/2 = (fi + fi+1)/2

Equivalent to central differencing

dUi dt + 1 hi (fi+1 − fi−1) = 0 (unstable)

Two approaches
1. Central differencing with artificial dissipation [13]

Fi+1/2 = 1 2(fi + fi+1) − di+1/2

2. Upwind flux formula [9, 10, 13, 20, 22]

FVS: Fi+1/2 = f +(Ui) + f −(Ui+1) FDS: Fi+1/2 = 1 2(fi + fi+1) − 1 2[(∆f)−

i+1/2 − (∆f)+ i+1/2]

SLIDE 12

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Example: convection-diffusion equation

∂U ∂t + ∂f ∂x = 0, f = aU − ν∂U ∂x Fi+1/2 = aUi+1/2 − ν ∂U ∂x

i+1/2
Upwind definition of interfacial state

Ui+1/2 =

Ui

if a ≥ 0 Ui+1 if a < 0

Central-difference for viscous term

∂U ∂x

i+1/2

= Ui+1 − Ui xi+1 − xi

Upwind numerical flux

Fi+1/2 = 1 2(aUi + aUi+1) − |a| 2 (Ui+1 − Ui) − νUi+1 − Ui xi+1 − xi

SLIDE 13

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Significance of conservative scheme

Inviscid Burgers equation

∂U ∂t + ∂ ∂x U 2 2

= 0,

f(U) = U 2 2

Rankine-Hugoniot condition

fR − fL = s(UR − UL) = ⇒ s = 1 2(UL + UR)

Non-conservative form

∂U ∂t + U ∂U ∂x = 0

Upwind scheme (assume U ≥ 0)

U n+1

i

− U n

i

∆t + U n

i

U n

i − U n i−1

h = 0

r

U n+1

i

= U n

i − ∆t

h U n

i (U n i − U n i−1)

SLIDE 14

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Initial condition

U(x, 0) =

1

if x < 0 if x > 0

Numerical solution

U n

i = U o i =

⇒ stationary shock

Exact solution (shock speed = 1/2)

U(x, t) =

1

if x < t/2 if x > t/2

Conservation form from physical considerations

U ∂U ∂t + U ∂ ∂x U 2 2

= 0
r

∂ ∂t U 2 2

+ ∂

∂x U 3 3

= 0
Jump conditions not identical: s = 2

3

U2

L+ULUR+U2 R

UL+UR

SLIDE 15

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Higher order scheme in 1-D

Constant-in-cell representation
✂✁

✁ ✄ ✄✂☎ ☎ ✆ ✆✂✝ ✝

i−3/2 i−1/2 i+1/2 i+3/2 Ci−1 Ci+1 Ci

First order accurate

|Ui − U(xi)| = O(h) h = max

i

hi

Reconstruction - evolution - projection

SLIDE 16

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Higher order scheme in 1-D

Reconstruct the variation within a cell
✂✁

✁ ✄ ✄✂☎ ☎ ✆ ✆✂✝ ✝

i−3/2 i−1/2 i+1/2 i+3/2 Ci−1 Ci+1 Ci Left state Right state

Linear reconstruction

˜ U(x) = Ui + si(x − xi), x ∈ [xi−1/2, xi+1/2]

Biased interpolant

U L

i+1/2 = Ui + si(xi+1/2 − xi),

U R

i+1/2 = Ui+1 + si+1(xi+1/2 − xi+1),

SLIDE 17

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Flux for higher order scheme

Fi+1/2 = F(Ui, Ui+1)

Reconstruction variables
1. Conserved variables - conservative
2. Characteristic variables - better upwinding but costly
3. Primitive variables (ρ, u, p) - computationally cheap
Unsteady flows - reconstruction must preserve conservation

1 hi

Ci

˜ U(x)dx = Ui

Gradients for reconstruction: backward, forward, central difference

si,b = Ui − Ui−1 xi − xi−1 , si,f = Ui+1 − Ui xi+1 − xi , si,c = Ui+1 − Ui−1 xi+1 − xi−1

SLIDE 18

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Flux for higher order scheme

Fi+1/2 = F(U L

i+1/2, UR i+1/2)

Reconstruction variables
1. Conserved variables - conservative
2. Characteristic variables - better upwinding but costly
3. Primitive variables (ρ, u, p) - computationally cheap
Unsteady flows - reconstruction must preserve conservation

1 hi

Ci

˜ U(x)dx = Ui

Gradients for reconstruction: backward, forward, central difference

si,b = Ui − Ui−1 xi − xi−1 , si,f = Ui+1 − Ui xi+1 − xi , si,c = Ui+1 − Ui−1 xi+1 − xi−1

SLIDE 19

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Solution with discontinuity

1 1/2 i−1 i i+1

SLIDE 20

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Central-difference: Non-monotone reconstruction

1 1/2 i−1 i i+1

Limited gradients [9, 12]

si = Limiter(si,b, si,f, si,c)

SLIDE 21

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

FVM in 2-D

Divide computational domain into disjoint polygonal cells, Ω = ∪iCi
Integral form for cell Ci

∂ ∂t

Ci

Udxdy +

∂Ci

(fnx + gny)dS = 0

Cell average value

Ui(t) = 1 |Ci|

Ci

U(x, y, t)dxdy, |Ci| = area of Ci

Cell connectivity: N(i) = {j : Cj and Ci share a common face}

Ci Ci

SLIDE 22

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

∂Ci

(fnx + gny)dS =

j∈N(i)
Ci∩Cj

(fnx + gny)dS

Approximate flux integral by quadrature

C n C

i j ij

Ci∩Cj

(fnx + gny)dS ≈ Fij∆Sij

Semi-discrete update equation

|Ci|dUi dt = −

j∈N(i)

Fij∆Sij

SLIDE 23

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Numerical flux function

Fij = F(Ui, Uj, ˆ nij)

Properties of flux function
1. Consistency

F(U, U, ˆ n) = f(U)nx + g(U)ny

2. Conservation

F(V, U, −ˆ n) = −F(U, V, ˆ n)

3. Continuity

F(UL, UR, ˆ n) − F(U, U, ˆ n) ≤ C max (UL − U, UR − U)

Flux functions [10, 13, 20, 22]

– FVS: Steger-Warming, Van Leer, KFVS, AUSM – FDS: Godunov, Roe, Engquist-Osher

Integrate in time using a Runge-Kutta scheme [5, 12]

SLIDE 24

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Grids and Finite Volumes

Elements in 2-D
Elements in 3-D

SLIDE 25

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Boundary layers - prism and hexahedra
Cell-centered and vertex-centered scheme [5, 18, 21]
Median (dual) cell

– join centroid to mid-point of sides – well-defined for any triangulation

Centroid Mid−point

SLIDE 26

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Voronoi cell

– join circum-center to mid-point of sides – smooth area variation – not defined for obtuse triangles

Containment circle tessalation

SLIDE 27

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Median and containment-circle tessalation

SLIDE 28

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Stretched triangles - median dual and containment-circle
Containment-circle finite volume

SLIDE 29

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Turbulent flow over RAE2822 airfoil: vertex-centered scheme

Mach = 0.729, α = 2.31 deg, Re = 6.5 million

SLIDE 30

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Higher order scheme in 2-D

Bi-linear reconstruction in cell Ci

˜ U(x, y) = Ui + ai(x − xi) + bi(y − yi), (x, y) ∈ Ci

✂✁

✁ ✁ ✁ ✁ ✁ ✄ ✄ ✄ ✄ ✄ ✄✂☎ ☎ ☎ ☎ ☎ ☎

U UL

R

C C

i j

Define left/right states

U L = Ui + ai(xij − xi) + bi(yij − yi) U R = Uj + aj(xij − xj) + bj(yij − yj)

Flux for higher order scheme

Fij = F(U L, UR, ˆ nij)

SLIDE 31

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Gradient estimation using
1. Green-Gauss theorem
2. Least squares fitting
Green-Gauss theorem
Ci

∇Udxdy =

∂Ci

U ˆ ndS

Approximate surface integral by quadrature

∇Ui ≈ 1 |Ci|

face
face

U ˆ ndS

Face value

Uface = 1 2(UL + UR)

Non-uniform cells

Uface = αUL + (1 − α)UR, α ∈ (0, 1)

Accuracy can degrade for non-uniform grids [4, 6, 8, 14]

SLIDE 32

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Least-squares reconstruction [3, 5]

1 2 3 4

Uo + ao(xj − xo) + bo(yj − yo) = Uj, j = 1, 2, 3, 4

Over-determined system of equations - solve by least-squares fit

min

j

[Uj − Uo − ao(xj − xo) − bo(yj − yo)]2, wrt ao, bo ao =

j

αj(Uj − Uo), bo =

j

βj(Uj − Uo)

SLIDE 33

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Limited reconstruction

– Cell-centered: Min-max [3, 5], Venkatakrishnan [5], ENO-type [1, 14] – Vertex-centered: edge-based limiter [17]

Min-max limiter

Umin ≤ Uo + ao(xj − xo) + bo(yj − yo) ≤ Umax, j = 1, 2, 3, 4 (ao, bo) ← − (φao, φbo), φ ∈ [0, 1] – Very dissipative - smeared shocks – Performance degrades on coarse grids – Stalled convergence - limit cycle – Useful for flows with large discontinuities

Venkatakrishnan limiter

– Smooth modification of min-max limiter – Better control - depends on cell size – Better convergence properties

SLIDE 34

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Vertex-centered cell: Edge-based limiter

L R i i+1 i−1 i+2

U L = Ui + 1 2Limiter

(Ui+1 − Ui), |PiPi+1|

|PiPi−1|(Ui − Ui−1)

Using vertex-gradients

U L = Ui + 1 2Limiter

(Ui+1 − Ui), (

Pi+1 − Pi) · ∇Ui

Van-albada limiter

Limiter(a, b) = (a2 + ǫ)b + (b2 + ǫ)a a2 + b2 + 2ǫ , ǫ ≪ 1

SLIDE 35

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Higher order flux quadrature

UL

1

UR

1

UL

2

UR

2

✂✁

✁ ✁ ✁ ✁ ✁ ✄ ✄ ✄ ✄ ✄ ✄✂☎ ☎ ☎ ☎ ☎ ☎

C C

i j

Quadratic reconstruction in cell Ci

˜ U(x, y) = ˜ Ui + ai(x − xi) + bi(y − yi) + ci(x − xi)2 + di(x − xi)(y − yi) + ei(y − yi)2

2-point Gauss quadrature for flux

Fij = ω1F(U L

1 , UR 1 , ˆ

nij) + ω2F(U L

2 , UR 2 , ˆ

nij)

SLIDE 36

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Discretization of viscous flux

Viscous terms

∇ · µ∇u

Finite volume discretization
Ci

(∇ · µ∇u)dV =

∂Ci

(µ∇u · ˆ n)dS

Simple averaging

∇uij = 1 2(∇ui + ∇uj) – Odd-even decoupling on quadrilateral/hexahedral cells – Large stencil size

1-D case: ut = uxx

un+1

i

= un

i + ∆t

2h(un

i−2 − 2un i + un i+2)

Correction for decoupling problem [5]

SLIDE 37

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Green-Gauss theorem for auxiliary volume

Face−centered volume i j

Least-squares gradients

– Quadratic reconstruction: gradients and hessian [3] – Face-centered least-squares

Vertex-centered scheme

– Galerkin approximation on triangles/tetrahedra – Nearest neighbour stencil

SLIDE 38

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Turbulence models

Reynolds-average Navier-Stokes equations - need turbulence models
Differential equation based models: k − ǫ, k − ω, Spalart-Allmaras
Turbulence quantities must remain positive
Discretize using first order upwind finite volume method

Example: Spalart-Allmaras model

Ci

∇ · (˜ νu)dV ≈

j∈N(i)

[(uij · ˆ nij)+˜ νi + (uij · ˆ nij)−˜ νj]∆Sij (·)± = (·) ± |(·)| 2 , uij = 1 2(ui + uj)

Coupled or de-coupled approach
Stiffness problem - positivity preserving implicit methods

SLIDE 39

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Boundary conditions

Cell-centered approach
1. Ghost cell
2. Flux boundary condition

w g Boundary Ghost cell

Inviscid flow (slip flow - zero normal velocity)

ρg = ρw, pg = pw, ug = uw, vg = −vw

Viscous flow (noslip flow - zero velocity)

ρg = ρw, pg = pw, ug = −uw, vg = −vw

SLIDE 40

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Boundary flux depends on pressure only

F(Uw, Ug, ˆ n) = function of p only

Flux boundary condition

( F · ˆ n)wall = p[0, nx, ny, 0]⊤

1. Extrapolate pressure from interior cells
2. Solve normal momentum equation [2]
Vertex-centered approach - flux boundary condition
Boundary cell in vertex-centered scheme

SLIDE 41

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Accuracy and Stability

FVM with linear reconstruction - second order accurate on uniform and

smooth grids

On non-uniform grids =

⇒ formally first order accurate

Local truncation error not a good indicator of global error [22]
r’th order reconstruction and ng Gaussian points for flux quadrature - accu-

racy is min(r, 2ng) [19]

Semi-discrete scheme

dUi dt =

j∈N(i)

aij(Uj − Ui), aij ≥ 0

Local Extremum Diminishing (LED) property - maxima do not increase and

minima do not decrease (Jameson)

SLIDE 42

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

If Ui is a local maximum =

⇒ Uj − Ui ≤ 0 dUi dt =

j∈N(i)

aij(Uj − Ui) ≤ 0 = ⇒ Ui does not increase

Fully discrete scheme

U n+1

i

= (1 − ∆t

j

aij)U n

i +

j

aijU n

j ,

∆t ≤ 1

j aij
Convex linear combination

min

j∈N(i) U n j ≤ U n+1 i

≤ max

j∈N(i) U n j

Prevents oscillations (Gibbs phenomenon) near discontinuities
Stable in maximum norm

min

j

U n

j ≤ U n+1 i

≤ max

j

U n

j

Elliptic equations - discrete maximum principle

min

j∈∂Ω Uj ≤ Ui ≤ max j∈∂Ω Uj

SLIDE 43

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Data structures and Programming

Data structure for FVM

– Coordinates of vertices – Indices of vertices forming each cell

Cell-based updating
for cell = 1 to Ncell

FluxDiv = 0 for face = 1 to Nface(cell) cellNeighbour = CellNeighbour(cell, face) flux = NumFlux(cell, cellNeighbour) FluxDiv += flux end Unew(cell) = Uold(cell) - dt*FluxDiv end

SLIDE 44

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

Face-based updating
FluxDiv(:) = 0

for face = 1 to Nface LeftCell = FaceCell(face,1) RightCell = FaceCell(face,2) flux = NumFlux(LeftCell, RightCell) FluxDiv(LeftCell) += flux FluxDiv(RightCell) -= flux end Unew(:) = Uold(:) - dt*FluxDiv(:)

Flux computations reduced by half - speed-up of two
Other geometric quantities - cell centroids, face areas, face normals, face

centroids

SLIDE 45

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

References [1] Abgrall R., “On essentially non-oscillatory schemes on unstructured meshes: analysis and implementation”, J. Comp. Phys., Vol. 114, pp. 45-58, 1994. [2] Balakrishnan N. and Fernandez, G., “Wall Boundary Conditions for Inviscid Compressible Flows on Unstructured Meshes”, Int. Jl. for Num. Methods in Fluids, 28:1481-1501, 1998. [3] Barth T. J., “Aspects of unstructured grids and solvers for the Euler and NS equations”, Von Karman Institute Lecture Series, AGARD Publ. R-787, 1992. [4] Barth T. J., “Recent developments in high order k-exact reconstruction on unstructured meshes”, AIAA Paper 93-0668, 1993. [5] Blazek J., Computational Fluid Dynamics: Principles and Applications, El- sevier, 2004.

SLIDE 46

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

[6] Delanaye M., Geuzaine Ph. and Essers J. A., “Development and application

f quadratic reconstruction schemes for compressible flows on unstructured

adaptive grids”, AIAA-97-2120, 1997. [7] Feistauer M., Felcman J. and Straskraba I., Mathematical and Computa- tional Methods for Compressible Flow, Clarendon Press, Oxford, 2003. [8] Frink N. T., “Upwind scheme for solving the Euler equations on unstructured tetrahedral meshes”, AIAA J. 30(1), 70, 1992. [9] Godlewski E. and Raviart P.-A., Hyperbolic Systems of Conservation Laws, Paris, Ellipses, 1991. [10] Godlewski E. and Raviart P.-A., Numerical Approximation of Hyperbolic Systems of Conservation Laws, Springer, 1996. [11] Carl Ollivier-Gooch and Michael Van Altena, “A high-order-accurate unstruc- tured mesh finite-volume scheme for the advection-diffusion equation”, JCP, 181, 729-752, 2002. [12] Hirsch Ch., Numerical Computation of Internal and External Flows, Vol. 1, Wiley, 1988.

SLIDE 47

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

[13] Hirsch Ch., Numerical Computation of Internal and External Flows, Vol. 2, Wiley, 1989. [14] Jawahar and Kamath H., “A High-Resolution Procedure for Euler and Navier- Stokes Computations on Unstructured Grids“, Journal of Computational Physics, Vol. 164, No. 1, pp. 165-203, 2000 [15] Kallinderis Y. and Ahn H. T., “Incompressible Navier-Stokes method with general hybrid meshes”, J. Comp. Phy., Vol. 210, pp. 75-108, 2005. [16] LeVeque R. J., Finite Volume Methods for Hyperbolic Equations, Cambridge University Press, 2002. [17] Lohner R., Applied CFD Techniques: An Introduction based on FEM, Wiley. [18] Mavriplis D. J., “Unstructured grid techniques”, Ann. Rev. Fluid Mech., 29:473-514, 1997. [19] Sonar Th., “Finite volume approximations on unstructured grids”, VKI Lec- ture Notes.

SLIDE 48

Praveen. C, CTFD Division, NAL, Bangalore

First Prev Next Last Go Back Full Screen Close Quit

[20] Toro E., Riemann Solvers and Numerical Methods for Fluid Dynamics, Springer. [21] Venkatakrishnan V, “Perspective on unstructured grid flow solvers”, AIAA Journal, vol. 34, no. 3, 1996. [22] Wesseling P., Principles of Computational Fluid Dynamics, Springer, 2001.
