Solar Bankability Webinar November 22, 2016 Financial Modelling of Technical Risks in PV Projects Matthias v. Armansperg, ACCELIOS Solar Funded by the Horizon 2020 Framework Programme of the European Union Risk Modelling Software Modelling

slide-1

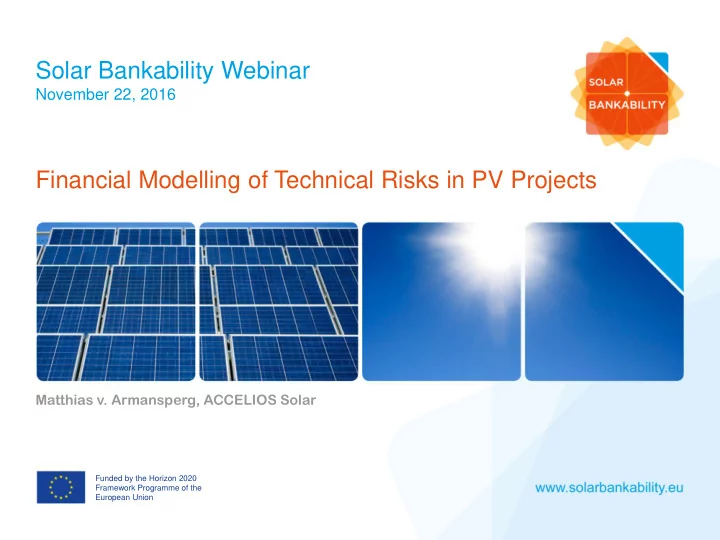

SLIDE 1

Funded by the Horizon 2020 Framework Programme of the European Union

Solar Bankability Webinar

November 22, 2016

Financial Modelling of Technical Risks in PV Projects

Matthias v. Armansperg, ACCELIOS Solar

slide-2
SLIDE 2

Risk Modelling Software

2 2

Modelling software

Yield Aux-Excel Financing Aux-Excel Dashboard Excel Risk modelling Visual Basic Cashflow Excel

  • Solar Bankability Webinar

11/22/2016

slide-3
SLIDE 3

Risk Modelling Software

3 3

Input parameters Modelling software

Yield Aux-Excel Financing Aux-Excel Dashboard Excel Risk modelling Visual Basic

  • Techn. risk

database

BM1 BM2 BM3 BM4

Repair & maint. cost factors

BM1 BM2 BM3 BM4

Business Model techn./finance

BM1 BM2 BM3 BM4

Cashflow Excel

  • Solar Bankability Webinar

11/22/2016

slide-4
SLIDE 4

Risk Modelling Software

4 4

Input parameters Modelling software Output parameters

Yield Aux-Excel Financing Aux-Excel Dashboard Excel Risk modelling Visual Basic Single risk impact

BM1 BM2 BM3 BM4

  • Techn. risk

database

BM1 BM2 BM3 BM4

Repair & maint. cost factors

BM1 BM2 BM3 BM4

Business Model techn./finance

BM1 BM2 BM3 BM4

Risc scenario impact

BM1 BM2 BM3 BM4

Cashflow Excel

  • Solar Bankability Webinar

11/22/2016

slide-5
SLIDE 5

Business Model Selection

5

  • Solar Bankability Webinar

11/22/2016

slide-6
SLIDE 6

Financial Performance of Business Models

6

IRR (Base case)

  • Solar Bankability Webinar

11/22/2016

slide-7
SLIDE 7

Financial Performance of Business Models

7

IRR (Base case) Cumulative cash flow (Base case)

  • Solar Bankability Webinar

11/22/2016

slide-8
SLIDE 8

8

Selection of Technical Risks

  • Solar Bankability Webinar

11/22/2016

slide-9
SLIDE 9

9

Selection of Technical Risks

  • Solar Bankability Webinar

11/22/2016

slide-10
SLIDE 10

Failure Cost Calculation

10

Fixing costs due to repair/substitution (Euros)

  • Cost of detection (visual inspection, monitoring system, IR for hotspots, EL for crack cells, etc)
  • Cost of transportation
  • Cost of labour
  • Cost of repair/substitution of compontents
  • Solar Bankability Webinar

11/22/2016

slide-11
SLIDE 11

Failure Cost Calculation

11

Fixing costs due to repair/substitution (Euros)

  • Cost of detection (visual inspection, monitoring system, IR for hotspots, EL for crack cells, etc)
  • Cost of transportation
  • Cost of labour
  • Cost of repair/substitution of compontents

Downtime costs due to downtime and/or power loss (kWh to Euros)

  • Failures might cause partial or complete power loss
  • Downtime duration from occurence of failure till completion of repair/substitution
  • Failures at component level might affect other components (e.g. module failure might bring

down the whole string)

  • Solar Bankability Webinar

11/22/2016

slide-12
SLIDE 12

Failure Categories

12

The impact of risks is measured by failure categories based on a 12 month revenue reserve account

  • Solar Bankability Webinar

11/22/2016

slide-13
SLIDE 13

Failure Category Overview

13

Business Model 1 Business Model 2 Business Model 3 Business Model 4

  • Solar Bankability Webinar

11/22/2016

slide-14
SLIDE 14

Failure Impact – Business Model 3 (Example)

14

Failure impact on base case IRR of 5,52%

  • Solar Bankability Webinar

11/22/2016

slide-15
SLIDE 15

Failure Impact – Business Model 3 (Example)

15

Failure impact on base case IRR of 5,52% Distribution of failure costs

  • Solar Bankability Webinar

11/22/2016

slide-16
SLIDE 16

Risk Scenario – Business Model 3 (Example)

16

Risk Risk number Risk name Start Date Case Phase Risk 1 3020 Hotspot of modules 01.01.2012 Best Infant Risk 22) 3101 Flooding of inverter 01.08.2017 Worst Mid-life Risk 31) 3051 Lightning strike of inverter 01.06.2020 Worst Mid-life Risk 4 3011 Failure of bypass diode and juction box 01.10.2026 Worst Wear-out Comments 1) External cause independent from project phase 2) Business model specific risk, i.e. due to system design/technology, geographic/climatic conditions

Risk scenario - businss model 3

  • Solar Bankability Webinar

11/22/2016

slide-17
SLIDE 17

Risk Scenario – Business Model 3 (Example)

17

Risk Risk number Risk name Start Date Case Phase Risk 1 3020 Hotspot of modules 01.01.2012 Best Infant Risk 22) 3101 Flooding of inverter 01.08.2017 Worst Mid-life Risk 31) 3051 Lightning strike of inverter 01.06.2020 Worst Mid-life Risk 4 3011 Failure of bypass diode and juction box 01.10.2026 Worst Wear-out Comments 1) External cause independent from project phase 2) Business model specific risk, i.e. due to system design/technology, geographic/climatic conditions

Risk scenario - businss model 3

  • 10.000.000 EUR
  • 8.000.000 EUR
  • 6.000.000 EUR
  • 4.000.000 EUR
  • 2.000.000 EUR

0 EUR 2.000.000 EUR 4.000.000 EUR 6.000.000 EUR 20112012201320142015201620172018201920202021202220232024202520262027202820292030 Base case Risk scenario

Cumulative cash flow

  • Solar Bankability Webinar

11/22/2016

slide-18
SLIDE 18

Risk Mitigation Measures

18

Guarantee Level 1 Guarantee Level 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Year

Infant Phase Wear-out Phase Warranty Mid-life Phase Commissioning

  • Solar Bankability Webinar

11/22/2016

slide-19
SLIDE 19

Risk Mitigation Measures

19

Guarantee Level 1 Guarantee Level 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Year

Infant Phase Wear-out Phase Warranty Mid-life Phase Commissioning

Commissioning check End of warranty check Mid-life advanced inspection

  • Solar Bankability Webinar

11/22/2016

slide-20
SLIDE 20

Solar Bankability and Risk Management

20

New capital market regulations like Basel III or Solvency II require thorough due diligence and risk management procedures

  • Solar Bankability Webinar

11/22/2016

slide-21
SLIDE 21

Project Reports: www.solarbankability.eu

11/22/2016

  • Solar Bankability Webinar

21

slide-22
SLIDE 22

Final Public Workshop 7th-8th February 2017 Brussels, Belgium Enhancement of PV Investment Attractiveness Concept:

Target groups: Finance sector, insurance, EPCs, service providers, decision makers / broader attendance 1.5-day-Workshop including networking dinner Fully paid workshop for max. 120 participants Registration available: End of Oct 2016

Save the date: 7-8 Feb 2017!

11/22/2016 22

  • Solar Bankability Webinar
slide-23
SLIDE 23

Funded by the Horizon 2020 Framework Programme of the European Union This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 649997. The content of this report reflects only the author’s view and the Commission is not responsible for any use that may be made of the information it contains

Thank nk you! u!

Matthias v. Armansperg, ACCELIOS Solar
