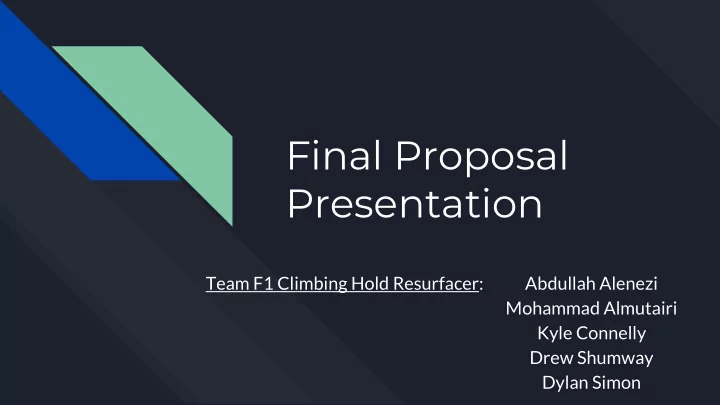

Final Proposal Presentation

Team F1 Climbing Hold Resurfacer: Abdullah Alenezi Mohammad Almutairi Kyle Connelly Drew Shumway Dylan Simon

Project Description

Purpose: Develop system to restore texture on used/worn out climbing holds Client: John Doskicz of Flagstaff Climbing Center Importance: Texture will extend life of rock climbing holds. Solution will save climbing gyms money. It will reduce waste to landfill. Holds are often made from toxic materials.

2 Dylan Figure 1: Flagstaff Climbing Center [1]

Initial CAD Model

3 Figure 2: Design

Customer Requirements

1) Save money 2) Climbing holds will gain usable texture while resembling

• riginal hold

3) Can be applied to majority of hold collection 4) Can be stored reasonably 5) Can recolor

4

Engineering Requirements

1) 80% original texture (surface roughness 5.5x10-5in) 2) Cost of operation (< $3.00/hold) 3) Size of device (< 6 ft longest length) 4) Durability of machine (>500 holds before maintenance) 5) Color (visual color scale)

5

Final Design Components - Ultrasonic Cleaner

Non- invasive Can run batches of holds Set on timer = low human input Reasonable Price

6 Figure 3: Ultrasonic Cleaner [2]

Final Design Components - Ultrasonic Cleaner

Before After

7 Figure 4: Ultrasonic Cleaner Testing

Final Design Components - Resin Dip

8 Figure 5: Textured Dip Concept Testing

Final Design Components - Resin Dip

No texture has been finalized. Each potential material would include polymer resin and sand. Potential solutions: Epoxy Acrylic Nylon Polyurethane Food Grade Urethane

Figure 6: Castable Resin [3] 9

Final Design Components - Mixer

Original idea was an egg mixer like the one pictured below or a motorized one.

• Motor
• Disposable mixing rods
• Disposable protective sheet

10 Figure 7: Mixer [5]

Final Design Components - Color

Color can easily be added to resin during mixing.

11 Figure 8: Color Dye

Next Steps

Price comparison for resins Further ultrasonic cleaner tests Friction testing Surface roughness testing

12 Drew Figure 10: Surface Roughness Image [7] Figure 9: Coefficient of Friction Tester [6]

Schedule - Currently on Schedule

13 Figure 11: Gantt Chart

Budget

Now $2,000 available Allows for larger scale system $200 testing budget $500 reserve budget $1300 for parts and materials

14 Figure 12: Bill of materials

References

[1] “Flagstaff Climbing Flagstaff Climbing Home,” Flagstaff Climbing. [Online]. Available: http://flagstaffclimbing.com/. [Accessed: 06-Nov-2017]. [2] “The Basics of Ultrasonic Cleaner for Commercial Use,” LERA Blog, 23-Aug-2016. [Online]. Available:https://lerablog.org/home-and-family/appliances/the-basics-of-ultrasonic-cleaner-for-commercial-use /. [Accessed: 06-Nov-2017]. [3] “Urethane Resins and Coatings,” Smooth-On, Inc. [Online]. Available: https://www.smooth-on.com/category/urethane-resin/. [Accessed: 06-Nov-2017]. [4] “McMaster-Carr,” McMaster-Carr. [Online]. Available: https://www.mcmaster.com/. [Accessed: 04-Nov-2017]. [5] “Norpro Manual Mixer - Crank Egg Beater.” Norpro Manual Mixer - Egg Beater - 2268 | Everything Kitchens, www.everythingkitchens.com/norpro-manual-mixer-2268.html. [6] thetmigroup, “32-25 Coefficient of Friction Tester,” YouTube, 11-Nov-2014. [Online]. Available: https://www.youtube.com/watch?v=yVdiWN6rHjs. [Accessed: 07-Nov-2017]. [7] “Roughness.” Optical Profilometry and OCT Systems – Noncontact Surface Metrology, Roughness, Thickness, Hard-to-Reach Surfaces from Novacam, www.novacam.com/applications/roughness/.

15

Any questions?
