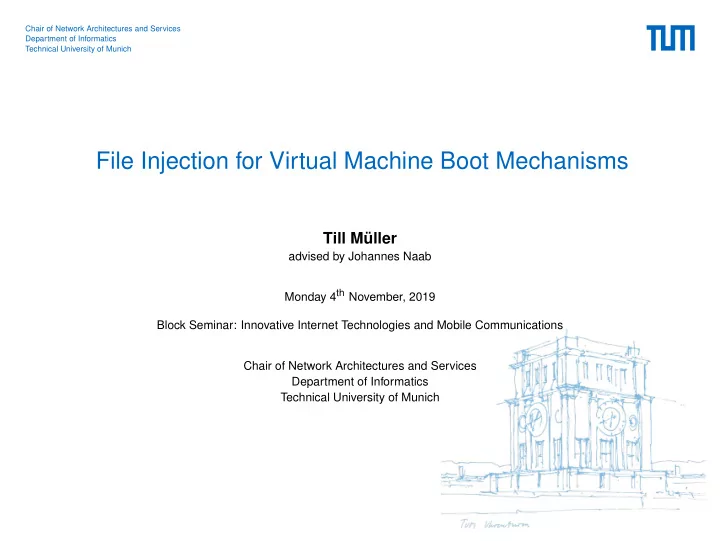

File Injection for Virtual Machine Boot Mechanisms

Till Müller

advised by Johannes Naab Monday 4th November, 2019 Block Seminar: Innovative Internet Technologies and Mobile Communications Chair of Network Architectures and Services Department of Informatics Technical University of Munich

Overview

Goals

• Background
• Motivation
• Requirements
• Assumptions

Background

• Regular boot process (GRUB)
• QEMU direct kernel boot
• initramfs
• kexec

Architecture / Implementation

• High-level overview
• Challenges

Benchmarks Conclusion

• T. Müller — File Injection for Virtual Machine Boot Mechanisms

2

Goals

Background

• Lecture: Grundlagen Rechnernetze und Verteilte Systeme
• Students get VM for homework assignments

Motivation

• Users have root access
• SSH keys delivered via Moodle
• have to be transferred to the VMs
• All setup similar to each other
• No DHCP available
• Hostnames and other network configurations have to be set externally as well
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

3

Goals

Requirements

• Inject files to VMs during boot
• Do not mount the guest’s filesystem (security issues when mounting unknown filesystems

using e.g. ext4)

• Do not restrict activity on the VM once it is booted
• No network connection must be required for injection

Assumptions

• Machines are hosted using QEMU/KVM with libvirt
• Only small configuration files need to be transferred
• Their destinations are known beforehand
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

4

Background

Regular boot process

• Commonly achieved by GRUB (GRand Unified Bootloader)
• Called by BIOS
• Reads partition table and lets user choose which OS to boot
• Loads kernel / initramfs from that partition
• Hands over to the init from the initramfs
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

5

Background

File Injection - step 1

• File injector needs to run before the actual system
• Boot process needs to be altered
• We need to boot something other than GRUB
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

6

Background

QEMU direct kernel boot

• Skips the bootloader, instead init / Systemd started directly
• Kernel and initramfs are loaded from the host directly into

the guest’s memory

• Does not require guest’s HDD if kernel / ramdisk originate

from host

• Faster than using a bootloader (no BIOS emulation etc.)
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

7

Background

Boot mechanisms comparison

• T. Müller — File Injection for Virtual Machine Boot Mechanisms

8

Background

File Injection - step 2

• The files need to be available during boot
• Otherwise they cannot be copied to the guest’s filesystem
• Connecting the host’s and guest’s filesystem directly is vulnerable
• We need another way of passing arbitrary files to the booting kernel
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

9

Background

initramfs

• Often required for booting a Linux kernel
• Contains drivers and software necessary to mount the filesystem
• Extracted into memory during boot
• Formerly initrd, a block device using e.g. ext2
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

10

Background

File Injection - step 3

• Now the injector is done, but the system is still running the injector kernel
• The user maybe wants another kernel (different versions, modules, etc.)
• We therefore have to switch to the kernel, the user wants
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

11

Background

kexec

• Loading new kernel from within a running system
• Shuts down running kernel and switches to the new one
• Does not perform full restart, skipping some parts
• BIOS
• Hardware initilization
• GRUB
• Mostly used to quickly apply kernel updates
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

12

Architecture

High-level overview

• 1. Mount the filesystem and copy over the files from the

initramfs

• Uncompress initramfs
• Find block device containing the guest’s filesystem
• Mount it using default values or values given by boot parame-

ters

• Copy over files from a specific folder inside the initramfs
• 2. Find the correct kernel within the filesystem and switch to it

using kexec

• Find the correct kernel and initrd.img files via symlinks or in

/boot

• Load them into memory using kexec
• Unmount the filesystem
• Execute the new kernel to boot it
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

13

Implementation

Challenges While implementing the system, some challenges had to be overcome. This is one of them:

• initramfs should be small
• Kernel still requires drivers to mount the guest’s filesystem
• initramfs files can be concatenated
• QEMU limits the number of initramfs files for direct kernel boot to one

Solution: Include the drivers in the kernel file

• Can be achieved using a custom built kernel
• Kernel configuration contains the option CONFIG_INITRAMFS_SOURCE
• initramfs is the compiled into the kernel file
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

14

Benchmarks

Comparison of different boot methods

GRUB Direct kernel boot PXE 5 10 15 20 25 30 13.4 6.5 21.9 11.1 26.7 seconds Kernel version: 4.9.0-11 default kernel file injector

• Measured from virsh start command until the login screen was displayed
• GRUB default config
• Direct kernel boot the fastest
• File injection adds about five seconds
• PXE the slowest, mainly due to DHCP
• T. Müller — File Injection for Virtual Machine Boot Mechanisms

15

Conclusion

• File injection system for virtual machines
• Special kernel booted using QEMU direct kernel boot
• Files deliverd using initramfs
• Kernel from guest booted afterwards (emulating normal boot loader)
• Almost no impact on users
• Isolation ensured throughout the process
