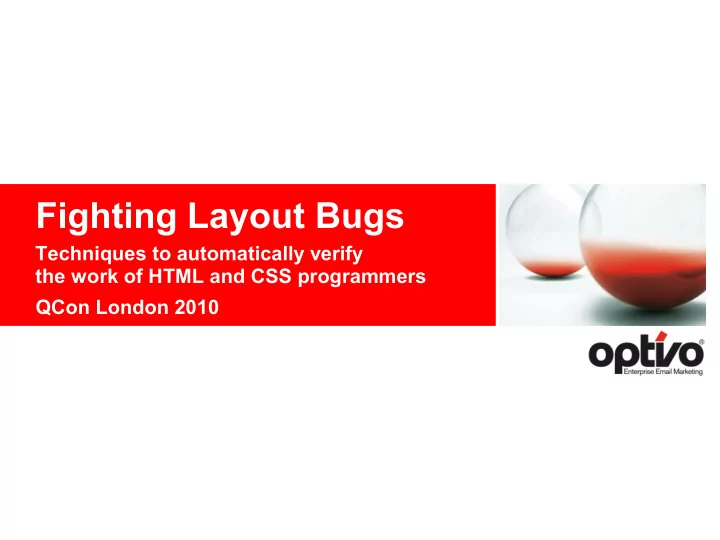

Fighting Layout Bugs

QCon London 2010 Techniques to automatically verify the work of HTML and CSS programmers

slide-2
SLIDE 2

2 / 96 Fighting Layout Bugs – QCon London 2010

Who am I?

Michael Tamm

 System Architect  Selenium committer  Conference Speaker  author of numerous

JUnit tests ;)

 big fan of IntelliJ IDEA,

Hamcrest, Mockito, FindBugs, ...

slide-3
SLIDE 3

3 / 96 Fighting Layout Bugs – QCon London 2010

You all know this ...

Presentation Layer Application Layer Business Logic Layer Persistence Layer

slide-4
SLIDE 4

4 / 96 Fighting Layout Bugs – QCon London 2010

Agenda

Technique #1 Continuous HTML validation Technique #2 Continuous CSS validation Technique #3 Detect typical layout bugs using JavaScript and image processing Technique #4 Automatically detect violations of the design rules of your website

slide-5
SLIDE 5

5 / 96 Fighting Layout Bugs – QCon London 2010

Agenda

Technique #1 Continuous HTML validation Technique #2 Continuous CSS validation Technique #3 Detect typical layout bugs using JavaScript and image processing Technique #4 Automatically detect violations of the design rules of your website

slide-6
SLIDE 6

6 / 96 Fighting Layout Bugs – QCon London 2010

Idea

Prevent layout bugs by always delivering valid HTML pages.

slide-7
SLIDE 7

7 / 96 Fighting Layout Bugs – QCon London 2010

How?

A Browser Extension?

 Only works in one browser.  Does not validate pages automatically.  Can not make the build fail

slide-8
SLIDE 8

8 / 96 Fighting Layout Bugs – QCon London 2010

How?

Scan files during the build process?

 Doesn't work for templates (*.jsp, *.vm, ...)

slide-9
SLIDE 9

9 / 96 Fighting Layout Bugs – QCon London 2010

How?

Validate HTML during your frontend tests!

 Option 1: A separate test, which validates

a well defined set of pages

 Option 2: Inside every frontend test,

each time you get a new page

 Should use the W3C Markup Validation Service

slide-10
SLIDE 10

10 / 96 Fighting Layout Bugs – QCon London 2010

W3C Markup Validation Service

slide-11
SLIDE 11

11 / 96 Fighting Layout Bugs – QCon London 2010

W3C Markup Validation Service

slide-12
SLIDE 12

12 / 96 Fighting Layout Bugs – QCon London 2010

W3C Markup Validation Service

slide-13
SLIDE 13

13 / 96 Fighting Layout Bugs – QCon London 2010

W3C Markup Validation Service

slide-14
SLIDE 14

14 / 96 Fighting Layout Bugs – QCon London 2010

How to fail faster than waiting for CI?

Use a javax.servlet.Filter!

 Works in all browsers.  Can validate HTML automatically.  Should not hamper daily work.  Should use the W3C Markup Validation Service too.

slide-15
SLIDE 15

15 / 96 Fighting Layout Bugs – QCon London 2010

The W3CMarkupValidationFilter class

How it works:

 Inside the doFilter method:

responseWrapper = new TeeHttpServletResponse(response); filterChain.doFilter(request, responseWrapper);

 The TeeHttpServletReponse writes the reponse

a) immediatly back to the browser and b) into an internal buffer.

 After doFilter returns, the HTML is fetched from, the

buffer and send to the W3C Markup Validation Service.

 A small JavaScript snippet is appended to the response

(after the closing </html> tag), which displays either a green or a red box, depending on the validation result.

slide-16
SLIDE 16

16 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

Demo

slide-17
SLIDE 17

17 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

slide-18
SLIDE 18

18 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

slide-19
SLIDE 19

19 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

slide-20
SLIDE 20

20 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

slide-21
SLIDE 21

21 / 96 Fighting Layout Bugs – QCon London 2010

W3CMarkupValidationFilter in action

slide-22
SLIDE 22

22 / 96 Fighting Layout Bugs – QCon London 2010

Some final thoughts

Try it out

http://w3c-markup-validation-filter.googlecode.com/

How to deal with ads?

 Do you need to integrate invalid HTML into

your web page provided from a third party?

 You can add a switch to your web application

to disable all ads.

 You can extend the W3CMarkupValidationFilter

and strip out those snippets, which should not be validated.

slide-23
SLIDE 23

23 / 96 Fighting Layout Bugs – QCon London 2010

Agenda

Technique #1 Continuous HTML validation Technique #2 Continuous CSS validation Technique #3 Detect typical layout bugs using JavaScript and image processing Technique #4 Automatically detect violations of the design rules of your website

slide-24
SLIDE 24

24 / 96 Fighting Layout Bugs – QCon London 2010

Idea

Prevent layout bugs by always delivering valid CSS.

slide-25
SLIDE 25

25 / 96 Fighting Layout Bugs – QCon London 2010

How?

A Browser Extension?

 Only works in one browser.  Does not validate pages automatically.  Can not make the build fail

slide-26
SLIDE 26

26 / 96 Fighting Layout Bugs – QCon London 2010

How?

Scan files during the build process?

 CSS is not only in *.css files, but also

in HTML (templates) inside <style> elements and/or style attributes

slide-27
SLIDE 27

27 / 96 Fighting Layout Bugs – QCon London 2010

How?

Scan files during the build process!

 CSS is not only in *.css files, but also

in HTML (templates) inside <style> elements and/or style attributes

 Nevertheless, why not validate the *.css files?

slide-28
SLIDE 28

28 / 96 Fighting Layout Bugs – QCon London 2010

CSS Validation Service

slide-29
SLIDE 29

29 / 96 Fighting Layout Bugs – QCon London 2010

How?

Should you use the CSS Validation Service?

 Complains about some CSS hacks, e.g.

... { *display: ... }

 Doesn't complain about:

* html ... { ... }

 Complains about unknown CSS properties / values, e.g.

... { -moz-border-radius: ... } ... { filter: progid:DXImageTransform.... } ... { ...: expression(...) }

slide-30
SLIDE 30

30 / 96 Fighting Layout Bugs – QCon London 2010

Example

slide-31
SLIDE 31

31 / 96 Fighting Layout Bugs – QCon London 2010

Example

slide-32
SLIDE 32

32 / 96 Fighting Layout Bugs – QCon London 2010

How?

Validate CSS during your frontend tests!

 This is another reasonable option.

A javax.servlet.Filter!

 Haven't done that yet,

but sounds like a nice idea to me.

slide-33
SLIDE 33

33 / 96 Fighting Layout Bugs – QCon London 2010

But!

Valid CSS is not good enough ...

slide-34
SLIDE 34

34 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: invalid URLs in the CSS

slide-35
SLIDE 35

35 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: HTML and CSS do not match

slide-36
SLIDE 36

36 / 96 Fighting Layout Bugs – QCon London 2010

Agenda

Technique #1 Continuous HTML validation Technique #2 Continuous CSS validation Technique #3 Detect typical layout bugs using JavaScript and image processing Technique #4 Automatically detect violations of the design rules of your website

slide-37
SLIDE 37

37 / 96 Fighting Layout Bugs – QCon London 2010

Idea

Detect layout bugs by simulating the human eye.

slide-38
SLIDE 38

38 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text truncated at vertical edge

slide-39
SLIDE 39

39 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text truncated at horizontal edge

slide-40
SLIDE 40

40 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text overlaps vertical edge

slide-41
SLIDE 41

41 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text overlaps vertical edge

slide-42
SLIDE 42

42 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: not enough space between text and edge

slide-43
SLIDE 43

43 / 96 Fighting Layout Bugs – QCon London 2010

How to automatically detect those layout bugs?

 We need to know, which pixels

belong to text.

 We need to know, which pixels

belong to a vertical or horizontal edge.

 If text pixels and edge pixels overlap,

we have found a layout bug.

 We need to somehow report

a found layout bug.

slide-44
SLIDE 44

44 / 96 Fighting Layout Bugs – QCon London 2010

1.) Detecting text

How the SimpleTextDetector works:

 Inject jQuery into currently displayed page

 jQuery('*').css('color', '#000000');

 Take screenshot

 jQuery('*').css('color', '#fffff');

 Take another screenshot  Compare the two screenshots:

All different pixels are probably text.

slide-45
SLIDE 45

45 / 96 Fighting Layout Bugs – QCon London 2010

SimpleTextDetector in action

slide-46
SLIDE 46

46 / 96 Fighting Layout Bugs – QCon London 2010

SimpleTextDetector in action

slide-47
SLIDE 47

47 / 96 Fighting Layout Bugs – QCon London 2010

SimpleTextDetector in action

slide-48
SLIDE 48

48 / 96 Fighting Layout Bugs – QCon London 2010

SimpleTextDetector in action

slide-49
SLIDE 49

49 / 96 Fighting Layout Bugs – QCon London 2010

SimpleTextDetector in action

slide-50
SLIDE 50

50 / 96 Fighting Layout Bugs – QCon London 2010

2.) Detecting vertical edges

How the SimpleEdgeDetector works:

 Inject jQuery into currently displayed page

 jQuery('*').css('color', 'transparent');

 Take screenshot  Find vertical pixel sequences of a certain minimal

length, where each pixel has the same color (or a very similar one)

 Only select those, which have a high contrast

to the left or right

 Only select those, which have a certain

minimal length

slide-51
SLIDE 51

51 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-52
SLIDE 52

52 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-53
SLIDE 53

53 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-54
SLIDE 54

54 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-55
SLIDE 55

55 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-56
SLIDE 56

56 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-57
SLIDE 57

57 / 96 Fighting Layout Bugs – QCon London 2010

SimpleEdgeDetector in action

slide-58
SLIDE 58

58 / 96 Fighting Layout Bugs – QCon London 2010

So, we have the text pixels ...

slide-59
SLIDE 59

59 / 96 Fighting Layout Bugs – QCon London 2010

… and the edge pixels

slide-60
SLIDE 60

60 / 96 Fighting Layout Bugs – QCon London 2010

3.) buggy pixels = text pixels && edge pixels

slide-61
SLIDE 61

61 / 96 Fighting Layout Bugs – QCon London 2010

3.) buggy pixels = text pixels && edge pixels

slide-62
SLIDE 62

62 / 96 Fighting Layout Bugs – QCon London 2010

4.) Report the found layout bug

How LayoutBug.markBuggyPixels works:

 Replace each buggy pixel by a circle

having a radius of 5 pixels – this leads to one or more buggy areas

 Find the outlines of the buggy areas  Blend those outlines as thick red lines

into the screenshot of the analyzed page

slide-63
SLIDE 63

63 / 96 Fighting Layout Bugs – QCon London 2010

LayoutBug.markBuggyPixels() in action

slide-64
SLIDE 64

64 / 96 Fighting Layout Bugs – QCon London 2010

LayoutBug.markBuggyPixels() in action

slide-65
SLIDE 65

65 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text is not readable because of low contrast

slide-66
SLIDE 66

66 / 96 Fighting Layout Bugs – QCon London 2010

How to automatically detect those layout bugs?

 We need to know, which pixels

belong to text. (Already solved ;)

 We need to know the background color around text.  We need to know the actual text color.

slide-67
SLIDE 67

67 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

What is it?

 A library for automatic detection

  • f layout bugs in web pages

 Open Source:

http://fighting-layout-bugs.googlecode.com/

 Implemented in Java  Uses a Firefox browser

remotely controlled by Selenium 2

slide-68
SLIDE 68

68 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

 What does it offer?

 DetectNeedsHorizontalScrolling

slide-69
SLIDE 69

69 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: unintended horizontal scroll bar

slide-70
SLIDE 70

70 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

 What does it offer?

 DetectNeedsHorizontalScrolling  DetectInvalidImageUrls

slide-71
SLIDE 71

71 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: Invalid references to image resources

 Where can those be located?

 In the src attribute of <img> tags  In the style attributes of all tags  In the text content of <style> elements  In linked CSS files  "/favicon.ico" or href attribute of

<link rel="icon" ...> or <link rel="shortcut icon" ...>

 What does invalid mean?

 <img> tags with no or empty src attribute  Malformed URL  HTTP GET returns 4xx or 5xx repsonse  Content-Type does not start with "image/"

slide-72
SLIDE 72

72 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

 What does it offer?

 DetectNeedsHorizontalScrolling  DetectInvalidImageUrls  DetectTextNearOrOverlappingHorizontalEdge  DetectTextNearOrOverlappingVerticalEdge  DetectTextWithTooLowContrast

slide-73
SLIDE 73

73 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

 How to get started?

slide-74
SLIDE 74

74 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library in action

Demo

slide-75
SLIDE 75

75 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library in action

slide-76
SLIDE 76

76 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library in action

slide-77
SLIDE 77

77 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library in action

slide-78
SLIDE 78

78 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library in action

slide-79
SLIDE 79

79 / 96 Fighting Layout Bugs – QCon London 2010

Outlook

More typical layout bugs ...

slide-80
SLIDE 80

80 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: different layout in different browsers

slide-81
SLIDE 81

81 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: different layout in different browsers

slide-82
SLIDE 82

82 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: unintended scrollbars for <div> or <iframe>

slide-83
SLIDE 83

83 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: broken borders

slide-84
SLIDE 84

84 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: text partly hidden

slide-85
SLIDE 85

85 / 96 Fighting Layout Bugs – QCon London 2010

Typical layout bug: Incorrect indentation

slide-86
SLIDE 86

86 / 96 Fighting Layout Bugs – QCon London 2010

Fighting Layout Bugs library

 Currently not much more than a proof of concept  Shall become something like FindBugs  FindBugs:

Finds typical programming bugs in Java classes

 Fighting Layout Bugs:

Finds typical layout bugs in web pages

 Contributions are welcome

http://fighting-layout-bugs.googlecode.com/ http://groups.google.com/group/fighting-layout-bugs

slide-87
SLIDE 87

87 / 96 Fighting Layout Bugs – QCon London 2010

Some final thoughts

When should the detectors be executed?

 Option 1: In a separate frontend test, which visits a

well defined set of pages or crawls your website

 Option 2: At certain points in your frontend test, e.g.

assertThat(currentPage, hasNoLayoutBugs());

 Option 3: Every time you get a new page

  • r click on something in your frontend tests

What about false alarms?

 Option 1: Configuration file  Option 2: Special HTML comments or attributes  Option 3: Tweak Fighting Layout Bugs

slide-88
SLIDE 88

88 / 96 Fighting Layout Bugs – QCon London 2010

Tweaking Fighting Layout Bugs

 Supress false alarms because of animation

by using AdvancedTextDetector

slide-89
SLIDE 89

89 / 96 Fighting Layout Bugs – QCon London 2010

Tweaking Fighting Layout Bugs

 Supress false alarms by modifying

default thresholds

slide-90
SLIDE 90

90 / 96 Fighting Layout Bugs – QCon London 2010

Agenda

Technique #1 Continuous HTML validation Technique #2 Continuous CSS validation Technique #3 Detect typical layout bugs using JavaScript and image processing Technique #4 Automatically detect violations of the design rules of your website

slide-91
SLIDE 91

91 / 96 Fighting Layout Bugs – QCon London 2010

Idea

Prevent layout bugs by treating your design as a nonfunctional requirement, for which you write tests.

slide-92
SLIDE 92

92 / 96 Fighting Layout Bugs – QCon London 2010

How to test a certain design?

 Transform your design in testable rules

 You have a grid?

Verify it's edges.

 You have reoccuring design elements?

Verify their presence and their location.

 Think TDBF (Test Driven Bug Fixing ;)

slide-93
SLIDE 93

93 / 96 Fighting Layout Bugs – QCon London 2010

Example: www.motor-talk.de

slide-94
SLIDE 94

94 / 96 Fighting Layout Bugs – QCon London 2010

Example: www.motor-talk.de

(1) Find top left corner of „Forum“ box

slide-95
SLIDE 95

95 / 96 Fighting Layout Bugs – QCon London 2010

Example: www.motor-talk.de

(1) Find top left corner of „Forum“ box (2) Find the other corners (3) Verify that all 4 corners have common x,y-coordinates

slide-96
SLIDE 96

96 / 96 Fighting Layout Bugs – QCon London 2010

The last slide

Thank You!

http://w3c-markup-validation-filter.googlecode.com/ http://fighting-layout-bugs.googlecode.com/ http://groups.google.com/group/fighting-layout-bugs
