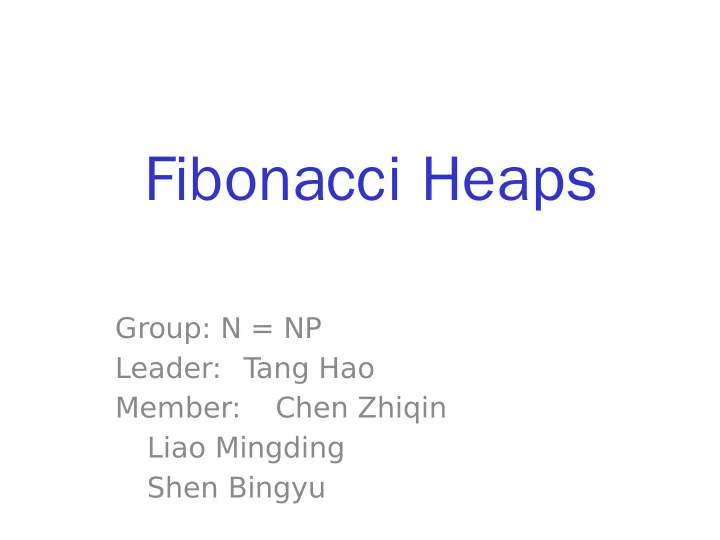

Fibonacci Heaps

Group: N = NP Leader: T ang Hao Member: Chen Zhiqin Liao Mingding Shen Bingyu

slide-2
SLIDE 2

Introduction

  • Binominal Heap
  • Fibonacci Heap

– a better amortized running time than a binomial heap – developed by Michael L. Fredman and Robert E. Tarjan in 1984 – first published in a scientific journal in 1987 – The name of Fibonacci heap comes from Fibonacci numbers whic h are used in the running time analysis

slide-3
SLIDE 3

Introduction

Using Fibonacci Heaps, the total running time of Dij kstra or Prim is O(m + n log n) A faster implementation of Prim’s MST algorithm and Dijkstra’s Shortest Paths algorithm.

Operation running time using times insert(v, h) O(1) |V| delete- min(h) O(log n) |V| decrease(v, Δ) O(1) m(edges)

slide-4
SLIDE 4

Binomial Trees

Binomial Trees are defined inductively.

slide-5
SLIDE 5

Binomial Trees(cont.)

Proposition 1 Two trees Bk can be merged into

  • ne Bk+1 in constant time. We call this the merg

e operation. Proof.

Proposition 2 A Bk tree contains exactly 2k nodes. Proof.

slide-6
SLIDE 6

Binomial Heaps

A collection of Binomial trees. For each rank k, at most one tree Bk is containe d. Each of the trees satisfy the heap property.

slide-7
SLIDE 7

Binomial Heaps(cont.)

Lemma 3 A Binomial Heap (over an n-element u

niverse) contains at most O(log n) trees.

Proof.

slide-8
SLIDE 8

Comparisons

Our goal is to implement the insert operation in time O(1).

Operation

  • Bio. Heap
  • Fib. Heap

insert(v, h) O(log n) O(1) delete-min(h) O(log n) O(log n) decrease(v, Δ) O(log n) O(1)

slide-9
SLIDE 9

Insert

slide-10
SLIDE 10

Delete_min

slide-11
SLIDE 11

Delete_min.cont

slide-12
SLIDE 12

Delete_min.cont

slide-13
SLIDE 13

Delete_min.cont

slide-14
SLIDE 14

Delete_min.cont

slide-15
SLIDE 15

Delete_min.cont

slide-16
SLIDE 16

Delete_min.cont

slide-17
SLIDE 17

Delete_min.cont

slide-18
SLIDE 18

Delete_min.cont

slide-19
SLIDE 19

Delete_min.cont

slide-20
SLIDE 20

Delete_min.cont

slide-21
SLIDE 21

Delete_min.cont

slide-22
SLIDE 22

Merge Credit

1 Credit 1 Credit 1 + 1 – 1 = 1 Credit

slide-23
SLIDE 23

Analysis

Push off the meld operation from insert to delete_min. Merge credit: one unit operation to merge two trees together, it tak

es O(1) time.

Insert: each tree is given on merge credit. So the insert operation do

es one insert operation and one merge credit.

Delete_min: we first meld the trees together. When two trees merged to

gether to one tree, we use one merge credit, and the result is one new tree with one merge credit. So meld is free. Delete_min only cost O(max deg) to search all the trees and O(deg(min)) to put its sons into the root list.

slide-24
SLIDE 24

decrease

add a decrease operation that runs in (amort ized) time O(1) -- decrease(v, Δ).

slide-25
SLIDE 25

Decrease.cont

decrease 23 to 3

slide-26
SLIDE 26

Decrease.cont

Decrease 42 to 2

slide-27
SLIDE 27

Decrease.cont

slide-28
SLIDE 28

Decrease

If we decrease the value for some node v:

  • Let p be the parent of v.
  • Delete v and its subtree and make them a new tree.
  • If the parent of v, p, has no other child been removed, then that’s all we do.
  • If p has already lost a child, we also remove p itself and its remaining subtree.
  • Consider p as a child of its parent p0, and do 3~5.
slide-29
SLIDE 29

Cut Credit

slide-30
SLIDE 30

Cut Credit

Cut this node !

slide-31
SLIDE 31

Cut Credit

1 cut credit 1 merge credit 1 merge credit

slide-32
SLIDE 32

Cut Credit

1 cut credit 1 merge credit 1 merge credit

slide-33
SLIDE 33

Cut Credit

2 cut credit 2 merge credit 1 merge credit 1 merge credit

slide-34
SLIDE 34

Cut Credit

2 cut credit 2 merge credit 1 merge credit 1 merge credit

slide-35
SLIDE 35

Cut Credit

1 cut credit 1 merge credit 1 merge credit 1 merge credit 1 merge credit

slide-36
SLIDE 36

Analysis

Cut credit: one unit operation to cut one subtree, it takes O (1) time. decrease: the decrease function cuts the subtree, give the n ew tree one merge credit and give the parent of the node one merge credit and one cut credit. It takes O(1) time. Iteration cut: if the nodes has lost two children, it will contain two merge credits and two cut credits. Use one cut credit to cut the subtree, give one merge credit to the new tree, give o ne merge credit and one cut credit to the parent of it. Then t he iteration cut is free.

slide-37
SLIDE 37

Size of a tree in a Fib Heap

Proof.

slide-38
SLIDE 38

Analysis

Sk: The smallest number of nodes that could be in a t ree of rank k.

Sk = 1 + S0 + S0 + S1 + S2 + . . . + Sk 3 + Sk 2 − − Sk 1 = 1 + S0 + S0 + S1 + S2 + . . . + Sk 4 + Sk 3 − − −

Sk Sk 1 = Sk 2 − − − Fibonacci numbers

slide-39
SLIDE 39

Analysis

Proof.

slide-40
SLIDE 40

1 S S S 1 S 2 S 3 S 4

Worst Case of Heap Size

slide-41
SLIDE 41

Conclusion

After the clean-up operation, the delete_min operati

  • n only needs to check O(log n) roots, and hence t

erminates in O(log n) steps. the operations in Prim’s or Dijkstra’s algorithm take time O(m + n + n log n) = O(m + n log n).
