conference & convention enabling the next generation of networks & services Fiber Optic Networks for the Energy Industry the Energy Industry Stephen Lentz conference & convention enabling the next generation of networks &

slide-1
SLIDE 1 enabling the next generation of networks & services

conference & convention

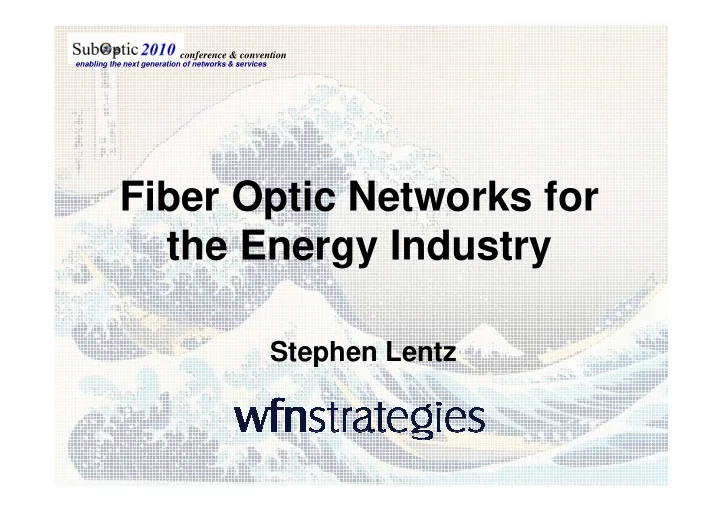

Fiber Optic Networks for the Energy Industry the Energy Industry

Stephen Lentz

slide-2
SLIDE 2 enabling the next generation of networks & services

conference & convention

Presenter Profile

  • Mr. Lentz has over twenty years

experience in the construction and

  • peration of optical communications
  • networks. He joined WFN Strategies

in 2005 as Network Design Manager, in 2005 as Network Design Manager, and has supported government, commercial and oil & gas projects in Antarctica, Oklahoma, Gulf of Mexico, Australia’s Browse Basin and West

  • Africa. Concurrently, Mr. Lentz

provided network engineering and project management support for the NEPTUNE Canada cabled

  • ceanographic observatory.

Stephen Lentz Network Design manager Email: slentz@wfnstrategies.com Tel: +1 703 821 3145 Mobile Tel: +1 703 408 7787

slide-3
SLIDE 3 enabling the next generation of networks & services

conference & convention

Overview

  • Opportunities
  • Representative Network
  • Business Structures
  • Business Structures
  • Technology Choices
  • Network Architectures
  • Conclusion
slide-4
SLIDE 4 enabling the next generation of networks & services

conference & convention

Opportunities

  • Energy industry is realizing the value of fiber
  • ptic communications
  • Subsea telecom industry seeking new

markets markets

  • Success demonstrated in Gulf of Mexico
  • Other projects under consideration
  • Fiber communications to offshore assets

becoming the standard approach

slide-5
SLIDE 5 enabling the next generation of networks & services

conference & convention

Challenges

Possible Landing Sites Existing Platforms 200-2000 km Existing Platforms Planned Platforms Potential Future Development Other Parties 50-500 km

slide-6
SLIDE 6 enabling the next generation of networks & services

conference & convention

Business Structures

  • Single Owner
  • Singe Owner, Multi-User
  • Consortium
  • Consortium
  • Third Party Ownership
  • Mutual Restoration
slide-7
SLIDE 7 enabling the next generation of networks & services

conference & convention

Supplier’s Technology Concerns

  • Unrepeatered vs. Repeatered
  • Number of Fibers
  • Number of Waves
  • Branching Units
  • Branching Units
slide-8
SLIDE 8 enabling the next generation of networks & services

conference & convention

Owner’s Technology Concerns

Riser Cables Subsea Connections Power Safety Ethernet User Interfaces Layer 2 or 2.5 Network Protection Integration with Service Provider Backhaul: MPLS, VPLS, E-LAN

slide-9
SLIDE 9 enabling the next generation of networks & services

conference & convention

Example Systems

  • Point to Point
  • Fiber Ring
  • Repeatered Backbone
  • Mutual Restoration
  • Mutual Restoration
slide-10
SLIDE 10 enabling the next generation of networks & services

conference & convention

Point to Point System

  • New production field
  • 250 km from land
  • Challenging landings
  • Shallow water route
  • Possible future developments
  • Possible future developments
  • Environmentally sensitive
slide-11
SLIDE 11 enabling the next generation of networks & services

conference & convention

Fiber Ring

  • Over twenty shallow water (<250m) platforms
  • Platforms 10-50 km apart
  • Several clusters 100-200 km apart
  • 500 km total length
  • At least five different platform owners
  • At least five different platform owners
slide-12
SLIDE 12 enabling the next generation of networks & services

conference & convention

Repeatered Backbone

  • Eight initial and ten future

deep water (up to 2500m) platforms

  • 1500 km route
  • Platforms 100-300 km apart
  • Platforms 100-300 km apart
  • Comms reliability and

platform independence essential

slide-13
SLIDE 13 enabling the next generation of networks & services

conference & convention

Repeatered Backbone Advantages

  • No distance limits
  • Platforms operate independently of all
  • thers
  • Multiple fiber pairs can support multiple
  • Multiple fiber pairs can support multiple
  • wners and different business models
slide-14
SLIDE 14 enabling the next generation of networks & services

conference & convention

Mutual Restoration

  • Two (or more) owners combine/interconnect systems
  • Concept is well understood by telecom industry
  • Considered in some feasibility studies
  • Could potentially develop in energy industry
slide-15
SLIDE 15 enabling the next generation of networks & services

conference & convention

Summary and Conclusions

  • Now is the time to move forward
  • Suppliers must work with a new class of
  • wners
  • Submarine cable technology provides a
  • Submarine cable technology provides a

starting point for serving offshore assets

  • Solutions must address the unique integration

requirements of the offshore assets

Thank you!

slide-16
SLIDE 16
