FCUBED MALAYSIA SDN BHD PROVIDING PURE DRINKING WATER SOLUTIONS IN CHALLENGING ENVIROMENTS EVERY MAN, WOMAN AND CHILD HAS THE BASIC HUMAN RIGHT TO DRINK CLEAN WATER F Cubed Carocell Solar Distillation - History Development of Carocell Solar

slide-1

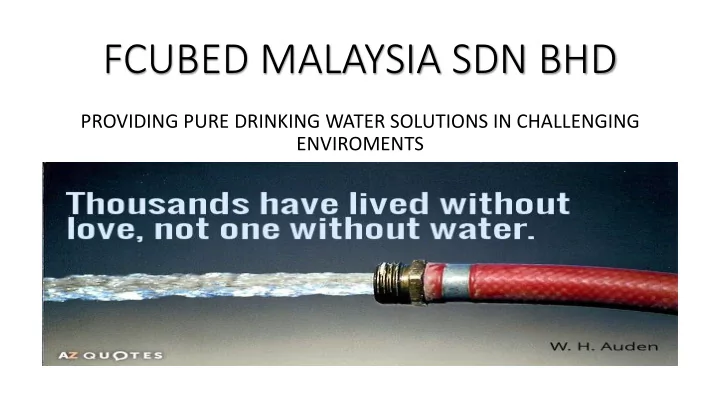

SLIDE 1

FCUBED MALAYSIA SDN BHD

PROVIDING PURE DRINKING WATER SOLUTIONS IN CHALLENGING ENVIROMENTS

slide-2
SLIDE 2

EVERY MAN, WOMAN AND CHILD HAS THE BASIC HUMAN RIGHT TO DRINK CLEAN WATER

slide-3
SLIDE 3

F Cubed Carocell Solar Distillation - History

Development of Carocell Solar Distillation Panel commenced in 2004 by Peter Johnstone

2004 – 2012

Significant personal investment by Peter Johnstone in R&D

Independent Testing Undertaken by Experts

Product Capability – ARUP

Carbon Credit Feasibility – Earth Systems

Continual Water Testing by accredited global laboratories

Product Approval for Producing Water (Australian and New Zealand Standard)

Opened Australian testing & production facility in 2010

Quality Control Processes embedded

Established Supply Chain

New Ownership and Management in 2015

Global Sales Growing

Australia/Pacific Islands

French Polynesia

Marshall Islands

Fiji

Nauru

Kirabati

Asia

Bangladesh

India

Philippines

Indonesia

Vietnam

Malaysia

Global Sales Growing

Americas and Caribbean

US

Colombia

Dominican Republic

Middle East/Africa

Kenya

Botswana

UAE

Saudi Arabia

Iran

slide-4
SLIDE 4

Carocell Solar Panel Water Purification System

Testing and Accreditations

ARUP tested

AS/NZ 4020 approved – Australian and New Zealand Standard for the use of producing water

Multiple water test results from all sources from around the world

Multiple Set Up Options

  • Standalone or multiple panels
  • Integrated Water Farm;
  • Shelters;
  • Roof Mounted

Scalable

Households - 1 panel = drinking water of 5-7 people per day

Villages - 100 Panel Water Farm (eg) =

550,000 litres of potable water p.a.

Drinking Water for 500-750 people

Durable

Life span of 10-20 years (minimal, if no maintenance)

Core components can be replaced

Features – Point of Use Solar Water Purification System

Simple Technology

Easy to Install (Out of Box)

Solar Technology – no running costs

  • ngoing maintenance or expertise to incorporate training of

maintenance team (2) and reactive support with callout rates, % on materials and mileage charges as attached

20+ litres of Safe Drinkable Water Per Day

Solar Distilled 15-20 litres per panel per day from any source:

 Salt or Brackish Water (Zero Liquid Discharge)  Bore/Well Water  Surface water 

Rainwater collection 10+ litres per day

Eliminates Contaminants such as

Saline/Salt;

Bacteria such as E Coli;

Arsenic; and

Solids such as iron or calcium

Potential Applications

Salt production

Industrial waste water cleansing

Agriculture, Livestock and Fisheries

Mining (Solids Extraction and Recovery)

slide-5
SLIDE 5

Rural Project implemented in Colombia, South America

(30 panel water farm for rural village – drinking water for 150 people)

slide-6
SLIDE 6

How Carocell Solar Water Distillation Panel Works

Natures Own Process

  • Input Water (6 litres per hour/50 litres per day)
  • Contaminated water is input into the panel at the top of the unit
  • The internal black fabric controls the flow and spread of the water inside the panel:
  • Allows time for the heat inside to evaporate the water; and
  • Ensures the water is spread evenly across the panel for maximum

efficiency.

  • Condensation/Evaporation (Distillation)
  • Solar energy passes through the transparent polycarbonate upper sheet;
  • Heat inside the panel will range between 65-90 degree Celsius, causing:
  • Water to evaporate off the fabric (vapour); and
  • The vapour will condense on the inside of the transparent polycarbonate

sheets (distilled);

  • Panel Design Separates Distilled Water from Non-Distilled Water
  • Distilled water will run down the polycarbonate sheets into a pure water outlet at

the bottom of the unit.

  • Waste water will come flow down the fabric and come out a separate waste water
  • utlet at the bottom of the panel.
  • Solar Distillation Output Water (per panel)
  • 20+ litres per day
  • 5,500 litres+ a year)
  • + Rainwater collection

Diagram – Internal Flow

slide-7
SLIDE 7

Carocell Solar Distillation Panel – Durable Components

Component Composition Lifespan Replaceable Outer Frame Aluminium 20+ years No Internal Element (Fabric) Treated Fabric to absorb solids and control flow 5+ years Yes Top Film Treated Polycarbonate 10+ years Yes Bottom and Inner Film Polycarbonate 10 years+ Yes Internal Backing Tray Treated Aluminium 10 years No Water Trough and Outlets Extruded Plastic 20 years No (excepted distilled water outlet Irrigation Fittings including inlet tubing, inlet pipe and accessories Plastic 5-20 years Yes Leg Supports Galvanised Steel 20+years Yes

slide-8
SLIDE 8

Drinking Water at Less Than 2 cents per Litre

  • Solar Distilled Water:
  • 25+* litres per day produced;
  • 5,475 litres p.a.
  • 54,750 litres over 10 years
  • Rainwater Collection (using rainwater guttering):
  • 10+* litres per day collected.
  • 3,650 litres p.a.
  • 36,500 litres over 10 years
  • Combined Potential:
  • 35 litres per day
  • 9,125 litres p.a.
  • 91,250 litres over 10 years

* Global Averages – Variable by location Carocell Panels Key Statistics (Output) Price and Cost Dimensions Unit

  • Av. Output

Per Day (Litres)

  • Av. Output

p.a. (Litres)

  • Av. Output (10

Years) (Litres) Price Cost Cents Per Litre (10 years) Length (cm) Width (cm) Depth (cm) Weight (kg) Carocell 3000 20+ litres 5,475 54,750 310cm 110cm 7cm 18 (kg) Carocell 2000 15+ litres 3,650 36,500 210cm 110cm 7cm 15kg Carocell 1000 10+litres 1,825 18,250 110cm 110cm 7cm 12kg

slide-9
SLIDE 9

Rural Project implemented by F Cubed Bangladesh in Bangladesh

(1 panel per house - 2,200 households/10,000+ people with drinking water)

slide-10
SLIDE 10

Carocell Panel – Gravity Feed (1+ panels – same source water)

Simple Set Up – Ready to Use (20 mins)

  • Requirements:
  • Carocell Panel and Accessories;
  • Container/drum for source water (50 litres per panel);
  • Stand or Platform for the source tank (alternative is a winch pully system on a pole); and
  • Container to collect water
  • (Recommended the legs of the panel be secured to the ground)
  • Basic Set Up:
  • Source water drum is placed on a Tank Stand above the panel to feed the water by gravity.
  • One connecting pipe with a controlled flow is connected between the source water drum

and the panel (s)

  • The pure drinking water is outlet via a dedicated pipe in the corner of the panel;
  • The non-drinking water is dispersed via a separate outlet (middle) and can either be:
  • Sent back to the source water drum; or
  • Fed back into the panel
  • Daily Requirements:
  • Fill source water drum
  • Switch on flow tap in morning/off at night
  • Place collection container at bottom of panel
  • Collect distilled water

Rural User - Bangladesh

slide-11
SLIDE 11

Carocell Solar Water Farm – Gravity Feed/No Racking

Gravity Feed – Larger Scale

  • Requirements:
  • Carocell Panels and Accessories;
  • Container/drum for source water (50 litres per panel);
  • Additional irrigation piping and accessories for input and output water

accumulation;

  • Stand or Platform for the source tank; and
  • Large Tank to collect and store water (suggest allow 2-5 days water output)
  • Considerations:
  • Add a filter between tank and panels;
  • The panels to be racked (rainwater collection);
  • The legs of the panel be secured to the ground;
  • A solar driven pump to feed source water to tank; and
  • An underground staging tank with pump to feed a storage tank.
  • Set Up:
  • Source water drum is placed on the Tank Stand above the panels to feed the panel

by gravity.

  • One outlet pipe from source water tank with individual panels connecting from the
  • utlet pipe;
  • The pure drinking water outlets are connected to one central collection pipe per

row of panels and fed into output storage per row per farm)

  • The non-drinking water outlets are connected to one central collection pipe per

row of panels or farm and fed into output storage tank to fed back into the panel

  • r piped back to the source water
  • Daily Requirements:
  • Ensure source water drum is full
  • Switch on flow water in morning/off at night;
  • Ensure each panel is receiving water (check for blockages).

Colombia

  • 30 Panels (450+ litres per day)
slide-12
SLIDE 12

Carocell Solar Water Farm – Pump Feed and Racking

Automated with Rainwater Collection

  • Requirements:
  • Carocell Panels and Accessories;
  • Solar PV Panel and pump kit to automatically feed water to the panels;
  • Additional irrigation piping and accessories for input and output water accumulation;
  • Customised racking to secure panels together and collect rainwater;
  • Large Tank (s) to collect and store water (suggest allow 2-5 days water output)
  • Considerations:
  • Add a filter between tank and panels;
  • An underground staging tank with pump to feed a storage tank.
  • Set Up:
  • Water can be sourced from tank or surface water;
  • One connecting pipe with a controlled flow is connected between the source water drum

and the panels

  • The pure drinking water is outlet via a dedicated pipe in the corner of the panel
  • The non-drinking water is discharged via a separate outlet and can be sent back to the

source water or fed back into the panel

  • Daily Requirements:
  • Ensure source water drum is full
  • Switch on flow water in morning/off at night;
  • Ensure each panel is receiving water (check for blockages).

Mildura Australia

  • 70 panels (1,400+ litres per day)
slide-13
SLIDE 13

Re-Cap Of Fcubed Malaysia Carocell Benefits

  • Clean Drinkable Water From Any Source (15+ litres per

day)

  • Removes saline, arsenic, iron, bacteria etc. contaminated

water;

  • Removes any water borne diseases.
  • Simple to Set Up and Operate
  • 20 Minutes to set Up a Panel
  • Producing drinkable water within 1 hour
  • No expertise Required
  • Simple to Maintain
  • Monitor and Check;
  • Replacement components available (if required)
  • Durable and Scalable
  • The device is simple and robust.
  • It can be installed in any open space;
  • It can be installed as single unit or multiple units
  • It can be installed as gravity feed or pump feed.
  • Cost Effective (less than 2 cents per litre)
  • Ongoing maintenance or expertise to incorporate training of

maintenance team (2) and reactive support with callout rates, % on materials and mileage charges as attached

  • filters and membranes will need replacement, the frequency is

dependent on the water source and volume.

  • No energy costs
  • Environmentally Friendly
  • It uses only solar energy;
  • No green house emission from other current methods used to purify

water:

  • Electricity or diesel for RO and filtration systems;
  • Wood or Kerosene to boil water
  • Flow On Positive Impacts of Clean Drinking Water
  • Increases Productivity
  • Healthy drinking water = more productivity;
  • On-site water eliminates time spent purifying water; or
  • Less time sourcing drinkable water
  • Reduces burden on medical system
slide-14
SLIDE 14

FCUBED MALAYSIA SDN BHD
