FacsXpert July 8 , 2 0 0 4 7 th I nternational Protg Conference Builds protocols for studies w ith FACS instrum ents Uses a m odified Protg-based architecture that prom otes runtim e extensibility for the end-user FacsXpert


slide-1

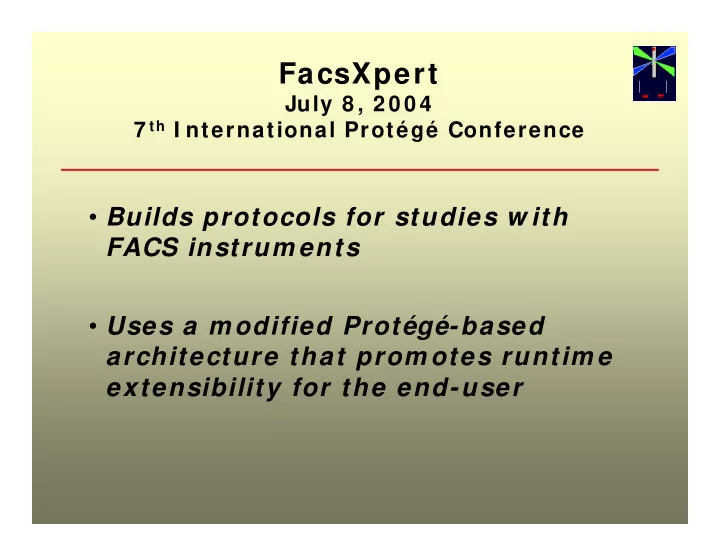

SLIDE 1

FacsXpert

July 8 , 2 0 0 4 7 th I nternational Protégé Conference

  • Builds protocols for studies w ith

FACS instrum ents

  • Uses a m odified Protégé-based

architecture that prom otes runtim e extensibility for the end-user

slide-2
SLIDE 2

FacsXpert

  • Built

– At Stanford University’s Herzenberg Lab – I n close collaboration w ith Lee Herzenberg, Jam es Tung, David Parks, W ayne Moore and other researchers in the Herzenberg Laboratory

  • W ith help from

– Mark Musen, Ray Fergerson, Monica Crubezy, Natasha Noy and the Protégé com m unity

slide-3
SLIDE 3

FacsXpert

  • Presented by

– Stephen Meehan, softw are engineer Herzenberg Lab, Stanford University m eehan@darw in.stanford.edu – Since 1 9 9 2 , Stephen has pursued a “dream ” of a “softw are dem ocracy” architecture w here:

  • An application derives the m ajority of its behavior

from runtim e interpretation of its UML design m odel

  • A user can extend this m odel w hile the application

runs Thus the m odel is m ore than a design artifact, it is runtim e governm ent by the people … for the people

slide-4
SLIDE 4

Scope of Presentation

1 . The FACS dom ain and need for runtim e extensibility 2 . FacsXpert’s approach to data structure extensibility 3 . FacsXpert’s approach to data integrity extensibility 4 . FacsXpert’s approach to GUI extensibility

slide-5
SLIDE 5

Count and characterize fluorescent- labeled cells in suspension to

– Monitor the progress of HI V infections by counting the num ber of CD4 T lym phocytes in blood from HI V-infected people – Classify and stage tum ors and to m onitor bone m arrow transplant survival – Do the basic science and studies that underlie all these clinical advances

FACS instrum ents

slide-6
SLIDE 6

FACS protocols specify w hat w ill be done in a FACS assay

For each tube in the assay

– Add up to 2 0 reagents, each linked to one

  • f 1 2 fluorescent dyes

– Add one cell sam ple of up to 5 m illion cells – I ncubate and analyze w ith a m ulti-laser ( Hi-D) FACS instrum ent – Store the resulting data file ( often about 5 m egabytes)

One assay often has 6 0 or m ore tubes

slide-7
SLIDE 7

Sophisticated softw are is needed

  • Must com pute a feasible com bination of staining reagents

( w hich “label” cells) by taking into consideration:

– Targeted species – Targeted cellular m arkers – Highly variable optical characteristics of fluorescent elem ents – Optical detection capabilities of a FACS instrum ent’s configuration – Fluorescence interference betw een fluorescent elem ents – Purpose of cell labeling: to gate, dum p or discover cell populations – Availability of inventory – Bio-chem ical affinities betw een staining steps

slide-8
SLIDE 8

Sophisticated softw are is needed

  • Pipetting guide’s

– Reagent and specim en am ounts m ust follow highly variable dilution recom m endations – Organization m ust cater to pipetting technician w ork flow w hich differs from the planning w ork flow of the scientist

  • Final protocol know ledge m ust interoperate w ith

– I nstrum ent softw are ( offline as w ell as real tim e) – Analysis softw are

  • GUI for decision m aking m ust be highly intuitive

Senior FACS scientists are often som ew here betw een com puter naïve and totally com puter-phobic

slide-9
SLIDE 9

Highly extensible softw are is needed

  • FACS vocabulary and “best practices” are

– Minim ally standardized – Rapidly changing

  • From day to day, FACS scientists cannot

predict

– W hat questions they w ill be asking – W hat m aterials they w ill be w orking w ith

  • Hence, their “research planning” softw are

applications m ust be highly flexible and custom izable

slide-10
SLIDE 10

Highly extensible softw are ( cont.)

  • THUS … scientists ( in addition to know ledge/ softw are

engineers) m ust be able to extend

– Data structures ( classes, attributes, etc) – Data integrity ( rules that check know ledge inputs) – The GUI … w ithout crashing the current application or future upgrades!!!

  • Protégé provides the foundation for such a runtim e evolvable

system

  • Com m ercial alternatives ( e.g. Oracle, Rational Rose)

suffer from higher financial cost, higher sys adm in cost, closed source and design-tim e centricity

slide-11
SLIDE 11

Data structure extensibility

  • Protégé supports data structure

extensibility through object-oriented sub classing

  • How ever, the its m odel editor GUI
  • verw helm s the scientist by exposing the

w hole m odel

FacsXpert required a m odel editor that

  • nly focuses on a specific part of the

m odel at the specific tim e that it is relevant to the application

slide-12
SLIDE 12

FacsXpert solution for data structure extensibility

Pop up focuses on species class hierarchy starting at Mouse

A class-type slot widget that supports a create action which limits the model editor’s focus to the slot’s allowed parents

User creates 1 direct and 2 indirect Mouse sub classes

slide-13
SLIDE 13

FacsXpert solution for data structure extensibility

  • A sm all # of program m ing idiom s ready

FacsXpert for such extensions; for exam ple:

– Creating instances

myProject.createInstance( null, DisplayUtilities.pickCls( null, Collections.singletonList( designTimeLeafClass )))

– Querying class type designTimeLeafClass .equals( unknownClass ) || unknownClass.hasSuperclass( designTimeLeafClass )

slide-14
SLIDE 14

I nstantiating a new subject

The program m ing idiom detects the need to query for sub classes to the m ouse class

End user’s extended attributes automatically appear

slide-15
SLIDE 15

Darw in “crash-proofs” data structure extensibility

  • For any given class, Darw in prevents the

“extinction” of one or m ore slot associations and one or m ore slot facets

  • One can set 1 of 2 “w atch dogs” to m onitor

changes to “endangered” m odel elem ents:

– Golden retriever barks w hen user changes such an elem ent and allow s rollback ( for engineers) – Doberm an Pincher prevents user from m aking the change ( for end-users)

W e built a tool nam ed Darw in that guards m odel evolution by handling m odel editions w hich break hard-coded expectations

slide-16
SLIDE 16

Darw in’s JAVA generator

  • Darw in generates JAVA m odules that benefit client

code by

– Establishing a sim ple and consistent idiom for type- safe access to the endangered portions of the Protégé m odel – Adding JAVA com piler checking as a m eans of tracking m odel dependencies

  • Darw in translates

– All Protégé classes into JAVA interfaces hence supporting m ultiple inheritance – Concrete Protégé classes into JAVA classes that im plem ent all associated JAVA interfaces

slide-17
SLIDE 17

From Protégé class…

The class “FACS single-reagent proposal” has two direct super classes

slide-18
SLIDE 18

…To JAVA

Protégé super classes become JAVA super- interfaces Protégé leaf classes become JAVA interfaces Protégé concrete class becomes a JAVA class that implements all of the interfaces

slide-19
SLIDE 19

Data integrity extensibility

Prim ary goal

– Runtim e extensibility of constraints that check know ledge inputs ( hereafter checks) . Know n to the Protégé com m unity as “know ledge acquisition”

Out of scope

– Runtim e extensibility of constraints that

  • infer new know ledge
  • validate ontologies ( consistency checking, disjointedness,

sem antic im balance etc.)

I n practical term s…

– Allow scientists to author and authorize checks w hile FacsXpert runs

slide-20
SLIDE 20

Requirem ents

  • A. Decouple check inquirers from check providers
  • B. Support reuse for both of the above actors:
  • A. I nquirer: “I s anything w rong?”
  • B. Provider:
  • A. Dom ain independent
  • B. Param eter-izable check or check tem plate; user

com pletes param eters w hen “binding”

  • C. Make checks m odel associated and oriented
  • D. I ntegrate checks w ith Protégé form s & pick lists
slide-21
SLIDE 21

Requirem ents

  • E. Make checks scaleable
  • A. Focus on lim ited instance context
  • B. I ncrem ental execution
  • F. Stay in sync w ith m odel re-factoring
  • G. Support stepw ise debugging
  • H. Represent constraints in m odel
  • A. Start at :CONSTRAI NT super class
  • B. Support inquirer querying of characterizations

such as: advisory, w arning, error and fatal

slide-22
SLIDE 22

Requirem ents

I . Allow user to add checks w hile FacsXpert runs J. Support end user, ad hoc check authoring

  • K. Allow com putability of dependencies, conflicts &

bottlenecks

  • A. Prevent conflicts betw een checks
  • B. Prevent conflicts betw een checks and m odel facets

and onto-clean m eta classes/ slots

L. Have reasoning agents that use com putability

(otherwise prior requirement is “pie in the sky”)

slide-23
SLIDE 23

Data integrity extensibility

Engineering options ( in 2 0 0 2 )

1 . Reuse an existing runtim e com putable gram m ar

  • Pal w ith EzPAL
  • JESS
  • OCL

2 . I nvent a new “non program m atic” gram m ar; im plem entation options included:

1 . Translate invented gram m ar to accepted gram m ar to reuse interpreter 2 . I nterpret the invented gram m ar directly

3 . New JAVA validity checking fram ew ork that prom otes “param eterized check tem plates”

slide-24
SLIDE 24

W e took choice 3

… and met 7 of 12 requirements

  • A. Decouple check inquirers from check providers
  • B. Support reuse in both of the above actors
  • C. Make checks m odel associated and oriented
  • By sub classing Darw in
  • D. I ntegrate checks w ith Protégé form s & pick lists
  • E. Make checks scaleable
  • F. Stay in sync w ith m odel re-factoring:
  • by sub classing Darw in class
  • G. Support step-w ise debugging
slide-25
SLIDE 25

An exam ple of validity checking

Optical detector class contains validity checks such as

– Num ber assigned for a FACS param eter m ust be

  • Betw een 1 and the num ber of colors for the

parent FACS configuration

  • Unique am ongst sibling optical detectors

– The laser configuration associated w ith a detector m ust also be associated w ith the FACS configuration parent

slide-26
SLIDE 26

Checking integrity for param eter num ber value

Protégé form for optical detectors signifies that the user has entered an incorrect parameter number

slide-27
SLIDE 27

Checking integrity of Laser configuration relationship

Pick list displays invalid choices as

  • disabled. An explanatory tool tip

appears when the mouse is hovered

  • ver the disabled item.
slide-28
SLIDE 28

W hat are our next steps?

Meet remaining requirements

  • H. Represent constraints in m odel

I . Allow user to add checks w hile FacsXpert runs J. Support end user, ad hoc check authoring K. Allow com putability of dependencies, conflicts & bottlenecks L. Have reasoning agents that use com putability, otherw ise prior requirem ent is pie in the sky

Current approach is lim ited:

– H and I are easily achievable, but not J, K and L – At best it w ill becom e hidden plum bing for approach that hits all 1 2 requirem ents

slide-29
SLIDE 29

And then there’s the GUI

slide-30
SLIDE 30

Protégé has GUI extensibility… but frankly

FACS scientists and the Protégé GUI w ere like oil and w ater

  • They w ere confused by the slot buttons w ith + , -, C,V,

X … and they balked at the dialogs

  • They begged for a highly custom izable Xcel-like

w idget ( grid) for m anipulating tables of data

  • Then, after m any iterations of developing this table

w idget, they ultim ately decided that navigation and group-based m odifications of item s in the table had to be further sim plified.

They w anted to access the table via a tree!

slide-31
SLIDE 31

From a table ( linear) view to…

slide-32
SLIDE 32

…To a tree ( hierarchical) view

slide-33
SLIDE 33

Xpert grid/ table supports

  • User custom izability

– Customize column: names, sizes, display order and sort

  • rder

– Filter rows

  • Persistence of user custom izations

– Automatically remember and use the most recent customizations – Allow the user to save customizations – Allow the user to save and retrieve sets of customizations into property files

  • Tree-based read/ w rite access

– Define a tree structure to summarize elements of the underlying table – Select any combination of tree nodes – See the column entries sieved by the node selections – Modify all cells in a column for the sieved rows

slide-34
SLIDE 34

GUI extensibility

  • Added pick list plug-in fram ew ork
  • Added system m enu plug-in and overrides
  • Added num erous other slot w idgets
slide-35
