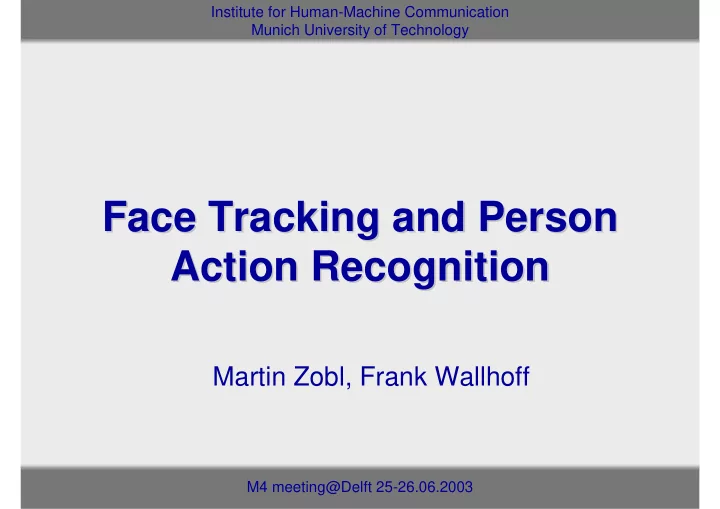

SLIDE 1

M4 meeting@Delft 25-26.06.2003 Institute for Human-Machine Communication Munich University of Technology

Martin Zobl, Frank Wallhoff

Face Face Tracking Tracking and Person and Person Action Action Recognition Recognition

SLIDE 2

M4 meeting@Delft 25-26.09.2003 Martin Zobl 2/18 Institute for Human-Machine Communication Munich University of Technology

Recapitulation of methodology for action recognition
Face tracking with particle filters
Head orientation estimation
Action segmentation with the Bayesian Information

Criterion

Recognition performance comparison on actions from

the PETS-ICVS 2003 and the m4 dataset

Outlook

Overview

SLIDE 3

M4 meeting@Delft 25-26.09.2003 Martin Zobl 3/18 Institute for Human-Machine Communication Munich University of Technology

Person Action Recognition

Extraction of person locations Temporal segmentation Feature calculation Classification of segments Face detection/tracking Background Subtraction Background Subtraction Background Subtraction Global Motion Features Bayesian Information Criterion Hidden Markov Models Actions, timestamps

SLIDE 4

M4 meeting@Delft 25-26.09.2003 Martin Zobl 4/18 Institute for Human-Machine Communication Munich University of Technology

Feature extraction based on difference images Id

, , , , , ,

T x y x y x y

x m m m m i σ σ

=
Composition of a 7-dimensional feature vector:
Person location normalized center of motion:

( ) ( ) ( )

t p t m t m

y x y x y x , , ' ,

− =

Derivations of the center of motion:

( ) ( ) ( )

1

, , ,

− − = ∆ t m t m t m

y x y x y x

Actions are represented by global motions in the hot-spot:

( ) ( )

( )

∈

∈

⋅ =

i i

R y x d R y x d y x

t y x t y x y x t m

I I

, , ' ,

, , , , ,

Center of motion

( ) ( ) ( )

( )

∈

∈

− ⋅ =

i i

R y x d R y x y x d y x

t y x t m y x t y x t

I I

, , , ,

, , , , , σ

Variance of motion

( ) ( )

∈

∈

=

i i

R y x R y x d

t y x t i

I

, ,

1 , ,

Intensity of motion

Computation of Global Motion Features

SLIDE 5

M4 meeting@Delft 25-26.09.2003 Martin Zobl 5/18 Institute for Human-Machine Communication Munich University of Technology

Actual Image Background- Difference Idb Difference- Image Id

Center of person px,y(t) Center of motion m‘x,y(t) Derivation mx,y(t)

Visualized Motion Features

SLIDE 6

M4 meeting@Delft 25-26.09.2003 Martin Zobl 6/18 Institute for Human-Machine Communication Munich University of Technology

Markov state-space model

dynamic model prior distribution

prediction prediction

likelihood

update update

t

y

Observation

1

1 1 1 1 1

( | ,..., ) ( | ) ( | ) ( | ,..., )

t

t t t t t t t t t x

p x y y p y x p x x p x y y dx

−

− − −

∝

Recursive filtering distribution

t

x

Hidden system state

Particle Filter

( ) ( )

{( , ), 1,..., }

i i t t

x i N π =

N weighted particles

( ) ( ) 1 1

ˆ ( | ,..., ) ( )

N i i N t t t t t i

p x y y x x π δ

=

= −

Sampling the filtering distribution

( ) ( ) ( ) 1

( | )

i i i t t t t

p y x π π − =

Updating using their likelihood
Resampling to avoid degradation of particles

Face Tracking

SLIDE 7

M4 meeting@Delft 25-26.09.2003 Martin Zobl 7/18 Institute for Human-Machine Communication Munich University of Technology

( )

( | ) /

i t

scr i x t t t sc

p y x s N =

Skin color ratio
Observations

( ) ( ) 1 1 ( ( ) ( ) 1 ) 1 1

( , , , )

i t i i i i t t t t

s T x s T

− − − − −

∆ ∆ =

Particle i

Face Tracking (2)

MLP correction equalization preprocessing classification sample

( ) i t

x

( )

( | )

MLP i t t

p y x

Face likelihood

( ) ( ) 1 i i t t t

x Ax Bw

−

= +

Prediction with linear autoregressive model

Model trained with ADALINE

SLIDE 8

M4 meeting@Delft 25-26.09.2003 Martin Zobl 8/18 Institute for Human-Machine Communication Munich University of Technology

Automatic initialization

by pyramid sampling and MLP classification

Particle Filtering

Face Tracking (3)

SLIDE 9

M4 meeting@Delft 25-26.09.2003 Martin Zobl 9/18 Institute for Human-Machine Communication Munich University of Technology

Head Orientation Estimation Training data: feret + mugshot database

( )

( ) ( ) 1

arg max[ ( )] ( )

i

N i i HO i

p HO HO ϕ ϕ

=

p(i)(face) p(i)(left) p(i)(half left) p(i)(quarter left) p(i)(frontal) p(i)(quarter right) p(i)(half right) p(i)(right) MLP 1 MLP 2 MLP 8 ϕ (left)=180° ϕ (half left)=135° ϕ (quarter left)=115° ϕ (frontal)=90° ϕ (quarter right)=65° ϕ (half right)=45° ϕ (right)=0° ϕ (left)=180° ϕ (half left)=135° ϕ (quarter left)=115° ϕ (frontal)=90° ϕ (quarter right)=65° ϕ (half right)=45° ϕ (right)=0° Particle i

SLIDE 10

M4 meeting@Delft 25-26.09.2003 Martin Zobl 10/18 Institute for Human-Machine Communication Munich University of Technology

Head Orientation Estimation

SLIDE 11

M4 meeting@Delft 25-26.09.2003 Martin Zobl 11/18 Institute for Human-Machine Communication Munich University of Technology

Already successfully applied for speech segmentation,

speaker turn detection and other clustering applications

Split window at position i and compute the BICi value for this

position:

( )

n d d d i n i n BIC

s f w i

log 2 1 2 1 log 2 log 2 log 2

+

+ + Σ − + Σ + Σ − = ∆ λ

Segment boundary at the most negative value of all BICi
d=dimension of vectors, w,f,s = covariance matrices of entire

window, the first and the second segment, is a penalty weigt Action segmentation with BIC

SLIDE 12

M4 meeting@Delft 25-26.09.2003 Martin Zobl 12/18 Institute for Human-Machine Communication Munich University of Technology

BIC-

Segmentation based on feature vectors

n=15 =0.9 n=15 =1.1

BIC-

Segmentation based on energy vectors

n=15 =6.5 n=20 =6.5

Application of Automatic Stream Segmentation

SLIDE 13

M4 meeting@Delft 25-26.09.2003 Martin Zobl 13/18 Institute for Human-Machine Communication Munich University of Technology

n=15, =6.5

Action Segmentation with BIC

SLIDE 14

M4 meeting@Delft 25-26.09.2003 Martin Zobl 14/18 Institute for Human-Machine Communication Munich University of Technology

Artificial training data, HMMs (5 states, 2 mixtures)

66% Overall 92% 92% 8% 0% 0% 0% Shaking head 42% 58% 42% 0% 0% 0% Nodding 63% 15% 0% 63% 4% 21% Raising hand 83% 0% 0% 0% 83% 17% Get up 50% 0% 0% 17% 33% 50% Sit down Score Shaking head Nodding Raising hand Get up Sit down

Recognition Performance PETS

SLIDE 15

M4 meeting@Delft 25-26.09.2003 Martin Zobl 15/18 Institute for Human-Machine Communication Munich University of Technology

Classification results in an acceptable recognition performance,

considering: – The limited amount of available training examples – Large variations between artificial training and test material, as for example size and view direction

Performance Discussion PETS

SLIDE 16

M4 meeting@Delft 25-26.09.2003 Martin Zobl 16/18 Institute for Human-Machine Communication Munich University of Technology

m4 training data (TRN 01-30) m4 test data (TST 01-30), HMMs (9 states, 3 mixtures)

3 32 30 225 Nodding 42% 1 4 18 Shaking head 82% Overall 96% 69 Pointing 86% 25 471 22 Writing 78% 8 5 48 3 1 Nodding 86% 1 12 1 Stand up 90% 1 9 Sit down Score Pointing Writing Shaking head Stand up Sit down

Recognition Performance m4

SLIDE 17

M4 meeting@Delft 25-26.09.2003 Martin Zobl 17/18 Institute for Human-Machine Communication Munich University of Technology

– Improved recognition performance due to real training data – Dramatically varying action lengths – Singular action region initialization not sufficient

Performance Discussion m4

SLIDE 18

M4 meeting@Delft 25-26.09.2003 Martin Zobl 18/18 Institute for Human-Machine Communication Munich University of Technology

Head orientation tracking
Improving featurestream by smoothing with action-

specialized Kalman-Filters

Action detection on m4 data
Connection to Meeting Segmentation / Multimodal

Recognizer Outlook
