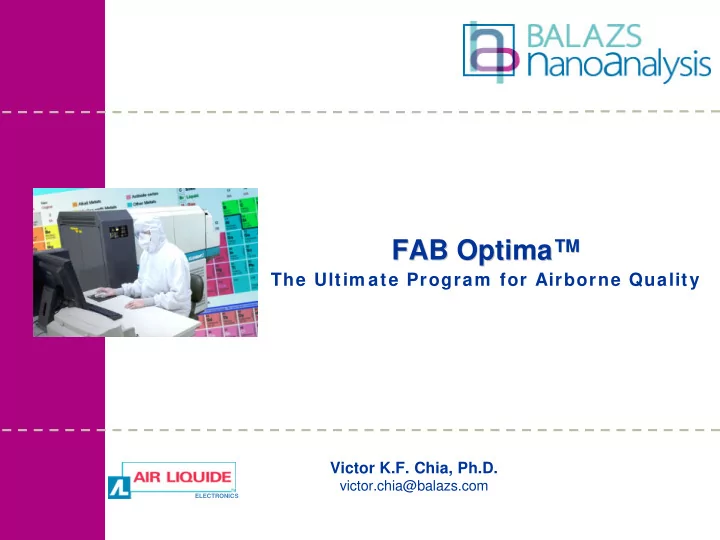

FAB Optima FAB Optima™ ™

The Ultim ate Program for Airborne Quality

Victor K.F. Chia, Ph.D.

victor.chia@balazs.com

Victor K.F. Chia, Ph.D.

victor.chia@balazs.com

slide-2
SLIDE 2

Reducing Contamination

Abstract

Fab Optim a TM: The Ultim ate Program for Airborne Quality

The Fab airborne quality is an essential building block for clean m anufacturing. The construction materials and all materials within the cleanrooms affect the fab airborne quality. Fab Optima is a Quality Control process that ensures the facility is capable of supporting clean m anufacturing for increased production yields. This can only be achieved through collaboration between facility engineers, contam ination control engineers and process engineers working in concert to lower the risk of contam ination that often results in fab and tool escalations. This presentation reviews the key components of the program with examples of m onitoring program s, Recom m ended Practices and test results.

Speaker Biography: Victor Chia is a Director of Air Liquide-Balazs Analytical

  • Services. His responsibilities include advancing surface contamination

technologies at Balazs, global sales and international business development. Victor has served in the sem iconductor industry for over 20 years. He received his Ph.D. in Analytical Chemistry from the University of California, Santa Barbara and was a post-doctoral fellow at Lawrence Berkeley Laboratory. Victor has hands-on experience with AAS, Raman Spectroscopy and SI MS. He is the current chair of the I EST WG-031 for organic outgassing and is active with AVS at the National and Chapter level committees, as well as the standard committee of the I TRS. Victor has held positions at KLA-Tencor (Contamination Specialist) and at Charles Evans and Associates (11 years starting as SI MS analyst to Director). Dr. Chia was also the President of Cascade USA, a branch of Cascade Scientific and worked as a Consultant. Victor has published over 40 papers and co-authored several chapters on SIMS and contamination characterization. Victor is an experienced instructor and has presented several UC Berkeley Ext ension Courses.

Escalation Partitioning Test Contam ination I dentification Verify Root Cause

slide-3
SLIDE 3

Reducing Contamination

Outline

  • Introduction
  • AMC baseline, source and control
  • MA, MB, MC, MD, MM
  • Test methods
  • SMC baseline, source and control
  • SMO, SMD.SMM
  • Fab OptimaTM (Optimization for Manufacturing)
  • StarALert programs for clean manufacturing
  • Personal behavior
  • Cleanroom practice
  • Cleanroom supplies
  • Cleanroom housekeeping
  • Cleanroom cleanliness validation
  • Cleanroom m onitoring program
  • Case studies
slide-4
SLIDE 4

Reducing Contamination

Airborne Molecular Contam ination ( AMC)

MA Molecular Acids

HCl, HF, HNO3, H2SO4

MB Molecular Bases

Ammonia, amines, amides

MC Molecular Condensables

Organics: silicones, plasticizers (bp > 150°C)

MD Molecular Dopants

B, P, As compounds

MM Molecular Metals

Al, transition metals, alkali Volatility (vapor pressure)

AMC can pass through HEPA and ULPA filters into cleanrooms

Boiling points

Typically, < ~ 450oC organics can eventually pass through ULPA or gas filters

AMC can become SMC (Surface Molecular Contamination)

SMC can form many particles I f > monolayer, SMC can m ake film s, hom ogeneous or islands SMC is often < ML ( ~ 5Å) or approximately 1015 atom s or ions/ cm 2

slide-5
SLIDE 5

Reducing Contamination

AMC Sources AMC Effects

  • Outside air: autos, power plants, smog,

industry, roofing, paving, fertilizers, pesticides, farming, sewers, fab exhaust,

  • cean/ saline water
  • Process chemicals (esp. hot), reaction by-

products, reactor exhaust

  • Wet cleaning, wet- and dry-etching,

electroplating baths

  • Solvents: lithography, cleaning solutions
  • People: ammonia, sulfides, organics
  • Equipment outgassing: robots, motors,

pumps, fans, electronics, computers, heaters

  • Materials outgassing into air or onto

sealed products

  • Disasters, internal or external:

Spills, leaks (coolants), accidents,

fires, power outages

Failures of air handlers and scrubbers

  • Recirculating air between areas
  • FOUPs, Pods, shippers, carriers,

minienvironments

  • DUV photoresist T-topping
  • Uncontrolled boron or phosphorus doping
  • Surface issues: adhesion, wafer bonding,

delamination, electrical conductivity, high contact resistance, shorts, leakage currents, wetting, cleaning, etch rate shifts, spotting, particle removal, electroplating defects

  • Wafer hazing: time dependent haze
  • Optics hazing: hazing by adsorption,

reactions, etching or photochemistry on lenses, lasers, steppers, masks, reticles, pellicles - especially for 157 and 193 nm lithograpghy

  • Corrosion: process wafers (Al, Cu), flat

panel displays, equipment, instruments, wiring and facility (over many years)

  • SiC/ Si 3N4 formation following pre-
  • xidation clean
  • Threshold voltage shifts
  • Nucleation irregularities
slide-6
SLIDE 6

Reducing Contamination

AMC and SMC Sam pling/ Test Methods

SMC- SMA: W afer - UPW extraction/ I C SMC- SMB: W afer - UPW extraction/ I C SMC- SMOrg: W afer - FW TD- GC- MS SMC- SMD: W afer - VPD I CP- MS SMC- SMM: W afer - VPD I CP- MS & TXRF

Pump/Adsorbent

Fused Silica (8h sampling)

Air Bubbler Witness Wafer

AMC-MA: Anion - air sampler/IC AMC-MB: Amines/ammonia - air sampler/IC AMC-MD: Phosphate ions - air sampler/IC AMC-MD: B and P - air sampler/ICP-MS AMC-MM: Metals - air sampler/ICP-MS AMC-MD: B and P - wafer/VPD ICP-MS AMC-MM: Metals - wafer/VPD ICP-MS AMC-MC: Amides and organic compounds - absorbent tube and TD GC-MS

slide-7
SLIDE 7

Reducing Contamination

AMC Monitoring ( I )

Incoming wafers

Organics, condensables, dopants, and metals on the wafer surface

New cleanroom materials (contruction and consumables)

Organic outgas testing (including organophosphate dopants)

Make-up air (MUA)

Organics, acids, and bases prior to recirculation to check for

  • utside environm ental sources

Stockers, mini-environments, wafer sort and storage areas

Acids and am m onium in air (am ines if used in the fab) Organics and dopants on wafers

slide-8
SLIDE 8

Reducing Contamination

AMC Monitoring ( I I )

Pre-diffusion, oxidation furnace, implant annealing process

areas

Dopants, metals, and alkali on witness wafers Acids in air (cause corrosion)

Lithography process areas

Air and gases including CDA, N2, Ar, O2 and He

  • Acids, bases, and condensables
  • Up-stream and down-stream of carbon filters/ purifiers

Wet bench and bath areas

Bases, am ines, am ides and organics in air Acids and am m onium in air (am ines if in photoresist strippers)

Cl-induced corrosion of Al at the bottoms

  • f vias.
slide-9
SLIDE 9

Reducing Contamination

Molecular Acids ( AMC- MA)

NOx dominant MA and is

not removed by filters. Not as detrimental as other

  • acids. NOx compounds
  • ften “smog” related

Most acids are from SC-2,

HF, BOE, SPM), RIE, CVD, dopants (POCl3)

PO4

3- very rare since

phosphoric acid not

  • volatile. POCl3 leaks can

put P into air.

SO4

2- can come from inside

air or outside air (SO2) which can oxidize to sulfates

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

% of sites within range

< 100 100 to 1000 >1000

Range (pptM)

Baselining Molecular Acids in Cleanroom Air Typical US SEMI Cleanrooms

Br- Cl- NO3(-) NO2(-) PO4(3-) SO4(2-)

slide-10
SLIDE 10

Reducing Contamination

Sources of Molecular Acids

Cleaning and acid etch baths (process lines and wet laboratories in fabs)

Vaporization of H2

+ SO4 2-, H+ Cl-, H+ F-, H3 + PO4 3-, and H+ NO3

  • Problems occur when there is insufficient exhaust

I m proper airflow setting of minienvironment used for acid sinks Typical cleanroom H2SO4 concentrations are < 1 ppb

Leaks in HCl lines Outside environment

Fab m ay be situated in a heavily industrialized area MUAH systems with insufficient filtering

slide-11
SLIDE 11

Reducing Contamination

I onic Haze - Background

Dominion Semiconductor was the first to report yield loss from

ammonium sulfate haze around 1997, when the company lost some $25M in one day

Since then, essentially every semiconductor fab has experienced

some form of haze contamination

In some cases, the loss actually outstripped revenue, with the

largest loss reported to date being $100M

The worst effects have been seen in Taiwan and Shanghai, China,

where environmental factors figure prominently

In addition to ionic haze, the surfactants that maskmakers use to

clean the photomasks are a significant cause of haze

slide-12
SLIDE 12

Reducing Contamination

I onic Haze

The causes of haze are generally from

insufficient rinsing and AMC

Stable Haze

Haze form ation caused by a high concentration ( ≥ 1014 - 1015 atom s/ cm2)

  • f any anions and cations on the Si
  • surface. For exam ple am m onium chloride
  • r am m onium sulfate residues.

This haze is stable since there are equivalent am ounts of anions & cations The suspected causes are from poor rinsing of wafers after chemical cleans and inadequate exhaust at wet benches

L.W. Shrive, R.E. Bank, and K.H. Lamb, MICRO, p. 59, March 2001 Experim ent

  • Different volum es of water was added

to wafer carriers containing freshly cleaned wafers

  • The total area of the wafers that is

affected by haze can be related to the am ount of water added

  • Oxide thickness increased from 0.8 -

1.1 nm (clean wafer) to a chemical

  • xide thickness of 1.5 nm

Ammonium sulfate haze Wafer maps at MEMC showed that packaging issues were causing the growth of haze on wafers placed in storage. In this case, a rough estimate puts particle density at more than a million defects per square centimeter.

slide-13
SLIDE 13

Reducing Contamination

I onic Haze ( cont’d)

Time dependent haze (TDH)

These hazes are difficult to identify as they appear and disappear with time I t is due to excess NH4

+ ions on a Si wafer;

anions concentration do not balance the concentration of NH4

+ ions detected

The excess NH4

+ ions are probably present as

a condensed film of NH4OH or a solution NH3 in H2O The haze is not stable since NH4OH is extremely volatile and appears/ disappears depending on the tem perature and hum idity of the Si wafer environm ent

Optical and SEM images show ammonium carbonate haze formation.

Time-dependent haze (TDH), also known as degradation haze, is formed in the following way:

  • The wafer is contaminated with water-soluble ions and organic molecules (other organic

molecules also deposit on the wafer, making it more hydrophobic).

  • A change in humidity causes water to condense on the wafer surface.
  • The surface water dissolves the water-soluble contaminants
  • The hydrophobic surface causes the water to form microscopic droplets.
  • The micro-droplets evaporate and leave residual TDH defects.
  • Without humidity, micro-contamination does not develop into haze. So one thing MEMC did

was to implement measures to get the moisture out of its manufacturing

Ion Chromatography (IC)

Silicon Wafer + + + + +

  • - - - -

Anions Cations

slide-14
SLIDE 14

Reducing Contamination

I onic Haze ( cont’d)

Fluoride haze

High concentrations of fluoride ions can cause uneven etching of the native oxide and give the appearance of a haze Potential contamination sources of F- ions are wafer carriers and boxes; either through direct contact or outgassed F- ions, from DI water or process chem icals with high F- ions concentration, and from F- ions leached from flouropolym er components

FE-AES, SARIS, SEM-EDS, XPS

Silicon Wafer Particles Silicon Wafer Pits Surface Roughness

AFM

slide-15
SLIDE 15

Reducing Contamination

Passive I m pinger

Low Cost alternative ($30 for PFA Teflon Pot) to active impingers Impingers are filled with UPW that has undergone additional polishing with a Millipore Element system No acids or solvents are used as the collection media Impingers are placed in each process bay and left for 1 week period After 1 week PIs are collected, weighed and analyzed via ion chromatography (IC)

PFA teflon passive impinger

Luke Lovejoy, Motorola, 2nd Annual SCCCM Conference, San Marcos, TX, 2003

slide-16
SLIDE 16

Reducing Contamination

AMC- MA/ MB/ MM Using UPW I m pinger

Passive Impinger Data

(100) 900 1,900 2,900 3,900 4,900 5,900 6,900 12/10/0 2 1/29/03 3/20/03 5/9/03 6/28/03 8/17/03 10/6/03 Date Normalized ng/50cm2/weel 10000 20000 30000 40000 50000 60000 Normalized (Fluoride) ng/50cm2/week Chloride Bromide Nitrate Phosphate Sulfate Lithium Sodium Ammonium Potassium Magnesium Calcium Fluoride

Luke Lovejoy, Motorola, 2nd Annual SCCCM Conference, San Marcos, TX, 2003

slide-17
SLIDE 17

Reducing Contamination

Controlling Molecular Acids

Improved balancing of wet benches, reactors, exhaust Exhaust scrubbing, dilute chemistries, closed area cleans Gas phase adsorbers (e.g. Na2CO3, KOH, IX resins)

For outside air ( NOx, SOx) For recirculation air (to rem ove process acids)

Isolation of processes (from cross-contamination)

slide-18
SLIDE 18

Reducing Contamination

Molecular Bases ( AMC- MB)

Amines are seldom

  • bserved, unless used (e.g.

photoresist stripper, humidifiers)

Ammonia still remains the

dominant base in fabs

Amides as NMP sometimes

seen if used

“Water spotting” has been

  • bserved to result from

excessive base ambient

Probably results from caustic etching causing increased microroughness from sodium silicate formation

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

% of sites in each range

< 100 100 to 750 750 to 10,000 10,000 to 100,000 100,000 to 2,000,000

Range (pptM)

NH3 (as NH4+ by IC) Amines by IC NMP by GC-MS

Baselining Molecular Acids in Cleanroom Air Typical US SEMI Cleanrooms

slide-19
SLIDE 19

Reducing Contamination

Sources of Molecular Bases

Ammonia (NH3)

HMDS, CMP slurries/ wafer polishing, wafer cleaning (SC-1, APM), Si3N4 and TiN deposition, people, outside air (especially fertilizer, sewers, farms)

Amines (NR3)

Photoresist strippers Cleaning solutions Anion exchange resin regeneration (Me3N) epoxies Air humidifiers (corrosion inhibitors)

Amides (R-C= O(-NR2)

Photoresist strippers Solvents for polymers, including polyimides, epoxy High-tem perature solvent baths Paints and paint rem overs (NMP, 1-methyl-2-pyrrolidine)

slide-20
SLIDE 20

Reducing Contamination

Controlling Molecular Bases

Source reduction

I m proved venting of baths and scrubbing of exhaust

Amine/ base removal

Appropriate gas phase or carbon adsorber cells (m olecular filters) in lithography area. Such as, citric acid, phosphoric acid, acidic polym ers and Activated Carbon to remove NMP & high boiling organics Need to test kinetics (breakthrough), capacity (lifetime), shedding (contamination)

Isolation

Purge tracks and minienvironments (MENV) with base filters or purified gases

Modify process

Shorter process windows prior to resist coat and post exposure Pre-exposure bakes to densify/ harden resist and reduce base penetration or diffusion

slide-21
SLIDE 21

Reducing Contamination

Molecular Condensable ( AMC- MC)

TXIB, bp 280 oC

(Texanol isobutyrate)

Plasticizers

(Dioctyl phthalate)

O O O O

O O O O

DOP, bp 384 oC Antioxidants

(Butylated hydroxytoluene)

BHT, bp 233 oC

Si O O Si Si O O Si Si O

Silicones / Siloxanes

PDMS

Poly(dimethyl silicone)

Decamethylpentasiloxane bp 211oC CH3 CH3 CH3 CH3-Si-O-Si-O-Si-CH3 CH3 CH3 CH3

Phosphates

P O O O O

TEP, bp 215oC

(Triethyl phosphate)

slide-22
SLIDE 22

Reducing Contamination

Molecular Condensables in Air and W afers

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

% of sites in each range

<172 172 to 750 750 to 10,000 10,000 to 100,000

Range (pptM)

Shipping blank Dibutyl phthalate TXIB NMP Organophosphorus cpds Siloxanes (Cyclic 3-7) Hexamethyl-disiloxane PGMEA

Baselining Molecular Condensable in Cleanroom Air Typical US SEMI Cleanrooms

10 20 30 40 50 60 70 80 90 100

% of sites within each range

< 0.1 or DL 0.1-1.0 1.0-10.0 10.0-20.0

Ranges (ng/cm2)

Shipping Blank Dibutyl phthalate TXIB NMP Organophosphorus cpds Siloxanes Dioctyl phthalate (DOP)

Molecular Condensable on Wafers

slide-23
SLIDE 23

Reducing Contamination

Sources of Molecular Condensables

Plasticizers, such as DOP and TXIB, are used in flooring material,

vinyl curtains, flexible duct connectors, wafer carriers

TXI B, chemical name is trimethylpentanediol diisobutyrate. TXI B is a Eastm an tradem ark and is a com m on plasticizer found in PVC (polyvinyl chloride)

Anti-oxidants, such as BHT ( butylated hydroxytoluene) for

polymers are used in adhesives, wafer carriers, and PVC polymers

Phosphates, such as TEP ( triehtyl phosphate) is a fire retardant

used in construction materials and sealants of HEPA filters

NMP, N-methylpyrrolidone

is a common paint thinner

Silicone, such as PDMS ( polydimethylsiloxane) is a releasing agent

used in silicon-based gels and machine lubricant

slide-24
SLIDE 24

Reducing Contamination

Organic AMC Air Sam pler

Flow range: 5 - 200 cc/ minute Full flow regulation. A constant voltage is applied to pump as

battery voltage drops

Accommodates 6mm diameter (single and double) and 8mm

diameter charcoal Tenax tubes, Perkin-Elmer adsorber tubes, and

  • ther absorber tubes

PAS-500 micro air sampler

slide-25
SLIDE 25

Reducing Contamination

Material Outgassing

Any cleanroom material has the

potential to outgas organic compounds

Assembled products requiring bonding

should be tested in both raw and assembled form

Vinyl floor covering bonded to

aluminum tile with an adhesive

  • Coatings
  • Paints
  • Wall coverings
  • Sealants
  • Caulking and curing agents
  • Adhesives
  • Tapes
  • Gel seals (potting agents)
  • Floor covering
  • Cables
  • Pipes, bearings, solder/ fluxes
  • Tubing (flexible membranes and hoses)
  • Labels
  • Gaskets
  • O-rings
  • Plastic curtains
  • Packaging
  • Light fixtures
  • Insulation (thermal, electrical,

acoustic)

  • Cleanroom materials
  • Wafer carriers
  • Filter systems (high efficiency

particulate air and ULPA)

slide-26
SLIDE 26

Reducing Contamination

Material Outgassing Test Standards

Dynamic Headspace GC-MS (IEST WG CC31)

Method for semi-qualitative analysis of outgassed com pounds from cleanroom m aterials and com ponents

IDEMA M11-99 DHS GC-MS method

Approved for disk drives and used for cleanrooms Good for detecting high boiling compounds outgassed from cleanroom components, disposables

ASTM F1982-99: Analysis for organics

  • n a silicon wafer by TD-GC-MS

Outgassing onto a substrate of interest SEMI E46: Outgassing of pods onto wafers, then IMS analysis SEMI E108: Outgassing onto wafer method, GC-MS analysis by ASTM 1982-99

Assorted materials for outgasssing characterization

Dynamic Headspace GC-MS (IEST WG CC31)

Method for semi-qualitative analysis of outgassed com pounds from cleanroom m aterials and com ponents

slide-27
SLIDE 27

Reducing Contamination

I EST W G CC3 1

GC with temperature

programming

50o, 75o, 100o, or 150o C for 30 minutes Helium carrier gas flow rate 3 mL/ m in

MS with mass detector range

33-550 amu

GC column

Non-polar fused silica open tubular capillary column with a film of poly(dimethylsiloxane) HP-1, DB- 1, DB-5 (1-10mg/ g

  • min. sens.); HP-5 MS (1-10

ng/ g m in. sens.) 30 meter length

Victor Chia and Jim Ohlsen, IEST WG-CC031.1, ESTECH 2006

slide-28
SLIDE 28

Reducing Contamination

Therm al Desorption Gas Chrom atography Mass Spectrom etry ( TD- GCMS)

_ _ _

Carrier Gas Inlet Hot Sample Tube (400OC) Cold Trap Carrier Gas Inlet GC Analytical Column To Mass Detector

Primary (Tube) Desorption

Desorb Flow In-instrument outgassing

Tenax tube For medium to high outgassing material

Off-line outgassing

Quartz tube Larger sam ple to increase detection lim it For low outgassing material

slide-29
SLIDE 29

Reducing Contamination

PEEK Outgassing Results

Outgassing increases with increasing outgassing temperature from

150o - 250oC

Mass spectral libraries

John Wiley NBSK Jossey-Bank Analytical Chem istry Handbook Atlas of Spectral Data and Physical Constants for Organic Com pounds

5 10 15 20 150C 200C 225C 250C Outgassing Temperature (deg. C) ug/g

0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 1000000 2000000 3000000 4000000 5000000 6000000 7000000 Time--> Abundance TIC: 0131PK1B.D difluorobenzophenone phenol diphenylsulfone

Jim Ohlsen , Entegris

slide-30
SLIDE 30

Reducing Contamination

Controlling Molecular Condensables

Lim it Outgassing

Sealants, paints, coatings, adhesives, epoxies, urethanes,

elastomers, gaskets

Plastics: vinyls, PP, PE, PVC, fluoropolymers, mold releases Insulation, flooring, curtains, hoses, pipes, tubing, o-rings, walls,

ducts, ceiling tiles, light fixtures, containers

ULPA and HEPA filter systems: potting compounds and gel seals

DOP DBP Total BHT

Box of Carrier (PP) Lid of Carrier (PC)

10 102 103 104 105 106

Amount of Outgas (ppbw)

Kikuo Takeda et al, Proceedings of the IEST, p. 556, 1998

DOP DBP Total

Wafer shippers, carriers, FOUPs, Pods,

compacts, cassettes, minienvironments

Integrated products: Instruments,

computer terminals, chairs, process tools, people, motors, bearings, heaters, lubricants

Consumables: garments, gloves, masks,

wipes, booties, adhesives, tapes, bags, tacky mats, cleaners

slide-31
SLIDE 31

Reducing Contamination

Careful Selection of Material Reduces AMC

2 4 6 8 10 12 0.0% 10.0% 20.0% 30.0% 40.0% 50.0% 60.0% 70.0%

Cleanroom glove “A” was banned from this point Organics (arb. Units per wafer) Date % Plasticizer Contaminant in Cleanroom

MEMC AMC Control

slide-32
SLIDE 32

Reducing Contamination

Molecular Dopants ( AMC-MD)

Many fabs have B much above

roadmap and DLs of test methods

High B in air or on wafers may

be acceptable for back-end-of- line process

High B in cleanroom air is

acceptable for FEOL processes if

Wafer is cleaned prior to processing Wafer is not exposed to air (e.g. N2 purge box, cluster tools)

0% 20% 40% 60% 80% 100%

% of sites in erach range

< 100 100 to 1000 >1000

Range (pptM)

Molecular Dopants, B in air

(ITRS 2003 MD limit 10 pptM) Trapped in bubbler, analysis by ICP-MS B

slide-33
SLIDE 33

Reducing Contamination

Sources of Molecular Boron

Degradation of HEPA/ ULPA filter media

Typically borosilicate glass. Reacts with HF (alcohols, moisture) to form volatile B com pounds, such as BF3 (bp 100 oC), B(OiPr) 3 (bp 140 oC) Particulates also em itted, includes Ti, Zn, Al, Ca, Mg, Na, Si, B, K, and Ba

Process chemicals

CVD, B2H6, TMB ( trimethyl borate), kilograms used Reactive ion etching exhaust (BF3, BCl3, BBr3) I on implantation dopants (BF3), gram s used

Wafers exposed to ambient boron, such as boric acid, at a

concentration level of 118 pptM or ~ 300 ng/ m 3 will result in

Approximately 3.7x1011 atom s/ cm2 for a 15 minute exposure Approxim ately 1x1013 atom s/ cm2 after 24 hours exposure

slide-34
SLIDE 34

Reducing Contamination

Sources of Molecular Phosphorus

Phosphorus dopants used for CVD, ion implantation, and maybe

RIE by-products

PH3 and POF3 POCl3 (dopant for poly- Si) Trimethyl phosphate or trimethyl phosphite (CVD for PSG, BPSG)

Common flame retardants, such as TEP ( triethylphosphate) and

Fyrol PCF [ tri( β-chloroisopropyl) phosphate] , plasticizers (especially urethanes and may be used in some carriers), lubricants, and hydraulic fluids

Wafer correlation

For example, 0.1 pptM of airborne organophosphate correlates to about 2.5 - 5x1010 P atoms/ cm 2, based on a 4 hour sit tim e 5 - 50 pptM of airborne organophosphate results in a wafer doping level of 1x1018 P atom s/ cm 2, following < 1 hour exposure time

slide-35
SLIDE 35

Reducing Contamination

Controlling Molecular Dopants

Convert to using borosilicate filters Control HF in air Use boron-free ULPA (Ultra Low Penetration Air) filters

Use PTFE filters Use B-free fused silica

Install additional HF- or B-removal filters Add gas phase adsorbers for makeup or recirculation Avoid or minimize wafer exposure to air by using cluster tools and nitrogen environments

slide-36
SLIDE 36

Reducing Contamination

Molecular Metals ( AMC- MM)

Metals in air may be molecular in some cases,

AlCl3 (bp 183 oC) WF6 (bp 18 oC, used for W plugs)

In the future, more metal problems are likely

Organometallics (organo- Cu, Al, Ti, Ga, As, Ge, In, Ba, Sr, Ta, Zr, Hf, Bi, Nb, La) and hydrides for MOCVD are volatile Som e etch by-products m ay also be volatile Cu in air: I TRS 2003 lim it is 0.15 pptM for wafer environm ent

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % of sites in each range < 1or <DL 1 to 10 10 to 100 Range (pptM)

Metals Trapped From Air

(typically particles. Via bubbler & ICP-MS, selected elements only: Ca, Fe, K sometimes higher)

Al Co Cr Cu Pb Mg Mn Mo Ni Na Sn Ti V Zn Zr

slide-37
SLIDE 37

Reducing Contamination

Accelerated Oxide Grow th

Experiments by Ohm ni has shown that 100 ppb Al residue on a

wafer surface after a SC1 (or APM) (NH4OH : H2O2 : DIW) cleaning process can accelerate oxidation of bare silicon wafers

Oxidation Time (min)

20 40 60 50 30 10 1 2 3 4 5

Oxide Thickness (nm)

On Si On SiO2 (4 nm) On SiO2 (7 nm) Anneal at 820

OC

  • T. Ohmori, N. Yokoi, and K. Sato, UCPSS, p. 25, 1996
slide-38
SLIDE 38

Reducing Contamination

Sources of Molecular Metals

Most metals still originate as particulates

From tools, floors, spills, ECP, CMP, ULPA leaks, corrosion, robotics Metals m ay transport via air or surface contact I n the future, more metals/ oxides may be used for contacts, salicides, electrodes, gates. Hence, greater awareness to Co, Ni, Ru, RuO2, Pt, Ir, Hf, Zr, Gd, Sc, and La

Degradation of air ducts

Corrosion of passivated (chrom ium oxide film s) stainless steel by HCl resulting in em ission of Fe, Cr, and Ni into the airstream Corrosion of galvanized (Zn coated) stainless steel by H2SO4 resulting in Zn and Fe em ission in airstream

slide-39
SLIDE 39

Reducing Contamination

I TRS adds SMC lim its in 2 0 0 3

W hy there is a shifting em phasis from AMC to SMC?

200- and 300-mm wafers have less exposure to air

Wafers spend less tim e in lam inar flow or cleanroom air Fewer open cassettes - still some exposure to air in tools Wafers mostly enclosed in FOUP’s, pods, minienvironments

Outgassing or carryover of contaminants in FOUPs/ Pods an issue

But AMC (MC, MD) levels not well correlated between SMC on wafers and process effects

Cleanroom AMC testing still critical for Litho (MA, MB and MC) Contact transfer of contaminants to wafer surfaces a major

concern

Especially for acids, bases, organics and Cu (copper metallization)

Need identical SMC analysis methods (as for AMC) to characterize

what adsorbs onto the wafer from the air, storage or process steps, and control all contaminants within process specifications

slide-40
SLIDE 40

Reducing Contamination

I TRS SMC Deposition Lim its

  • 3 new SMC classifications

Tests: Si witness wafers exposed 24 hr

Closed FOUP, Pod Minienvironment, or flowing air Can also com pare with process SMC Test 2 0 0 5 SMC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ SMC Organics, “ SMOrg” 2 ng/ cm 2 (for 2005-2009) ˜ 0.1 monolayer 1E14 C atom s/ cm 2 ˜ 0.1 ML SMC Dopants, SMD 2E12 atoms/ cm 2 ˜ 0.001 ML 1E12/ cm 2 for 2006-9 SMC Metals, SMM 2E10 atoms/ cm 2 to 2008 ˜ 0.00001 ML 1E10 atom s/ cm 2 for > 2009 Same tests to compare FOUP’s, Pods, m inienvironm ents, air or process! 1 organic/ polymer monolayer is =1E15 atom s/ cm 2 on bare Si < 100>

slide-41
SLIDE 41

Reducing Contamination

I TRS Surface Preparation Requirem ents

The surface concentration of carbon atoms after cleaning is based

  • n the assumption that a 10% (7.3x1013 atoms/ cm 2) carbon atom

coverage on a bare silicon < 100> surface can be tolerated during device fabrication

Surface organic levels are highly dependent on wafer packaging,

  • n hydrophobic or hydrophilic wafer surface conditions, and on

wafer storage conditions such as temperature, time and ambient YEAR OF PRODUCTION 2007 2008 2009 2010 2011 2012 2013

65nm 57nm 50nm 45mm 40nm 36nm 32nm Surface carbon (1013 at/cm2) 1.2 1.0 0.9 0.9 0.9 0.9 0.9

slide-42
SLIDE 42

Reducing Contamination

SMC Sam pling and Analysis Methods

Analyte Sample Collection Sample Analysis Dopants (B, P, As, Sb) Exposed Witness Wafers for 24 Hours Drop Scan & ICP-MS Analysis Trace Metals VPD - ICP-MS Organics, SMOrgs Full Wafer Thermal Desorption- GC-MS, SEMI MF1982-1103 Exposed Witness Wafers for 24 Hours Exposed Witness Wafers for 24 Hours

ICP-MS: Inductively coupled plasma-mass spectrometry

Detection limits well below the ITRS limits; start with clean wafers! Need to apply these new ITRS SMC tests since they solve problems! Test size wafer up to 300 mm Other tests also available and can be helpful in some cases:

Sm aller spots, m apping, particle I D: TOF- SI MS, TXRF, SI MS, FTI R, Raman, Auger Trending SMC weight on surface: SAW (Surface Acoustic Wave)

slide-43
SLIDE 43

Reducing Contamination

Full W afer TD- GCMC for SMC-SMOrg

SEMI MF1 9 8 2 - 1 1 0 3

The whole wafer is heated in a quartz

chamber to ≤700oC and the organic compounds outgassing from the selected side are collected and analyzed by GC-MS

Recommended fab areas/ locations to

place witness wafers are make-up air, stockers, minienvironments, wafer sort and storage areas, wet benches, pre-diffusion, oxidation furnace and implant anneal areas, and lithography

ITRS guidelines for 2005- 2009

2 ng/ cm 2 for 24 h exposure and reducing to 0.5 ng/ cm2 2 ng/ cm 2 is approx 0.1 monolayer)

100000 200000 300000 400000 500000 600000 700000 800000 900000 1000000 1100000 1200000 1300000 1400000 1500000 1600000

TOLUENE-d8 (INTERNAL STANDARD)

cyclo(Me2SiO)3 cyclo(Me2SiO)4 cyclo(Me2SiO)5 cyclo(Me2SiO) 6

LINEAR SILOXANE Si 6 cyclo(Me 2SiO)7 LINEAR SILOXANE Si 7 cyclo(Me 2SiO)8

cyclo(Me2SiO)

9

cyclo(Me2SiO) 10 cyclo(Me2SiO)11

LINEAR SILOXANE Si 8 cyclo(Me 2SiO)12 HIGH-BOILING HYDROCARBONS

GL Science SWA 256, Balazs Analytical Services

slide-44
SLIDE 44

Reducing Contamination

Vapor Phase Decom position I CP- MS ( VPD I CP- MS)

VPD ICP-MS is widely used because of

its merit of detection limit and capability to provide full wafer surface and local analysis

It is a survey method and provides

detection sensitivity at the 107-10 10 atoms/ cm 2 range

The scanning droplet may

alternatively be analyzed by TXRF, referred to as VPD TXRF

Technical Sum m ary

  • Li to U
  • Survey method
  • 107 - 1011 at/ cm2
  • Quantitative
  • Native oxide
  • Whole wafer

Total wafer surface

  • 300 mm wafers

Technical Sum m ary

  • Li to U
  • Survey method
  • 107 - 1011 at/ cm2
  • Quantitative
  • Native oxide
  • Whole wafer

Total wafer surface

  • 300 mm wafers

Lovejoy, Motorola, 1st Annual SCCCM Conference, San Marcos, TX, 2002

slide-45
SLIDE 45

Reducing Contamination

Advanced VPD Methods

Radial Analysis

Scan concentric bands Reactor (CVD, ech tools) and wafer stage evaluation

Bevel/ Edge Analysis

Scan bevel or edge of the wafer Edge grip chuck, CMP, wafer carrier

Quadrant Analysis

Specific quadrant on the wafer Tool configuration optim ization

Advanced VPD laboratory 300 mm handling in a Class 10 environment at Balazs VPD can analyze bare, oxide, Si 3N4, TanOx, BPSG, SiOC, HfSiO, and Al2O3 Advanced VPD scanning for localized information

Zone 1 Zone 2 Zone 3 Zone 4 Zone 1 Zone 2 Zone 3 Zone 4

slide-46
SLIDE 46

Reducing Contamination

SMC- SMOrg ( Organic)

Comprised of

  • Esp. organics with boiling points 250 – 450oC (or NVR’s)

Silicones, phthalates, antioxidants, hydrocarbons, organophosphates…

AMC to SMC sources

Outside air and air handling system components Outgassing (thousands of materials have been tested)

  • Standardized test, IEST RP-031
  • Should test existing compounds or materials
  • Also: new compounds/ materials, or new uses
  • Esp. Foups, pods, mask compacts, minienvironments, ULPA’s, floors,

sealants, walls

Liquid sources include process chemicals, solvents, UPW or additives to

slurries, rinses

Impurity residues for strippers, edge bead removers, IPA, MeOH

Contact transfer sources

To wafer edges from FOUPs, Pods, shippers, chucks, wafer holders, boxes Installation and maintenance cleaning via gloves, wipes, swabs Shipping bags for parts

slide-47
SLIDE 47

Reducing Contamination

SMC- SMOrg ( Organic)

10 20 30 40 50 60 70 80 90 100

% SAMPLING SITES IN EACH RANGE

0.1-1.0 1.0-10.0 10.0-20.0 20.0-30.0 >30 AMOUNTS (ng/cm2)

Histogram: TYPICAL TOTAL ORGANICS (>C7) FROM WHOLE WITNESS WAFERS BY SEMI MF 1982-1103, METHOD B (TD-GC-MS), WAFER EXPOSURE: 24 HOURS

Sampling sites Shipping Control

Ellipsometry errors Increasing delamination of resists & other layers 20 ng/cm2 approx 1 ML

Possible GOI, SiN, polysilicon errors, depending on compound & process

slide-48
SLIDE 48

Reducing Contamination

SMC- SMOrg ( Organic)

10 20 30 40 50 60 70 80 90 100

% of sites within each range

< 0.1 or DL 0.1-1.0 1.0-10.0 10.0-20.0

Ranges (ng/cm2)

MC, Molecular Condensable on Wafers Shipping Blank Dibutyl phthalate TXIB NMP Organophosphorus compounds Siloxanes (Cyclic 3-11 & linear 3- 11) Dioctyl phthalate

Notes: PGMEA, HMDSO, not found from witness wafers Silicones, phosphates, TXI B, DBP, DOP found on wafers. Both air and wafer tests needed!

slide-49
SLIDE 49

Reducing Contamination

SMC- SMOrg: 3 0 0 m m W afer Exposure

Conclusion

Exposure to cleanroom air often

results in SMC > ITRS recommended concentration of 2 ng/ cm 2

Shippers provide excellent

protection from outside AMC

FOUP outgassing/ carryover

issues

Beware of hot wafers too!

10.00 4.00 6.00 8.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00

Int Std

500000 1000000 1500000 2000000 2500000 3000000 3500000 4000000

9 days cleanroom air, laminar flow hood 11 ng/ cm2 DBP’s

2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 500000 1000000 1500000 2000000 2500000 3000000 3500000 4000000 4500000

1 wafer 11 days in PC single-wafer shipper 0.5 ng/ cm2 < < ITRS

Int Std

1000000 1500000 2000000 2500000 3000000 3500000 4000000 4500000 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 500000

6days exposed in FOUP 4.5 ng/ cm2

Int Std

Caprolactam Di-t -BuBQ Diethyl phosphat e

Control wafer, < 0.1ng/ cm2

Int Std

slide-50
SLIDE 50

Reducing Contamination

0.5 1 1.5 2 2.5 3 3.5 4 5 10 15 Pumpdown in Days At % Surface Fluorine from XPS

Lubricant Decontam ination

Evaluate cleaning methods for

different lubricants

Brayco 815Z Brayco 600EF Brayco 1624 Krytox 16256 Kytox 1525

Outgas residue on wafer after

wiping using FW TD-GCMC

Precaution: gloves and wipes may contribute organics Use only high purity solvents

Evaluate tool cleanliness using

XPS

4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00

High boiling SMOrg residue

5.00 10.00 15.00 20.00 25.00 30.00

Intl std Intl std lubricant

wipe W ipe chem istry and protocol A W ipe chem istry and protocol B

slide-51
SLIDE 51

Reducing Contamination

W afer Proxim ity Test

Cleanroom material GelPak and membrane box Anti-static and “pink” bag Lubricant Paint Epoxy Tape Foam

Wafer above 3.5-years-old vinyl flooring, post cleaning, under glass cover

5.00 10.00 15.00 20.00 25.00 30.00 1000000 2000000 3000000 4000000 5000000 6000000 7000000 8000000 9000000 1e+07 1.1e+07 1.2e+07 1.3e+07 1.4e+07 1.5e+07 Time--> Abundance d8-TOLUENE (INTERNAL STANDARD) 2-(2-BUTOXY ETHOXY) ETHANOL TRIETHYLENE GLYCOL PHTHALIC ANHYDRIDE DODECANOIC ACID ALKYL ESTER C16- n-ALKENE ALKYL ESTER C18- n-ALKENEE UNKNOWN(m/z: 45, 88, 148, 227, 267) + HEXADECYLOXY ETHANOL BENZYL BUTYL PHTHALATE ALKYL ESTERS

Total organics by SEMI MF1982-1103

3 1 ng/ cm 2

slide-52
SLIDE 52

Reducing Contamination

SMC- SMD ( Dopant)

Comprised of:

Boron: contamination from HEPA filters has been one of the most common yield-im pacting effects of MD Phosphorus (including organo-phosphates)

  • Example of yield maps for P AMC to SMC

Arsenic Antimony

Sources

Outside air HEPA or ULPA filters (borosilicate glass) Reactive ion etch, I mplant, EPI & CVD exhaust Outgassing: Flam e retardants, plasticizers Cross contam ination via recirculation

Dopants mainly an issue for front end Si processes

MD affect: resistivity, Vt, Vfb, leakage currents

Airflow direction

Blue die: passed. Red die: n + -doped by P, failed.

slide-53
SLIDE 53

Reducing Contamination

SMC- SMD Using W itness W afer Monitoring

10 20 30 40 50 60 1 3 5 1 3 5

Wafers 1x1010 atoms/cm

2

P31 B11

(a) Wafers in an open cassette exposed in N2 glove box for 16 hr (b) Wafers in an open cassette exposed to cleanroom air for 1 hr (c) Wafers in an open cassette exposed to cleanroom air for 2 hr (d) Wafers in an open cassette exposed to cleanroom air for 18 hr Detection limits 3 x 1010 B/cm2 6 x 1010 P/cm2

Analysis by Drop Scan ICP-MS

1 3 5 1 3 5

slide-54
SLIDE 54

Reducing Contamination

SMC- SMM ( Metal)

Metals on surfaces for witness wafers and process wafers

Usually determ ined by VPD- ICP-MS

  • Average over whole wafer, per ITRS.
  • Front-side, backside, edge (2mm) or bevel: can test individually
  • Shows location of transfer, esp. from backside contact, edge residues,

FOUP/ Pod/ cassette contacts, robotics

Som etim es TXRF, < 1 cm spot

  • not sensitive for light elements (Li, Na,Mg, Al)

Sometimes TOF-SI MS

  • Can be hard to quantify: sometimes complex to interpret
  • Very localized: good for small defects, may not be representative

More issues coming - volatile CVD, high K, barriers, ALD Copper contamination from air, pods, also contact transfer Metal contamination often due to particles: seldom AMC

slide-55
SLIDE 55

Reducing Contamination

Fab Optim a™

AMC and SMC baseline

Manufacturing process floor Tool manufacturing floor

Optim ize perform ance by reducing

contam ination Particles Metals Anions ( Cl, F) and cations (NH4) Organics

Optim ize m aterials and com ponents

Material design and selection – material compatibility to function and cleanliness Packaging – bag, container Consumables - UPW, HP chem icals Gas – CDA, N2 People – clean manufacturing Fab Optim ization for Manufacturing

Certificate of Cleanliness ( CoC)

I ndependent analyses customized to meet cleanroom specifications

  • Fab or supplier sites (Gap Analysis)

Closed loop Total Quality

The FAB is the foundation for clean manufacturing

Closed loop T

  • t

a l Q u a l i t y

Fan Deck Process Deck Sub-Fab

slide-56
SLIDE 56

Reducing Contamination

Fab Optim a™

STRATEGY STRATEGY

Note: Do not make procedural changes before testing NOTES NOTES ACTIVITIES/ RESPONSIBILITES ACTIVITIES/ RESPONSIBILITES Test for particles and organics in environment/on components Contamination Controller and Mfg Eng Testing and monitoring; cleanroom, assembly, cleaning, packaging, procedure Implement change, improvement, and control; facility, tool material/design, procedure Contamination Controller and Mfg Eng/Design Note: Contamination improvements shall be correlated to yield and performance Note: Important to set a specification that is achievable and within the corporate cost/production goals TEST FACILITY/PARTS RESULTS PASS MONITOR FAIL (PRESENT SPEC) DETERMINE SOURCE/MECH PREVENT/ ELIMINATE NEW SPEC

OPTIONAL

CONTINUOUS IMPROVEMENT PROGRAM Note: Contaminants and their sources that are detrimental to the process must be identified and eliminated

slide-57
SLIDE 57

Reducing Contamination

Fab and Tool Optim a™ “Building Block”

Note: Cleaner mfg bays and tools can

  • nly be achieved by using

appropriate construction materials, better filtration efficiency, clean processes, strict control. Engineers, Assembly Technicians, ATEs, Shipping & Receiving, Facility, Contractors, Contamination Controller, Supply Chain Engineers, Assembly Technicians, Associate Test Engineers (ATE), Shipping & Receiving, Facility, Contractors, Contamination Controller, Supply Chain Engineers, Assembly Technicians, ATEs, Supply Chain Facility, Contractors, Contamination Controller, Supply Chain Housekeeping, Engineers (parts), Contractors, Supply Chain

Leadership, Leadership, Image, and Profitability Image, and Profitability

People Facility / Tools Procedures Documents

Note: Critical to maintain quality to protect the integrity of the cleanroom and cleanliness of the product (e.g. materials, assembly, cleaning, packaging, procedures, documentation). Note: People is the most critical factor; source and cause of contamination. NOTES NOTES ACTIVITIES/ RESPONSIBILITES ACTIVITIES/ RESPONSIBILITES

Cleaning Packaging Processing/ Assembly

Root Cause Root Cause

slide-58
SLIDE 58

Reducing Contamination

Pre-Filters MUA Blower HVAC Recirc Blower Sub-floor, sub-fab: 100 ppbM to pptM AMC ULPA Filter Array

Scrubber/ abatement Process tools Leakage Outgassing Emissions

Return air HEPA Filters

Furniture

To other recirc air units

*optional: tool-dedicated filtration

Com plex Synergy in the Fab

FI LTER DEFI NI TI ON

  • HVAC: Heating, Ventilation

& Air Conditioning system

  • MUA: Makeup air - air

added to fab to make up for that lost to exhaust & leakage

  • HEPA: High Efficiency

Particulate Air filter

  • ULPA: Ultra Low

Penetration Air filter, used in cleanest cleanrooms. More efficient than a HEPA filter

Outside Air = Dirty, AMC > ppbM

Exhaust OSHA/ EPA Regulatory lim its = ppm

Local and regional pollutants

W aste stream AMC SMC Chem ical, slurries, w ater Precision cleaning verification Cleanroom consum ables Filter diagnostics Cleanroom m aterial I nline chem ical analyzers

Cu-Spec 257, Inline corrosion inhibitor analyzer (Air Liquide) ChemPulse, Inline slurry characterization (Air Liquide)

W afers People

slide-59
SLIDE 59

Reducing Contamination

StarALert: Clean Manufacturing Program

This program requires ALL the basic 6-Points of the StarALert to be

conducted properly at all times

Disruption of any one of these basic StarALert programs will jeopardize the

entire Cleanroom Program

I f such an excursion occurs the other Star program s m ay or m ay not be

adequate enough to com pensate for a disruption of the cleanroom balance

Training is an essential com ponent for Clean Manufacturing

Facility (design, layout, construction material, and air/gas/water/chemical) Cleanroom Procedures Cleanroom Supplies Personnel Behavior Cleanroom House Keeping Cleanroom Validation

6-Points StarALert

1 2 3 4 5 6 IEST-RP-CC027 IEST-RP-CC003 IEST-RP-CC005 IEST-RP-CC012 IEST-RP-CC006 IEST-RP-CC028 IEST-RP-CC027 IEST-RP-CC018 Air: Particles, AMC Witness Wafers: particles,

  • rganics, metals, anions
slide-60
SLIDE 60

Reducing Contamination

StarALert Program : Personnel Behavior

slide-61
SLIDE 61

Reducing Contamination

Personnel Behavior During Tool PM

Maintenance procedures requiring contact with

ESCs, wafer holders, optics, reactor parts, shields, furnace tubes, etc. requires clean manufacturing procedures to be followed

Contact transfer of ionics, organics (lubricant), metals Final wipe downs with solvents, wipes, gloves, can leave residues Gloves leave organics, particles, ionics, metals Particle shedding of new and used products

Uh, how often should I change my gloves?

20 40 60 80 100 120 140 160 Blank New Post rinse 2 hr use F Cl Nitrate Sulfate Sodium Potassium Ca++

(ng/cm2)

slide-62
SLIDE 62

Reducing Contamination

Cleanroom Practices

W alk slow ly

In a static situation the filtered air

travels unimpeded in a vertical flow

A turbulent air pattern called a

vortex is created whenever anything is put in the path of the air flow, including equipment or people

Particles are drawn into these

turbulent areas and resettle

I n this case particles are drawn towards the tool

W ipe dow n w orking surface

Always from back-to-front and from

top-to-bottom

Fold wipe to new surface frequently

slide-63
SLIDE 63

Reducing Contamination

StarALert Program : Cleanroom Supplies

RP–CC005.3: Gloves and Finger Cots Used in Cleanrooms & Other

Controlled Environments

RP–CC020.2: Substrates and Forms for Documentation in

Cleanrooms

WG–CC025: Evaluation of Swabs Used in Cleanrooms WG–CC032: Packaging Materials for Cleanrooms

Characteristics and test m ethods for evaluating flexible packaging for cleanroom products & supplies Need to protect products from contam ination and ESD

slide-64
SLIDE 64

Reducing Contamination

StarALert Program : Housekeeping

ng / Wipe

B Post Clean

Column Inspection Metrology Assem&Test Gun Bdg I Bdg C Bdg 3 Bdg 5 LIV2 Ca post-clean Ca pre-clean 50000 100000 150000 Ca post-clean Ca pre-clean

Bay A B C D E F G H I J Fab 1 A and C B

Data Collection

Swipes were taken from the

floor and walls of the cleanroom

Results

Metal wipe concentration

lowest for vendors B and C

Inference

Vendor B and C perform

efficient housekeeping

Vendor A is poor

Solution

Retain vendors B and C

W a l l 1 W a l l 2 W a l l 3 W a l l 4 F l

  • r

1 F l

  • r

2 S u r f a c e 40000 80000 120000

Fab 2 A B

Evaluate Cleanliness

A A A C B B

slide-65
SLIDE 65

Reducing Contamination

StarALert Program : Cleanroom Validation

SMC-SMA: Wafer - UPW extraction/IC SMC-SMB: Wafer - UPW extraction/IC SMC-SMOrg: Wafer - FW TD-GC-MS SMC-SMD: Wafer - VPD ICP-MS SMC-SMM: Wafer - VPD ICP-MS & TXRF

Pump / Adsorbent

Fused Silica (8h sampling)

Air Bubbler Witness Wafer

AMC-MA: Anion - air sampler/IC AMC-MB: Amines/ammonia - air sampler/IC AMC-MD: Phosphate ions - air sampler/IC AMC-MD: B and P - air sampler/ICP-MS AMC-MM: Metals - air sampler/ICP-MS AMC-MD: B and P - wafer/VPD ICP-MS AMC-MM: Metals - wafer/VPD ICP-MS AMC-MC: Amides and organic compounds - absorbent tube and TD GC-MS Baseline Tests Baseline Tests

  • Air sampling for anions (AMC)
  • Air sampling for metals (AMC)
  • Air sampling for organics (AMC)
  • Witness wafer testing for metals (SMC)
  • Witness wafer testing for organics (SMC)
  • Surface wipe test for trace metals (SMC)
slide-66
SLIDE 66

Reducing Contamination

2X/day All work surfaces Balazs Surface wipe down of working areas 2X/day All work surfaces Pentagon QIII surface particle measurements 1X monthly Cu = 1.0 X 1010 atoms/cm2 Balazs Molecular metals (MM) (metals on wafer for VPD ICP-MS) 1X monthly Boron = 2 X 1012 atoms/cm2 Balazs Molecular Dopants (MD) (boron on wafer by VPD ICP-MS) 1X monthly Sum >= C7 =20 ng on wafer Balazs Molecular Condensables (MC) (full wafer out gassing and GC-MS) 1X monthly Nitrile = 6 ng/L air Balazs Molecular Acids (MA) (anions with impinger and IC) 1X monthly Floor: Al, B, Cr,F e, Ni = 3,000 ng/wipe Cu = 500 ng/wipe Ca, Mg = 30,000 ng/wipe K, Na =20,000 ng/wipe Balazs Metal wipe test (wipes and ICP-MS) Annually Test should be performed by a 3rd party ISO 14644-2 Air Pressure Difference Annually Test should be performed by a 3rd party ISO 14644-2 Air Flow Quarterly Test should be performed by a 3rd party ISO 14644-2 Particle Count Suggested Frequency Comments / Specifications Procedure Test Method

Cleanroom Monitoring Program

slide-67
SLIDE 67

Reducing Contamination

Typical Cleanroom Layout

Gowning Room Pass Through Pass Through IBF (individual blower filter) packs Ducted systems Gowning Room

B C D E A

Machine Shop Shipping/ Receiving Clean Shop Utility Corridor/ Chase FA and Electrical Testing Wet Lab

slide-68
SLIDE 68

Reducing Contamination

AMC- MA Baseline

F l u

  • r

i d e C h l

  • r

i d e N i t r i t e B r

  • m

i d e N i t r a t e P h

  • s

p h a t e S u l f a t e DL Column Inspection Metrology Assem&Test Gun 1 2 3 4 5 6 DL Column Inspection Metrology Assem&Test Gun

Ng/L Air

DL A B C D E E D C B A D L

Data Collection

Air sampling using im pingers

Results

Nitrite values significantly

higher than other anions

Highest nitrite observed in bays

B and C

Nitrite is indicative of sm og and

car exhaust

Inference

Source of nitrite contam ination

is from outside air and is not removed by filters W hat is the m echanism for contam ination?

slide-69
SLIDE 69

Reducing Contamination

AMC- MA Baseline ( for Nitrite)

1 2 3 4 5 6 Column Inspection Metrology Assem&Test Gun

Nitrite

Mechanism

The anions contamination

transport m echanism is from the Shipping Dept with open curtains to the exterior, through the pass through room , and into the cleanroom

Both doors of pass through are

  • pen

Solution

Install interlocking doors in the

pass through room so only one door can be opened at a time

I nvest in charcoal pack filters Training

B C

Shipping Open curtain Nitrite Pass Through

E D

A B C D E

ng/L Air

A

x x

Shipping/Receiving

slide-70
SLIDE 70

Reducing Contamination Ca K Na Al Fe Cr Ni Zn Mg Cu D L G U N M E T R O L O G Y C O L U M N 100 200 300 400 500 600 700

DL CONTROL GUN HOLDING METROLOGY INSPECTION COLUMN

AMC- MM Baseline ( for Metals)

1 x 1010 atoms/cm2

E D C B A C

  • n

t r

  • l

D L

Data Collection

Witness wafer exposure for

24h

Results

High metal contamination

levels observed in bays A and E and has been increasing

  • ver a period of time

W hat is the m echanism for contam ination?

Discussion

The metal signature

(envelope of Ca, Na, Al, Fe, Zn, Mg) is the same for all bays

Fe is not from SST but as a

constituent of gypsum

Gypsum is composed of CaSO4, NaCl, FeS2, and CaCO3

Inference

Source is from dam aged

ceiling tiles (edge)

Mechanism

Metals m igrate through

unsealed paths (voids) via Brownian’s m otions against the pressure differential - gaps between the ceiling tiles and T-bar system

Solution

Seal ceiling, replace tiles or

upgrade t-bar system

slide-71
SLIDE 71

Reducing Contamination

Sw ipe Test of Critical W orking Surface

ng / Wipe

Column Inspection Metrology Assem&Test Gun Gun Clean Gun Assem Critical Assem C a ( S u r f a c e i n H L F ) 10000 20000 30000 40000 50000 60000 70000

A B C D E F G H

CR Hood

Bay

Data Collection

Swipes were taken from the

mini-environm ent surface

Results

High m etal level observed in

the lam inar flow hood in bay H

Inference

All laminar flow hoods are operating

correctly

Observation indicates high level from

contam ination carry over; audits confirm this

Solution

Re-train engineer in cleanroom

practices focusing on wipe down protocols W hat is the m echanism for contam ination?

slide-72
SLIDE 72

Reducing Contamination

Conclusion

The Fab airborne quality is an essential foundation for clean

manufacturing

Fab Optima™ and StarALert Programs incporporate many quality

programs and disciplines to ensure the fab is capable of supporting contamination-free manufacturing

The construction materials and all materials and products within the

cleanrooms, including people, can affect the airborne quality

Wipe test complements the standard air monitoring program to

provide valuable information about the dynamic condition of the cleanroom and how engineers and housekeeping are affecting it

Swipe test results can reveal poor adherence of clean m anufacturing protocols in selected areas on the fab floor

Cleanroom training is required for anyone entering the cleanrooms –

process engineers, visiting VIPs, facility engineers and suppliers

A dedicated contamination team is required to enforce cleanroom

practices and to interface between manufacturing and facility
