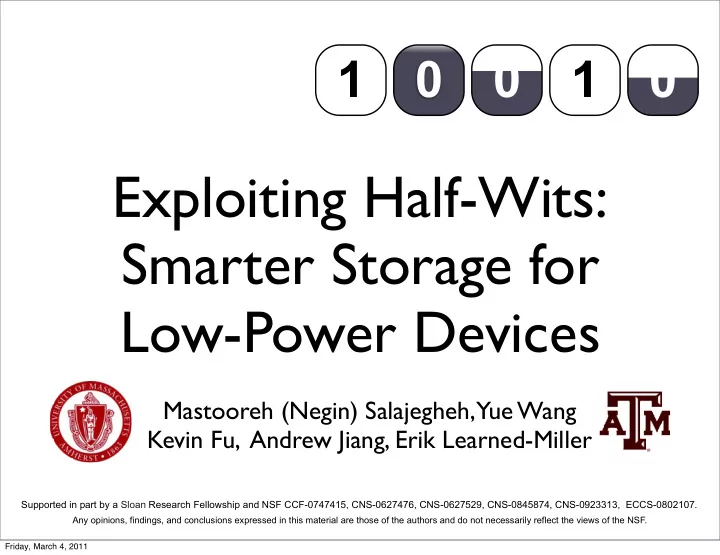

Exploiting Half-Wits: Smarter Storage for Low-Power Devices

Mastooreh (Negin) Salajegheh, Yue Wang Kevin Fu, Andrew Jiang, Erik Learned-Miller

1 1

Mastooreh Salajegheh, USENIX FAST ’11

2 figure: treehugger.com

Mastooreh Salajegheh, USENIX FAST ’11

2 figure: treehugger.com

Mastooreh Salajegheh, USENIX FAST ’11

Storage on Embedded Devices

3

Mastooreh Salajegheh, USENIX FAST ’11

Storage on Embedded Devices

>$10 billion

3

Mastooreh Salajegheh, USENIX FAST ’11

Storage on Embedded Devices

>$10 billion

3

Mastooreh Salajegheh, USENIX FAST ’11

Storage on Embedded Devices

>$10 billion

4

Mastooreh Salajegheh, USENIX FAST ’11

On-chip Flash

5

Mastooreh Salajegheh, USENIX FAST ’11

Microcontroller with 8KB Embedded Flash Memory

On-chip Flash

5

Mastooreh Salajegheh, USENIX FAST ’11

Microcontroller with 8KB Embedded Flash Memory

On-chip Flash

5

2.2 V vs. 4.5 V

Mastooreh Salajegheh, USENIX FAST ’11

CPU Flash 4.5 V

Ideal

6

Energy ∝Workload 2.2 V

Mastooreh Salajegheh, USENIX FAST ’11

Energy ∝ Worst case CPU Flash 4.5 V

Ideal Actual

6

CPU Flash 4.5 V Energy ∝Workload 2.2 V

Mastooreh Salajegheh, USENIX FAST ’11

7

Goal of this work

• To reduce the wasted energy

consumption for embedded storage.

Mastooreh Salajegheh, USENIX FAST ’11

Contribution

• Software for using flash memory at low

voltage

• Quantifying the impact on reliability
• Measuring the energy savings

8

Mastooreh Salajegheh, USENIX FAST ’11

State of the Art

9

• Pick the highest voltage...Excessive power

Mastooreh Salajegheh, USENIX FAST ’11

State of the Art

9

• Pick the highest voltage...Excessive power
• Add hardware...$$

Mastooreh Salajegheh, USENIX FAST ’11

State of the Art

I can’t remember a thing

9

• Pick the highest voltage...Excessive power
• Add hardware...$$
• Don’t use flash memory...Ugh!

[Sample:08]

Mastooreh Salajegheh, USENIX FAST ’11

State of the Art

I can’t remember a thing

9

• Pick the highest voltage...Excessive power
• Add hardware...$$
• Don’t use flash memory...Ugh!

[Sample:08]

50 100 200 300 2 4 Time (ms)

Voltage

[Ransford: ASPLOS11]

Mastooreh Salajegheh, USENIX FAST ’11

Our Approach

Savings: Low-voltage

Write to flash memory at low voltage.

10

Mastooreh Salajegheh, USENIX FAST ’11

Our Approach

Cost: Errors

How hard is it to correct the errors?

Savings: Low-voltage

Write to flash memory at low voltage.

10

Mastooreh Salajegheh, USENIX FAST ’11

11

Write once bits (Wits)

figure: http://arcweb.archives.gov

[Rivest:82]

Mastooreh Salajegheh, USENIX FAST ’11

Partial Failure at Low Voltage

• Example:

12

1111 1111

Initialized:

Mastooreh Salajegheh, USENIX FAST ’11

Partial Failure at Low Voltage

• Example:

12

1111 1100

Input:

1111 1111

Initialized:

Mastooreh Salajegheh, USENIX FAST ’11

Partial Failure at Low Voltage

• Example:

12

1111 1100

Input:

1111 1111

Initialized:

Mastooreh Salajegheh, USENIX FAST ’11

Partial Failure at Low Voltage

• Example:

12

1111 1100 1111 1101

Input: Result:

1111 1111

Initialized:

Mastooreh Salajegheh, USENIX FAST ’11

Partial Failure at Low Voltage

• Example:

12

1111 1100 1111 1101

Input: Result:

1111 1111

Initialized:

Error

Mastooreh Salajegheh, USENIX FAST ’11

Transitions at low voltage

• 1→0 might fail with P≥0.
• 1→1 never fails (P=0).

13

Z

1 1

[Klove:95]

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

✓Operating voltage level

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

✓Operating voltage level ✓Hamming weight of data

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

✓Operating voltage level ✓Hamming weight of data ✓Wear-out history

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

✓Operating voltage level ✓Hamming weight of data ✓Wear-out history

• Neighbor cells

Mastooreh Salajegheh, USENIX FAST ’11

What might influence the error rate

14

✓Operating voltage level ✓Hamming weight of data ✓Wear-out history

• Neighbor cells
• Permutation of 0s

Mastooreh Salajegheh, USENIX FAST ’11

15

Mastooreh Salajegheh, USENIX FAST ’11

15

Test Platform

Mastooreh Salajegheh, USENIX FAST ’11

15

Monitor Test Platform

Mastooreh Salajegheh, USENIX FAST ’11

15

Monitor Test Platform Voltage Supply

Mastooreh Salajegheh, USENIX FAST ’11

15

JTAG Monitor Test Platform Voltage Supply

Mastooreh Salajegheh, USENIX FAST ’11

16

20 40 60 80 100 1.80 1.82 1.84 1.86 1.88 1.90 1.92

Error rate (%) Operating Voltage (V)

M C U

• a

Mastooreh Salajegheh, USENIX FAST ’11

17

20 40 60 80 100 1.80 1.82 1.84 1.86 1.88 1.90 1.92

Error rate (%) Operating Voltage (V)

MCU-A M C U

• a

T w

• c

h i p s

• f

t h e s a m e m

• d

e l

Mastooreh Salajegheh, USENIX FAST ’11

18

20 40 60 80 100 1.80 1.82 1.84 1.86 1.88 1.90 1.92

Error rate (%)

MCU-A M C U

• a

MCU-B MCU-b

Operating Voltage (V)

Mastooreh Salajegheh, USENIX FAST ’11

Data Hamming Weight

1 2 3 4 5 6 7 8 50 100 Hamming weight Error rate(%)

19

Mastooreh Salajegheh, USENIX FAST ’11

Data Hamming Weight

1 2 3 4 5 6 7 8 50 100 Hamming weight Error rate(%)

19

The heavier the better.

Mastooreh Salajegheh, USENIX FAST ’11

20

Voltage = 1.850 V

20 40 60 80 100 12 rows (memory length)

Error (%)

128 bits (memory width)

Mastooreh Salajegheh, USENIX FAST ’11

20

More often used

Voltage = 1.850 V

20 40 60 80 100 12 rows (memory length)

Error (%)

128 bits (memory width)

Mastooreh Salajegheh, USENIX FAST ’11

21

Accumulative Behavior

figure: steynian.wordpress.com

Mastooreh Salajegheh, USENIX FAST ’11

Design of a Low-voltage Storage

22

Mastooreh Salajegheh, USENIX FAST ’11

Modeling Flash Memory

• A set of cells
• Cell state:
• Initial state:
• Update: set a subset of to 0
• Once then a write cannot
• Write Once Bits: Wits

< c1, ..., cn > ci ∈ {0, 1} ∀i, ci = 1 < c1, ..., cn > n ci ← 1 ci = 0

23

Mastooreh Salajegheh, USENIX FAST ’11

At low voltage:

• might fail and remains . [Pavan:97]
• There might not be enough charge stored

in a cell to represent a 0: Half-Wits

Modeling Flash Memory

ci ← 0 ci 1

24

1 1

Mastooreh Salajegheh, USENIX FAST ’11

Design Goals

• Energy consumption
• Error rate
• Delay

25

Minimize:

Mastooreh Salajegheh, USENIX FAST ’11

Proposed Techniques

• 1. In-place writes
• 2. Multiple-place writes
• 3. ReedSolomon-Berger Codes

26

Mastooreh Salajegheh, USENIX FAST ’11

27

Initialization: 1

Negative Logic

}

Cell

Mastooreh Salajegheh, USENIX FAST ’11

27

Initialization: 1 Written: 0

Negative Logic

☺

Charge

}

Cell

Mastooreh Salajegheh, USENIX FAST ’11

• 1. In-place writes

28

• Repeatedly attempt a write to the same location.

Mastooreh Salajegheh, USENIX FAST ’11

• 1. In-place writes

28

1

• Repeatedly attempt a write to the same location.
• Example: One bit over time

Mastooreh Salajegheh, USENIX FAST ’11

• 1. In-place writes

28

1

• Repeatedly attempt a write to the same location.
• Example: One bit over time

1→0

Mastooreh Salajegheh, USENIX FAST ’11

• 1. In-place writes

28

1 1→0

• Repeatedly attempt a write to the same location.
• Example: One bit over time

1→0

Mastooreh Salajegheh, USENIX FAST ’11

• 1. In-place writes

28

1 1→0

• Repeatedly attempt a write to the same location.
• Example: One bit over time

1→0

Mastooreh Salajegheh, USENIX FAST ’11

In-place writes

29

25 50 75 100 1 2 3 4 5 6 7

Error rate (%)

Ineffective Effective

# sequential in-place writes

Mastooreh Salajegheh, USENIX FAST ’11

In-place writes

30

25 50 75 100 1 2 3 4 5 6 7

Error rate (%)

Ineffective Effective

# sequential in-place writes

1.87 V

Mastooreh Salajegheh, USENIX FAST ’11

31

25 50 75 100 1 2 3 4 5 6 7

Error rate (%)

1.87 1.86 1.88 1.89 1.90

In-place writes

# sequential in-place writes

Mastooreh Salajegheh, USENIX FAST ’11

Cell 1

• 2. Multiple-place writes
• Encoding: Write to more

than one location.

32

1 1 Cell 2

Mastooreh Salajegheh, USENIX FAST ’11

Cell 1

• 2. Multiple-place writes
• Encoding: Write to more

than one location.

32

1 1 1 Cell 2

Mastooreh Salajegheh, USENIX FAST ’11

Cell 1

• 2. Multiple-place writes
• Encoding: Write to more

than one location.

32

• Decoding: AND all
• f the values at

read time. 1 1 1

&

Cell 2

Mastooreh Salajegheh, USENIX FAST ’11

Cell 1

• 2. Multiple-place writes
• Encoding: Write to more

than one location.

32

• Decoding: AND all
• f the values at

read time. 1 1 1 0 Cell 2

Mastooreh Salajegheh, USENIX FAST ’11

Multiple-place writes

33

25 50 75 100 1 2 3 4 5 6 7

Error rate (%) # places to store data

1.86 1 . 8 8 1.87 1 . 8 9 1 . 9

Mastooreh Salajegheh, USENIX FAST ’11

Design Goals

34

✔

• Energy consumption
• Delay
• Error rate

Minimize:

Mastooreh Salajegheh, USENIX FAST ’11

Comparison at 1.9 V

35

Store: Accelerometer trace Repeating the writes 2 times/ locations

Mastooreh Salajegheh, USENIX FAST ’11

Comparison at 1.9 V

35

Method Time (ms) Energy (μJ) In-place 15.43 38 Multiple-place 16.85 40

Store: Accelerometer trace Repeating the writes 2 times/ locations

Mastooreh Salajegheh, USENIX FAST ’11

Comparison at 1.9 V

35

Method Time (ms) Energy (μJ) In-place 15.43 38 Multiple-place 16.85 40

Store: Accelerometer trace Repeating the writes 2 times/ locations

Mastooreh Salajegheh, USENIX FAST ’11

36

Micro-benchmarks:

Standard approach at high voltage In-Place writes at low voltage

vs

Mastooreh Salajegheh, USENIX FAST ’11

37

Retrieve Store Normalized energy consumption RC5

in-place 1.8 V in-place 1.9 V Standard 2.2 V Standard 3.0 V

[Rivest:94]

Half-wits Vs. Wits

Mastooreh Salajegheh, USENIX FAST ’11

RC5

38

Store Normalized energy consumption

in-place 1.8 V in-place 1.9 V Standard 2.2 V Standard 3.0 V

Retrieve

Half-wits Vs. Wits

Mastooreh Salajegheh, USENIX FAST ’11

Retrieve RC5

39

Normalized energy consumption

in-place 1.8 V in-place 1.9 V Standard 2.2 V Standard 3.0 V

Store

Half-wits Vs. Wits

Mastooreh Salajegheh, USENIX FAST ’11

Retrieve RC5

Half-wits Vs. Wits

40

Normalized energy consumption

in-place 1.8 V in-place 1.9 V Standard 2.2 V Standard 3.0 V

Store

Mastooreh Salajegheh, USENIX FAST ’11

Hypothesis

For CPU-bound workloads:

41

Energy of high-voltage system Energy of low-voltage system

<

Mastooreh Salajegheh, USENIX FAST ’11

Monitoring application

• Read 256 bytes of accelerometer data
• Aggregate data: Min, Max, Mean, Std. dev.
• Write the aggregation of 256 bytes of data

42

Mastooreh Salajegheh, USENIX FAST ’11

43

• 34%

Energy Savings

In-place Writes

Mastooreh Salajegheh, USENIX FAST ’11

Monitoring application

44

Method In-place 1.8 v In-place 1.9 V Standard 2.2 V Standard 3.0 V Energy (μJ) 270 300 410 760

Mastooreh Salajegheh, USENIX FAST ’11

Monitoring application

44

Method In-place 1.8 v In-place 1.9 V Standard 2.2 V Standard 3.0 V Energy (μJ) 270 300 410 760

Mastooreh Salajegheh, USENIX FAST ’11

Monitoring application

45

Method In-place 1.8 v In-place 1.9 V Standard 2.2 V Standard 3.0 V Energy (μJ) 270 300 410 760 In-place 1.9 V

Mastooreh Salajegheh, USENIX FAST ’11

Further improvements

46

• 1. Sign-bits and storing the complement
• 2. Memory mapping-table

[Papirla:09]

Mastooreh Salajegheh, USENIX FAST ’11

Summary: Exploiting Half-Wits

• In-place writes on half-wits is an effective

way to reduce wasted energy.

• Microcontrollers can work at a lower

voltage and get more work done with the same amount of energy.

• The digital abstractions pay a higher price

than necessary to provide reliability.

47

1 1
