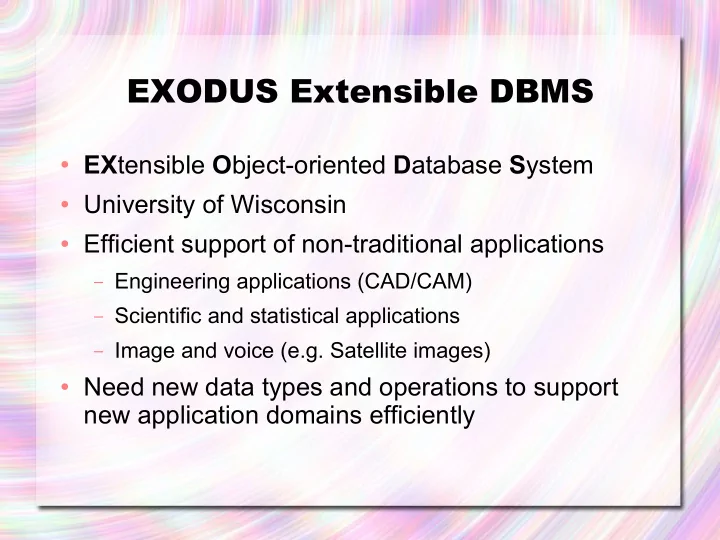

EXODUS Extensible DBMS

• EXtensible Object-oriented Database System
• University of Wisconsin
• Efficient support of non-traditional applications

– Engineering applications (CAD/CAM) – Scientific and statistical applications – Image and voice (e.g. Satellite images)

• Need new data types and operations to support

new application domains efficiently

New vs. Conventional Apps

• Each require different set of data modeling tools

– E.g. VLSI circuit designs require different entities and

relationships from a banking application

• Each require a special set of operations

– E.g. Satellite images can't be joined together – Must be efficiently supported

• This could mean new structures and access methods
• Some might require multiple versions of entities

– E.g. PROBE

DBMS for New Applications

• POSTGRES (Berkeley)

– Predefined way of support complex objects

• Using POSTQUEL and procedures as data types

– Make as few changes to the relational model as possible

• PROBE (CCA)

– Mechanism for directly representing complex objects – Rule-based approach to optimization

• Optimizers extended to handle new operators

– New methods for existing operators

• Both “complete” DBMS systems

DBMS for New Applications - 2

• GENESIS (U. Texas)

– A modular (and modifiable) system – Extended for new applications

• No “complete” support designed in advance
• EXODUS uses the same methods

– A collection of kernel DBMS facilities – Software tools for semi-automatic creation of high-

performance application-specific DBMSs for new areas.

EXODUS

• A Toolbox Not a complete DBMS

– Can be easily adapted by new applications – A third group of users: database implementors (DBIs)

• Start with a generic solution applicable anywhere

– E.g. Support arbitrary size storage objects

• Provide a generator or a library to aid in

generating application-specific portions

• Better to see it from the viewpoint of the of the

application-specific system that is built using it

EXODUS Architecture

• 1. The Storage Object Manager
• 2. E programming language and

compiler

• 3. A generalized Type Manager
• 4. A library of independent

access methods

• 5. A lock manager and recovery

protocol stubs

• 6. A rule-based query optimizer

and compiler

• 7. Tools for constructing user

front ends

An implemented DBMS

Storage Objects

• Basic unit of data in the Storage Object Manager

– A byte sequence of arbitrary size – untyped, uninterpreted, variable-length – Object Identifier (OID): (page #, slot #)

• Two types of storage objects (internally)

– Small storage objects

• Single page, OID points to the object
• Automatically converted into large objects

– Large storage objects

• Multiple pages, OID points to the large object header

Large Storage Objects

• Representation

– Conceptually an

uninterpreted byte sequence

– Physically a B+ tree like

index on byte position within the object and a collection of leaf blocks

• Disk location

– Headers can reside on

slotted page with other headers / small objects

– Other pages are private (but

can be shared with other versions – if used)

• Primitive versioning included

(Must support different versioning)

• Only pages that differ are copied

Storage Object Manager

• Read, write and update storage objects

– Built-in search, insert, append, delete algorithms – Automatically converts small storage objects to large

• bjects when they can't fit on a page

– Can implement application-specific versioning

• Provides locking, buffering and recovery protocols

– E.g. Read non-empty portions of the leaf blocks of the

desired byte range into a variable length buffer block

File Objects

• Collections of storage objects
• Used to group objects together

– Read related objects in sequence (in physical order) – Related objects can be co-located on disk

• Have an OID like large storage objects

– Objects can be accessed directly as well

• A B+ tree-like index structure

– Use disk page number as the key – Leaf pages contain page numbers

• Standard disk allocation for pages themselves

E Programming Language

• Used for all components that a DBI deals with
• Extends C to support “persistent objects”

– Correspond to storage objects – References are similar to those of C structures

• DBI can deal with array of key-pointer pairs

– The E translator deals with the internal structure of

persistent objects (e.g. lock/unlock, log) not the DBI

• DBI can deliberately exercise control

– E supports statements to associate locking, buffering,

recovery with references to persistent objects

E Programming Language (cont'd)

• Other additions to C

– OID data type (for storage object Ids) – Parameterized types – Addition of “type” as a valid parameter data type for E

procedures (only!)

• To allow access methods to use multiple data types

– Type constructors to define fields of persistent objects – E allows the DBI to manipulate the internal structure of

storage objects

• Not a database programming language!

– E is to develop internal system software

Access Methods

• Associative access to file of storage objects

– Further support for versioning if needed

• A library of type-independent index structures

– B+ tree, Grid files, Linear hashing, etc. – Implemented using the “type parameter” property in E

• Use existing access methods with DBI-defined abstract

data types without modifications

– As long as access method requirements are satisfied

• Can easily implement new access methods

– Don't have to deal with main memory data structures

Operator Methods

• A collections of methods and their combination (as

E procedures) to operate on storage objects

– Schema-independent (necessary schema information

requested at run-time or compiled by the optimizer)

• Contains code by both the DBI and EXODUS

– EXODUS provides code for operators that operate on a

single type of storage object (e.g. Selection)

• Does not provide application (or data model) specific

methods (e.g. Relational join, examining images)

– The DBI may implement one or more methods for each

• perator in the target query language
• Can be schema-dependent (Hire-employee, change-job)

The Type Manager

• Schema support for application-specific systems

– Handle wide range of application efficiently

• Class hierarchy with multiple inheritance

– Base types (integer, char, object ID, etc.) – Constructed types (record, array, set and bag) – DBI can define new base types and operations

• Using abstract data types
• One-to-one mapping between class instances

(typed objects) and storage objects

– A class of typed objects can include fields with large

multidimensional arrays of real numbers

Type Manager Class Hierarchy

• Loose hierarchy

– Classes can inherit one or more classes

• If field names are the same choose one or rename
• Meta-class Class contains inheritance information
• All classes are subclasses or class Object

– Including “Class”

• Files can contain objects of only one class

– But this can be the Object class!

Query optimizer and compiler

• Query execution in EXODUS (similar to system R)
• The parser transform the query to an initial tree

– Logical operators as internal nodes, relations as leaves

• The optimizer creates an access plan

– A rearranged tree of operator methods (particular

instances of operators)

• Methods as internal nodes, files/indices as leaves
• The Type Manager is invoked during parsing and optimization

Parse Optimize Compile as Executable

Query optimizer (the generator)

• A generator that produces an optimizer for an

application-specific database system

• The DBI must supply

– A description of the operators of the target query

language

– A list of methods to implement each operator – A cost formula for each operator method – A collection of transformation rules

• The generator transforms these description files

into C code for the target query language optimizer

The optimization procedure

• Uses two principal data structures

– MESH: A directed graph of alternative operator trees

• Initially the tree of the original query

– OPEN: A priority queue of the applicable transformations

• rdered by the expected cost decrease of transformation
• Select lowest cost method for each node in MESH
• Find possible transformations and insert into OPEN
• Repeat until OPEN is empty, then apply the most

promising transformation to MESH

• Reuse equal nodes (same operator, argument and

inputs)

CC and Recovery

• Based on Wekum's layered transaction model:

– Each layer presents a set of objects and associated

• perations (aka mini-transactions) to client layers
• Each transaction in layer is a series of mini-transactions in
• ne or more of its servant layers

– Two-phase locking on objects within a given layer

• Objects in the servant layer are locked on behalf of

transaction in the client layer (held until it completes)

– Level-specific recovery information is logged

• When the mini-transaction completes, log is replaced with

a simpler client-level representation of the entire operation

• First need to undo the last incomplete mini-transactions,

then run the inverse of each completed mini-transaction

CC and Recovery (cont'd)

• EXODUS is not strictly hierarchical
• Two-phase locking is unacceptable for access

methods: EXODUS provides more general locking

– Locks set by a servant can be explicitly released or

passed to its client

– Lock passing is needed to prevent consistency problems

• Prevents phantoms when multiple clients use an index and

a new key-pointer pair is inserted

• EXODUS employs more efficient circular log

management techniques (instead of stacks)

– Ignores entries of completed mini-transactions during

recovery process

User interface construction

• UI at brainstorming stage at the time of writing
• Can not design a generic user interface

– Interactive (ad-hoc) interfaces

• Use a generator to facilitate interface creation

– Embedded query interfaces

• If program only calls operator methods (parser and
• ptimizer bypassed): Use a linker to bind the methods
• Otherwise use a generalized tool to handle such programs

– Some applications may require completely different

forms of UI which has to be called for

EXODUS 22 Years Later...

• EXODUS is dead. Latest paper was dated 1990.
• It was succeeded by SHORE project

– SHORE also died in 1997

• But...

– The Shore Storage Manager remains more or less active

today

THE END

• Reference

– Michael J. Carey, David J. DeWitt, Daniel Frank, Goetz

Graefe, Joel E. Richardson, Eugene J. Shekita, M. Muralikrishna: The Architecture of the EXODUS Extensible DBMS. On Object-Oriented Database System
