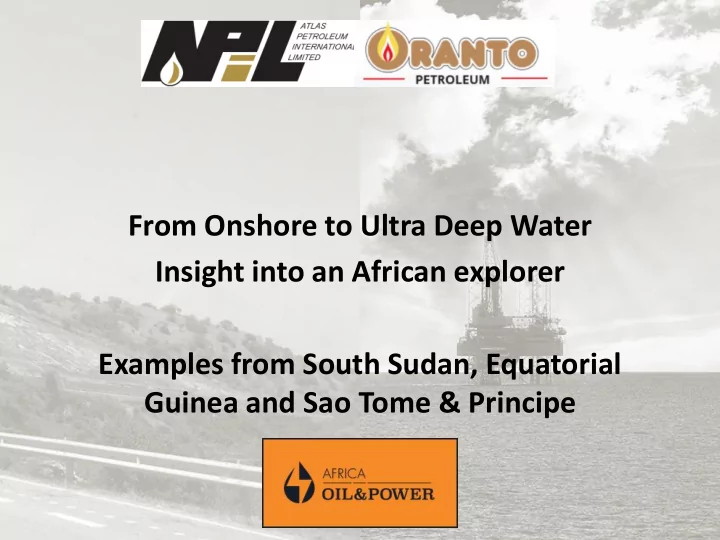

From Onshore to Ultra Deep Water Insight into an African explorer Examples from South Sudan, Equatorial Guinea and Sao Tome & Principe

slide-2
SLIDE 2

The information in this document does not purport to be comprehensive and has not been independently verified. While this information has been prepared in good faith, no representation or warranty, express or implied, is or will be made and no responsibility or liability is or will be accepted by the Company or any of its directors, officers, employees, agents or advisers as to,

  • r in relation to, the accuracy or completeness of this document, and any such liability is expressly disclaimed. In particular, but

without prejudice to the generality of the foregoing, no representation or warranty is given as to the achievement or reasonableness of any future projections, management estimates or prospects contained in this document. Such forward-looking statements, estimates and forecasts reflect various assumptions made by the management of the Company and their current beliefs, which may or may not prove to be correct. A number of factors could cause actual results to differ materially from the potential results discussed in such forward-looking statements, estimates and forecasts including: changes in general economic and market conditions, changes in the regulatory environment, business and operational risks and other risk factors. The document is not a prospectus nor has it been approved by any authority. The information contained in this document is subject to change, completion or amendment without notice. However, the Company gives no undertaking to provide the recipient with access to any additional information, or to update this document or any additional information, or to correct any inaccuracies in it or any omissions from it which may become apparent.

Disclaimer

slide-3
SLIDE 3

Who are we?

  • Largest privately held African acreage holder
  • Operating as sister companies in the West Africa region since 1991 and expanded

into East Africa in 2015

  • Currently holding 22 license blocks in 11 African countries and territories
  • More than 74,000 km² of acreage from onshore to shelf to ultra deep water
  • Production and Equatorial Guinea assets managed by Atlas Petroleum

International Limited

  • Exploration assets held and managed by Oranto Petroleum Limited
slide-4
SLIDE 4

Senegal Saint Louis Shallow Cayar Shallow Liberia LB-14 Ghana Saltpond Benin 5 & 6 Nigeria OML109, OPL293, OPL320 JDZ 2 & 5 Sao Tome & Principe Block 3 Equatorial Guinea I, J, H, P, EG02, EG10 Namibia PEL43 South Sudan B3 Uganda Ngassa shallow, Ngassa deep Historically also in Mali, Sierra Leone, Guinea Bissau, Gambia, Cote d’Ivoire & Togo

slide-5
SLIDE 5

Onshore - South Sudan

Licensee: Oranto Petroleum Ltd. (operator) 90% Nile Petroleum (carried interest) 10% Area: 24,415 km² EPSA signed: March 2017 Work Program: 3+2+1 years First commitment period: 5,000 km² airborne gravity and magnetics 750 line km 2D seismic True exploration frontier basin with no pre-existing seismic or well data, for scale the block is about the same size as Sicily. Block B3 has highlighted two Cretaceous aged sedimentary basins which are associated with the Central African Shear Zone, our belief is they share the same regional source rock equivalent to the Abu Graba formation in the Muglad basin.

slide-6
SLIDE 6

Combining public and satellite data to create a framework for a geological model

Regionally three rift phases have been identified between the Late Jurassic and Palaeocene, later followed by Eocene inversion. Rift periods are generally indicatory of shale deposition whilst basin sag is dominated by clastics. Study suggests B3 is not directly connected Muglad basin which matures to the north, however Post Tali basin is of similar age. Basin size comparable to Lake Albert rift basin or South Lokichar basin with estimated oil resources

  • f 3.5 bln and 4.5 bln barrels.

Surface geology with gravity data to highlight basin architecture and pinpoint areas of interest, two potential basins identified in on edge of regional basement line, southern most basin ranked as main interest for gravity/magnetic survey

slide-7
SLIDE 7

2018 Airborne Gravity and Magnetic Survey

  • March/April 2018 BGP conducted survey
  • Acquisition QC services provided by Getech Group
  • Line spacing 1km * 5km grid
  • Total line km = 7406 km
  • Aim to capture depocenter and basin flanks,

highlight structures for seismic planning

  • Done in conjunction with Ministry of Petroleum

and NilePet and cooperation from local government and community liaisons in 51 settlements

  • Resulted in safe and uneventful operation with
  • nly downtime attributed to damaged magnetic

sensor coupling

  • Survey is the first exploration operational activity

in South Sudan’s history

  • Oranto planning to commence seismic operations

by end of 2018

slide-8
SLIDE 8

Offshore - Gulf of Guinea

Large proportion of Atlas Oranto Group focus is on Gulf of Guinea, often seen as the early investor in frontier basins Oranto was previously early entrant into the Transform Margin exploration period Neighbouring Gulf of Guinea companies include Kosmos, BP, GALP, Ophir, Clontarf & Exxon Mobil Existing and previous partners with Noble, Glencore, Chevron, Kosmos, Lukoil

slide-9
SLIDE 9

Equatorial Guinea – Block 02

  • Previously partnered with Pan Atlantic but now operator
  • Numerous AVO supported prospects on basin floor fans
  • Working analogues with block I discoveries including Aseng and Alen fields
  • Seismic supported reservoir play fairway from shelf to deep water
slide-10
SLIDE 10

EG-02 Ecoene Palaeography

L-2 Ceiba Okume Ebano Elon Abang Akom Oveng

Modified after Rosendhal & Groschel-Becker 1999, and ECL (RPS) Rio Muni Report 2001.

Rio Muni-1

Pongue Slide

L-1 Eviondo-1 Bravo-1

Volcanics Slide Complexes Rifted Continental Crust Combined Sediment Input Vectors Inversion Anticlines Late Cretaceous Clastic Input Tertiary Clastic Input Limit of Cretaceous Carbonates

Block W

EG-02

Bravo-1

m)

Vp Vs Rho Vol GR Cal Por Sat

Net Thickness = 75 m

  • Avg. Porosity = 28.2%

Eocene

Amplitude Map - Upper Eocene

42

✓ – Area = ✓ ✓ , ✓ 02 block – ✓ Key Wells: –

  • 1
  • 2

Oil

Basin Floor System

slide-11
SLIDE 11

EG-02 Upper Cretaceous Palaeogeography

Cheetah-1 Area

Cheetah-1 Shelfal?, by-pass?

Cretaceous age fan? Good Similarity with Sanaga Sud field? High Amplitudes = potential reservoir

Bamboo-1 Upper Cretaceous Upper Slope Fan

Bamboo-1 well encountered thick, porous sandstones in Upper Cretaceous target, but water-bearing. Top seal proven by Bamboo-1 and Eboni-1 Charge encouragement from kick taken at base of Bamboo-1

Block I, O and Yo-Yo - Miocene discoveries made by Noble Energy Ebome Fields - Perenco operated production, principally from Lower Cretaceous. KH field is nearest Upper Cretaceous discovery to Ntem.

Noble Energy Cheetah-1 13320 ft Reservoir: Campanian channel/fan complex? Charge: Ce/Tu shales. Trap: 4-way dip closure Volume: Predrill: >100 MMBOE (Noble) Results: ‘Crude oil and natural gas shows in multiple non-commercial reservoir sands’

Noble Energy Sterling Energy

Devon’s P2 Discovery well. 45m net pay in Upper Cretaceous sands

CM-1A & Eboni-1 - Good quality sands. CM-1A reported thin net pay and oil shows while Eboni- 1 saw gas shows. Stratigraphic traps.

  • Three Upper Cretaceous Fan

Complexes comprising stacked reservoir intervals.

  • AVO Class 2P anomalies
  • bserved at various levels

within the stacked complexes.

slide-12
SLIDE 12

Sao Tome & Principe - Rio Muni basin

  • Attracted recent attention with Kosmos, Galp, BP entry

in to Sao Tome & Principe sector in 2015 and 2018

  • Ophir entry into EG-24 in 2018
  • Numerous 3D seismic surveys acquired in surrounding

area totalling around 20,000 km²

  • Combined Oranto has 3,125 km² seismic on STP block 3
  • Three potential plays identified

– Miocene - Eocene – Campanian - Santonian – Cenomanian

~16,000km² on blocks 6,11,12 ~4,000km²

  • n EG- 24
slide-13
SLIDE 13

Prospect identification on vintage data

Low Amp dip closures Low frequency high amplitude event- “oil- shale” or reservoir? Miocene - Ecoene fan Stacked fan systems in Campanian / Santonian Brightening response related to high porosity reservoir, coupled with a fluid? Mapped leads and prospects

Oranto currently processing and merging 2014 & 2017 3D seismic data sets over prospects Results expected in 2018 Q4 Anticipating multiple billion barrel resources in place

Top Cret Campanian Turonian Alb-Apt

slide-14
SLIDE 14
