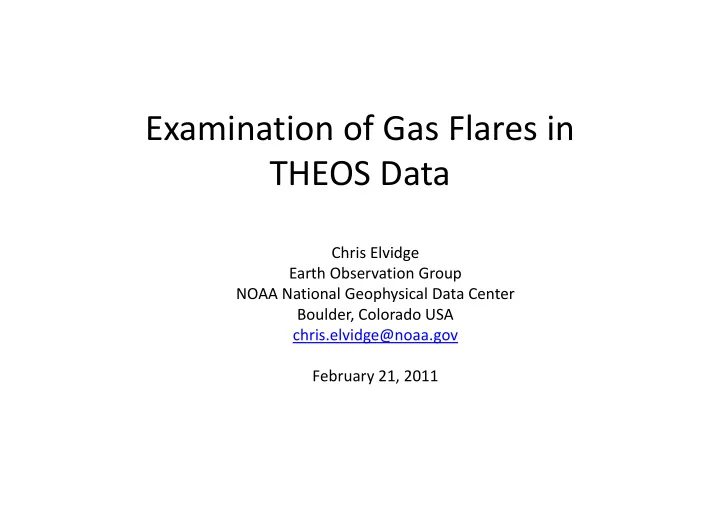

SLIDE 1 Examination of Gas Flares in Examination of Gas Flares in THEOS Data
Chris Elvidge Chris Elvidge Earth Observation Group NOAA National Geophysical Data Center Boulder Colorado USA Boulder, Colorado USA chris.elvidge@noaa.gov b February 21, 2011
SLIDE 2 Flaring is a widely used practice for the disposal of “associated gas” at oil production facilities in remote locations and poor countries. While flaring is a waste and there are h l i k technologies to make use of the gas, flaring is still better than venting venting.
SLIDE 3
NGDC Tracks Flaring in Sixty Countries Using DMSP Nighttime Lights Data
SLIDE 5 Global Gas Flaring Runs About 150 Billion Cubic mater Per Year, Mostly Methane
200
ME
DMSP Estimated Global Gas Flaring Volume 100 150
RE VOLU BCM)
50
GAS FLAR (B G
Reducing Natural Gas Flaring Is Low Hanging Fruit For Reducing Carbon Emissions To The Atmosphere! g p
SLIDE 6 THEOS Images Examined THEOS Images Examined
d d d l ( / /
- Ciudad del Carmen, Mexico (SCENE T1 M 2010/04/24 16:20:41.5 0603‐0312
3087)
- Jakarta, Indonesia (SCENE T1 M 2009/09/07 02:58:40.5 0285‐0362 0)
, ( / / )
- Ad‐Dahirah,Qatar (SCENE T1 P 2009/08/26 06:43:58.7 0155‐0298 1867)
- Basra, Iraq (SCENE T1 M 2009/08/14 07:13:46.8 0144‐0290 0)
- Hassi Messaoud, Algeria (SCENE T1 M 2009/11/02 09:58:04.8 0059‐0286 0)
- As Saffaniyah ,Saudi Arabia (SCENE T1 M 2010/01/02 07:04:09.3 0149‐0294 0)
- Abu Musa UAE (SCENE T1 M 2009/06/15 06:27:31 1 0164 0299 742)
- Abu Musa ,UAE (SCENE T1 M 2009/06/15 06:27:31.1 0164‐0299 742)
SLIDE 7
Ciudad del Carmen Mexico Ciudad del Carmen,Mexico
Gas
Ciudad del
Gas Flares At Gas
del Carmen
At Gas Oil Separation Separation Plant (GOSP) (GOSP)
SLIDE 8
Ciudad del Carmen,Mexico
Gas Flares Viewed in Digital Globe Data in Google Earth and THEOS.
Active Flare Detected in THEOS!
SLIDE 9
Ciudad del Carmen,Mexico
THEOS Spectral Signatures THEOS Spectral Signatures
Flare Flame Flare Flame Water Green Vegetation GOSP Gas Flares Have A Unique Spectral Signature In THEOS Data!
SLIDE 10
Jakarta, Indonesia Offshore Flares
Off h Jakarta Offshore Flares
SLIDE 11
Jakarta, Indonesia From Google Earth To THEOS From Google Earth To THEOS
Platform(?) but no gas but no gas flare detected in THEOS.
SLIDE 12
Ad‐Dahirah, Qatar Panchromatic THEOS Data Flares in Refinery Area
Refinery y Area
SLIDE 13 Ad‐Dahirah, Qatar Panchromatic THEOS Data Flares in Refinery Area
Gas Flares Detected in THEOS Data
GeoEye Image From Google Earth
Gas Flares Detected in THEOS Data
SLIDE 14
Basra, Iraq Gas Flares and Smoke Plumes
SLIDE 15 Basra, Iraq Gas Flares and Smoke Plumes Gas Flares and Smoke Plumes
Ground Photo in Panoramio
THEOS With Gas Flares Detected
Digital Globe Data From Google Earth
SLIDE 16 Hassi Messaoud Algeria Hassi Messaoud, Algeria
Hassi Messaoud with gas flares and smoke plumes
SLIDE 17 Hassi Messaoud, Al i Algeria
Digital Globe Image From Google Earth
THEOS THEOS Detection Of Gas Of Gas Flares THEOS
SLIDE 18
Abu Musa, UAE Offshore Oil Platform
SLIDE 19
Abu Musa, UAE Offshore Oil Platform
The platform is visible in Photo From Panoramio THEOS data, but there is little indication of flaring.
SLIDE 20
Refinery at As Saffaniyah, Saudi Arabia
Google Earth
THEOS
Flare Burning
SLIDE 21 Summary Summary
- Flames from gas flares can be detected in THEOS data
Flames from gas flares can be detected in THEOS data.
- The THEOS spectra of gas flares shows higher emission
in the near infrared (NIR) than in the visible bands. in the near infrared (NIR) than in the visible bands.
- This spectral pattern resembles the spectral signature
for green vegetation. But the contrast between the NIR g g and visible tends to be higher for gas flares than green vegetation.
- THEOS data collected at night would be capable of
discriminating gas flares and other combustion sources i h with ease.
