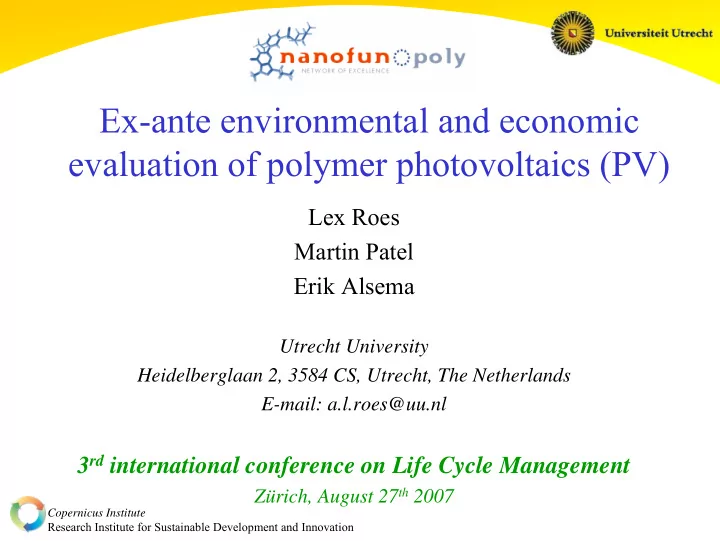

Ex-ante environmental and economic evaluation of polymer photovoltaics (PV)

Lex Roes Martin Patel Erik Alsema

Utrecht University Heidelberglaan 2, 3584 CS, Utrecht, The Netherlands E-mail: a.l.roes@uu.nl

3rd international conference on Life Cycle Management

Zürich, August 27th 2007

Copernicus Institute Research Institute for Sustainable Development and Innovation

Contents

• Introduction
• Environmental assessment (LCA)
• Economic assessment
• Discussion and sensitivity analysis
• Conclusions

Copernicus Institute Research Institute for Sustainable Development and Innovation

Research goal

What are the environmental impacts and costs of ‘polymer PV’ compared to (conventional) ‘silicon PV’? (In addition: comparison with thin film PV and with grid electricity)

Copernicus Institute Research Institute for Sustainable Development and Innovation

What is polymer PV?

Polymer PV uses (organic) semi conducting polymers, for conversion of light to electricity.

Copernicus Institute Research Institute for Sustainable Development and Innovation

Composition of a polymer solar cell

ITO Glass PEDOT:PSS P3HT/PCBM LiF/Al Back Electrode PVDC/PET Back Foil

• +

ITO Glass PEDOT:PSS P3HT/PCBM LiF/Al Back Electrode PVDC/PET Back Foil

• +

PVDC: Polyvinylidenchloride, PET: Polyethylene terephthalate, LiF: Lithium fluoride, Al: Aluminum, P3HT: Poly(3-hexylthiophene-2,5-diyl), PCBM: [6,6]-phenyl C61-butyric acid methyl ester, PEDOT: Poly(3,4-ethylene dioxythiophene, PSS: Polystyrene sulfonate, ITO: Indium tin oxide

Copernicus Institute Research Institute for Sustainable Development and Innovation

Environmental assessment: LCA

Functional unit:

25 years of electricity production by PV modules with a performance of 1 watt-peak (Wp) (= 31.9 kWh)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Characteristics of polymer and silicon PV

Efficiency (%) Surface (cm2/Wp) Reference Polymer PV module 5 200 Konarka (2004) Multicrystalline-silicon PV module 13.2 76 De Wild-Scholten and Alsema (2005)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Material Area (cm2) Thickness layera (cm) Density (g/cm3) Weight (g) Glass 222 0.3 2.579 171.9 ITO 222 1.60E-05 7.2 0.0256 PEDOT:PSS 222 1.00E-05 1 0.002 P3HT/PCBM 222 1.00E-05 1 0.002 LiF 222 1.00E-07 2.64 0.00006 Al 222 1.00E-05 2.7 0.006 PVDC 200 0.008 1.68 2.56 PET 200 0.01 1.33 2.56

Material requirements for 1 Wp polymer solar cell

10% material losses assumed

Copernicus Institute Research Institute for Sustainable Development and Innovation

Problem with polymer PV

• Lifetime of polymer solar cell is only a few

months with present technology.

• Lifetime of silicon solar cell is >25 years.
• Therefore we also estimate the minimum

required lifetime of polymer PV to have benefits over silicon PV.

Copernicus Institute Research Institute for Sustainable Development and Innovation

Results for 1 photovoltaic device (1 Wp) Environmental impact category Unit Polymer PV module multi-crystalline silicon PV module Minimum required lifetime polymer PV module (years) NREU MJ 11.9 26.2 11 Climate change g CO2-eq 727 1425 13 Abiotic depletion g Sb eq 5.0 11.1 11 Ozone layer depletion g CFC-11-eq 0.0000413 0.000125 8 Photochemical

• xidant

formation g ethene 0.22 0.29 19 Acidification g SO2-eq 4.69 5.51 21 Eutrophication g PO4

3--eq

0.36 0.58 16

LCA results

Copernicus Institute Research Institute for Sustainable Development and Innovation

Thin film Polymer mc-silicon CdTe CIS Silicon Dye-sensitised NREU (MJ/Wp) 11.9 26.2 11.9 36.6 20.6 11.7 Climate change (g CO2-eq/Wp) 727 1425 784 2429 1338 473 Energy payback time (yrs) 0.93 2.05 0.93 2.87 1.62 0.92

Comparison with other PV (per watt-peak)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Solar glass 21% ITO sputtering 9% Substrate cleaning 4% PCBM 1% Annealing 1% Lamination 30% Framing 29% Al/ LiF evaporation 4%

Contribution of production steps to NREU

Copernicus Institute Research Institute for Sustainable Development and Innovation

Conclusions LCA

• Per Watt-peak module, polymer PV has lowest

impacts and lowest energy payback time !

• ITO coated glass production, lamination and

framing together contribute 89% of NREU.

• Production of layer materials has very small

impacts.

• BUT: R&D challenge is to improve the lifetime!

Copernicus Institute Research Institute for Sustainable Development and Innovation

Economic assessment

• Direct manufacturing costs of polymer PV
• We compare 1 watt-peak modules

Copernicus Institute Research Institute for Sustainable Development and Innovation

Cost results per watt-peak

Material/process Costs (€/Wp) ITO Coated glass 0.22 PEDOT:PSS 0.00 P3HT/PCBM 0.09 Inkjet printing 0.01 LiF 0.00 Aluminum 0.00 Evaporation 0.03 Module assembly 2.46 Total polymer PV 2.80 Total mc-silicon PV 2.50 (Sinke et al. 2006)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Conclusions economic assessment

• Per watt-peak, polymer PV has 12% higher

costs than silicon PV.

• Main contributor to costs is

– Module assembly (could be reduced, if efficiency increases: smaller area)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Changing the substrate

Different substrate: PET instead of glass

• Lower impact?
• Cheaper?

Copernicus Institute Research Institute for Sustainable Development and Innovation

However:

• PET substrate is very thin (50 μm)
• Therefore extra reinforcement might be needed for
• utdoor use!
• We studied:

– PET/Aluminum alloy – PET/Medium density fiberboard – PET/Steel – PET/reinforced polypropylene – PET without reinforcement

Copernicus Institute Research Institute for Sustainable Development and Innovation

1.50 2.00 2.50 3.00 3.50 5 7 9 11 13

NREU (MJ-eq/Wp)

Costs (€/Wp)

Reference module PET w ith aluminum alloy PET w ith MDF PET w ith steel PET w ith reinforced polypropylene PET w ithout reinforcement

Costs versus NREU of PET with reinforcement (per watt-peak module: 200 cm2)

MDF: medium-density fiberboard

Copernicus Institute Research Institute for Sustainable Development and Innovation

Assuming a higher efficiency

• Recently 6% efficiency has been achieved

(Wake Forest University, 2007)

• Predicted future efficiency is 11% !

(Koster et al. 2006)

• Environmental impacts and costs will

decrease by > factor 2 at 11% efficiency!

Copernicus Institute Research Institute for Sustainable Development and Innovation

Lifetime (yrs) Electricity yield (kWh/Wp) Costs (€-ct/kWh) 5 6.38 44.0 15 19.1 14.7 Reference module 25 31.9 8.8 5 6.38 36.9 15 19.1 12.3 Polymer PV PET without reinforcement 25 31.9 7.4 Industrial consumers 11.4 Electricity EU27, 2005-2007 avg. (Eurostat) Domestic consumers 15.2

Comparison with grid electricity

Copernicus Institute Research Institute for Sustainable Development and Innovation

Main uncertainties in this study

• Impacts of lamination are assumed to be

proportional to surface of the module

• Rough assumptions for ‘substrate cleaning’

and ‘annealing’ (but: contribution is low)

• Uncertainty whether lifetime and

performance remain the same with PET as a substrate

Copernicus Institute Research Institute for Sustainable Development and Innovation

Overall conclusions

• Per watt-peak, environmental impacts of

polymer PV are clearly lower than of silicon PV

• Per watt-peak, costs of polymer PV are only

12% higher than of silicon PV

• Replacing the glass substrate by PET can

bring down costs (from 2.80 to 2.35 €/Wp)

Copernicus Institute Research Institute for Sustainable Development and Innovation

Final remark

Provided that the lifetime is increased, polymer PV has the potential to become a clean, low-cost alternative for silicon PV.

Copernicus Institute Research Institute for Sustainable Development and Innovation

Thank you for your attention!

Questions/Remarks ?
