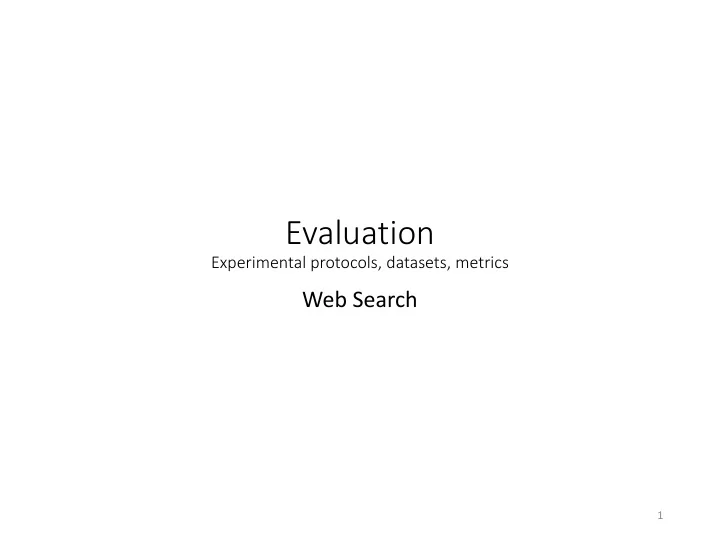

Evaluation Experimental protocols, datasets, metrics Web Search 1 - - PowerPoint PPT Presentation

Evaluation

Experimental protocols, datasets, metrics

Web Search

1

What makes a good search engine?

• Efficiency: It replies to user queries without noticeable

delays.

• 1 sec is the “limit for users feeling that they are freely navigating

the command space without having to unduly wait for the computer”

• Miller, R. B. (1968). Response time in man-computer

conversational transactions. Proc. AFIPS Fall Joint Computer Conference Vol. 33, 267-277.

• Effectiveness: It replies to user queries with relevant

answers.

• This depends on the interpretation of the user query and the stored

information.

2

Efficiency metrics

3

Metric name Description Elapsed indexing time Measures the amount of time necessary to build a document index on a particular system. Indexing processor time Measures the CPU seconds used in building a document

• index. This is similar to elapsed time, but does not count

time waiting for I/O or speed gains from parallelism. Query throughput Number of queries processed per second. Query latency The amount of time a user must wait after issuing a query before receiving a response, measured in milliseconds. This can be measured using the mean, but is often more instructive when used with the median or a percentile bound. Indexing temporary space Amount of temporary disk space used while creating an index. Index size Amount of storage necessary to store the index files.

What makes a good search engine?

• Efficiency: It replies to user queries without noticeable

delays.

• 1 sec is the “limit for users feeling that they are freely navigating

the command space without having to unduly wait for the computer”

• Miller, R. B. (1968). Response time in man-computer

conversational transactions. Proc. AFIPS Fall Joint Computer Conference Vol. 33, 267-277.

• Effectiveness: It replies to user queries with relevant

answers.

• This depends on the interpretation of the user query and the stored

information.

4

Essential aspects of a sound evaluation

• Experimental protocol
• Is the task/problem clear? Is it a standard task?
• Detailed description of the experimental setup:
• identify all steps of the experiments.
• Reference dataset
• Use a well known dataset if possible.
• If not, how was the data obtained?
• Clear separation between training and test set.
• Evaluation metrics
• Prefer the commonly used metrics by the community.
• Check which statistical test is most adequate.

5

Experimental setups

• There are experimental setups made available by different
• rganizations:
• TREC: http://trec.nist.gov/tracks.html
• CLEF: http://clef2017.clef-initiative.eu/
• SemEVAL: http://alt.qcri.org/semeval2017/
• Visual recognition: http://image-net.org/challenges/LSVRC/
• These experimental setups define a protocol, a dataset

(documents and relevance judgments) and suggest a set of metrics to evaluate performance.

6

What is a standard task?

• Experimental setups are designed to develop a search

engine to address a specific task.

• Retrieval by keyword
• Retrieval by example
• Ranking annotations
• Interactive retrieval
• Search query categorization
• Real-time summarization
• Datasets exist for all the above tasks.

7

Examples of standard tasks in IR

• For example, TRECVID tasks include:
• Video shot-detection
• Video news story segmentation
• High-level feature task (concept detection)
• Automatic and semi-automatic video search
• Exploratory analysis (unsupervised)
• Other forums exist with different tasks:
• TREC: Blog search, opinion leader, patent search, Web search,

document categorization...

• CLEF: Plagiarism detection, expert search, wikipedia mining,

multimodal image tagging, medical image search...

• Others: Japanese, Russian, Spanish, etc...

8

A retrieval evaluation setup

9

Data System Ranked results Queries

Groundtruth

Evaluation metrics

Essential aspects of a sound evaluation

• Experimental protocol
• Is the task/problem clear? Is it a standard task?
• Detailed description of the experimental setup:
• identify all steps of the experiments.
• Reference dataset
• Use a well known dataset if possible.
• If not, how was the data obtained?
• Clear separation between training and test set.
• Evaluation metrics
• Prefer the commonly used metrics by the community.
• Check which statistical test is most adequate.

10

Reference datasets

• A reference dataset is made of:
• a collection of documents
• a set of training queries
• a set of test queries
• the relevance judgments of the pairs query-document.
• Reference datasets are as important as metrics for

evaluating the proposed method.

• Many different datasets exist for standard tasks.
• Reference datasets set the difficulty level of the task.
• Allow a fair comparison across different methods.

11

Ground-truth (relevance judgments)

• Ground-truth tells the scientist how the method must

behave.

• The ultimate goal is to devise a method that produces

exactly the same output as the ground-truth.

12

Ground-truth True False Method True True positive False positive False False negative True negative Type I error Type II error

Annotate these pictures with keywords:

13

Relevance judgments

14

People Nepal Mother Baby Colorful dress Fence Sunset Horizon Coulds Orange Desert Flowers Yellow Nature Beach Sea Palm tree White-sand Clear sky

Relevance judgments

• Judgments can be obtained by experts or by crowdsourcing
• Human relevance judgments can be incorrect and inconsistent
• How do we measure the quality of human judgments?
• Values above 0.8 are considered good
• Values between 0.67 and 0.8 are considered fair
• Values below 0.67 are considered dubious

15

𝑙𝑏𝑞𝑞𝑏 = 𝑞 𝐵 − 𝑞 𝐹 1 − 𝑞 𝐹

𝑞 𝐹 -> probability of agreeing by chance 𝑞 𝐵 -> proportion of times humans agreed

Essential aspects of a sound evaluation

• Experimental protocol
• Is the task/problem clear? Is it a standard task?
• Detailed description of the experimental setup:
• identify all steps of the experiments.
• Reference dataset
• Use a well known dataset if possible.
• If not, how was the data obtained?
• Clear separation between training and test set.
• Evaluation metrics
• Prefer the commonly used metrics by the community.
• Check which statistical test is most adequate.

16

Evaluation metrics

• Complete relevance judgments
• Ranked relevance judgments
• Binary relevance judgments
• Incomplete relevance judgments (Web scale eval.)
• Binary relevance judgments
• Multi-level relevance judgments

17

Ranked relevance evaluation metrics

• Spearman’s rank correlation:
• Example:
• Another popular rank correlation metric is the Kendall-Tau.

18

1 4 2 3 1 2 3 4

𝑠 = 1 − 6 σ 𝑒𝑗

2

𝑜 𝑜2 − 1 𝑠 = 1 − 6 1 − 1 2 + 2 − 3 2 + 3 − 4 2 + 4 − 2 2 4 42 − 1

Binary relevance judgments

19

Em PT: exatidão, precisão e abragência. Ground-truth True False Method True True positive False positive False False negative True negative 𝐵𝑑𝑑𝑣𝑠𝑏𝑑𝑧 = 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 + 𝑢𝑠𝑣𝑓𝑂𝑓𝑕 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 + 𝑔𝑏𝑚𝑡𝑓𝑄𝑝𝑡 + 𝑢𝑠𝑣𝑓𝑂𝑓𝑕 + 𝑔𝑏𝑚𝑡𝑓𝑂𝑓𝑕 𝑄𝑠𝑓𝑑𝑗𝑡𝑗𝑝𝑜 = 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 + 𝑔𝑏𝑚𝑡𝑓𝑄𝑝𝑡 𝑆𝑓𝑑𝑏𝑚𝑚 = 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 𝑢𝑠𝑣𝑓𝑄𝑝𝑡 + 𝑔𝑏𝑚𝑡𝑓𝑂𝑓𝑕 𝐺

1 =

2 1 𝑄 + 1 𝑆

Precision-recall graphs for ranked results

20

Improved recall Improved precision Improved F-measure

Recall Precision

System A System B System C

A B ... ... ... ... ... ... ... A ... B ... C ... ... ... ... ... A B C D ... S1 S2 S3

Interpolated precision-recall graphs

21

A B ... ... ... ... ... ... ... A ... B ... C ... ... ... ... ... A B C D ... S1 S2 S3

Average Precision

• Web systems favor high-precision methods (P@20)
• Other more robust metric is AP:

22

1 2 3 4 5 6 7 8

𝐵𝑄 = 1 #𝑠𝑓𝑚𝑓𝑤𝑏𝑜𝑢 ∙ ෍

𝑙∈ 𝑡𝑓𝑢 𝑝𝑔 𝑞𝑝𝑡𝑗𝑢𝑗𝑝𝑜𝑡 𝑝𝑔 𝑢ℎ𝑓 𝑠𝑓𝑚𝑓𝑤𝑏𝑜𝑢 𝑒𝑝𝑑𝑡

𝑞@𝑙 𝐵𝑄 = 1

4 ∙ 1 2 + 2 4 + 3 6 =0.375

Average Precision

• Average precision is the area under the P-R curve

23

𝐵𝑄 = 1 #𝑠𝑓𝑚𝑓𝑤𝑏𝑜𝑢 ∙ ෍

𝑙∈ 𝑡𝑓𝑢 𝑝𝑔 𝑞𝑝𝑡𝑗𝑢𝑗𝑝𝑜𝑡 𝑝𝑔 𝑢ℎ𝑓 𝑠𝑓𝑚𝑓𝑤𝑏𝑜𝑢 𝑒𝑝𝑑𝑡

𝑞@𝑙

Mean Average Precision (MAP)

• MAP evaluates the system for a

given range of queries.

• It summarizes the global system

performance in one single value.

• It is the mean of the average

precision of a set of n queries:

24

A B ... ... ... ... ... ... ... A ... B ... C ... ... ... ... ... A B C D ...

AP(q1) AP(q2) AP(q3)

𝑁𝐵𝑄 = 𝐵𝑄 𝑟1 + 𝐵𝑄 𝑟2 +𝐵𝑄 𝑟3 +…+𝐵𝑄 𝑟𝑜 𝑜

Web scale evaluation

• It is impossible to know all relevant documents.
• It is too expensive or time-consuming.
• DCG, BPref and Inferred AP are three measures to evaluate

a system with incomplete ground-truth.

• These metrics use the concept of pooled results

25

• E. Yilmaz and J. A. Aslam, Estimating average precision with incomplete and imperfect judgments, ACM CIKM 2006.
• C. Buckley and E. M. Voorhees. Retrieval evaluation with incomplete information. ACM SIGIR 2004.

Results pooling

• This technique is used when the dataset is too large to be

completely examined.

• Considering the results of 10 systems:
• Examine the top 100 results of each system
• Label all documents according to its relevance
• Use the labeled results as ground-truth to evaluate all systems.
• Drawback: can’t compute recall, AP and MAP

26

DCG: Incomplete multi-level relevance

• Useful when some documents are more relevant

than others.

• Documents need to have ground-truth with

different levels of relevance.

• A common metric is the Discounted Cumulative

Gain:

27

• K. Jarvelin, J. Kekalainen, “Cumulated gain-based evaluation of IR techniques,” ACM Transactions on Information Systems 20(4), 422–446 (2002).

... A ... B ... C ... ...

𝐸𝐷𝐻𝑛 = ෍

𝑗=1 𝑛

2𝑠𝑓𝑚𝑗 − 1 log2 1 + 𝑗 𝑠𝑓𝑚𝑗 = 0,1,2,3, … 𝑜𝐸𝐷𝐻𝑛 = 𝐸𝐷𝐻𝑛 𝑐𝑓𝑡𝑢𝐸𝐷𝐻𝑛

BPref: Incomplete binary relevance

• When only incomplete binary relevance judgments are

available BPREF is a popular metric:

• where R is the total number of relevant documents in a given query
• 𝑒𝑠 is a relevant document
• 𝑂𝑒𝑠 is the number of non-relevant documents ranked higher than

𝑒𝑠

28

𝐶𝑄𝑆𝐹𝐺 = 1 𝑆 ෍

𝑒𝑠

1 − 𝑂𝑒𝑠 𝑆

Diversity and novelty

• Diversity and novelty are difficult to evaluate.
• There are no defacto method to measure it.
• The goal is to measure how diverse and novel is the

information contained in the retrieved documents.

• Assessment focus is not at the level of the documents.

29

Nuggets or information facts

• A nugget is an information fact
• Documents contain many nuggets.
• The same nugget can be present in many different documents.
• The goal is to retrieve a ranked list with many different

nuggets at the top of the list

• Repeated nuggets will have a decreasing importance

30

The -nDCG metric for diversity and novelty

• The relevance of a document is determined by its nuggets

and by the nuggets that occurred previously in the ranked results

• A popular metric is the -nDCG, where each document at

position k is judged by its nuggets

31

𝛽 = 0.5

Example

• Top results for query “Norwegian Cruise Lines”
• The relevance of each document is:
• What would be the ideal ordering?

32

System quality and user utility

• The discussed evaluation procedures only measure the system

performance on a given task

• It can overfit
• It might be distant from what users expect
• Only real users actually assess the system
• How expressive is its query language?
• How large is its collection?
• How effective are the results?
• A/B testing
• Make small variation on the system and direct a proportion of users to that

system

• Evaluate frequency with which users clik on top results

33

Qualitative discussion

• Relevance depends on:
• Task objective
• User knowledge
• Time
• Not all people “see” the same
• Binary relevance judgments
• Multi-level relevance judgments
• Ranked relevance judgments
• Incomplete relevance judgments

The notion of relevance is a subjective concept There is no relation between AP and user satisfaction

34

Summary

• Metrics for complete relevance judgments
• Binary: Precision, Recall, F-measure, Average Precision, Mean AP
• Ranked: Spearman, Kendal-tau
• Metrics for incomplete relevance judgments
• Binary: Bpref, InfMAP
• Multi-valued: Normalized DCG
• Evaluation collections / resources
• See TRECVID and ImageCLEF for multimedia datasets.
• See TREC and CLEF forums for Web and large-scale datasets
• User search interaction, Geographic IR, Expert finding, Blog search, Plagiarism,…
• Use trec_eval application to evaluate your system

35

Chapter 8 Chapter 8
