slide-1

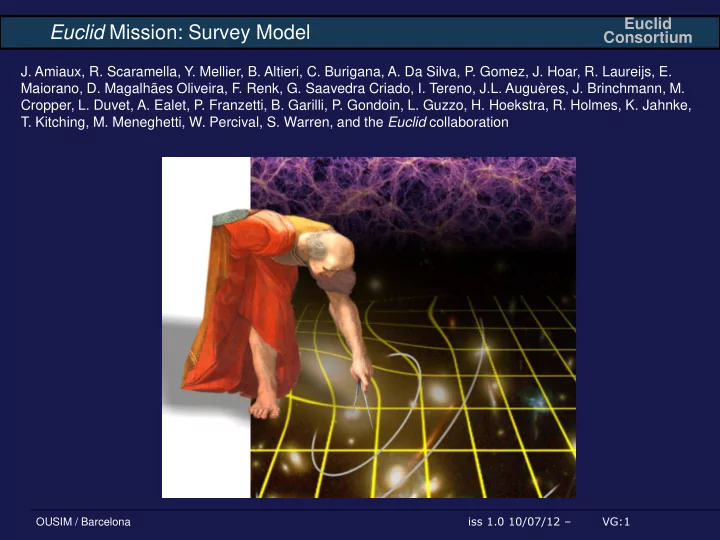

SLIDE 1

OUSIM / Barcelona iss 1.0 10/07/12 – VG:1

Euclid Consortium

  • J. Amiaux, R. Scaramella, Y. Mellier, B. Altieri, C. Burigana, A. Da Silva, P. Gomez, J. Hoar, R. Laureijs, E.

Maiorano, D. Magalhães Oliveira, F. Renk, G. Saavedra Criado, I. Tereno, J.L. Auguères, J. Brinchmann, M. Cropper, L. Duvet, A. Ealet, P. Franzetti, B. Garilli, P. Gondoin, L. Guzzo, H. Hoekstra, R. Holmes, K. Jahnke,

  • T. Kitching, M. Meneghetti, W. Percival, S. Warren, and the Euclid collaboration

Euclid Mission: Survey Model

slide-2
SLIDE 2

OUSIM / Barcelona iss 1.0 10/07/12 – VG:2

Euclid Consortium

What is Reference Survey?

Survey used to demonstrate feasibility of Mission Top Level Science Requirements:

  • 15 000 square degrees Wide survey + 40 square degrees Deep Survey
  • 30 galaxies / arcmin² in imaging for Weak Lensing
  • 3500 galaxies / deg² in spectroscopy for Galaxy Clustering

2 instruments – 3 modes:

  • Visible Imaging
  • NIR Photometry
  • NIR Spectroscopy

Wide Field observations > 0.5 square degrees Step and Stare mode: 4500 s per fields Observe « Best Square Degrees » to limit

  • Extinction
  • Zodiacal Light
  • Star Density
slide-3
SLIDE 3

OUSIM / Barcelona iss 1.0 10/07/12 – VG:3

Euclid Consortium

What is Reference Survey?

Survey used to demonstrate feasibility of Mission Top Level Science Requirements:

  • 15 000 square degrees Wide survey + 40 square degrees Deep Survey
  • 30 galaxies / arcmin² in imaging for Weak Lensing
  • 3500 galaxies / deg² in spectroscopy for Galaxy Clustering

2 instruments – 3 modes:

  • Visible Imaging
  • NIR Photometry
  • NIR Spectroscopy

Wide Field observations > 0.5 square degrees Step and Stare mode: 4500 s per fields Observe « Best Square Degrees » to limit

  • Extinction
  • Zodiacal Light
  • Star Density

E(b-v)<0.08 Core Preferred Area

slide-4
SLIDE 4

OUSIM / Barcelona iss 1.0 10/07/12 – VG:4

Euclid Consortium

What is Reference Survey?

Survey used to demonstrate feasibility of Mission Top Level Science Requirements:

  • 15 000 square degrees Wide survey + 40 square degrees Deep Survey
  • 30 galaxies / arcmin² in imaging for Weak Lensing
  • 3500 galaxies / deg² in spectroscopy for Galaxy Clustering

2 instruments – 3 modes:

  • Visible Imaging
  • NIR Photometry
  • NIR Spectroscopy

Wide Field observations > 0.5 square degrees Step and Stare mode: 4500 s per fields Observe « Best Square Degrees » to limit

  • Extinction
  • Zodiacal Light|
  • Star Density

GAL lat>|25|

ECL lat>|15| Core Preferred Area E(b-v)<0.08

slide-5
SLIDE 5

OUSIM / Barcelona iss 1.0 10/07/12 – VG:5

Euclid Consortium

What is Reference Survey?

Survey used to demonstrate feasibility of Mission Top Level Science Requirements:

  • 15 000 square degrees Wide survey + 40 square degrees Deep Survey
  • 30 galaxies / arcmin² in imaging for Weak Lensing
  • 3500 galaxies / deg² in spectroscopy for Galaxy Clustering

2 instruments – 3 modes:

  • Visible Imaging
  • NIR Photometry
  • NIR Spectroscopy

Wide Field observations > 0.5 square degrees Step and Stare mode: 4500 s per fields Observe « Best Square Degrees » to limit

  • Extinction

E(b-v)<0.08

  • Zodiacal Light

ECL lat>|15|

  • Star Density

GAL lat>|25|

GAL lat>|25| Core Preferred Area ECL lat>|15| E(b-v)<0.08

slide-6
SLIDE 6

OUSIM / Barcelona iss 1.0 10/07/12 – VG:6

Euclid Consortium

What is Reference Survey?

Survey used to demonstrate feasibility of Mission Top Level Science Requirements:

  • 15 000 square degrees Wide survey + 40 square degrees Deep Survey
  • 30 galaxies / arcmin² in imaging for Weak Lensing
  • 3500 galaxies / deg² in spectroscopy for Galaxy Clustering

2 instruments – 3 modes:

  • Visible Imaging
  • NIR Photometry
  • NIR Spectroscopy

Wide Field observations > 0.5 square degrees Step and Stare mode: 4500 s per fields Observe « Best Square Degrees » to limit

  • Extinction

E(b-v)<0.08

  • Zodiacal Light

ECL lat>|15|

  • Star Density

GAL lat>|25|

GAL lat>|20| Extended Preferred Area E(b-v)<0.15 ECL lat>|15|

slide-7
SLIDE 7

OUSIM / Barcelona iss 1.0 10/07/12 – VG:7

Euclid Consortium

What is Reference Survey?

Survey used to size the spacecraft within Mission Constraints Main Mission Constraints:

  • 6 years mission
  • Mass / Volume Compatible with Soyouz Launcher
  • Limited Solar Aspect Angle variation to ensure high thermal Mechanical Stability
slide-8
SLIDE 8

OUSIM / Barcelona iss 1.0 10/07/12 – VG:8

Euclid Consortium

Observation Constraints

Spacecraft Constraints: Solar Aspect Angle variation: +0° to +10°

slide-9
SLIDE 9

OUSIM / Barcelona iss 1.0 10/07/12 – VG:9

Euclid Consortium

Observation Constraints

slide-10
SLIDE 10

OUSIM / Barcelona iss 1.0 10/07/12 – VG:10

Euclid Consortium

Observation Constraints

slide-11
SLIDE 11

OUSIM / Barcelona iss 1.0 10/07/12 – VG:11

Euclid Consortium

Observation Constraints

slide-12
SLIDE 12

OUSIM / Barcelona iss 1.0 10/07/12 – VG:12

Euclid Consortium

Observation Constraints

slide-13
SLIDE 13

OUSIM / Barcelona iss 1.0 10/07/12 – VG:13

Euclid Consortium

Observation Constraints

slide-14
SLIDE 14

OUSIM / Barcelona iss 1.0 10/07/12 – VG:14

Euclid Consortium

Observation Constraints

slide-15
SLIDE 15

OUSIM / Barcelona iss 1.0 10/07/12 – VG:15

Euclid Consortium

Associated Performance

WL GC

slide-16
SLIDE 16

OUSIM / Barcelona iss 1.0 10/07/12 – VG:16

Euclid Consortium

Main Survey: year 1

Euclid Sky Survey Planning Tool developped by ESAC

slide-17
SLIDE 17

OUSIM / Barcelona iss 1.0 10/07/12 – VG:17

Euclid Consortium

Main Survey: year 2

Euclid Sky Survey Planning Tool developped by ESAC

slide-18
SLIDE 18

OUSIM / Barcelona iss 1.0 10/07/12 – VG:18

Euclid Consortium

Main Survey: year 3

Euclid Sky Survey Planning Tool developped by ESAC

slide-19
SLIDE 19

OUSIM / Barcelona iss 1.0 10/07/12 – VG:19

Euclid Consortium

Main Survey: year 4

Euclid Sky Survey Planning Tool developped by ESAC

slide-20
SLIDE 20

OUSIM / Barcelona iss 1.0 10/07/12 – VG:20

Euclid Consortium

Main Survey: year 5

Euclid Sky Survey Planning Tool developped by ESAC

slide-21
SLIDE 21

OUSIM / Barcelona iss 1.0 10/07/12 – VG:21

Euclid Consortium

Main Survey: year 6

Euclid Sky Survey Planning Tool developped by ESAC

slide-22
SLIDE 22

OUSIM / Barcelona iss 1.0 10/07/12 – VG:22

Euclid Consortium

Survey Covered area

After 5.5 years:

  • 15 500 square degrees covered
  • 14 500 square degrees on the « core preferred area »
  • This include all required calibrations (~15% of survey time)
slide-23
SLIDE 23

OUSIM / Barcelona iss 1.0 10/07/12 – VG:23

Euclid Consortium

Calibrations fields

slide-24
SLIDE 24

OUSIM / Barcelona iss 1.0 10/07/12 – VG:24

Euclid Consortium

Calibrations fields

Monthly dense star field Allocation for VIS PSF calibration

slide-25
SLIDE 25

OUSIM / Barcelona iss 1.0 10/07/12 – VG:25

Euclid Consortium

Calibrations fields

Allocation for NISP spectroscopy wavelength calibration Planetary Nebulae:

  • Twice a year

Open Cluster:

  • Once a year
slide-26
SLIDE 26

OUSIM / Barcelona iss 1.0 10/07/12 – VG:26

Euclid Consortium

Calibrations fields

slide-27
SLIDE 27

OUSIM / Barcelona iss 1.0 10/07/12 – VG:27

Euclid Consortium

Calibrations fields

Allocation for NISP spectroscopy photometric calibration HST standard stars or reference transfered to the Deep Field:

  • Twice a year
slide-28
SLIDE 28

OUSIM / Barcelona iss 1.0 10/07/12 – VG:28

Euclid Consortium

Calibrations fields

Deep Field North allocation 20 square degrees with 40 revisits

slide-29
SLIDE 29

OUSIM / Barcelona iss 1.0 10/07/12 – VG:29

Euclid Consortium

Calibrations fields

Allocation for HST field visit (VIS color gradient calibration)

slide-30
SLIDE 30

OUSIM / Barcelona iss 1.0 10/07/12 – VG:30

Euclid Consortium

Calibrations fields

slide-31
SLIDE 31

OUSIM / Barcelona iss 1.0 10/07/12 – VG:31

Euclid Consortium

Calibrations fields

slide-32
SLIDE 32

OUSIM / Barcelona iss 1.0 10/07/12 – VG:32

Euclid Consortium

Calibrations fields

Deep Field South allocation 20 square degrees with 40 revisits

slide-33
SLIDE 33

OUSIM / Barcelona iss 1.0 10/07/12 – VG:33

Euclid Consortium

Calibrations fields

slide-34
SLIDE 34

OUSIM / Barcelona iss 1.0 10/07/12 – VG:34

Euclid Consortium

Calibrations fields

Allocation for 2 additional HST fields (VIS color gradient calibration)

slide-35
SLIDE 35

OUSIM / Barcelona iss 1.0 10/07/12 – VG:35

Euclid Consortium

Calibrations fields

NIR Photometry Cross calibration (relative photometry) Monthly revisit of same field at Northern Ecliptic Pole

slide-36
SLIDE 36

OUSIM / Barcelona iss 1.0 10/07/12 – VG:36

Euclid Consortium

Field Sequence

slide-37
SLIDE 37

OUSIM / Barcelona iss 1.0 10/07/12 – VG:37

Euclid Consortium

Field Sequence

slide-38
SLIDE 38

OUSIM / Barcelona iss 1.0 10/07/12 – VG:38

Euclid Consortium

Field Sequence

slide-39
SLIDE 39

OUSIM / Barcelona iss 1.0 10/07/12 – VG:39

Euclid Consortium

Field Sequence

slide-40
SLIDE 40

OUSIM / Barcelona iss 1.0 10/07/12 – VG:40

Euclid Consortium

Field Sequence

Main Reference Survey composed of ~41 500 field observations

slide-41
SLIDE 41

OUSIM / Barcelona iss 1.0 10/07/12 – VG:41

Euclid Consortium

Field Sequence

slide-42
SLIDE 42

OUSIM / Barcelona iss 1.0 10/07/12 – VG:42

Euclid Consortium

Field Sequence

Each field will be > 0.5 square degrees

slide-43
SLIDE 43

OUSIM / Barcelona iss 1.0 10/07/12 – VG:43

Euclid Consortium

Field Sequence

Each field will be > 0.5 square degrees

Frame 01 Frame 02 Frame 03 Frame 04 Dither 01 Dither 02 Dither 03 Slew To Next Field

75 s 75 s 75 s 35O s

VIS NISP

Shutter 10 s NISP S 565 s VIS 565 s Shutter 10 s FWA 10 s Y 121 s FWA 10 s J 116 s FWA 10 s H 81 s GWA 10 s

Frame = 973 s

Stab 10 s Stab 10 s Stab 10 s

Reference Case = 4 x 973 s + 3 x 75 s + 350 s = 4467 s

slide-44
SLIDE 44

OUSIM / Barcelona iss 1.0 10/07/12 – VG:44

Euclid Consortium

Field Sequence

Integration time map for observed fields with dithering pattern VIS:

  • >95% of pixels sees at least 3 frames
  • 50% of pixels sees more than 4 frames
slide-45
SLIDE 45

OUSIM / Barcelona iss 1.0 10/07/12 – VG:45

Euclid Consortium

Field Sequence

Integration time map for observed fields with dithering pattern VIS:

  • >95% of pixels sees at least 3 frames
  • 50% of pixels sees more than 4 frames
slide-46
SLIDE 46

OUSIM / Barcelona iss 1.0 10/07/12 – VG:46

Euclid Consortium

Solar Aspect Angle Variation

This will contribute to the PSF variation along the survey The Opto-mechanical PSf can be related to history f pointing

slide-47
SLIDE 47

OUSIM / Barcelona iss 1.0 10/07/12 – VG:47

Euclid Consortium The reference survey will be updated before end of year Tools are being upgraded and developped There is Survey group: Italy + France + Portugal + ESA This group can evaluate scenario and provide the Survey Model
