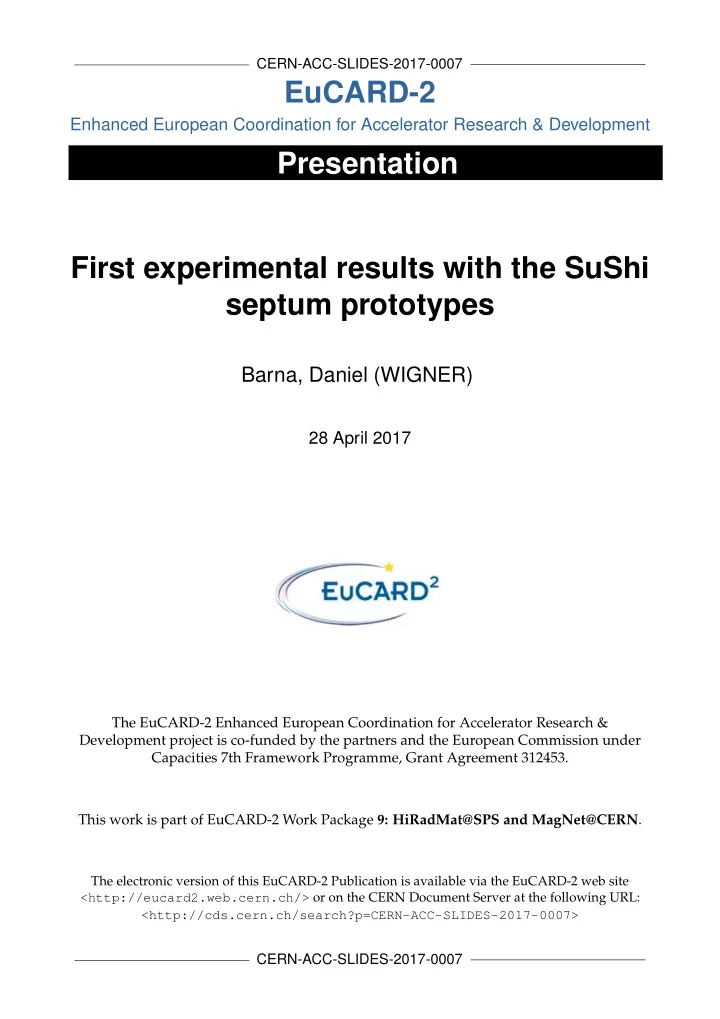

CERN-ACC-SLIDES-2017-0007 EuCARD-2 Enhanced European Coordination for Accelerator Research & Development Presentation First experimental results with the SuShi septum prototypes Barna, Daniel (WIGNER) 28 April 2017 The EuCARD-2 Enhanced


slide-1
SLIDE 1

CERN-ACC-SLIDES-2017-0007

EuCARD-2

Enhanced European Coordination for Accelerator Research & Development

Presentation First experimental results with the SuShi septum prototypes

Barna, Daniel (WIGNER)

28 April 2017

The EuCARD-2 Enhanced European Coordination for Accelerator Research & Development project is co-funded by the partners and the European Commission under Capacities 7th Framework Programme, Grant Agreement 312453. This work is part of EuCARD-2 Work Package 9: HiRadMat@SPS and MagNet@CERN.

The electronic version of this EuCARD-2 Publication is available via the EuCARD-2 web site <http://eucard2.web.cern.ch/> or on the CERN Document Server at the following URL: <http://cds.cern.ch/search?p=CERN-ACC-SLIDES-2017-0007>

CERN-ACC-SLIDES-2017-0007

slide-2
SLIDE 2

Dániel Barna: 1st exp. results with the SuShi prototypes 1/48 FCC Week Berlin, 2017

First experimental results with the SuShi septum prototypes

Dániel Barna Wigner Research Centre for Physics, Budapest, Hungary

Outline

  • Motivation
  • The SuShi concept
  • Simulation

➢ Field homogeneity ➢ Massless septum

  • Experimental results:

➢ MgB2 ➢ HTS

  • Outlook

Kristóf Brunner, Anikó Német (Wigner RCP) Miro Atanasov, Márta Bajkó, Hugues Bajas, Carlo Petrone (CERN) Giovanni Giunchi Alexander Molodyk (SuperOx)

slide-3
SLIDE 3

Dániel Barna: 1st exp. results with the SuShi prototypes 2/48 FCC Week Berlin, 2017

FCC extraction scheme & parameters

Injection is OK with LHC technology (Lambertson septa)

slide-4
SLIDE 4

Dániel Barna: 1st exp. results with the SuShi prototypes 3/48 FCC Week Berlin, 2017

FCC extraction scheme & parameters

Kicker angle αk 0.045 mrad Septum angle αs 1.2 mrad Septum integrated field 190 T m Available space for septum 120 m

slide-5
SLIDE 5

Dániel Barna: 1st exp. results with the SuShi prototypes 4/48 FCC Week Berlin, 2017

Kicker angle αk 0.045 mrad Septum angle αs 1.2 mrad Septum integrated field 190 T m Available space for septum 120 m

FCC extraction scheme & parameters

Need ≥ 2 T field (to accomodate gate valves, pumps, etc)

slide-6
SLIDE 6

Dániel Barna: 1st exp. results with the SuShi prototypes 5/48 FCC Week Berlin, 2017

Motivation, requirements

  • B > 2 T

– Not easy with normal-conducting devices – need superconductors?

  • Must follow the ring energy (quasi-DC mode)
  • Field homogeneity: ~1%
  • Leakage field at circulating beam: < 10-4 relative
slide-7
SLIDE 7

Dániel Barna: 1st exp. results with the SuShi prototypes 6/48 FCC Week Berlin, 2017

SuShi = Superconducting Shield

  • Put a superconducting shield around the

circulating beam (or the inverse config)

  • Cool below Tc in zero field
  • Ramp up an external field
  • Induced persistent eddy

currents cancel the field inside

  • Like an eddy current

septum, but can work in quasi-DC mode

For details: D. Barna, PRAB 20 (2017), 041002 http://cern.ch/sushi-septum-project

slide-8
SLIDE 8

Dániel Barna: 1st exp. results with the SuShi prototypes 7/48 FCC Week Berlin, 2017

Pros & Cons

  • Pros

Shielding currents arranged by nature precisely, not by us

Continuous 2D current distribution, with no leak (in contrast to a magnet's winding)

Critical state model: currents flow at Jc (i.e. highest possible value, thinnest possible septum blade)

Bulk superconductor, no windings, no interleaving insulation (better mechanical and thermal stability)

No quench heater needed

  • Cons

Superconductors in potentially high rad zone → quench? (for all SC solutions)

Passive shield - hysteretic behaviour

Shield's state is not a unique function of the controllable parameters T and Bext → must start from a 'virgin' state for each accelerator cycle.

slide-9
SLIDE 9

Dániel Barna: 1st exp. results with the SuShi prototypes 8/48 FCC Week Berlin, 2017

Challenges compared to usual shielding applications

  • Aimed field is high: >2 T (3-4 Tesla for a more compact system?)
  • Must simultaneously shield the circulating beam, and shape a

homogeneous field outside

  • Coupled optimization of superconductor's shape and external

magnet's geometry

  • Homogeneity must hold independently from field strength,

spanning a range of a factor 15 between injection/extraction

slide-10
SLIDE 10

Dániel Barna: 1st exp. results with the SuShi prototypes 9/48 FCC Week Berlin, 2017

How to make a homogeneous field

For details:

  • D. Barna, PRAB 20 (2017), 041002

bulk shield with straight walls

B=0.5 T B=3 T

beam- pipe hole

truncated cos-θ-like configuration

+

Magnet windings

assuming a NbTi/Nb/Cu multilayer material

slide-11
SLIDE 11

Dániel Barna: 1st exp. results with the SuShi prototypes 10/48 FCC Week Berlin, 2017

How to make a homogeneous field

For details:

  • D. Barna, PRAB 20 (2017), 041002

bulk shield with straight walls

B=0.5 T B=3 T

beam- pipe hole

truncated cos-θ-like configuration Excitation & shielding currents @ 3T (< 400 A/mm2 in windings)

+

Magnet windings

assuming a NbTi/Nb/Cu multilayer material

slide-12
SLIDE 12

Dániel Barna: 1st exp. results with the SuShi prototypes 11/48 FCC Week Berlin, 2017

How to make a homogeneous field

For details:

  • D. Barna, PRAB 20 (2017), 041002

bulk shield with straight walls

B=0.5 T B=3 T

beam- pipe hole

truncated cos-θ-like configuration

+

Magnet windings

assuming a NbTi/Nb/Cu multilayer material

Field homogeneity: ΔB/B~1-2% up to 3 Tesla, over a 5 cm GFR

  • despite different penetration

depths

  • with different SC materials
slide-13
SLIDE 13

Dániel Barna: 1st exp. results with the SuShi prototypes 12/48 FCC Week Berlin, 2017

For details: D. Barna, PRAB 20 (2017), 041002

B=3.5 T

8 mm gap

Massless septum

slide-14
SLIDE 14

Dániel Barna: 1st exp. results with the SuShi prototypes 13/48 FCC Week Berlin, 2017

“Quite good” up to ~1.5 T:

  • Homogeneity: 1.5%

For details: D. Barna, PRAB 20 (2017), 041002

B=3.5 T

8 mm gap

Massless septum

Homogeneity [%]

slide-15
SLIDE 15

Dániel Barna: 1st exp. results with the SuShi prototypes 14/48 FCC Week Berlin, 2017

For details: D. Barna, PRAB 20 (2017), 041002

B=3.5 T

8 mm gap

Massless septum

Homogeneity [%]

“Quite good” up to ~1.5 T:

  • Homogeneity: 1.5%
  • Attenuation: 10-4
slide-16
SLIDE 16

Dániel Barna: 1st exp. results with the SuShi prototypes 16/48 FCC Week Berlin, 2017

3 planned prototypes

  • Quick and simple experiments → cylindrical shield in an existing magnet

Check highest shielded field

Check flux creep (slow relaxation of shielding currents)

Identify best material/technology for more sophisticated tests/prototypes

  • Prototypes:

MgB2

HTS

NbTi/Nb/Cu multilayer

  • Shield parameters:

450 mm length (to exceed the originally planned LHC MQSX magnet's length)

50 mm outer diameter (to easily fit into the 70 mm bore of the magnet)

slide-17
SLIDE 17

Dániel Barna: 1st exp. results with the SuShi prototypes 17/48 FCC Week Berlin, 2017

Experimental setup

Superconducting shield MQSX was not available. Used magnet: MCBY (length: 1100 mm, bore: 70 mm)

Asymmetric setup:

  • ne end immersed in high field,
  • ne end sticking out of magnet
slide-18
SLIDE 18

Dániel Barna: 1st exp. results with the SuShi prototypes 19/48 FCC Week Berlin, 2017

Experimental setup

MQSX was not available. Used magnet: MCBY (length: 1100 mm, bore: 70 mm)

4 Hall sensors (0-3) inside, 4 Hall sensors (4-7) outside the shield

Full setup immersed in liquid helium, T = 4.2 K

slide-19
SLIDE 19

Dániel Barna: 1st exp. results with the SuShi prototypes 20/48 FCC Week Berlin, 2017

The MgB2 shield

450 mm

  • Produced by the Reactive Liquid

Magnesium Infiltration (RLI) process

(G. Giunchi, Int.J.Mod.Phys.B17,453)

  • Extra large boron grainsize (160 μm) to

be stable against flux jumps

(G.Giunchi et al, IEEE Trans. Appl. Supercond. 26, 8801005)

Mg

Boron powder steel container

50 mm

8.5 mm

slide-20
SLIDE 20

Dániel Barna: 1st exp. results with the SuShi prototypes 21/48 FCC Week Berlin, 2017

MgB2 magnetization cycle

Field inside the shield Field outside the shield

slide-21
SLIDE 21

Dániel Barna: 1st exp. results with the SuShi prototypes 22/48 FCC Week Berlin, 2017

MgB2 magnetization cycle

Ramp rate: 0.1 A/s →5 mT/s on external sensors (realistic for FCC: 3 T/10 minute) 2 minute plateaus for relaxation measurement

slide-22
SLIDE 22

Dániel Barna: 1st exp. results with the SuShi prototypes 23/48 FCC Week Berlin, 2017

MgB2 magnetization cycle

Complete shieldig below 2.6 T Smooth penetration at 2.6 T

slide-23
SLIDE 23

Dániel Barna: 1st exp. results with the SuShi prototypes 24/48 FCC Week Berlin, 2017

MgB2 magnetization cycle

Flux jumps at low fields, after the shield has been exposed to high fields No flux jump on the virgin curve up to the highest field Complete shieldig below 2.6 T Smooth penetration at 2.6 T

slide-24
SLIDE 24

Dániel Barna: 1st exp. results with the SuShi prototypes 25/48 FCC Week Berlin, 2017

MgB2 magnetization cycle

slide-25
SLIDE 25

Dániel Barna: 1st exp. results with the SuShi prototypes 26/48 FCC Week Berlin, 2017

MgB2: field penetration

Significant creep

  • n the plateaus

(smooth, not an avalanche-like jump!)

OUTSIDE INSIDE

2.6 T plateau (full shielding)

64 A magnet current

slide-26
SLIDE 26

Dániel Barna: 1st exp. results with the SuShi prototypes 27/48 FCC Week Berlin, 2017

MgB2: field penetration

88 mm from shield's end

Field penetration at

  • pen end of the tube

Full shielding (<0.1 mT) deeper inside

Significant creep

  • n the plateaus

(smooth, not an avalanche-like jump!)

OUTSIDE INSIDE INSIDE

2.6 T plateau (full shielding)

slide-27
SLIDE 27

Dániel Barna: 1st exp. results with the SuShi prototypes 28/48 FCC Week Berlin, 2017

MgB2: field penetration

88 mm from shield's end

2.6 T plateau (full shielding)

OUTSIDE INSIDE INSIDE

Significant creep

  • n the plateaus

(smooth, not an avalanche-like jump!)

Breakdown proceeds from the end? End effect?

8.5 mm Side view Front view Sharper surface higher ield

slide-28
SLIDE 28

Dániel Barna: 1st exp. results with the SuShi prototypes 29/48 FCC Week Berlin, 2017

MgB2: linearity

Measured external magnetic field is non-linear as a function of magnet current!

slide-29
SLIDE 29

Dániel Barna: 1st exp. results with the SuShi prototypes 30/48 FCC Week Berlin, 2017

ideal diamagnet shield

Hall sensor

COMSOL simulation in precise model of MCBY magnet

MgB2: linearity

Observed nonlinearity is not due to MCBY's iron

slide-30
SLIDE 30

Dániel Barna: 1st exp. results with the SuShi prototypes 31/48 FCC Week Berlin, 2017

MgB2: linearity

realistic MgB2 Jc(B) = J0∙ exp( – γ B)

Hall sensor

COMSOL simulation in precise model of MCBY magnet

  • Increasing field → more penetration
  • Effective shielding surface drifts away

from Hall sensor

  • Less field concentration at sensor
slide-31
SLIDE 31

Dániel Barna: 1st exp. results with the SuShi prototypes 32/48 FCC Week Berlin, 2017

MgB2: linearity

J0 and γ are strongly correlated realistic MgB2 Jc(B) = J0∙ exp( – γ B)

Hall sensor

COMSOL simulation in precise model of MCBY magnet

slide-32
SLIDE 32

Dániel Barna: 1st exp. results with the SuShi prototypes 33/48 FCC Week Berlin, 2017

MgB2: linearity

J0 and γ are strongly correlated realistic MgB2 Jc(B) = J0∙ exp( – γ B)

Hall sensor

COMSOL simulation in precise model of MCBY magnet

slide-33
SLIDE 33

Dániel Barna: 1st exp. results with the SuShi prototypes 34/48 FCC Week Berlin, 2017

MgB2: linearity

J0 and γ are strongly correlated realistic MgB2 Jc(B) = J0∙ exp( – γ B)

Hall sensor

COMSOL simulation in precise model of MCBY magnet

slide-34
SLIDE 34

Dániel Barna: 1st exp. results with the SuShi prototypes 35/48 FCC Week Berlin, 2017

MgB2: linearity

  • From observed nonlinearity one can get

some info on Jc(B)

slide-35
SLIDE 35

Dániel Barna: 1st exp. results with the SuShi prototypes 36/48 FCC Week Berlin, 2017

MgB2: linearity

Shielding current profiles

shield

  • uter surface

shield inner surface 10A

  • From observed nonlinearity one can get

some info on Jc(B)

  • At 64 A different parameters give B

penetration profiles with same, almost full depth

  • Small discrepancy – end effect?
  • ..but ultimate limiting factor is

thickness (and/or Jc)!

20A 30A 40A 50A 60A 64A

1.5 mm B profiles

slide-36
SLIDE 36

Dániel Barna: 1st exp. results with the SuShi prototypes 37/48 FCC Week Berlin, 2017

MgB2: relaxation

  • External field on the plateaus (magnet's current is constant)
  • Same vertical scale on all plots

Interplay between geometry and shielding currents' dynamics (shielding currents decay → effective shielding surface drifting away from Hall sensor)

Low creep below full penetration Significant creep near/ above full penetration

slide-37
SLIDE 37

Dániel Barna: 1st exp. results with the SuShi prototypes 38/48 FCC Week Berlin, 2017

MgB2: long-term relaxation

0.25%

  • If external field at a safe level below full

penetration...

  • ...relaxation is small, can be

compensated by the excitation current

slide-38
SLIDE 38

Dániel Barna: 1st exp. results with the SuShi prototypes 39/48 FCC Week Berlin, 2017

The HTS Shield

Copper support tube 25 layers of helically wrapped SuperOx 2G HTS tape, soft-soldered

450 mm Ø46.5 mm

slide-39
SLIDE 39

Dániel Barna: 1st exp. results with the SuShi prototypes 40/48 FCC Week Berlin, 2017

HTS: expectations

  • SuperOx 2G HTS Critical Current:

Ic = 250-500 A/cm in self-field, T=77 K

  • Our moderate B field does not change much...
  • Lift factor (improvement at 4.2 K w.r.t. 77 K)

> 4 for B<1 T

  • n=25 layers

ΔB = μ0 * Ic * n = 0.8 Tesla

slide-40
SLIDE 40

Dániel Barna: 1st exp. results with the SuShi prototypes 41/48 FCC Week Berlin, 2017

HTS: Shielding performance

Shielding up to 0.25 T (not perfect, as we will see!) Smooth, full penetration above 0.25 T Due to limited Jc? No flux jumps!

slide-41
SLIDE 41

Dániel Barna: 1st exp. results with the SuShi prototypes 42/48 FCC Week Berlin, 2017

HTS: Shielding performance

Shielding up to 0.25 T (not perfect, as we will see!) Smooth, full penetration above 0.25 T Due to limited Jc? No flux jumps!

slide-42
SLIDE 42

Dániel Barna: 1st exp. results with the SuShi prototypes 43/48 FCC Week Berlin, 2017

HTS: penetration at low field!

Continuous penetration from zero field! Attenuation is about 10-3 here Due to geometry? (non-continuous geometry, small gaps between tape layers, small current loops)

slide-43
SLIDE 43

Dániel Barna: 1st exp. results with the SuShi prototypes 44/48 FCC Week Berlin, 2017

HTS: relaxation

  • Same absolute scale on all plots
  • Negligible below full penetration, significant above it.

Below full penetration Above full penetration

slide-44
SLIDE 44

Dániel Barna: 1st exp. results with the SuShi prototypes 45/48 FCC Week Berlin, 2017

3rd prototype – stay tuned!

NbTi/Nb/Cu multilayer sheet

I.Itoh, K.Fujisawa, H.Otsuka: NbTi/Nb/Cu Multilayer Composite Materials for Superconducting Magnetic Shielding,

Nippon Steel Technical Report No. 85, January 2002

Hall probes

Deep-drawn seamless cups

  • Seems very promising
  • Sheet material waiting for shipment
  • Some R&D to fabricate the prototype

3 mm (!!) could shield 2.5 Tesla

slide-45
SLIDE 45

Dániel Barna: 1st exp. results with the SuShi prototypes 46/48 FCC Week Berlin, 2017

Prototype comparison

MgB2 HTS NbTi/Nb/Cu Price 1 4 x MgB2 5 x MgB2 Manufacturing simple (baking 950 oC), diamond or spark machining easy (from commercial tapes), scalable heavy machinery (rolling & heat treatments) Mechanical hard and brittle robust most versatile, ductile, robust Performance good insufficient best (anticipated from literature) Comments manufacturing of long (2-3 m) tubes needs R&D (can be joined...) very wide tapes to avoid helical wrapping? can the price be reduced drastically?

slide-46
SLIDE 46

Dániel Barna: 1st exp. results with the SuShi prototypes 47/48 FCC Week Berlin, 2017

Conclusions

  • Simulation: optimized geometry produces homogeneous field at different field strengths,

with different superconductor characteristics

  • Massless septum configuration is promising up to moderate levels (1 T)
  • MgB2 prototype ✔

– No flux jumps on the virgin curve – Perfect shielding up to 2.6 T with 8.5 mm wall thickness – 0.25% relaxation of external field over 6 hours, @ 2.4 T (ok for FCC) – Cheap and simple

  • HTS tape prototype (helical, multilayer wrap) ✗

– Field penetrates already at very low fields (due to geometry?) – Full penetration above 0.25 T – much below expectations. Degraded Jc? – Relaxation...

  • NbTi/Nb/Cu multilayer ? (this year...)
slide-47
SLIDE 47

Dániel Barna: 1st exp. results with the SuShi prototypes 48/48 FCC Week Berlin, 2017

Outlook

  • Candidate #1 so far is MgB2
  • With the best candidate:

– Test fast & reliable detection of flux jumps/quench – Test massless configuration – Develop a dedicated SC coil & shield to produce a homogeneous field

slide-48
SLIDE 48

Dániel Barna: 1st exp. results with the SuShi prototypes 49/48 FCC Week Berlin, 2017

Acknowledgements & Colleagues

  • FCC Collaboration
  • CERN SM18 (M. Bajkó, H. Bajas, M. Strychalski, et al)
  • CERN TE-MSC-MM (C. Petrone, M. Buzio)
  • European Commission (FP7/EUCARD-2, grant agreement no.

312453)

  • Wigner RCP (K. Brunner, A. Német)
  • M. Atanasov, J. Borburgh, W. Bartmann, F. Burkart, A. Sanz

Ull, R. Ostojic, G. Kirby, A. Verweij, L. Bortot, A. Yamamoto, G. Giunchi, S. Molodyk

slide-49
SLIDE 49

Dániel Barna: 1st exp. results with the SuShi prototypes 50/48 FCC Week Berlin, 2017

Backup slide #1

  • G. Giunchi, “The MgB 2 bulk

cylinders as magnetic shields for physical instrumentation” in 20th IMEKO TC4 Int. Symp., Benevento, Italy, pp. 1033–1037, 2014. (link)
