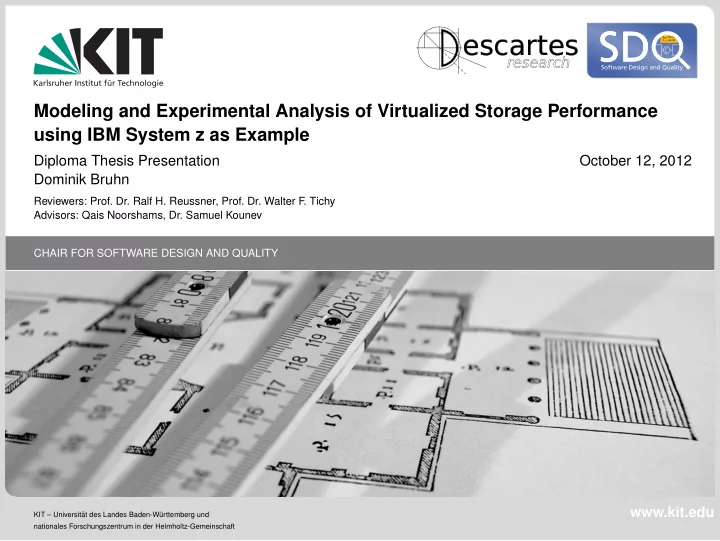

CHAIR FOR SOFTWARE DESIGN AND QUALITY
Modeling and Experimental Analysis of Virtualized Storage Performance using IBM System z as Example
Diploma Thesis Presentation October 12, 2012 Dominik Bruhn
Reviewers: Prof. Dr. Ralf H. Reussner, Prof. Dr. Walter F . Tichy Advisors: Qais Noorshams, Dr. Samuel Kounev
KIT – Universit¨ at des Landes Baden-W¨ urttemberg und nationales Forschungszentrum in der Helmholtz-Gemeinschaft
www.kit.edu
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 2/25
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 2/25
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 2/25
System App A App A’
System App A System App A
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 2/25
Problem
Complex systems with many layers Difficulty to obtain good performance prediction models
Idea
Derivation of storage performance models from systematic measurements using regression techniques
Benefit
Possibility to predict the performance Easier decisions on configurations and systems
Action
Creation and evaluation of performance models Evaluation of techniques and optimization possibilites
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 3/25
Contribution
Creation and evaluation of regression models for storage performance prediction Evaluation, analysis and comparison of regression techniques valid for storage performance prediction Repeatable process validated in a representative real-world environment
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 4/25
IBM System z Processors, Memory PR/SM (Hypervisor) LPAR1 LPAR2 z/Linux z/Linux App. App. IBM DS8700 Harddisks (RAID) Storage Controller Volatile Cache Non-Volatile Cache
Switched Fibre Channel Fibre Channel
Storage-Performance-Influencing Factors Workload Requests Size Mix Pattern Locality System Operating System File System I/O Scheduler Hardware
Derived from Noorshams et al. (2012)
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 5/25
Regression Models
Regression Model Training Data
Regression Model Independent Variables Dependent Variable
Black Box
Regression Model
Model Introspection
Regression Model A B C D E
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 6/25
Linear Regression Models
0.0 2.5 5.0 7.5 10.0 2 4 6 8
x1 y
y = −1.884 + 1.293x1 Parameters: None
MARS
0.0 2.5 5.0 7.5 10.0 2 4 6 8
x1 y
y = 1.014501 + 1.72866h(x1 − 3.25) Parameters: nk, threshold
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 7/25
Regression Trees (CART)
0.0 2.5 5.0 7.5 10.0 2 4 6 8
x1 y
x1 < 4.5 x1 < 6.75 8.93 5.35 1.17
Parameters: minsplit, cp
M5
0.0 2.5 5.0 7.5 10.0 2 4 6 8
x1 y
x1 ≤ 3.5 LM1 LM0 Model LM0 LM1 (Intercept) 1
x1 1.53
Parameter: nsplits
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 8/25
Samples Randomized Samples Split into k folds
Training Data Test Data
First Training
Training Data Training Data Test Data
Second Training
Training Data Test Data
kth Training
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 9/25
Workload
System Parameters File system ext4 I/O scheduler CFQ, NOOP Workload Parameters Threads 100 File set size 1 GB, 25 GB, 50 GB, 75 GB, 100 GB Request size 4 KB, 8 KB, 12 KB, 16 KB, 20 KB, 24 KB, 28 KB, 32 KB Access pattern random, sequential Read percentage 0%, 25%, 30%, 50%, 70%, 75%, 100%
Benchmark - FFSB
Existing benchmark At application layer
System Setup
Virtual Machines: z/Linux Virtualized by PR/SM in an LPAR DS8700 System Storage with 50 GB volatile and 2GB non-volatile cache.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 10/25
Goal/Question/Metric (GQM)
Measurements Analysis
Setup Analysis Stability of the Results Parameter Analysis Parameter Influence Virtualization Influence Performance Modeling Model Analysis Interpolation
Synthetic Random
Extrapolation
Synthetic Random
Reduced Training Sets Nominal Split Technique Analysis Quality Comparison Parameter Tuning Tradeoff Analysis
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 11/25
GQM
Measurements Analysis
Setup Analysis Stability of the Results Parameter Analysis Parameter Influence Virtualization Influence Performance Modeling Model Analysis Interpolation
Synthetic Random
Extrapolation
Synthetic Random
Reduced Training Sets Nominal Split Technique Analysis Quality Comparison Parameter Tuning Tradeoff Analysis
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 12/25
GQM
Measurements Analysis
Setup Analysis Stability of the Results Parameter Analysis Parameter Influence Virtualization Influence Performance Modeling Model Analysis Interpolation
Synthetic Random
Extrapolation
Synthetic Random
Reduced Training Sets Nominal Split Technique Analysis Quality Comparison Parameter Tuning Tradeoff Analysis
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 13/25
What interpolation abilities do the regression models show when being tested using newly collected samples?
Method
Creation of six regression models:
Linear regression model (lm) Linear regression model including interaction terms (lm 5param inter) CART tree (cart) MARS model without interactions (mars) MARS model including all interaction terms (mars multi) M5 model (m5)
Training using all measurements Validation using newly collected random samples
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 14/25
79.34% 13.87% 35.28% 79.49% 28.52% 9.27% 62.28% 10.01% 33.97% 64.65% 16.64% 10.39%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 25 50 75
Relative Error (%)
Models without interactions (lm,
mars) do not perform well.
With an error of ∼10%, M5 works well. Linear regression with interactions works surprisingly well. CART and MARS (with interactions) rank in the midfield.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 15/25
How is the extrapolation ability of the regression models when testing using newly collected data?
97.27% 20.16% 61.29% 95.92% 41.01% 12.58% 84.33% 20.32% 82.13% 79.71% 26.47% 15.46%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 25 50 75 100
Relative Error (%)
Again, the models without interactions do not work well. CART models can not be used for extrapolation. M5 still performs well with an error
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 16/25
How can the regression modeling of nominal scale parameters be improved?
Method
I/O Scheduler Access Pattern Model 1
Random
Model 2
Sequential CFQ
Access Pattern Model 3
Random
Model 4
Sequential NOOP
Create four models for each value of each nominal parameter. Remaining three parameters are all on ordinal scale.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 17/25
20.51% 13.35% 19.63% 17.89% 5.82% 6.21% 12.72% 9.20% 15.36% 10.76% 3.86% 4.75%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 5 10 15 20 25
Relative Error (%) 18.76% 66.52% 0.13% 0.28% 68.47% 28.52% 22.74% 53.60%
56.08% 12.14%
read write 20 40 60 80
Improvement (% points)
Models without interactions improve the most. The best performing models do not benefit.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 18/25
Which configuration parameters of the regression techniques can improve the prediction results?
Problem
Different regression techniques have different configuration parameters. Default values might not be well-suited. It is difficult to find the right parameters.
Method
Identify the most promising configuration parameters Analyze the influence of these configuration parameters on the prediction quality
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 19/25
CART
13.47% 38.40% 38.40% 21.25% 21.26% 6.49% 9.19% 38.11% 38.11% 17.68% 17.13% 4.24%
m5 cart var3 cart var2 cart var1 cart lm 5param inter m5 cart var3 cart var2 cart var1 cart lm 5param inter read write 10 20 30 40
Relative Error (%)
Model
minsplit cp cart
20 0.01
cart var1
5 0.01
cart var2
20 0.001
cart var3
5 0.001 Decreasing minsplit does not improve the models. Decreasing cp does improve the models by about 50%.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 20/25
MARS
13.47% 34.34% 12.59% 34.34% 12.58% 6.49% 9.19% 16.00% 9.00% 16.00% 8.05% 4.24%
m5 mars var3 mars var2 mars var1 mars multi lm 5param inter m5 mars var3 mars var2 mars var1 mars multi lm 5param inter read write 10 20 30 40
Relative Error (%)
Model
nk threshold mars multi
20 0.001
mars var1
40 0.001
mars var2
20 0.0001
mars var3
40 0.0001 Increasing nk improves the models by about 50%. Decreasing threshold improves the models only by a small amount.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 21/25
What are the advantages and the disadvantages of the modeling techniques?
Criterion Linear Regression CART MARS M5 Prediction Quality
⋆⋆⋆ ⋆ ⋆⋆ ⋆⋆⋆⋆
Modeling Time
⋆⋆⋆⋆ ⋆⋆⋆ ⋆⋆ ⋆
Prediction Time
⋆⋆⋆⋆ ⋆⋆⋆⋆ ⋆⋆ ⋆
Interpretability
⋆⋆ ⋆⋆⋆⋆ ⋆ ⋆
Stars are only ordered relative ranking.
0.0050s 0.0145s 0.0250s 0.0440s 0.0570s 0.1635s
m5 mars multi mars cart lm 5param inter lm 0.00 0.05 0.10 0.15 0.20
Model Creation Time (s) 0.0014s 0.0018s 0.0010s 0.0195s 0.0203s 0.0534s
0.00 0.02 0.04 0.06
Prediction Time (s)
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 22/25
GQM
Measurements Analysis
Setup Analysis Stability of the Results Parameter Analysis Parameter Influence Virtualization Influence Performance Modeling Model Analysis Interpolation
Synthetic Random
Extrapolation
Synthetic Random
Reduced Training Sets Nominal Split Technique Analysis Quality Comparison Parameter Tuning Tradeoff Analysis
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 23/25
Storage Performance Modeling
Model storage performance using various techniques: Predict only the virtualization overhead: Ahmad et al. (2003) Use fine-grained models: Kraft et al. (2011), Huber et al. (2010) Omit system parameters Wang et al. (2004), Anderson (2001), Lee and Katz (1993)
Measurement Based Regression Analysis
Use, evaluate and compare regression techniques on other systems:
Westermann et al. (2012), Courtois and Woodside (2000), Kim et al. (2007)
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 24/25
Summary Creation and evaluation of storage performance prediction models using regression techniques Evaluation of techniques and optimization possibilities Analysis Results Extra- and interpolation of storage performance using regression models works well: Errors ≤ 15% possible M5 and linear regression models are the best choice in these case. Optimization possibilities: Nominal parameters and configuration of the regression techniques. Outlook Further analysis of the optimization possibilities of regression techniques. Application and validation using true applications.
Introduction Foundations Methodology Results Related Work Conclusion Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 25/25
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 1/16
How reproducible are the experiments results?
0.00 0.25 0.50 0.75 1.00 10 20
Relative Standard Error (%) Cumulative Distribution Function
Operation read write
rError = σR · 100%
√
5 · R Read Requests:
Mean Standard Error: 3.35% 90th percentile: 8.45%
Write Requests:
Mean Standard Error: 2.10% 90th percentile: 5.35%
Each measurement run issues up to 2.7M requests. Measurements are sufficient repeatable and stable.
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 2/16
What is the influence of virtualization?
0.00 0.25 0.50 0.75 1.00 20 40 60
Relative Error (%) Cumulative Density
Operation read write
rError =
2
− singleVM
singleVM
Mean write requests: 16.67%
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 3/16
Which parameters have an influence on the response time?
Read Write 25 50 75 0/100 25 50 75 0/100 Parameter filesetSize blockSize sequentialAccess scheduler readPercentage filesetSize:sequentialAccess blockSize:sequentialAccess sequentialAccess:scheduler
98.71% (Read) and 99.53% (Write) of the variation can be explained. Without interaction terms: Only 54.03% (Read) or 63.36% (Write) Interactions terms are necessary. All five parameters influence the response time.
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 4/16
How good is the interpolation of the regression models when using synthetic test sets?
87.02% 13.47% 38.40% 86.36% 34.34% 6.49% 66.32% 9.19% 38.11% 66.84% 16.00% 4.24%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 25 50 75 100
Relative Error (%)
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 5/16
How good is the interpolation of the regression models when using synthetic test sets?
97.27% 20.16% 61.29% 95.92% 41.01% 12.58% 107.14% 41.93% 74.89% 110.33% 64.59% 45.51%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 30 60 90 120
Relative Error (%)
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 6/16
How many measurements are needed for an accurate model?
red1 red2
Block size 4 kB, 32 kB 4 kB, 16 kB, 32 kB Read percentage 25%, 75% 25%, 50%, 75% File set size 1 GB, 100 GB 1 GB, 50 GB, 100 GB Access random, sequential random, sequential Scheduler NOOP , CFQ NOOP , CFQ # of configurations 32 108
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 7/16
80.76% 14.64% 112.57% 76.99% 50.92% 104.46% 57.87% 9.78% 62.62% 56.67% 29.48% 24.24%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 30 60 90 120
Relative Error (%)
red1
79.79% 12.29% 43.61% 82.89% 34.35% 16.70% 61.95% 8.51% 32.96% 59.87% 17.15% 14.66%
m5 mars multi mars cart lm 5param inter lm m5 mars multi mars cart lm 5param inter lm read write 30 60 90 120
Relative Error (%)
red2
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 8/16
CART
Model minsplit cp p (comparing to cart)
cart
20 0.01
cart var1
5 0.01 identical
cart var2
20 0.001 0.014
cart var3
5 0.001 0.015
MARS
Model nk threshold p (comparing to mars multi)
mars multi
20 0.001
mars var1
40 0.001 0.04
mars var2
20 0.0001 identical
mars var3
40 0.0001 0.04
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 9/16
FFSB Syscall Interface VFS Layer Filesystem Layer Block Layer Scheduler Device Driver Virtualization Layer Storage Interface Device Controller Storage Medium Kernel Level System Level Storage Device Level
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 10/16
Controller Machine Benchmark Harness Benchmark Controller Benchmark Driver for FFSB SQLite Database R – Statistics Tool Analysis Library Analysis, Optimi- zation & Regressi-
VM 2 FFSB Benchmark VM 1 FFSB Benchmark SSH
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 11/16
Controller Machine Benchmark Harness Benchmark Controller Benchmark Driver for FFSB Benchmark Driver Benchmark Driver Datastore Interface SQLite Database R (Analysis Software) Analysis Library Datastore Interface Aggregation Functions Regression Functions Analysis Functions System Under Test 2 Machine Hardware System Under Test 1 Machine Hardware FFSB Benchmark Benchmark Benchmark SSH SSH SSH
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 12/16
Differences from all three tools:
No automated analysis of the benchmark results No automated model generation No automated analysis of the regression models No integration for storage benchmark
Differences from Software Performance Cockpit:
No simoultaneaous execution of benchmarks on multiple hosts Relies on RMI for the transport
Differences from Ginpex:
Missing integration of external benchmarks No regression technique integration
Differences from Faban:
No specification of multiple jobs to be run. No analysis possibilities
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 13/16
performance in VMware ESX Server virtual machines. In Workload Characterization,
10.1109/WWC.2003.1249058.
Eric Anderson. Simple table-based modeling of storage devices. Ssp technical report, HP Laboratories, July 2001. Marc Courtois and Murray Woodside. Using regression splines for software performance
performance, WOSP ’00, pages 105–114, New York, NY, USA, 2000. ACM. ISBN 1-58113-195-X. doi: 10.1145/350391.350416. Nikolaus Huber, Steffen Becker, Christoph Rathfelder, Jochen Schweflinghaus, and Ralf H.
Proceedings of the 32nd ACM/IEEE International Conference on Software Engineering
978-1-60558-719-6. doi: http://doi.acm.org/10.1145/1810295.1810297.
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 14/16
Hyunjoong Kim, Wei-yin Loh, Yu-shan Shih, and Probal Chaudhuri. Visualizable and interpretable regression models with good prediction power. IIE Transactions, 39: 565–579, 2007. Stephan Kraft, Giuliano Casale, Diwakar Krishnamurthy, Des Greer, and Peter Kilpatrick. IO performance prediction in consolidated virtualized environments. In Proceedings of the second joint WOSP/SIPEW international conference on Performance engineering, ICPE ’11, pages 295–306, New York, NY, USA, 2011. ACM. ISBN 978-1-4503-0519-8. doi: 10.1145/1958746.1958789. Edward K. Lee and Randy H. Katz. An analytic performance model of disk arrays. SIGMETRICS Perform. Eval. Rev., 21(1):98–109, June 1993. ISSN 0163-5999. doi:
10.1145/166962.166994.
Qais Noorshams, Samuel Kounev, and Ralf Reussner. Experimental evaluation of the performance-influencing factors of virtualized storage systems. In Proceedings of the 9th European Performance Engineering Workshop (EPEW’12), Munich, Germany, July 30-31, 2012.
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 15/16
Mengzhi Wang, Kinman Au, Anastassia Ailamaki, Anthony Brockwell, Christos Faloutsos, and Gregory R. Ganger. Storage device performance prediction with CART models. In Proceedings of the The IEEE Computer Society’s 12th Annual International Symposium on Modeling, Analysis, and Simulation of Computer and Telecommunications Systems, pages 588–595, Washington, DC, USA, 2004. IEEE Computer Society. ISBN 0-7695-2251-3. Dennis Westermann, Jens Happe, Rouven Krebs, and Roozbeh Farahbod. Automated inference of goal-oriented performance prediction functions. In 27th IEEE/ACM International Conference On Automated Software Engineering (ASE 2012), September 2012.
Dominik Bruhn – Modeling and Experimental Analysis of Virtualized Storage Performance October 12, 2012 16/16
