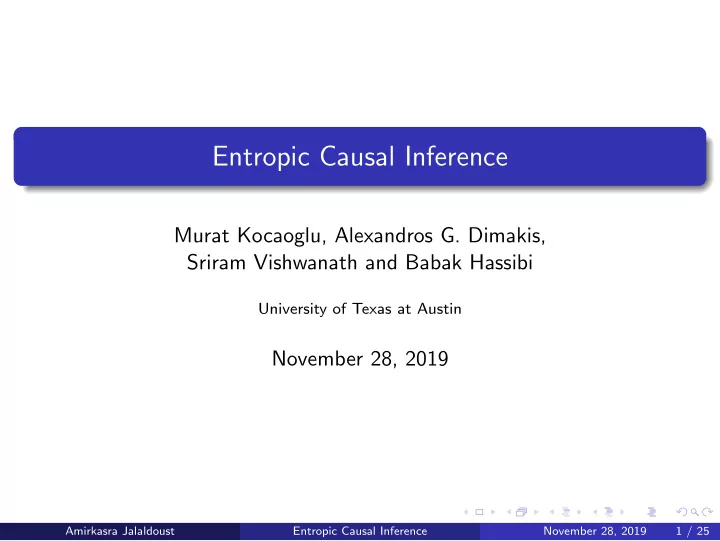

Entropic Causal Inference

Murat Kocaoglu, Alexandros G. Dimakis, Sriram Vishwanath and Babak Hassibi

University of Texas at Austin

November 28, 2019

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 1 / 25

Outline

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach Background and Notation

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach Background and Notation Identifiability (H0)

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach Background and Notation Identifiability (H0) Identifiability (H1)

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach Background and Notation Identifiability (H0) Identifiability (H1) Greedy Entropy Minimization

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Outline

Problem Definition Approach Background and Notation Identifiability (H0) Identifiability (H1) Greedy Entropy Minimization Experiments

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 2 / 25

Problem Definition

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Problem Definition

Pair of random variables: (X, Y ) ∼ pX,Y

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Problem Definition

Pair of random variables: (X, Y ) ∼ pX,Y Causal discovery: X

?

→ Y

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Problem Definition

Pair of random variables: (X, Y ) ∼ pX,Y Causal discovery: X

?

→ Y Structural Causal Model: E ∼ pE Y = f (X, E)

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Problem Definition

Pair of random variables: (X, Y ) ∼ pX,Y Causal discovery: X

?

→ Y Structural Causal Model: E ∼ pE Y = f (X, E) Causal sufficiency: X ⊥ ⊥ E

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Problem Definition

Pair of random variables: (X, Y ) ∼ pX,Y Causal discovery: X

?

→ Y Structural Causal Model: E ∼ pE Y = f (X, E) Causal sufficiency: X ⊥ ⊥ E Example: Additive noise: f (X, E) = f (X) + E Linear causal mechanism: f (X) = A.X + µ

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 3 / 25

Approach

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 4 / 25

Approach

The use of information theory as a tool for causal discovery

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 4 / 25

Approach

The use of information theory as a tool for causal discovery e.g. Granger causality, Directed information and etc.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 4 / 25

Approach

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 5 / 25

Approach

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 6 / 25

Approach

Key Assumption: Exogenous noise E is “simple” in the correct causal direction. Occam’s Razor There should not be too much complexity not included in the causal model

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 7 / 25

Approach

Focus on discrete random variables i.e. categorical variables pX(i) = P(X = i) Notions of simplicity: Renyi entropy Ha(X) = 1 1 − alog(

• i

pX(i)a) This work emphasizes on: Shannon entropy: H1 Cardinality: H0

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 8 / 25

Approach

Objective: Find the minimum H(E) such that Y = f (X, E) is feasible

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 9 / 25

Identifiability (H0)

Causal model: M = ({X, Y }, E, f , X → Y , pX,E) Independent identically distributed samples: {(xi, yi)}i ∼ pX,Y Decide X → Y or Y → X, given the joint distribution pX,Y .

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 10 / 25

Identifiability (H0)

Have in mind that both X, Y have cardinality n and E has cardinality m.

Definition

(Conditional distribution matrix). n × n matrix Y |X(i, j) := P(Y = i|X = j). The vector vec(Y |X)(i + (j − 1)n) = Y |X(i, j) is called the conditional distribution vector.

Definition

(Block Partition Matrices). Consider a matrix M ∈ {0, 1}n2×m. Let mi,j represent the i + (j − 1)n th row of M. Let Si,j = {k ∈ [m] : mi,j(k) = 0}. The matrix M is called a block partition matrix if it belongs to C := {M : M ∈ {0, 1}n2×m, i ∈ [n]Si,j = [m], Si,j ∩ Sl,j = ∅, ∀i = l}.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 11 / 25

Identifiability (H0)

Equivalent condition for existence of causal mechanism:

Lemma

Lemma 1. Given discrete random variables X, Y with distribution pX,Y , ∃ a causal model M = ({X, Y }, E, f , X → Y , pX,E) with H0(E) = m if and

• nly if ∃M ∈ C, e ∈ Rm

+ with i e(i) = 1 that satisfy vec(Y |X) = Me.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 12 / 25

Identifiability (H0)

Lemma

(Upper Bound on Minimum Cardinality of E). Let X, Y be two random variables with joint probability distribution pX,Y (x, y), where H0(X) = H0(Y ) = n. Then exists a causal model Y = f (X, E), X ⊥ ⊥ E that induces pX,Y , where m = H0(E) ≤ n(n1) + 1. If the columns of Y |X are uniformly sampled points in the n1 dimensional simplex, then n(n1) states are necessary for E

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 13 / 25

Identifiability (H0)

True causal direction: Y = f (X, E), X ⊥ ⊥ Y Wrong causal direction: X = g(Y , ˜ E), ˜ E ⊥ ⊥ X Under mild assumptions about the generation process of causal mechanism f , X, E instead of Y |X, we can have the same lower-bound.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 14 / 25

Identifiability (H0)

Definition

(Generic Function). Let Y = f (X, E) where variables X, Y , E have supports X, Y, E, respectively. Let Sy,x = f −1

x

(y) ⊂ Ebe the inverse map, i.e., Sy,x = {e ∈ E : y = f (x, e)}. A function f is called “generic”, if for each (x1, x2, y) triple f −1

x1 (y) = f −1 x2 (y) and for every pair (x, y),

f −1

x

(y) = ∅. Causal mechanism f will be generic almost surely (!)

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 15 / 25

Identifiability (H0)

Theorem

(Identifiability). Consider the causal model M = ({X, Y }, E, f , X → Y , pX,E) where the random variables X, Y have n states, E ⊥ ⊥ X has θ states and f is a generic function. If the distributions of X and E are uniformly randomly selected from the n1 and 1 simplices, then with probability 1, any ˜ E ⊥ ⊥ Y that satisfies X = g(Y , ˜ E) for some deterministic function g has cardinality at least n(n − 1).

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 16 / 25

Identifiability (H0)

Assume that we have the algorithm A that given the joint probability of X, Y , outputs E and f such that Y = f (X, E) with minimum cardinality E.

Corollary

The causal direction can be recovered with probability 1 if the original exogenous random variable E has cardinality less than n(n − 1), the causal mechanism f is generic and the distributions of X and E are selected uniformly randomly from the proper simplice.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 17 / 25

Identifiability (H0)

Proposition

(Inference algorithm). Suppose X → Y . Let X ∈ X, Y ∈ Y, |X| = n, |Y| = m. Assume that A is the algorithm that finds the exogenous variables E, ˜ E with minimum cardinality. Then, if the underlying exogenous variable has less cardinality than n(m − 1), with probability 1, we have H0(X) + H0(E) < H0(Y ) + H0( ˜ E) . Unfortunately, it turns out there does not exist an efficient algorithm A, unless P = NP

Definition

Subset sum problem: For a given set of integers V , and an integer a, decide whether there exists a subset S of V such that

u∈S u = a.

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 18 / 25

Identifiability (H1)

THE EXACT SAME STORY!

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 19 / 25

Identifiability (H1)

Theorem

(Minimum Entropy Causal Model). Assume that there exists an algorithm A that given n random variables {Zi}, i ∈ [n] with distributions pii, i ∈ [n] each with n states, outputs the joint distribution over Zi consistent with the given marginals, with minimum entropy. Then, A can be used to find the causal model with minimum input entropy, given any joint distribution pX,Y . Finding the causal model with minimum entropy of exogenous variable that induce a given distribution pX,Y is NP hard!

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 20 / 25

Identifiability (H1)

Conjecture

Consider the causal model of random variables X, Y having n states, E ⊥ ⊥ X having θ states. If the distribution of X is uniformly randomly selected from the n1 dimensional simplex and distribution of E is uniformly selected from the probability distributions that satisfy H1(E) ≤ log(n) + O(1) and f is randomly selected from all functions f : [n][][n], then with high probability, any ˜ E ⊥ ⊥ Y that satisfies X = g(Y , ˜ E) for some deterministic g entails H1(X) + H1(E) < H1(Y ) + H1(E).

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 21 / 25

Greedy Entropy Minimization

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 22 / 25

Experiments

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 23 / 25

Experiments

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 24 / 25

Experiments

Amirkasra Jalaldoust Entropic Causal Inference November 28, 2019 25 / 25
