SunGuide Software SM Engineering Chang Proposal (ECP)2.0 Review Liang Hsia, P.E. Traffic Engineering Systems Section Traffic Engineering and Operations Office December 7, 2005 1 SunGuide Software SM ECP 2.0 Review Voting Item Cost

slide-1
SLIDE 1

1

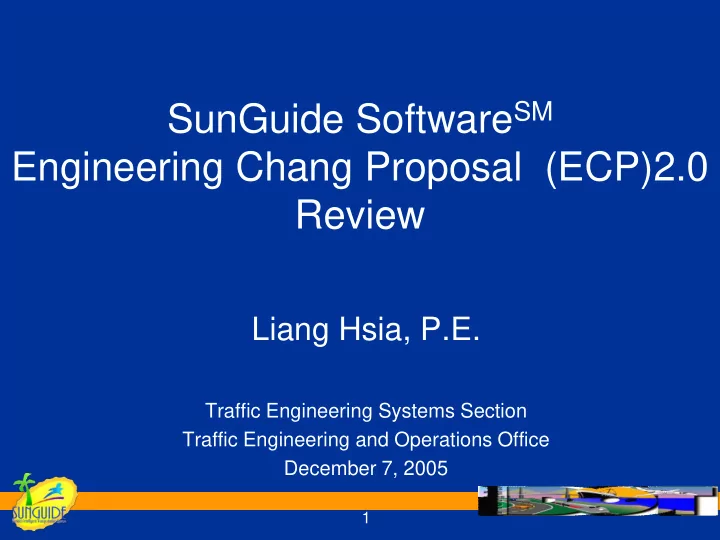

SunGuide SoftwareSM Engineering Chang Proposal (ECP)2.0 Review

Liang Hsia, P.E.

Traffic Engineering Systems Section Traffic Engineering and Operations Office December 7, 2005

slide-2
SLIDE 2

2

SunGuide SoftwareSM ECP 2.0 Review

Item Cost Voting Results Priority Notes

IM Through C2C $121,275.00 7 Yes; 1 No Road Ranger $122,916.00 6 Yes; 2 No Support & Maintenance $237,192.00 Yes 1

CMB approved for FY06 budget of $237,192.00 in July, 2005

Travel Time $80,942.00 Yes 2

CMB approved in July, 2005

Performance Measures Future

slide-3
SLIDE 3

3

SunGuide SoftwareSM ECP 2.0 Review

Item Cost Voting Results Priority Notes

Tag Readers 3 Yes; 1 No Emergency Evacuation $ - 42,340.00 6 Yes; 2 No 3 Proportional Fonts $174,631.00 4 Yes; 1 No

slide-4
SLIDE 4

4

SunGuide SoftwareSM ECP 2.0 Review

Item Cost Note

ECP 2.0 $694,616.32 SunGuide Contract Under Run $ - 444,358.00 Based on 11/9/2005

slide-5
SLIDE 5

5

SunGuide SoftwareSM Deployment Update

Liang Hsia, P.E.

Traffic Engineering Systems Section Traffic Engineering and Operations Office December 7, 2005

slide-6
SLIDE 6

6

  • District 4
  • District 2
  • District 6
  • MDX
  • District 7
  • District 1

SunGuide Software Deployment and Tentative Integration Schedule

  • Lee County
  • District 5
  • District 3
  • Turnpike Enterprise
  • TERL
slide-7
SLIDE 7

7

District 4 Schedule

  • June 13-17, 2005:

SunGuideSM Software deployed at D4 TMC

  • June 27-28, 2005:

Operator and Administrator Training

  • August 12, 2005: 45

CCTV available

  • August 16 Software

Design & Maintenance Training

  • October 2005:

Complete I/95/I595 Video Monitor System

slide-8
SLIDE 8

8

District 2 RTMC

Oct 3-7, 2005 SunGuideSM Deployment Oct 4-6, 2005 Operator and Administrator Training

slide-9
SLIDE 9

9

District 6 RTMC

  • August 29, 2005: Milestone

Demonstration

  • November 1-3, 2005: FAT
  • November 7-11, 2005:

SunGuideSM software deployment

  • November 15-16: Operator

and Administrator Trainings

  • November 9, 2005: I-95

Package B project completion

  • 1st Quarter 2006: Ramp

Meters, C2C

slide-10
SLIDE 10

10

MDX Schedule

  • March 2006

SunGuideSM Software Release 2 deployment at MDX

  • March 2006

MDX TMC Operational

slide-11
SLIDE 11

11

District 7 RTMC

June 2006: Building Construction Finish 3rd Quarter 2006: SunGuideSM Software Deployment Deployment Budget: $27,544.52

slide-12
SLIDE 12

12

District 5 RTMC

FY 2004: Orlando RTMC retrofit and upgrade September 8, 2004 - iFlorida Data Collection Process December 2005 FY 2004-2005: iFlorida C2C between Districts 2 and 5 Deployment Budget: $32,332

slide-13
SLIDE 13

13

Turnpike RTMC

SunNavSM Development April-December 2004: SunNav 1.2 Release

  • NTCIP Drivers for DMS
  • DMS GUI Field Sorting

November 2005 SunNav 2.0 (Final Completion)

  • Web-based XML Release
  • NTCIP Camera Driver
  • Replication of Data
  • Incident Management Dynamic

Expansion

  • Response Plan Upgrades

1st Qaurter 2006 SunGuideSM Software

  • Center-to-Center Interface Module
slide-14
SLIDE 14

14

District 1

May 2005: I-75 Safety Barrier System upgrade December 2006: SunGuideSM Deployment at Ft. Myers RTMC FY 2011 (2005): Sarasota RTMC Deployment Budget: $27,395 for Ft. Meyers; $27,545 for Sarasota

slide-15
SLIDE 15

15

District 3

FY 2007 Pensacola RTMC FY 2008 Tallahassee RTMC Deployment Budget: $29,772 for Pensacola; $30,277 for Tallahassee

slide-16
SLIDE 16

16

Lee County Bridge Incident Management

July 27, 2004 Lee County Public Works sent letter to FDOT indicating Lee County’s participation in SunGuide Software Project TBD SunGuide Software deployment

slide-17
SLIDE 17

17

Traffic Engineering Research Lab

  • Deployment Budget: $9,577.52
  • Early February, 2006
slide-18
SLIDE 18

18

SunGuide SoftwareSM Future Needs

Liang Hsia, P.E.

Traffic Engineering Systems Section Traffic Engineering and Operations Office December 7, 2005

slide-19
SLIDE 19

19

SunGuide SoftwareSM Future Needs

  • Portable SunGuide version with

Microsoft Access

  • Long Term Support and Maintenance –

$1,585,413 from FY 06-FY 12 FY 06 - $237,192.32 ( Approved in July, 2005 CMB) FY 07 – $246,794.32 FY 08 – $196,049.12 FY 09 – $231,590.40 FY 10 – $220,227.92 FY 11 – $230,151.48 FY 12 - $223,407.48

  • Performance Measures
  • Tag Readers
slide-20
SLIDE 20

20

Traffic Engineering Research Lab for ITS

Liang Hsia, P.E.

Traffic Engineering Systems Section Traffic Engineering and Operations Office December 7, 2005

slide-21
SLIDE 21

21

Traffic Engineering Systems Section

  • Certification - APL
  • Quality Engineering
  • TERL Research Project
  • Specification test and update
  • Device, equipment, system test
  • Signal Technical Advisory Team

(STAT)

slide-22
SLIDE 22

22

Traffic Engineering Research Lab

  • Traffic Systems Research
  • Intelligent Transportation Systems Research
  • Statewide Communications Research
slide-23
SLIDE 23

23

Research Team

slide-24
SLIDE 24

24

TERL Facility

slide-25
SLIDE 25

25

Proposed Traffic Engineering Systems Research

1. Quality Engineering Research and Development for the TERL ITS Lab 2. NTCIP Standards/Testing Development for Actuated Signal Controllers 3. Traffic Signal System Certification

  • 4. Traffic Sign and Signal System Support
slide-26
SLIDE 26

26

Proposed ITS Research Projects

1. TERL ITS and SunGuide Software Lab Setup with Ongoing Configuration Management (software, hardware, and network) 2. ITS Device Testing and Certification Processes Research to maintain and update ITS Specifications 3. ITS Devices NTCIP Florida MIB

slide-27
SLIDE 27

27

Proposed ITS Research Projects

  • 4. ITS Software Integration and Acceptance

Tests

  • 5. ITS Software Interfaces with

DYNASMART

  • 6. ITS Center-to-Center Communications
slide-28
SLIDE 28

28

Traffic Signal System Research and Evaluation

slide-29
SLIDE 29

29

Signal and Sign Support System

After Hurricane Charley, August 13, 2004

slide-30
SLIDE 30

30

Quality Engineering Research Area

slide-31
SLIDE 31

31

Ramp Metering, Traffic Device Test Area

slide-32
SLIDE 32

32

Signal, Controller, QA Test Station

slide-33
SLIDE 33

33

ITS Device Object Definitions and NTCIP Testing

  • NTCIP 1203

Dynamic Message Signs v1.0 Amendment 1

  • NTCIP 1204

Environmental System Sensors (RWIS) v02.18

  • NTCIP 1205

Closed-Circuit Television Control v01.08 Amendment 1

  • NTCIP 1206

Data Collection Management

  • NTCIP 1207

Ramp Meter Control

  • NTCIP 1208

Video Switches v01.11

  • NTCIP 1209

Transportation System Sensor

slide-34
SLIDE 34

34

NTCIP 1203 Dynamic Message Signs

slide-35
SLIDE 35

35

Web Server: Snapshots and DMS

slide-36
SLIDE 36

36

NTCIP 1204 Environmental System Sensors

(RWIS on FDOT Tallahassee Microwave Tower)

slide-37
SLIDE 37

37

NTCIP 1205 Closed-Circuit Television Control

slide-38
SLIDE 38

38

NTCIP 1206 Data Collection Management

slide-39
SLIDE 39

39

NTCIP 1207 Ramp Meter Control

slide-40
SLIDE 40

40

NTCIP 1208 Video Switches

slide-41
SLIDE 41

41

NTCIP 1209 Transportation System Sensor

slide-42
SLIDE 42

42

Safety Barrier Cable System

Existing System Proposed Mode of Operation

slide-43
SLIDE 43

43

NTCIP Translator

Use of NTCIP translator devices for non-NTCIP devices

  • Saves SunGuide development costs for device driver
  • Facilitates integration of legacy devices
slide-44
SLIDE 44

44

TMC Video Wall

slide-45
SLIDE 45

45

TMC Video Wall Space

slide-46
SLIDE 46

46

ITS Device & SunGuide Software TMC Test Area

slide-47
SLIDE 47

47

ITS Network and Hardware

Servers for SunGuideSM Software Applications

  • Database
  • Production Application
  • Test Application
  • Configuration Management
  • Simulation Host
  • Web Application
  • C2C
  • Central Data Warehouse
  • Network Administration

Storage Area Network (SAN) Storage and Backup, Tape Backup Network Equipment Switches and Routers for Device and System Interconnect Network Administration Tools

slide-48
SLIDE 48

48

Servers, ITS Devices, & CODEC Rack Room

slide-49
SLIDE 49

49

Traffic Engineering Research Lab

  • Statewide Communications Research
slide-50
SLIDE 50

50

Statewide Communications Test Area

slide-51
SLIDE 51

51

TMC and Communications Test Areas

slide-52
SLIDE 52

52

FDOT Microwave Tower

slide-53
SLIDE 53

53

Conference Room/ Typical Office

slide-54
SLIDE 54

54

Research Office Director’s Visit
