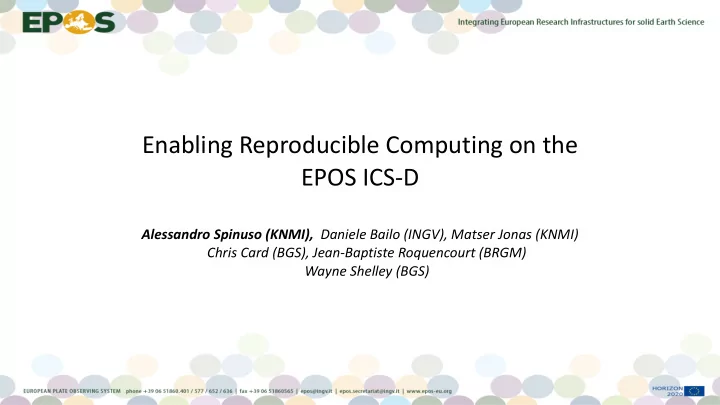

Enabling Reproducible Computing on the EPOS ICS-D

Alessandro Spinuso (KNMI), Daniele Bailo (INGV), Matser Jonas (KNMI) Chris Card (BGS), Jean-Baptiste Roquencourt (BRGM) Wayne Shelley (BGS)

Computational Earth Science (CES)

European Plate Observing System

Long-term plan to facilitate integrated use of data, data products, and facilities from distributed research infrastructures for solid Earth science in Europe.

ICS-D The distributed Integrated Core

Services element of EPOS.

• ComputaAonal and Data Storage

Infrastructures (HPC, Cloud)

• Services of general interest

(Data publishing services, external metadata catalogues, AAAI).

• Earthquake Simulation

Produce synthetic seismograms for Earth models and earthquakes via the execution of HPC simulation software (SPECFEM3D - SPECFEMGLOBE)

• Data processing & Misfit Analysis

Observed data and synthetics are processed and compared via Data Intensive methods. Data accessed from federated international archives (FDSN), indexed and reused

CES: Earthquake Simulation VRE’s (portal.verce.eu)

HPC

S-PROV ProvONE PROV-O

Traceable and Combinable Computations across Workspaces (portal.verce.eu)

ICS-D HPC (SCAI) ICS-D Cloud

CES embedded into the EPOS portal workspaces

Distributed Data Discovery through ICS-C Catalogue

From data discovery to analysis in dedicated workspaces Spatial integration Temporal integration Processing

• stage the distributed raw data onto computaMonal

environment to develop/apply custom methods.

• apply preprocessing workflows to the

raw data before custom analysis.

• be informed about libraries that fit the selected

data and use them.

• update the raw data that is already in the

computaMonal environment

• keep old versions of raw data

(Reproducibility / Comparison)

• archive the state of their environment

(Track Progress / Restore)

CES embedded into the EPOS portal workspaces

Data Resource A Data Resource B

Processing Workspace

Workflow for Data-Staging & Preprocessing

a researcher wants to

Notebook Service, architecture and requirements

ICS-D

AAAI Contextualisation

Workers Workflow Data-Stage & Preprocessing Raw Data Volume Results Notebook pages lib requirements

Notebook Containers Workflow Containers

Workers Workflow Data-Stage & Preprocessing Raw Data Volume Workflow Data-Staging & Preprocessing Raw Data Volume Notebook Service API

• Read-only and extensible input data

(staging_history).

• Workflow and Notebook container(s) share

Volumes (Workflow as a Service).

• Libraries selectable from the EPOS ICS

catalogue.

• Users’s Data Volumes archived on-

demand with notebook pages and library requirements (snapshot).

• Controlled by the EPOS GUI through

a dedicated API.

Notebook Service, architecture and requirements

ICS-D

AAAI Contextualisation

Workers Workflow Data-Stage & Preprocessing Raw Data Volume Results Notebook pages lib requirements

Notebook Containers Workflow Containers

Workers Workflow Data-Stage & Preprocessing Raw Data Volume Workflow Data-Stage & Preprocessing Raw Data Volume Notebook Service API

• Read-only and extensible input data.
• Workflow and Notebook container(s) share

Volumes (Workflow as a Service).

• Libraries selectable from the EPOS ICS

catalogue.

• Users’s Data Volumes archived on-

demand with notebook pages and library setup (snapshot).

• Controlled by the EPOS GUI through

a dedicated API.

Similar systems we learn from

Build and Run Docker images from Github Repositories with notebook pages. Environment version Control

Notebook Service API Specification

• Creation and management of a notebook instances and its snapshots.
• Upload and execution of workflows. (data-staging, on-demand preprocessing).
• Workflows runs are associated with an active notebook through a notebookID.
• API implemented adopting REST Verbs to manage workflows, notebooks, snapshots and runs.

Workflows Role in EPOS

Objective: Performing routine operations as well as custom computations (at scale). Technology:

• Common Workflow Language for portable and scalable descriptions (CWLTool)
• Dispel4py Python based workflow:

○ Parallel Streaming computational API. ○ Multiple mappings (HPC, Cloud, MultiProcessing). ○ Customisable provenance capture and semantic contextualisation.

Agents (Abstract Workflow & User’s Context) Agents (Concrete Software Actors)

Data-Intensive Provenance Model: Streaming Stateful Operators (S-PROV)

Agents (Abstract Workflow & User’s Context) Agents (Concrete Software Actors)

State

Actors I/O Data and Metadata

Multilayered provenance Semantic Clustering Process Delegation Resource Mapping

Data-Intensive Provenance Model: Streaming Stateful Operators (S-PROV)

Agents (Abstract Workflow & User’s Context) Agents (Concrete Software Actors)

State

Actors I/O Data and Metadata

Multilayered provenance Semantic Clustering Process Delegation Resource Mapping

Data-Intensive Provenance Model: Streaming Stateful Operators (S-PROV)

Further Extension: notebook snapshots’ dependencies and users’ configurations.

API Methods Provenance acquisition (bulks). Monitoring and lineage queries. Contextual Metadata discovery. Comprehensive summaries. Export to PROV formats. (PROV-XML/RDF Turtle)

S-ProvFlow Data-Intensive provenance as a Service

https://github.com/KNMI/s-provenance

API Methods Provenance acquisition (bulks). Monitoring and lineage queries. Contextual Metadata discovery. Comprehensive summaries. Export to PROV formats. (PROV-XML/RDF Turtle)

S-ProvFlow Data-Intensive provenance as a Service

https://github.com/KNMI/s-provenance

Conclusions

• Balance between automation and user’s control in coupling data discovery

and processing.

• Exploiting containerised software and infrastructures integrating Workflows

and Notebooks associated with EPOS Workspaces.

• Workflows as a Service (WaaS) for routine operations.

Provenance and contextual metadata for validation and traceability.

• Reproducibility mechanisms (in progress).
• Resilient to changes at remote data providers (staging_history).
• On-demand Archiving and Restore of intermediate progress (snapshots).
